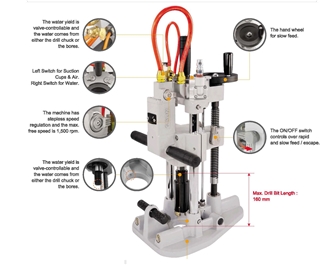

Handheld Drill Machine

Handheld Stone Drilling Machine Undercut Drill Mobile Stone Tool

Main application: This stone hand drill machine is suitable for drilling holes for undercut anchors in marble, granite, ceramic board, honeycomb board, high-density cement board, and various man-made fiber boards. All dry hanging undercut anchor holes processing.

This equipment has reasonable structure design, small size, light weight, quick and light operation, adopts one-way 220V voltage, low power consumption, energy saving and environmental protection, and has two operation modes: fixed and mobile. It is especially suitable for the needs of small and medium-sized curtain wall back bolts and project finishing.

Equipment Technical Parameters:
Maximum package size: 550*350*250 (mm)
Maximum vertical size: unlimited
Aperture: M7.2, M9, M11, M13
Undercut anchor hole drilling depth: 5-20mm (if the drilling depth is greater than 20, an extended drill bit needs to be customized)
Voltage: AC 220V
Rotating speed: 11000r/min (using the domestic first brushless angle grinder without carbon brush replacement for life)
Machine power: 1350W
Air pressure: power of the connected air pump is 2KW or above
Water pressure: power of the self-priming pump is 550W or 750W, and the head is more than 30 meters

BILDA handheld slot milling machine makes narrow half-moon precision slots in the sides of facade panels of various materials, mainly natural stone and ceramics. The slots are compatible with BILDA cladding system, which comprises a special grid substructure and interface components. The machine is designed for productivity and ease of use.
ADVANTAGES:
• Easy to operate without special technical training of the operator
• Lightweight, compact and easily transportable
• Slots are produced with precise and clean finish
• High performance generates fast return on initial investment
• Universal application for various types of facade panels
• Equipped with a water tank and a compact pump forming a closed circulating system, which removes the need for constant water supply
• Integral water system cooling the cutting instruments and reducing dust production
• Easy maintenance and mobility
