Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
FOB Price:$6180-6490
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

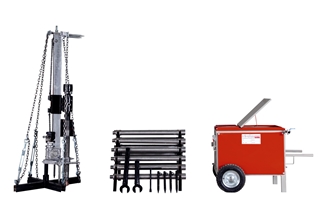

Hydraulic DTH165-H Driller is suitable for fast drilling of stone in quarry:
● Multiple fastening points for easy relocation of the machine, especially suitable for fast drilling works in narrow spaces.
● Optimized double-hinge or universal ball joint between the headpiece and main frame make it possible for drilling vertical, horizontal or inclined holes.
● Unique slide guide and propulsion designs ensure fast feed and the straightness of drilled holes.
● Choice of power source to meet special working conditions in different quarry: pneumatic, pneumaticelectric or pneumatic-hydraulic.
● Hammers and drill bits of various specifications are available to meet the requirements for drilling stone of different hardness.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
Description:
TECHNICAL SPECIFICATIONS
Model DHT
Rotation speed ---
Tool diameter ---
Drilling speed ---
Drilling depth ---
Weight of the machine from 19 up to 30 kg
Korfmann Cut Machinery
Italy
Korfmann Cut Machinery s.r.l
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

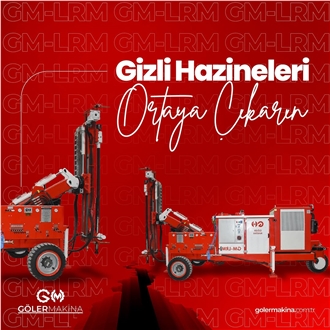

TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Ünite Motoru / Engine Unit 7.5 KW, 10 Hp, 1500 dev/dak Elektrikli / (Rpm) with Elektricity
Sağ Sol Dönüş Motoru /
Right-Left Rotation Engine Hidrolik Motor / Hydraulic Engine
Aşağı Yukarı Hareket Motoru /
Forward-Backward Movement Engine Hidrolik Motor / Hydraulic Engine
Delme Boyu / Drilling Length Sapmadan 15 m/30 m Delme Kapasitesi / 15 m/30 m Drilling Capacity with No Deviation
Delme Hızı / Drilling Length 1metre / 3-5 dak. - 1 m. / 3-5 min.
Delme Çapı / Drilling Diameter 90 mm
Hava Tüketimi / Air Consumption 2.1 m3 / dak (6 Bar Basınçta) - 2.1 m3 / min. (6 Bar pressure)
Tij Boyu / Tij Lenght 100 cm 10 Adet - 100 cm / 10 Piece
Matkap Ucu / Drilling Bit Hava Tabancası Bit ile Birlikte 1 Adet / Air Gun with Bit 1 Piece
Çalışma Tipi / Operation type
Sağa Sola Hareket Hidrolik Kontrollü/ Right and Left Movements are Hydraulic
Control
Aşağı Yukarı Hareket Hidrolik Kontrollü/Up and Down Controls are Hydraulic Control
Verilen Aksesuarlar / Accessories
2 Ad. Anahtar, 3 Ad. Gergi Zinciri ve Aparatları, 1 Ad. Yağdanlık, 10 Ad. Boru, 1 Ad. Hava
Tab. Boru Sehpası, 4 Ad. 10’ar Metre Hidrolik Hortumları,1 Ad. 10 Metre Hava Hortumu
2 Piece Wrench, 3 Piece Tension Chains and Accecories, 1 Piece Lubricator, 10 Piece Bits,
1 Piece Air Gun Bit Stand, 4 Piece Hydraulic Hoses 10 m, 1 Piece 10 Meter Air Hose
Makinanın Net Ağırlığı / Weight 115 kg.
Makine Ekipmanları ile Birlikte Ağırlığı
Machine Weight With Equipments 450 kg. / Total 450 kg.
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
FOB Price:$1-1
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Drilling Using Dual Motors - Walking.
Fast and Powerful Drilling.
Night Work Lamps.
Hydraulic Jaw System,
Keyless Pipe Removal and Installation.
Easy Installation Works 3-4 Times Faster Compared to DRILLING.
One Person Usage Ability.
Installation in the shortest possible time with the Tower Rotation System and Disassembly Jaws.
Double Engine (Diesel - Electric).
Electric MOTOR ↔ 22 kw 30 hp
DIESEL ENGINE ↔ 55 kw 80 hp AIR COOLED 4 CYLINDER DEUTZ
Gun ↔ Right-Left Rotation: Hydromotor - Transmission Reinforced
Gun ↔ Forward and Reverse Movement: Hydromotor - Transmission Reinforced
Machine Forward - Reverse Movement 3WD Italian Travel System
Drilling Speed ↔ 2 m / 6-10 Minutes (at 6-10 Bar)
Drilling Diameter ↔ Between 85 mm - 100 mm
Air Consumption ↔ 2.1 m³-4.5 m³ (at 6-10 Bar)
Working Angle ↔ Horizontal - Vertical - Parallel - Oblique Angles
Usage:Balancing - Boom Sliding - Sliding - Sled Upright Pistons -
Total Weight ↔ 4.900 Kg
Height ↔ 6 Mt.
Width ↔ 2.10 Mt
Height ↔ 2 Mt.
Supplied Accessory ↔ 2 mt 14+1 Pcs. Pipe / PERVOL GUN
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
FOB Price:$6900-7600
Warranty: 12 Months
Usage: Granite, Limestone, Artificial Stone
Machinery Function Features:
Description:
LIEYANKEJI Machinery adopting a mechanical fuel injection engine that meets the national emission standards, it has strong power, energy conservation, environmental protection, high reliability, and excellent performance. Key hydraulic components adopt the latest technological achievements, with low energy consumption and fast response.
Product Introduction:

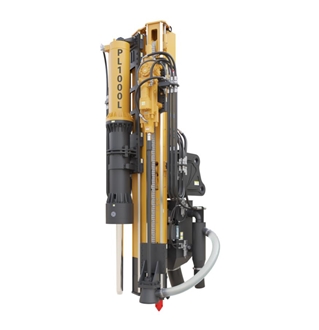

PL1000L Rock Drilling and Splitting Machine is mounted on (24T-36T) excavators for use in a variety of hard rock square mining projects, to solve the hard rock efficient and environmentally friendly mining program. Make full use of its power and super mobility, can be applied to a variety of outdoor complex working conditions, unique L-type triangular swing articulation structure, stable and durable structure, can be adapted to various angles of construction, easy to disassemble and easy to transport, back mounted circuit and hydraulic system for easy maintenance and other features. The equipment is operated by a multi-channel and highly reliable wireless remote control. Utilizing the 22KW hydraulic rock drill, the rock drilling is carried out first, and then the P240 two-stage pressurized super splitter is used to enter the hole to split, so as to achieve the effect of high-efficiency rock static blasting.
Its high-efficiency hydraulic rock drill fully embodies the high economic drilling costs, hydraulic drive air compressor using excavator hydraulic drive, than the traditional (diesel-driven independent air compressor) more stable, lower maintenance costs, better economy. Splitting blocks are made of imported alloy forging material through advanced heat treatment process to make them more durable.
Rock drilling and splitting machine efficiency
Drilling approx. 2 minutes, splitting approx. 40 secs.
Side swinging and positioning about 50 seconds minutes.
Output per hole (theoretical)
2.5m (horizontal spacing) x 1.2m (vertical spacing)
x 1m (splitting depth) = 3m³.
Daily output (8 hours)
3m³(per hole) x 137 holes/day = 411m³
Product Parameters
Rock Drill Parameters Power (output) 22kW
Borehole diameter Φ89-127mm Drilling depth 1600mm
Drilling speed 1m/min Operating noise In line with GB 19872-2005
Splitter parameters Splitting depth 1000mm
Splitting force (two-stage pressurization) 12000T Angle of rotation 120°
Air compressor/vacuum cleaner Parameters: Exhaust volume 4.5m³/min
Exhaust pressure 5-8bar Number of cartridges 5P
Push Beam/Side Swing Parameters Maximum thrust of rock drilling 40KN
Maximum pull-out force for splitting 80KN Remote Control Parameters
Side Swing Velocity 1rpm Number of digital points 30
Range of validity 50m Anti-interference capability >50dB
Number of analog channels 14 Total weight 4T
Machine Parameters: Total width 1500mm
Overall length 4140mm Excavator requirements 24-36T
Overall height 1570mm
LIEYANKEJI
China
Hunan Lieyan Technology Co., Ltd.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
Characteristics
1. The Rugged track was driven by hydraulic motor with high traveling ability.
2. The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.
3. The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.
4. The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.
5. The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.
6. The carriage with rollers provides for minimal wear to the drill guide.
7. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.
8. The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.
9. The special compensation device makes a full protection of drill rod threads.
CM358A hydraulic crawler down-hole drill rig is a multi-functional Rock blsting drilling rig driven by internal combustion engine, the hydraulic rock drilling rig power was provided by hydraulic system except for impacting and the hole cleaning wind. CM358A crawler drilling rig is convenient and efficient to operate. This mobile drilling rig is the best replacement for traditional pneumatic drills in most operation. The DTH Drilling rig is compact in structure, simple in operation, light in total weight. CM358A hydraulic crawler DTH drilling rig is widely used for blast-hole drilling in the mines and quarries.The wagon drill is also used for anchor in road, railway, power station, civil engineering and building etc.
JCDRILL
China
Beijing Jincheng Mining Technology Co.,Ltd - JCDRILL
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone
Machinery Function Features:
2 Rock drills
360 ° rotation
4 wheel drive
Reliable SpeedROC 2F is a productive drill rig for the dimension stone industry. It is highly productive thanks to its long reach and fast positioning. This versatile machine has a flexible drilling capacity and excellent tramming stability.
It is the perfect choice for granite, marble and limestone quarries.
Picoroc
Italy
Picoroc Srl
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
€15000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MAGNUS 90 Drill
The Drilling Machine has the function of drilling into any stone to pass the diamond wire. It is an autonomous machine. It is adaptable to various types of soil. Allows vertical, horizontal and inclined drilling.
You can place your order or request a quote through our contacts.
MALTA & MOIZAO
Portugal
MALTA & MOIZAO, LDA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The tr-ex 1000 is an excavator or backhoe mounted drill attachment built to be dependable, rugged and versatile. The attachment mounts to the excavator (dipper stick) and after installation you can go from drilling to bucket or breaker work in 20 minutes.
Benefits
• Big reach advantage over dedicated hydraulic drill rigs
• Very quick setup times between holes
• Ideal for blast hole, pipeline, pre-shear, rock bolting and drilling with casing
• Incredible geometry for drilling
• Hydraulic drill performance & reliability
• Lower capital cost than a dedicated drill rig
• Excellent mobility
• Operator health and safety
The bottom line
Traxxon Rock Drills has been building drills from the ground up for over 40 years. We manufacture every one of our products using the highest quality components, dedicated skilled technicians and using our decades of experience. We are customer focused and driven. Our goal is simply to help you lower your drilling costs and increase your bottom line, the power to drill more for less.
Drifter
Model:...........Sandvik HL300 (other options available)
Percussion:.......8 kW (10.73 hp)
Weight:.............94 kg (207lbs)
Hole Range:.........35mm - 64mm (1-3/8” – 2.5”)
Hole Depth: .....15m (50’)
Attachment & feed assembly
Feed Beam: ..........High Tensile steel
Drill Guides:.................Adjustable & replaceable bronze
Drill Travel:..................Heavy duty chain & hydraulic drive motor
Steel Length:....................3700mm (12’) maximum length
Hose Control:.............Drifter mounted hanger, travels with drifter
Centralizer:...Hydraulic with replaceable hardened bushings
Feed Swing:...................40° by hydraulic cylinder
Feed Dump: ..................180° Carrier bucket cylinder
Mounting:......................Quick attach bucket mount on boom stick
Storage: .........................Built in stand
Weight:.......................816kg (1,800lbs)
Traxxon
Canada
Traxxon Rock Drills Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Travertine
Machinery Function Features:
Drilling rigs for open pit mining
These types of drilling rigs designed for drilling blast holes in quarries and construction works. Ispolschuyut hammer drilling technology of high pressure series COP (44/54/64/64Gold) or QL (40/50/60).
Rock Tools Company, LLC
Russian Federation
Rock Tools Company, LLC
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
DTH drill Model HP-90 PF
Designed as the natural evolution of a range that is committed to excellence, this rig is used in the execution of previous holes cut with diamond wire is provided with hammer tallante mouth thoroughly with a diameter of 90 mm and hydraulic drive. -
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Onyx, Basalt, Quartzite, Travertine
Machinery Function Features:
Fast and Powerful Drilling.
Night Work Lamps.
Hydraulic Jaw System,
Keyless Pipe Removal and Installation.
Easy Installation Works 3-4 Times Faster Compared to Drilling.
One Person Usage Ability.
Italian Walking System (Crawler). 5 TONS
Double Engine (Diesel - Electric).
Drilling Using Dual Motors - Walking.
Engine Type ↔ Electric - Diesel (Dual Engine)
DIESEL ENGINE ; 4 Cylinders Air Cooled 55 kw 80 hp DEUTZ
ELECTRIC MOTOR 22 kw 30 hp
Gun Left Right Rotation ↔ Hydromotor Gun
Forward and Reverse ↔ Hydromotor - Transmission Boost
Machine Back and forth ↔ Italian 6 TON Crawler Walking
Drilling Speed ↔ 2 m / 6 -10 Min. (6-10 Bar)
Drilling Diameter: Between 85 mm - 100 mm
Air Consumption ↔ 2.1 m³ - 4.5 m³ (6-10 Bar)
Tower Angle ↔ Horizontal - Vertical - Parallel - Angled
Total Weight ↔ 5.900 Kg
Usage ↔ Balancing - Boom Sliding - Slide Slide - Vertical Slide Pistons - Tower Rotation System and Disassembly Jaws,
Length ↔ 6 m.
Width ↔ 2.1 m.
Height ↔ 2 m.
Supplied Accessory ↔ 2 mt 14+1 Pcs. Pipe / PERVOL GUN
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Slim Drill Machine LD4 Description
Pneumatically Operated Drill Capable Of Drilling In Both Down The Hole Jack Hammer Modes-Ideally Suitable For Drilling Lead Holes For Diamond Wire Cutting Of Decorative Marble, Granite Rocks, Etc. The Machine Has Been Specially Designed For Precision Drilling Of Matching Holes And The Ability To Drill Holes In Both Vertical And Horizontal Positions. A Ball Joint Is Provided At The Bottom Of The Mast To Facilitate Precision Alignment For Matching Holes. Provided With One Spike Two Anchoring Rods Adjusting Screws To Maintain Perfect Rigidity During Drilling. Light In Weight, The Machine Can Be Easily Dismantled Into Four Subassemblies-Each Weighings Not More Than 50 Kg – Thus Ensuring Easy Portability And Repositioning.
Supplier And Dealer Of All Typer Of Rock Drilling Equipment In India, Telangana, Andhra Pradesh, Hyderabad, Ongole. Rock Drilling” Has Always Been An Arduous Task And In The Above Context-We Take Pleasure In Introducing “MINCON” Rock Drilling Equipments. Mincon Rock Drills Is A Manufacturer Of Rock Drilling Equipment, Committed To Providing The World Drillers With Drilling Rigs Of The Highest Standards. It Is Through Continuous Research And Development That We Are Able To Bring Our Customers The Very Best That Is Available To Complete The Most Difficult Drilling Tasks In The Toughest Conditions.
QUALITY BRAND
India
KNMBM INTERNATIONAL
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
JRD down-the-hole (DTH) Crawler drills offer the highest mobility. Equipped with powerful down-the-hole hammers. CD-360 is designed for high-capacity rock drilling in quarries, opencast mines and rock excavation projects. CD-360 is designed for large and medium-sized quarries and contractors. They match perfectly with 4” & 5″ hammers, making the rigs uniquely productive and keeping fuel consumption and operating costs to a minimum and offer high penetration rates, reliability, and excellent fuel economy. CD-360 Crawler Drill is a self-propelled crawler type drill, designed for drilling holes in vertical and horizontal planes. The Ruggedly constructed Track (Crawler) demonstrates effortless manoeuvrability on rough ground. Each track is driven by heavy duty hydraulic motor through planetary Gear reduction unit with built-in braking system. This is enough to tram the CD-360 with its compressor in tow right to the job site.
SPECIAL FEATURES
Rugged Constructions
Stable drilling capabilities
Heavy Duty Tow Hitch
Track Oscillation through Hydraulic Cylinders
Heavy Duty Boom
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
Application
The rock blasting drilling rig DM100A/B is high powered with easy operation system. The pneumatic drill could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16,the quarry drilling machine can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes. The construction drilling equipment DM100A/B is really a gear helping hands for you to improve efficiency.
Characteristics
1. Forward, turn,and the impact of all the compressed air as power, structure simple ,power,relocation facilities.
2. In the single-top,double top, bearing-type three supporting structures to choose fom, can adapt to any geological features.
3. Centralized control mechanism, easy to operate.
4. Unique dual muffler, muffler effect, reducing environmental pollution
JCDRILL
China
Beijing Jincheng Mining Technology Co.,Ltd - JCDRILL
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
IR2010 is a new model drill, we developed it specially used for stone quarry and the drill hole can be different diameter, depth, multi-orientation and angle.
Advantages:
1 Light weight, easy installation and transportation
2 The high quality pneumatic components ensure lower energy air consumpition
3 The good hoisting ability
4 The particular mechanical tube devices for screwing and dischargin
Kia Kimia
Iran
Kia Kimia
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
JRD Air Crawler Drill capable of drilling Holes Dia90 – Dia120mm (3½”- 4¾”) to a depth of 36.0mtrs used in open Cast Mines for Drilling and Blasting Purposes. JRD CD-110 Air Crawler Drill is a self-propelled crawler type drill, designed for drilling holes in vertical and horizontal planes. The drill Guide, boom, controls are all mounted on a heavy duty track assembly. JRD Radial Piston type Air motors are designed with well balanced and nil vibrations provide smooth operation of Rotary Head, Feed unit, Propelling unit and driving Hydraulic Pump for operation of seven Hydraulic Cylinders. The Ruggedly constructed Track (Crawler) demonstrates effortless manoeuvrability on rough ground. Track oscillation system through hydraulic cylinders is provided allowing the track to flex up on either side thus providing positive ground contact while tramming over rough terrain. Tramming power is supplied by two Powerful Piston type Air Motors with Self-braking reduction gearbox directly connected to final drive to minimize power loss and ensure drive efficiency. This is enough to tram the CD-110 with its compressor in tow right to the job site.
SPECIAL FEATURES
Rugged Constructions
Stable drilling capabilities
Structurals designed for extra rigidity
Widest Choice of Down Hole Drill or Top Hammer
Heavy Duty Tow Hitch
Track tensioning arrangement
Track Oscillation through Hydraulic Cylinders
Heavy-Duty Radial Piston type Air propelling motors with Self-breaking arrangement
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
PRD TRACTOR MOUNTED PILING & DRILLING RIG
Application :
Piling
Water well Rig ( DTH )
Auger Drilling
Rotary Drilling Rig
Solar Piling
Pole Drill Assembly Rig
Optional Attachment - Top Winch, Centrifugal Mud Pump, RC Drilling, Core Drill, Geo Technical Drilling.
PRD
India
PRD Rigs India Private Limited
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
Crawler Drill JRD Model CD-360VH down-the-hole (DTH) specially designed for drilling Matching Lead holes for diamond wire cutting of Marble & Granite. CD-360VH offer the highest mobility equipped with powerful down-the-hole hammers and is designed for high-capacity rock drilling in Granite & Marble quarries for Block/Rock excavation. They match perfectly with 4” hammers, making the rigs uniquely productive and keeping fuel consumption and operating costs to a minimum and offer high penetration rates, reliability, and excellent fuel economy. CD-360VH Crawler Drill is a self-propelled crawler type drill, designed for drilling holes in vertical and horizontal planes. The Ruggedly constructed Track (Crawler) demonstrates effortless manoeuvrability on rough ground. Each track is driven by heavy duty hydraulic motor through planetary Gear reduction unit with built-in braking system.
SPECIAL FEATURES
Rugged Constructions
Stable drilling capabilities
Heavy Duty Tow Hitch
Track Oscillation through Hydraulic Cylinders
Heavy Duty Boom
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
JRD – 120 Wagon Drill, capable for Drilling 90-120mm dia holes to a depth of 36mts. Used in open Cast mines for drilling and blasting purposes. Pneumatic Drifter can be mounted to carry out Drifter Drilling. Mounted on Rugged Box Frame, Fitted on wheels for easy shifting from hole to hole can drill holes from Vertical to Horizontal. The drills are available to handle 76mm dia x 2mtrs. (6 1/2 ft) & 3(10 ft) mts drill pipes.
SPECIAL FEATURES
Stable drilling capabilities
Structurals designed for extra rigidity
Rear wheel swivelable by 90oto prevent movement during toe hole drilling
Effectively braked wheels with telescopic adjustable stabilizers in the front, holding the unit firmly
Easy maneuverability – both in manual and self-propulsion modes
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
Description:
TECHNICAL SPECIFICATIONS
Model DHT
Rotation speed ---
Tool diameter from 85 up to 250 mm
Drilling speed
---
Drilling depth
---
Weight of the machine from 24 up to 530 kg
Korfmann Cut Machinery
Italy
Korfmann Cut Machinery s.r.l
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Special Heavy Duty SKID Mounted Drilling Rig for drilling Angular holes from 20 degree horizontal to Vertical specially used for drilling Grout holes for Strengthening of Foundation. The Mast is capable of handling 76mm dia ODX1.5mtrs (5ft) Drill Pipe fitted with Rotation unit & feed unit. The Mast is raised & lower by Hydraulic Cylinder operated by direction control valve & double lock Check Valve.
SPECIAL FEATURES
Stable Drilling capabilities
Structural designed for extra rigidity
Anchoring arrangement ensures perfect stability during drilling
Centralized sensitive controls with auto feed arrangement ensure easy operation and reduction of operation fatigue
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
JRD top hammer drill rigs are equipped with powerful hydraulic rock drills that offer high penetration rates, reliability, and excellent fuel economy. CD-360TH is designed for high-capacity rock drilling in quarries, opencast mines and rock excavation projects. CD-360TH is designed for large and medium-sized quarries and contractors. CD-360TH is a self-propelled crawler type drill, designed for drilling holes in vertical and horizontal planes. The Ruggedly constructed Track (Crawler) demonstrates effortless manoeuvrability on rough ground. Each track is driven by heavy duty hydraulic motor through planetary Gear reduction unit with built-in braking system.
SPECIAL FEATURES
Rugged Constructions
Stable drilling capabilities
Powerful Hydraulic Rock Drill
Heavy Duty Tow Hitch
Track Oscillation through Hydraulic Cylinders
Heavy Duty Boom
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
TECHNICAL SPECIFICATIONS
Model PFK
Power of main electric motor 4.0 Kw / 5.5 Hp
Tool diameter DTH from 80 up to 105mm
Air consumption 3,5 mc
Drilling speed 20mt/h
Drilling depth over 30 mt
Weight station ---
Weight of the machine 290 kg
Korfmann Cut Machinery
Italy
Korfmann Cut Machinery s.r.l
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ref.: 47
Corner Down the Hole Machine suited to the triangulation process for passing the diamond wire. Allows vertical, horizontal and inclined drilling. Ideal for drilling in quarry corners. Does not require lashing and is equipped with hydraulic stabilizers. Easy start-up. Equipped with a platform for transporting all the material. Drilling travel of 2000 mm.
The machine that adapts to the corners of your quarry.
Fravizel
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Ref.: 48
Column Down the Hole Machine suited to the triangulation process for passing the diamond wire. Allows vertical, horizontal and inclined drilling. Drilling travel of 2000 mm. All components are easy to handle. Quick start-up. Separate rod and central platform.
Fravizel
Portugal
Fravizel - Equipamentos Metalomecanicos, S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
Handy Maxidrill is a hydraulic drilling mobile unit, totally independent, and suitable for vertical drilling on any inclined and in any type of rock.
Some of its important characteristics are: two chain feed slides for drifters, sliding block and truck made in self-lubricating composite material, fast system steel retainer,anti jamming device, hydraulic device for inclinations regulator, radio remote control panel and water or air drain drilling.
Intermek
Greece
INTERMEK S.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone
Machinery Function Features:
2 Rock drills
360 ° rotation
4 wheel drive
Reliable SpeedROC 2F is a productive drill rig for the dimension stone industry. It is highly productive thanks to its long reach and fast positioning. This versatile machine has a flexible drilling capacity and excellent tramming stability.
It is the perfect choice for granite, marble and limestone quarries.
Picoroc
Italy
Picoroc Srl
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Ünite Motoru / Engine Unit 7.5 KW, 10 Hp, 1500 dev/dak Elektrikli / (Rpm) with Elektricity
Sağ Sol Dönüş Motoru /
Right-Left Rotation Engine Hidrolik Motor / Hydraulic Engine
Aşağı Yukarı Hareket Motoru /
Forward-Backward Movement Engine Hidrolik Motor / Hydraulic Engine
Delme Boyu / Drilling Length Sapmadan 15 m/30 m Delme Kapasitesi / 15 m/30 m Drilling Capacity with No Deviation
Delme Hızı / Drilling Length 1metre / 3-5 dak. - 1 m. / 3-5 min.
Delme Çapı / Drilling Diameter 90 mm
Hava Tüketimi / Air Consumption 2.1 m3 / dak (6 Bar Basınçta) - 2.1 m3 / min. (6 Bar pressure)
Tij Boyu / Tij Lenght 100 cm 10 Adet - 100 cm / 10 Piece
Matkap Ucu / Drilling Bit Hava Tabancası Bit ile Birlikte 1 Adet / Air Gun with Bit 1 Piece
Çalışma Tipi / Operation type
Sağa Sola Hareket Hidrolik Kontrollü/ Right and Left Movements are Hydraulic
Control
Aşağı Yukarı Hareket Hidrolik Kontrollü/Up and Down Controls are Hydraulic Control
Verilen Aksesuarlar / Accessories
2 Ad. Anahtar, 3 Ad. Gergi Zinciri ve Aparatları, 1 Ad. Yağdanlık, 10 Ad. Boru, 1 Ad. Hava
Tab. Boru Sehpası, 4 Ad. 10’ar Metre Hidrolik Hortumları,1 Ad. 10 Metre Hava Hortumu
2 Piece Wrench, 3 Piece Tension Chains and Accecories, 1 Piece Lubricator, 10 Piece Bits,
1 Piece Air Gun Bit Stand, 4 Piece Hydraulic Hoses 10 m, 1 Piece 10 Meter Air Hose
Makinanın Net Ağırlığı / Weight 115 kg.
Makine Ekipmanları ile Birlikte Ağırlığı
Machine Weight With Equipments 450 kg. / Total 450 kg.
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
$6900-7600
Warranty: 12 Months
Usage: Granite, Limestone, Artificial Stone
Machinery Function Features:
Description:
LIEYANKEJI Machinery adopting a mechanical fuel injection engine that meets the national emission standards, it has strong power, energy conservation, environmental protection, high reliability, and excellent performance. Key hydraulic components adopt the latest technological achievements, with low energy consumption and fast response.
Product Introduction:
PL1000L Rock Drilling and Splitting Machine is mounted on (24T-36T) excavators for use in a variety of hard rock square mining projects, to solve the hard rock efficient and environmentally friendly mining program. Make full use of its power and super mobility, can be applied to a variety of outdoor complex working conditions, unique L-type triangular swing articulation structure, stable and durable structure, can be adapted to various angles of construction, easy to disassemble and easy to transport, back mounted circuit and hydraulic system for easy maintenance and other features. The equipment is operated by a multi-channel and highly reliable wireless remote control. Utilizing the 22KW hydraulic rock drill, the rock drilling is carried out first, and then the P240 two-stage pressurized super splitter is used to enter the hole to split, so as to achieve the effect of high-efficiency rock static blasting.
Its high-efficiency hydraulic rock drill fully embodies the high economic drilling costs, hydraulic drive air compressor using excavator hydraulic drive, than the traditional (diesel-driven independent air compressor) more stable, lower maintenance costs, better economy. Splitting blocks are made of imported alloy forging material through advanced heat treatment process to make them more durable.
Rock drilling and splitting machine efficiency
Drilling approx. 2 minutes, splitting approx. 40 secs.
Side swinging and positioning about 50 seconds minutes.
Output per hole (theoretical)
2.5m (horizontal spacing) x 1.2m (vertical spacing)
x 1m (splitting depth) = 3m³.
Daily output (8 hours)
3m³(per hole) x 137 holes/day = 411m³
Product Parameters
Rock Drill Parameters Power (output) 22kW
Borehole diameter Φ89-127mm Drilling depth 1600mm
Drilling speed 1m/min Operating noise In line with GB 19872-2005
Splitter parameters Splitting depth 1000mm
Splitting force (two-stage pressurization) 12000T Angle of rotation 120°
Air compressor/vacuum cleaner Parameters: Exhaust volume 4.5m³/min
Exhaust pressure 5-8bar Number of cartridges 5P
Push Beam/Side Swing Parameters Maximum thrust of rock drilling 40KN
Maximum pull-out force for splitting 80KN Remote Control Parameters
Side Swing Velocity 1rpm Number of digital points 30
Range of validity 50m Anti-interference capability >50dB
Number of analog channels 14 Total weight 4T
Machine Parameters: Total width 1500mm
Overall length 4140mm Excavator requirements 24-36T
Overall height 1570mm
LIEYANKEJI
China
Hunan Lieyan Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
€15000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MAGNUS 90 Drill
The Drilling Machine has the function of drilling into any stone to pass the diamond wire. It is an autonomous machine. It is adaptable to various types of soil. Allows vertical, horizontal and inclined drilling.
You can place your order or request a quote through our contacts.
MALTA & MOIZAO
Portugal
MALTA & MOIZAO, LDA
Contact Supplier
- 1
Have a Question? Ask our expert
Ask now
