Home ProductsStone MachineryStone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
-

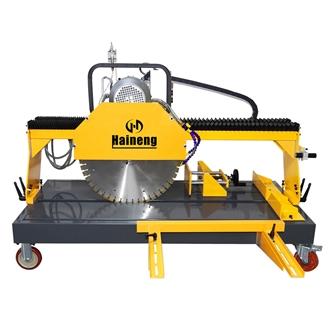

Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$4800-5400
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
One-piece structure, convenient transportation, no need to make cement foundation, small footprint and easy installation.
The cutting speed is controlled by frequency conversion, which is easy to operate. The unique head and guide design makes the cutting quality higher and faster. The platform is reasonable in design and easy to adjust, which is very suitable for cutting small plates and strips. The imported components and finishing accessories have low failure rate, are not easy to deform, and extend the service life of the machine.
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$960-1140
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
It can cut, chamfer the bottom angle, grind 45 degree V-shaped edge, pull the mosaic, open the ladder step slot and other functions. One machine can be used continuously for high efficiency. A good helper for construction sites, tile warehouses, stone processing plants and tile processing plants.
2200 watt pure copper brushless motor, stable use of belt drive, can cut large batches for long.
Square track, accurate cutting, stable and durable.
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-

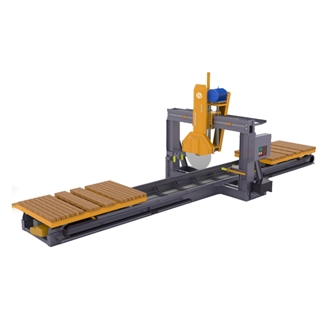

Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$14000-19900
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SPC-1300 uses jointed structure, trolley adopts frequency control, can adjust the feed rate according to the stone material and the feeding amount, with high cutting efficiency, high degree of automation, mainly applicable to cutting flat from the surface of the block base-plate, can make full using of block base-plate, improve the utilization rate of stone resources, turn waste into treasure, bring more economic benefits.
SHUINAN MACHINE
4YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$5400-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
One-piece structure, convenient transportation, no need to make cement foundation, small footprint and easy installation.
The cutting speed is controlled by frequency conversion, which is easy to operate. The unique head and guide design makes the cutting quality higher and faster. The platform is reasonable in design and easy to adjust, which is very suitable for cutting small plates and strips. The imported components and finishing accessories have low failure rate, are not easy to deform, and extend the service life of the machine.
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$12500-16000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
The mighty stone saw (30/60 horsepower) model is compact, portable, and lighter - making the task of hauling much easier. this model comes with a smaller and faster 30 in. blade for quicker cutting of your everyday stones. effectively changing the stone cutting industry,This mighty stone saw has been designed to be safe, sturdy and simply low maintenance. every aspect-from components to assembly-was designed to fit all the below criteria and do it at a reasonable price.
BESTLINK
7YR
China
XIAMEN BESTLINK FACTORY CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$3500-3800
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
This machine is used for cutting granit and marble tiles.
TIANJUN
6YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$4260-4440
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine can operate flexibility and conveniently,with a rotating worktable,suits for cutting tombstone and floor stone.
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$4140-4536
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine belongs to the conventional bending arm trimming machine. Application of granite, marble and other stone cutting and chamfering,processing, convenient operation, good stability, high ratio of performance to price
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$1520-1600
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Convenient full-automatic multifunctional tile (stone) cutting machine can cut, chamfer the bottom angle, grind 45 degree V-shaped edge, pull the mosaic, open the ladder step slot and other functions. One machine can be used continuously for high efficiency. A good helper for construction sites, tile warehouses, stone processing plants and tile processing plants.
2200 watt pure copper brushless motor, stable use of belt drive, can cut large batches for long.
Square track, accurate cutting, stable and durable.
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
FOB Price:$34500-45500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
◆ Machine Features:
1. No foundation needed, easy installation, easy for shipment.
2. It adopts enlarged trolley, 2 pcs of blocks can be placed one upon another to cut at the same time, the output can be doubled in this way.
3. It uses the main spindle and a vice spindle to seal all saw blades together which can ensure the machine is stable while cutting hard granite.
4. It uses a simple program of movement on the controlling box, easy for setting, handling, and maintenance.
5. It adopts two hydraulic pillars(a set of hydraulic systems) on both sides of the machine to ensure the strength of cutting spindle lifting up and down.
6. Unlike traditional stone cutting, it dramatically increases productivity and reduces labor cost and power consumption and it consumes less diamond segment per cubic meter of production compared to the traditional cutting machine.
7. Cast iron is adopted in the mainframe of the machine to make the machine more stable with less chance of vibration under the operating condition.
8. It produces about 36m³ of stone every day (24h) and covers a total space of 12m*3m
SHUINAN MACHINE
4YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone
Machinery Function Features:
New Double Head Bridge Cutting Machine for Natural Stone, Artificial Stone
HaoXiang
China
Foshan City HaoXiang Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Auto Cutter Drive - Edge Cutting Machine can cut the stone and tiles with high accuracy & without chipping, machine is fully automatic and economy in price.
Different cutting models are available as per customer requirment.
Please contact us for more details and which cutting size require, so we can quote best price.
Sigma Machine Tools
India
Sigma Machine Tools
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$5500-10000
Warranty: 12 Months
Usage: Granite, Marble, Slate, Onyx, Travertine
Machinery Function Features:
Description of TOPTEK Laser Cutting Machine
1 Fiber laser technology
Fiber laser cutter is a type of CNC laser metal cutting system with high quality, high speed, high precision and high efficiency, which is designed for all types of metal cutting, as well as your good metal working partner. It is equipped with different laser powers (1000W to 40000W) for cutting sheet metals and metal tubes of carbon steel, stainless steel, electrical steel, tool steel, galvanized steel, mild steel, aluminum zinc plate, aluminum alloy, aluminum, titanium alloy, brass, copper, iron, and more metals with different thicknesses.
2 Applications:
Electronics, automobiles, aviation, aerospace, auto parts, subway parts, electrical appliances, textile machinery, precision accessories, engineering machinery, food machinery, ship building, household appliances, metallurgical equipment, tool machining, elevators, metal arts, metal crafts, metal gifts, metal decorations, advertising, kitchenware, metal external machining, and some other manufacturing industries.
3 Materials to be cut :
Carbon steel, stainless steel, silicon steel, alloy steel, spring steel, mild steel, aluminum, galvanized steel, tool steel, zinc plate, copper, brass, pickling sheet, titanium, silver, gold, iron, alloy, and other metal sheets and tubes.
Working environment requirements
1.Humidity requirements: 40%-80%, no condensation.
2. Power grid requirements: 380V; 50Hz/60A.
3. Power supply grid fluctuations: 5%, the grid ground wire meets international requirements; if the voltage amplitude is more than 5%, automatic voltage regulation and current regulation devices should be installed.
4. Power grounding resistance: ≤ 4 ohms.
5. There should be no strong electromagnetic interference near the installation equipment. Avoid radio transmitters or relay stations around the installation site.
6. Ground amplitude: less than 50um; vibration acceleration: less than 0.05g. Avoid a lot of machine tools such as stamping in the vicinity.
7. Air pressure: 86-106kpa.
8. Equipment space requirements are guaranteed to be smoke-free and dust-free, avoiding dusty working environments such as metal polishing and grinding.
9. An anti-static floor must be installed and the shielded cable must be connected.
The water quality of the working cooling circulating water is strictly required, and pure water, deionized water or distilled water must be used.
TOPTEK
China
Shandong TOPTEK Co.,ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone
Machinery Function Features:
Cross cutting machine Suprax, model SL 1600
SUPRAX
Ref number: 04-011
Saw Suprax. Easy saw with close water circulation. The saw can cut in angle. Bridge construction welded in high kind of steel. Travel of the bridge on cogged slats. Bath is inside of the table. Manual support with fetter gear and handle. Manual go down.
Lenght of cutting: 2000 mm
Length x width of machine: 2930 x 1000 mm
Height of the table: 770 mm
Weight: 425 kg
Motor power:
(on request power: 3 kW for extra payment) 2,2 kW
Rotation: 2800 UpM
Depth of cutting
disc 300 mm:
disc 250 mm:
80 mm
55 mm
Power supply: 220V/50Hz
Mechanical travel of support on request (with power of motor: 037 kW with controle speed from 0,5 to 6,0 meters/min Mitsubishi) – for extra payment
Guarantee: 12 months.
Delivery: 4-6 weeks.
Saw with 1 edge table. Second edge table - for extra payment.
Available saw Suprax, model: SL 1600
PPHU Mazurski
Poland
PPHU Mazurski
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
SPECIFICATIONS
Disc Size Range 300 to 350
Table Size 800w x 3300l
Cutting length 3200
Disc Motor Power 4.0 kilowatt
Gross Power 5.0 kilowatt
Machine Weight 1.5 tonne
Overall Dimensions 4000l x 1500w x 1800h
Rhino
Australia
Rhino Engineered Machinery Group
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Cross Cutting Machine for marble,travertine
Merkon Machine
Turkey
Merkon Machine
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Cross cutting machine with single blade, swivel table and tilting bridge H45R. Ref 8802
Cross cutting machine with single blade, swivel table and tilting bridge
Simple and precise to cut in miter and / or false square to cut marble, granite, quartz, porcelain and solid surfaces.
The tilting head allows the blade to cut from 0º to +45 to make miter cuts easily, quickly and accurately.
The work bench is rotatable from + 45º to -45º to cut false square.
The machine is built with a monoblock structure, it does not need a foundation. It is also equipped with a basin that collects the residual water.
The workbench is made up of a series of plastic rollers (not motorized) installed on supports parallel to each other, which maintain the horizontal plane and rotate the degrees set by the operator on the display, with respect to the direction of advance of the disc. cut.
The workbench is equipped with a pneumatic clamping system that locks the material against the feed guide when cutting the diamond blade.
The head carrier bridge moves from 0º to + 45º from the vertical position. The rotation movement is mechanical and controlled from the display.
On this bridge composed of chrome bars, protected and with self-lubricating bushings, the cutting head moves.
In the upper part of the bridge is the control panel, with the functions of forward, backward, emergency stop, spindle forward speed, degrees of rotation of the workbench, to allow easy operation of the machine according to the safety rules.
The cutting head is equipped with an electric motor that transmits through V-belts and in a position where it is protected from water. The head is built in a way that prevents dirt from entering when working.
The cutting unit is equipped with a valve for cooling the blade.
The electrical system is installed in an electrical panel on the machine, on one side. The frequency variator is installed in this box to adjust the cutting head advance speed. Also installed are the display of the degrees of rotation of the bench and display of the degrees of inclination of the head.
The header is built to do the following movements:
Head disc cutting movement
Advance of the cutting head carriage by means of a gear motor
Rotating movement of the workbench by button
Bridge tilt movement via button
Locking by means of pneumatic cylinders to the two mobile jaws.
Technical characteristics:
Cutting heads: 1
Worktop height: 875mm 8up to 925mm)
Maximum useful cutting width with the bench at 0º: 850mm
Maximum useful cutting width with the bench at + 45º or -45º: 610mm
Maximum thickness: 75mm (bridge at 0º) 50mm (bridge at +45)
Idler Roller Workbench Length: 2,850mm
Maximum disc diameter: 400mm (hole 50mm)
Bank rotation: all degrees are shown on the display from 0º to +45 or 45º
Rotation of the head carrier bridge: All degrees are shown on the display from 0º to + 45º
Disc motor power: 7.5Kw
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Saw Diameter Ø 400/450 mm
Number of Saws 1 Piece
Saw Motor Power 7.5 kW / 11 kW
Saw Driving Power 1.5 kW
Maximum Cutting Width 800 mm
Minimum Cutting Thickness 10 mm
Maximum Cutting Thickness 80 mm
Ka Makina
Turkey
KA MACHINERY
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$17500-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
PLC400 /PLC600 laser bridge cutting machine is to cut the slab into required standard size slab accrately.
PLC700 is an improved series laser bridge cutting machine with cutting head available to title 45 degrees
WANLONG PLC series laser bridge cutting machines are quite suitable for high-valued and large size natural stones cutting and processing.
Stone available to process: granite, marble, limestone, travertine, basalt, sandstone, soapstone, etc.
WANLONG
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$23000-24000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone
Machinery Function Features:
High efficiency for cutting slab & tile, stable and reliable
Feature
1. Wide bridge structure with crossbeam, large size of slab cutting available
2. Equipped with infrared device, precise cutting location reachable
3. Dustproof design of the slide track ensures the precise guide movement & long lifespan
4. Worktable can tilt & rotate in wide angle for special processing
5. PLC control system, programmable, fully automatic & smooth feeding
6. Precise movement of head in X, Y, Z directions by rack & gear
7. Electric parts of Japanese name brand adopted, reliability guaranteed
8. Touch-sensitive operating system, friendly human-machine interface design
9. CE certificate
The crossbeam is made of strong cast iron to avoid distortion after long run
Guide rail is oil impregnated and protected from water and dust
Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
Horizontal movement of the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed
Worktable can tilt 0-85° , and rotate 0-360° .
Equipped with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic
Lead Time: 30 days after receipt the down payment.
WANLONG
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$10000-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone, Travertine
Machinery Function Features:
Main motor 30HP and 60HP for choice
Blade speed adjustable
Belt speed adjustable
Return Conveyor is an optional
XinAn Machinery
China
Fujian XinAn Machine Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
H600-CP / H600-L Single Blade Automatic Step Cross Cutting Machine
Cross cutting machine with single blade, transport belt and automatic multiple pass.
H600-CP cross cutting machine allows multiple pass cutting of hard and thick material up to 100mm(or up to 200mm in the H600-L version), guaranteeing at the same time the possibility of single pas cutting.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$4500-5000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is for cutting and chamfering slab. used jointed structure;the main head can rotate 45 degree and be electrically moving up and down.the whole machine has compact structure,fine appearance,stable functions and high processing,which suits for edge cutting and milling of small slates,lath and thick tiles.
KAIDA
China
Fujian Province Kaida Stone Machinery Co.,Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$10000-18000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone, Travertine
Machinery Function Features:
Powerful 45kw 60 Hp main motor
Man motor with inverter
Belt motor with inverter
Return conveyor optional
XinAn Machinery
China
Fujian XinAn Machine Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$6500-7200
Warranty: 12 Months
Usage: Granite, Marble, Quartzite
Machinery Function Features:
The machine adopts steel and casting iron structure, man-machine integration mode of operation, the cutting head can rotate 90 °, electric up and down, electric right and left, workbench drive by hand , the whole structure strong and stable, stable performance and nice appearance. High efficiency and cutting accuracy, is suitable for cutting small slabs, bar, slabs trimming, chamfer and etc.
Motor:Jiangsheng
Contactor: LG
Switch button: SIEMENS
The equipment conforms to the national standard.
FURUITE
China
Fujian Province Furuite Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$10000-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone
Machinery Function Features:
Powerful 45kw 60 Hp main motor
Man motor with inverter
Belt motor with inverter
Return conveyor optional
XinAn Machinery
China
Fujian XinAn Machine Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Automatic cross cutting with one disc HSA-1
Automatic cross cutting HSA is a cutter to improve the optimization and use of marble, granite, porcelain and sintered stone.
Cuts different width measurements in a single pass with precision and productivity.
Strong and robust structure to support and move heavy parts
Motorized rubber belt to move the pieces to be cut, with 2 speeds of forward. A fast one to reach the desired measure and another slow one to position the material to the exact measure.
Pneumatic clamps to fix the part during cutting
Belt motor head that allows the disc revolutions to be varied according to the material to be cut.
Manual height adjustment that allows adjusting the cutting depth of the blade on the belt
Inverter that regulates the cutting advance speed of the head. In the final stage of cutting, the feed is automatically reduced to eliminate breaks in the material.
It is completed with a rapid return of the head reducing machining times.
The machine is equipped with a PLC that controls the different processing phases.
By means of a touch screen the operator can regulate and control the work cycles
Cut to size via joystick display
The operator takes the material close to the disc to make the first cut, and performs the recognition of the measurement using the joystick. In this way the measure is entered into the machine. You can enter different lengths.
Sequential automatic cut to size
The operator can enter a measurement on the screen (maximum 6)
set one of the following sequences
cutting sequences of different sizes
cutting sequence of a single repeating quota or multiple repeating dimensions
Cutting sequences can be combined with different material widths, creating a useful database for the operator.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone
Machinery Function Features:
A SINGLE BLADE SAW that allows cuts in stone slabs up to 14.5" thick.
• 40” Circular saw with diamond blade
• 90 Degree of vertical rotation side to side for bevel cutting
• 3” Vertical travel
• Works great over a Standish turntable
A PRODUCTION PIECE WITH NO FRILLS AT A REASONABLE PRICE!
Standish
United States
Standish Steel, Inc.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
The machine, which is mounted on a steel chassis, has a closed and oil reservoir rail system, and the speed control and the dimensions given with the desired cut precision cuts.
Saw speed and car speed tab is the target of the desired cut, while the target is to exit at high speed
Fully Steel is Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slide is Supported with Water-Free Protective Guards.
Our machine works with the help of cutting 90 degrees and 45 degrees reducers.
Flat Water Motor Has Been Used On Our Machine Head Cutting Up Down Inner Shell System Using Special Materials To Provide Precise Cutting In Bridge Cutting Machines, It Serves As A Sliding Coupling.
Our Wagon Side Cutting Machine is Designed as Both Cutting Sizing and Side Sizing.
Our machine Head rotation folk movement (C axis) is Manual
Our machine is 45 degree movement manual with reducer
Our machine is Slide Movement (Y axis) AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
It can be used both manually and automatically.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
The Machine Has Been Made Completely Steel NPL-U
With the help of a reducer, it provides speed controlled automatic cutting.
Information on the materials used in the machine
Electric Motors: Reducers
* Motorized Gearbox for Slip Ways (Transmission 0.75 gamak motor transmission)
* Piston Sliding Motorized gearbox (Transmission 0.75 gamma motor gearbox)
* Motorized transmission for transport wagon movements (Transmission between 0.75 motorized transmission)
* Gear box for 45 degree cutting movements (Flywheel / Gear Box)
* Straight waterproof motor for marble and granite cutting works (9.3 kW 1500/3000 double rounded peasant motor)
Movement / Walking Systems:
* 0.5 '' steel gear mechanism for transport wagon movement
* Head cutting motion system with the help of trapeze.
* Cable transport systems, sliding paths are applied on the motion functionality.
* Transport wagon Closed sliding track walking equipment is provided with transmission crank.
Steel Construction of the Machine
* Side cutting machine is steel monoblock and massive.
* The chassis is made of 320 NPLU material.
* The transport wagon is designed from 80 X 20 material.
* The carrier wagon also has a steel chassis and is processed in 6 axes on CNC machines.
* The rear tower is made of 10 mm thick solid sheet metal and designed to reduce the vibration of the machine.
* Top slide ways are processed from 10 mm solid sheet metal to 8 mm between the grid in CNC machines.
* Wagon parts, wagon wheels are made of chiffon gg50 alloy to resist wear.
* Piston System is solid steel thick pipe.
* All head cutting group parts are cleaned in the milling machine.
* Head group parts are covered with anti-corrosion and rusty parts.
…… .. …… .. WORKING PROCEDURE OF THE MACHINE ………………
Periodic maintenance of the machine should be done daily, weekly and annually.
Lubrication of critical parts of the machine should be done regularly. (such as hubs of pressure impellers, slide ways, engine lubrication pump, etc.)
In case of problems caused by poor maintenance or lack of maintenance, the buyer company covers the repair and repair costs.
Our company provides technical support as soon as possible depending on the conditions.
In case of any malfunction or incorrect operation depending on the user, any intervention will be performed after an expert inspection on the machine.
It is under warranty for 1 year.
It is the buyers' duty to supply on-machine cutting saws.
The machine's consumables are not covered by the warranty. (such as cut-off saws)
Accommodation and transportation costs of the assembly team belong to the buyer company.
… ..…. ACTIONS THAT MUST BE TAKEN BY YOUR PARTY DURING THE INSTALLATION PHASE… ...
An electrician is required for the installation of the cable connections to provide 13 kW of electricity near the fuse board of the machine.
To provide plumbing next to the machine.
Cutting saws must be provided on the installation.
Required space for machine installation: 7000 mm X 3000 mm X 2500 mm (height)
One can of machine oil (30 size), one can of Grease.
Marble Side Cutting ...
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Wall molding saw for precise cutting of miters.
Our wall molding saw is specialized in precise cutting of miters and in cutting to length wall molding, glue arounds and skirting boards up to 150 mm high.
weha
Germany
Weha Ludwig Werwein GmbH
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SCHIND CC01 Marble and Granite Cross Cutting Machine
Only the transverse cutting machine cuts jagged edges without any difficulty with its powerful motor.
It cuts straight on Y axis… No 45 ° cutting, No head rotation to another directions,
Cutting ability is net 800 mm on Y axis,
Cutting head group moves on the linear slides by button / joystick. Saw Forward – Saw Backward,
Marble slabs can be easily load on the plastic rolls for squaring,
Cutting speed is adjustable
Option: assembling bellows to cover upper body moving linear with additional cost
SCHIND MACHINES
Turkey
SCHIND MACHINES
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$3200-6500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is for cutting slab. Equipped with guide rail of oil-impregnation sealed type and main shaft of oil lubrication type. The compact structure makes easier cutting. Function of chamfering slab is optional.
WANLONG
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$8500-9000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is specially designed for cut-to-size tiles edge trimming with high precision and high productivity. Branded electronic components inside, inverter control system and button operating system together with its unique cutting head and sliding rail system ensures its high cutting efficiency and fast cutting speed. Safe and Easy to Operate, it is your ideal mate for cut-to-size tiles processing.
WANLONG
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Basalt
Machinery Function Features:
manual Hand-operated edge cutter, hand-operated stone saw- Single Disc Cutting Machine -
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
$6100-6600
Warranty: 12 Months
Usage: Granite
Machinery Function Features:
This machine is for cutting slab, Equipped with guide rail of oil-impregnation sealed type and main shaft of oil lubrication type. The compact structure makes easier cutting. Function of chamfering slab is optional.
Wanlong Group
China
FuJian WanLong Diamond Tools CO,.LTD
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Single disc cutter to perform simple and easy cutting jobs, on slabs, steps, baseboards or curbs, in marble, granite, quartz or porcelain.
The surface that supports the piece to be cut is composed of idle nylon rollers to move the material easily. Mechanical stops always keep the piece tailored and aligned to obtain a square cut with precision.
Equipped with a motor that transmits to the shaft by belts. In this way, the revolutions of the disc can be varied, depending on the material to be cut.
It automatically reduces the feedrate of the head in the terminal phase of the cut to avoid material breakage. Making the return of the head quickly and automatically reducing cutting times.
HERSEN S.L
Spain
HERSEN S.L
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone
Machinery Function Features:
TILBRETON 1DA - HEAD CUT-OFF MACHINE FOR MARBLE AND GRANITE
The Tilbreton DA is an head cut-off machine to squarely head off marble and granite strips to a reduced or predetermined length. The work table with free-moving rollers is equipped with a tabulator for cutting the pieces to the desired length.
The spindle unit, sliding on special chromium-plated steel cylindrical guides, is moved by an oleodynamic piston controlled by a motor-pump unit.
The rapid-return cycle is completely automatic. The electric cabinet conforming to IP 55 protection, contains all the control devices in low voltage. On request, the machine can be equipped with pneumatic pushers for aligning the strips against the straight-edge.
Italy
Breton S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
TILBRETON DAE - AUTOMATIC CUTTING MACHINE TO CUT THE LEADING/TRAILING EDGE OF STRIPS AND FOR THEIR DIMENSIONING
Fully automatic, this machine eliminates the need of the operator’s constant presence.
It can be easily programmed from a keyboard with monitor.
A series of motorized rubberized rollers and pressers guarantee the correct advancement of the strips so as to assure the feeding of the cutting area.
An encoder measuring the material feed and reading tracer points guarantee the cutting dimensions. The machine is equipped with centring strip-guides, adjustable through a handwheel.
CONTROL UNIT
The length of the end products can be programmed using a simple keyboard while the cutting program is visualized on the video monitor.
All the control devices are centralized within an electric board conforming to IP55 protection. If required by the country’s legislation, the machine can be supplied complete with appropriate safety barriers conforming to CE regulations.
SPINDLE UNIT
The diamond blade-holding spindle unit is mounted on a cast-iron trolley running along the rectified guides ofthe bridge on ball-bearing slides. The movement of the spindle-holding trolley is obtained by means of a geared belt and a reduction gear unit with inverter, which makes it possible to adjust the cutting advancement according to the type and thickness of the material to be processed.
The sliding system is lubricated in an oil bath and protected by stainless steel labyrinth seal covers.The spindle unit has pneumatic vertical exclusion: after cutting has been carried out, the spindle unit raises automatically before reaching the starting position, while securing the following strip positioning.
Italy
Breton S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
The machine, mounted on a steel frame, has a closed and oil reservoir rail system, with Linear Slide Kremier Transfer. The desired cut with the measurements given with the speed control makes precise cutting.
(AUTOMATIC) System Is Switched To Automatic Mode, The Barrel Moves Down Manually, The Wagon Starts To Cut The Stone, The Wagon Stops The Wagon Waits For The Head.
(SEMI-AUTOMATIC) Sizing values are entered on the screen. The system is taken to the sizing mode, the dimensions of the stone are entered, the hive moves automatically downward, the wagon starts to cut the stone, the hive is raised automatically when the wagon comes out of the ship, the wagon comes to the beginning. BiteR when the menstruation is complete
(XY FULLY AUTOMATIC) It is taken to the screen in full automatic mode, XY values are entered. The length of the parts to be cut is entered, the number of the parts, the dimensions are written, the hive moves automatically downwards, the car moves automatically, the stone starts to cut, the barrel automatically rises up when the wagon comes off, the wagon comes to the head tower counts the skid gauge and The Hive Retracts The Cutting (X AXIS When Cutting Is Finished, The System Turns Its Head Automatically, It Starts To Diminish The (Y) Minus In This Way, It Continues Up To The Plate Bit.
Fully Steel is Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slide System is Purified from Water, LİNER RAIL, Protective Bellows System is Integrated.
Our Machine Cutting 90 degrees and 45 degrees Reducer Works Automatically.
Flat Water Motor Has Been Used On Our Machine Head Cutting Up Down Inner Sleeve System Compare In Bridge Cutting Machines By Using Special Materials To Provide Precise Cutting, It Serves As A Sliding Coupling.
Our Wagon Side Cutting Machine is Designed as Both Cutting Sizing and Side Sizing, XY Sizing with full size system.
Our machine Head rotation circular movement (C axis) is AUTOMATIC
Our machine is AUTOMATIC with 45 Degree movement reducer.
Our machine is Slide Movement (Y axis) AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
Both Manual, Automatic, Semi-Automatic. Fully Automatic, Usable.
Head System is fixed at 45 degrees by cutting 0 to 90 degrees.
With the help of a reducer, it provides speed controlled automatic cutting.
Som-maK
Turkey
Som-maK Mermer Granit Makina Ltd Sti
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Artificial Stone, Basalt
Machinery Function Features:
Circular cross cut revolving saw for angle cutting, developed and designed to simplify cuts on small pieces. Ideal for creating tiles and design pieces. The machine is equipped with precision goniometer and it's available with manual or motorized feed.
ADVANTAGES
Revolving cross-cutting machine ARS for anglle cutting:
Available with manual or motorized head feed;
Maximum cutting precision guaranteed by a special beam design;
Head assembly swivelling: +45°, 0°, -45°.
Achilli
Italy
Achilli s.r.l.
Contact Supplier
Have a Question? Ask our expert
Ask now
Hot Product
