5 Axis Cnc Diamond Wire Saw Discover 5

5 Axis Cnc Diamond Wire Saw Discover 5
  • Product Detail

  • Supplier Profile

Price:

$100000/Pieces

Supply Ability:unlimited

Port:XIAMEN PORT

Min. Order: 1 (Pieces)

Packaging Detail: STANDART SHIPPING PACKAGE

Delivery Detail: 3 WEEKS

Shipment Terms: FOB

Payment Terms: T/T,L/C,Western Union

Description:

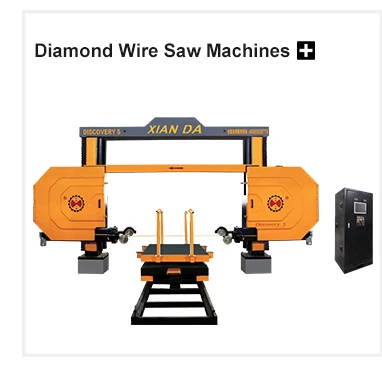

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE SHAPING

Discover 5 adopts latest 5 axis CNC system, it can process different size arc slabs, column, roman column, number, letter,chinese words also different shapes of marble or granite. And it can also process 3D shapes. Main Body with advanced and unique structure, makes its cutting with excellent precision, stability, efficiency etc advantages. Itis the ideal equipment for processing the special shapes stone.

1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.


2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.

3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.

4. Worktable is running by lead screw and railway.

5. There has automatic alarm and memory function if wire broken, on top of it.

6. Aluminum wheel diameter is 1590mm.One fly wheel slide through sheave, hydraulic oil pump control rope tension.

Parameter Unit DISCOVERY 5
Max Processing Size                            mm2600*2600*1500
Worktable Size (L×W)                                     mm2000*1400
Main Motor kw11
Beads diameter rangemm8.5-11
Wire-cutting speedm/s0-40
Productionm2/hMarble 1-2,Granite 0.5-1
Water Consumption m³/h4
Outline Dimension mm8000*6300*3800
Gross Weight kg7000



Company Information

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING

Our Services

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING

Related Products

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING



5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING



5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING

Certification

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING

FAQ

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING

Contact us homepage

5 AXIS CNC DIAMOND WIRE CUTTING MACHINE PROFILING FOR STONE 3D TWIST SHAPING



FUJIAN XIANDA MACHINERY CO., LTD

China-Fujian-Quanzhou Image1

Business Type: Machinery and Tools,Wholesaler,Factory,Exporter

Establishment Date:Dec 20,1984

No. of Total Employees:51 ~ 200

Main Products:CNC MONO WIRE STATIONARY DIAMOND WIRE SAW MACHINE, QUARRY CUTTING MACHINE, TOMBSTONE MONUMENT PROFILING MACHINE, POLISHING MACHINE, STONE GRANITE MARBLE BRIDGE SAW, DIAMOND WIRE SAW TOOLS

Contact Person:Robin Lee

Phone:86-13959953830

Fax:86-59588139047

Mobile:86-13255955586

Addr:Quanzhou city, Fujian

Website:Supplier Website

Certificates:
CE ISO

Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20,000 Square meters, located in the rapidly developing overseas Chinese hometown—Quanzhou Anhai Cultural and Historical Town, with convenience transportation.
We are dedicated to develop and explore series of stone processing machine and ranges of diamond wire saw at cutting, profiling, polishing. We are in these fields for the past two decades, having business relationships on a worldwide.
With rapid development, we have attained ISO9001 and CE, also won many honorary titles, including International Gold Plant Quality Award, China Construction Recommend Building Materials Production Enterprises.
S
ince 1985 we keep “Advanced Technology and High Quality” as our aim. Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. Our R&D department is optimizing machine functions and expanding machine range; our QC department is monitoring quality commitments as per international standards; our After-sale Team is under training and multi-tasks to fulfill your needs; our Marketing department is offering you best quality with most competitive prices.
By the effort of the whole stuffs, we have developed a range of “Xianda” Brand stone processing machine and a range of “Hexingda” Brand diamond wire sa
w.
Xianda Machinery Co., Ltd represents the innovative design and excellent quality in machine industry. We will move towards product diversification, high-tech, high-quality direction, and continue to maintain the leading position of industry leader, pioneering and innovativing. That is why ur products have received recognition and praise from our customers.
Xianda Machinery Co., Ltd is willing to work together with you and move towards the successful project in the future.
