Polymer Cushion Pushing Air Bag for Quarry

Polymer Cushion Pushing Air Bag for Quarry
  • Picture1
  • Picture2
  • Picture3
  • Picture4
  • Picture5
  • Picture6
  • Product Detail

  • Supplier Profile

Price:

$165/Pieces

Supply Ability:1000 pcs per month

Port:Xiamen

Min. Order: 10 (Pieces)

Packaging Detail: Plywood box / packaging according to customer requirements

Shipment Terms: FOB,CFR,CIF,Others

Payment Terms: T/T,L/C,D/A,D/P,Western Union,Money Gram,PayPal,Other

Description:

 Polymer cushion pushing air bag



Quarry block pushing air bag is used to separate the marble, granite, stones (rock mass) block from the basic rock achieving a maximum opening of 45-120cm at the top. The air bag can separate the block (rock mass) which is having all side wire saw cut faces. The standard configuration set contains two air bags, with one set of air hose & air control panel.

Our air pushing bag is manufactured with high-tech materials and processed by special techniques, no frequent problem happened in split and damage.

Owe to its high-efficiency, reusable, economical and capable to separate, even overturn the blocks easily, tidily and without damage, BESTLINK pushing air bag is displacing the traditional equipments like hydraulic jack and steel hydro-bag in quarries of marble, granite, limestone and so on, no matter blocks cutting by wire saw, blade saw or chain saw.

We always keep innovating and improving to be the leader of pushing air bag products. Our unique design and advanced tachnique make it easier to put the air bags into the gap after diamond wire saw cutting.

Through our experiment and co-operation with hundreds of quarries all over the world, bringing in Italian advanced production euiqpments and super level raw material, especially adopting our new technology, Sansung made pushing air bag has got big progress on the quality. With same thickness less than 7mm, but more powerful and safe in long term use.



Products technical parameteres:



Model

Specification

Theoretical pushing capacity

Expansion

Weight

BL1010

1.0m×1.0m

50tons

600mm

2.8kgs

BL1015

1.0m×1.5m

75tons

650mm

4.2kgs

BL1020

1.0m×2.0m

100tons

660mm

5.6kgs

BL1515

1.5m×1.5m

115tons

850mm

6.3kgs

BL2015

2.0m×1.5m

150tons

940mm

8.4kgs

BL2020

2.0m×2.0m

200tons

1100mm

11.2kgs

BL3015

3.0m×1.5m

225tons

1200mm

13kgs

BL3030

3.0m×3.0m

450tons

1500mm

25.2kgs

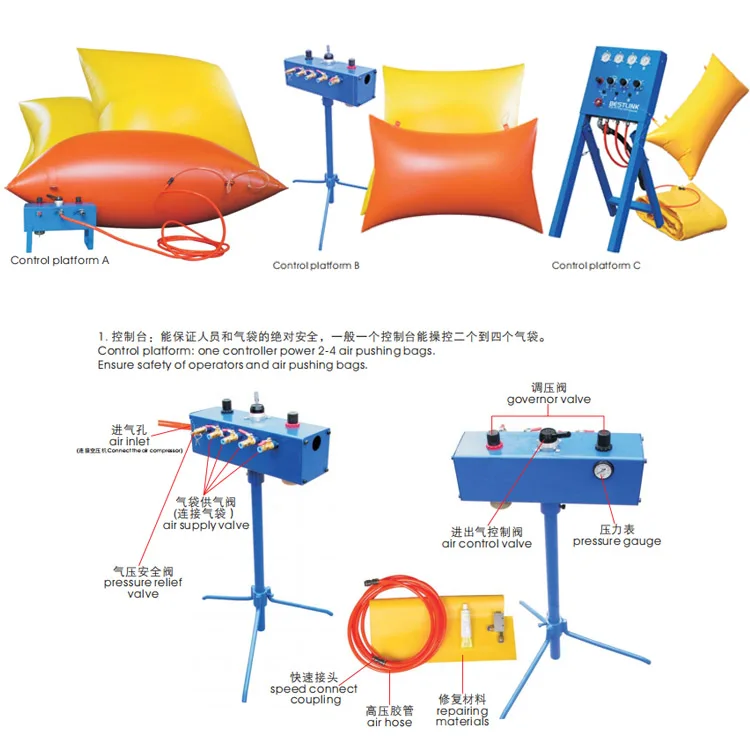

Control platform A

Air pressure 0-6bar

5.5kgs

Control platform B

10kgs

Control platform C

30kgs



   Notice: Customized sizes are available.




Stone pushing air bag.jpg



Products advantages:

1. Thickness less than 7mm;
2. Pushing power can be 50 to 450 tons;
3. Durable and repairable;
4. Price is economic.



For more info:

Pushing air Bag factory

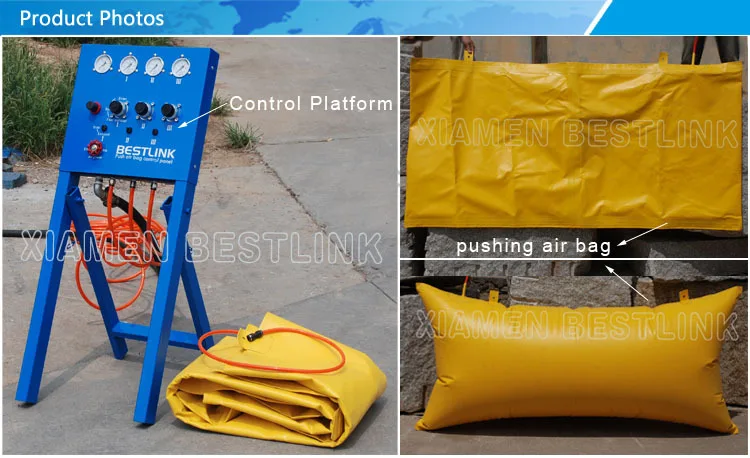

03 Product Photos for Air Pushing Bags

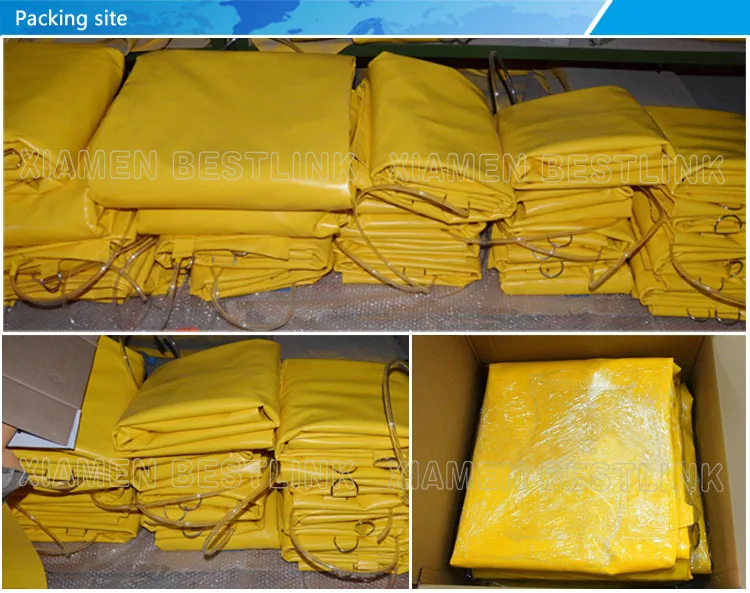

07 Packing site for Air Pushing Bags

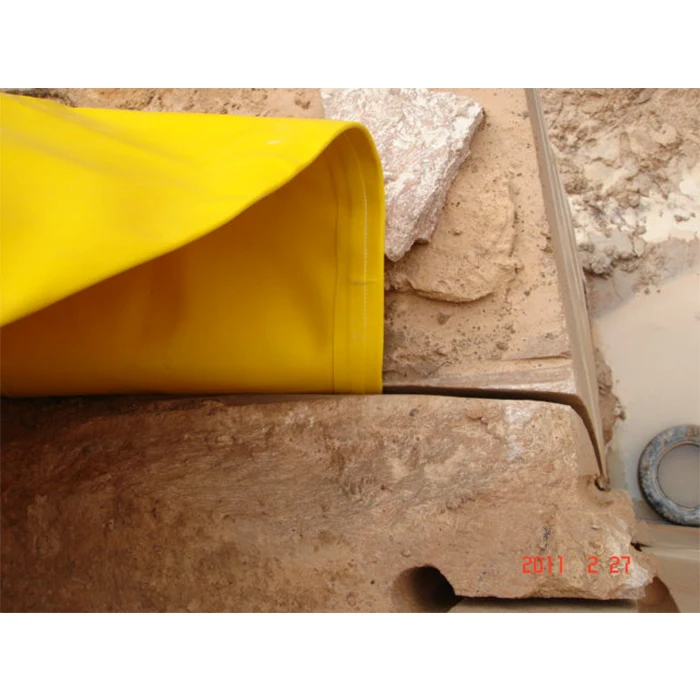

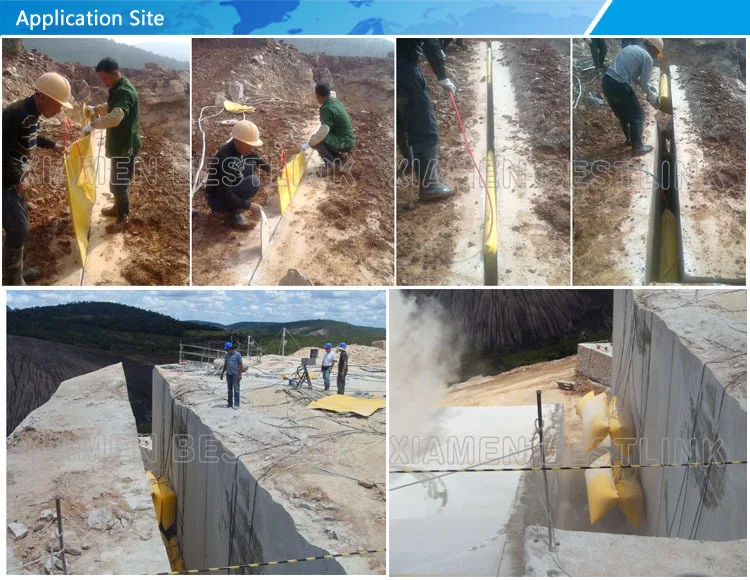

Application Site for pushing air bag

 air bag 0011air bag 0005

Packing and delivery.jpg
