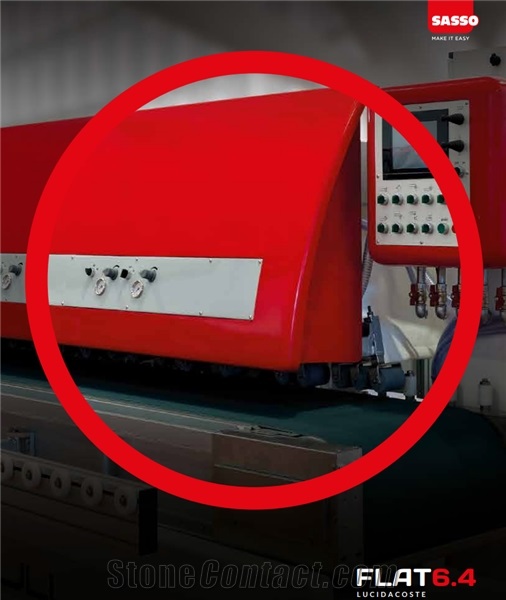

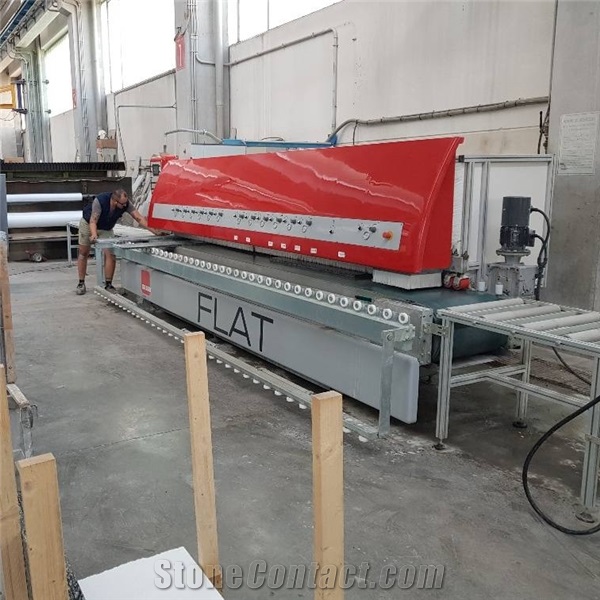

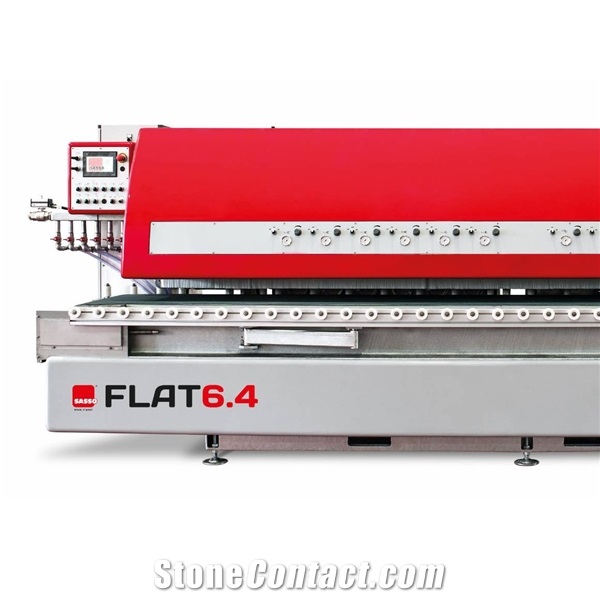

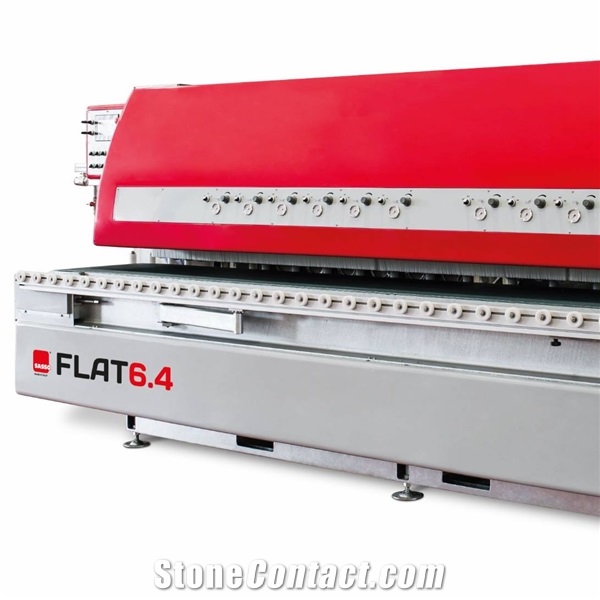

Flat 6.4 Edge Polishing Machine for Countertops
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Machinery Function Features
Face in the best way even significant productions
When you are ready to polish flat edges, this is the machine for you. From claddings to the widest kitchen counter tops, FLAT 6.4 allows you to face in the best way even significant productions.
1.Hot dip galvanisation
Ensures the benches will last through time
2.Horizontal and compact
Perfect to work large pieces, up to 6 cm thick
3.Versatile and complete
The machine can be supplied with a multi-purpose spindle for special workings and up to 6 bevels, for added versatility
When you are ready to polish flat edges, this is the machine for you. From claddings to the widest kitchen counter tops, FLAT 6.4 allows you to face in the best way even significant productions.
1.Hot dip galvanisation
Ensures the benches will last through time
2.Horizontal and compact
Perfect to work large pieces, up to 6 cm thick
3.Versatile and complete
The machine can be supplied with a multi-purpose spindle for special workings and up to 6 bevels, for added versatility
Technical Data
Parameters |
Unit |
FLAT 6.4 |
Air consumption |
NL/min |
50 |
Total power |
kw |
18 - 27 |
Grinding tool diameter |
mm |
130 - 150 |
Machine overall width |
mm |
1600 |
Approx. Weight |
Kg |
3200 |
Machine overall length |
mm |
4400 |
Min. processing width |
mm |
75 |
Machine overall height |
mm |
1800 |
Belt advancement speed |
m/min |
0.1 - 2.5 |
Min. processing thickness |
mm |
10 |
Max. processing thickness |
mm |
60 |
Max. processing width |
mm |
3500 |
Water consumption |
L/min |
140 |
