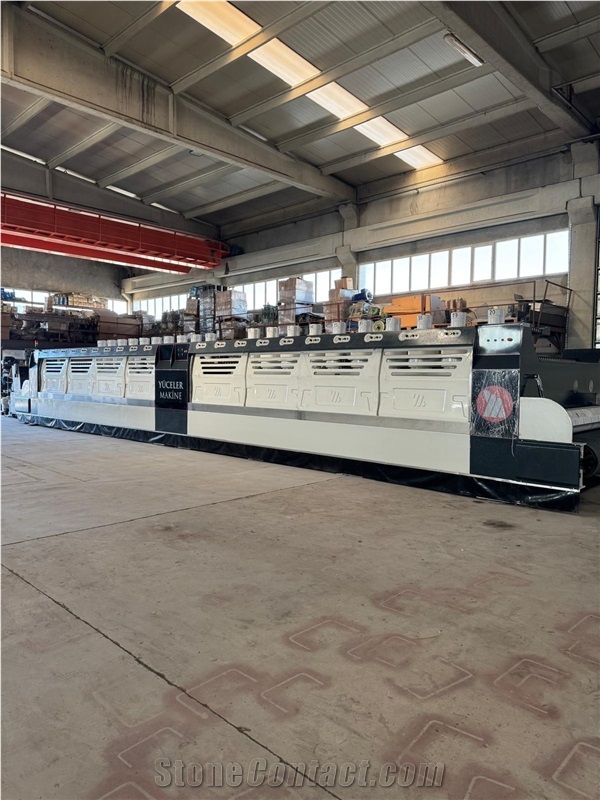

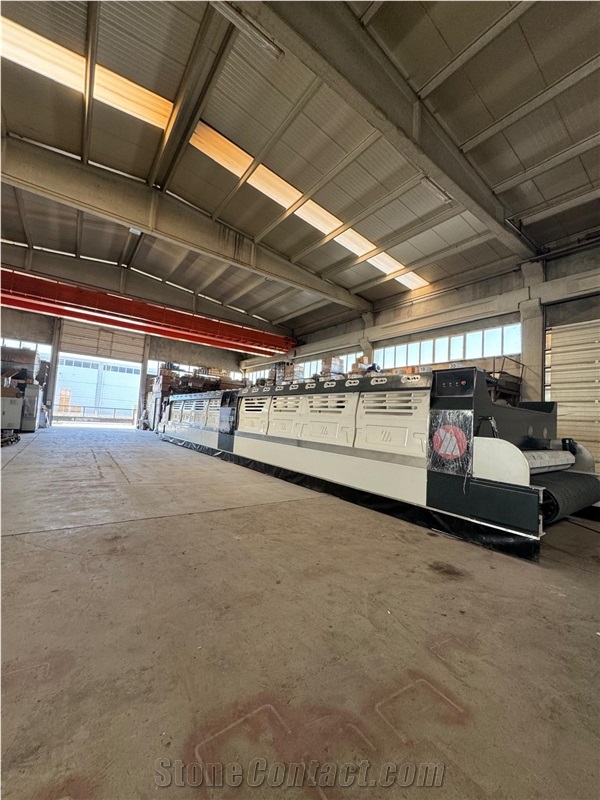

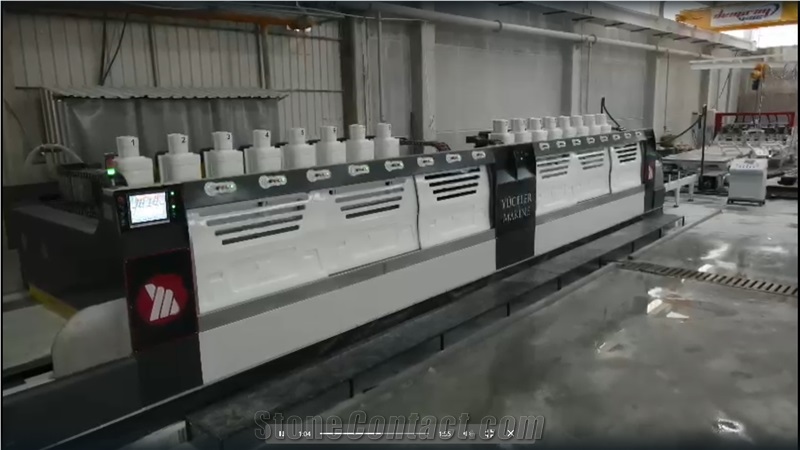

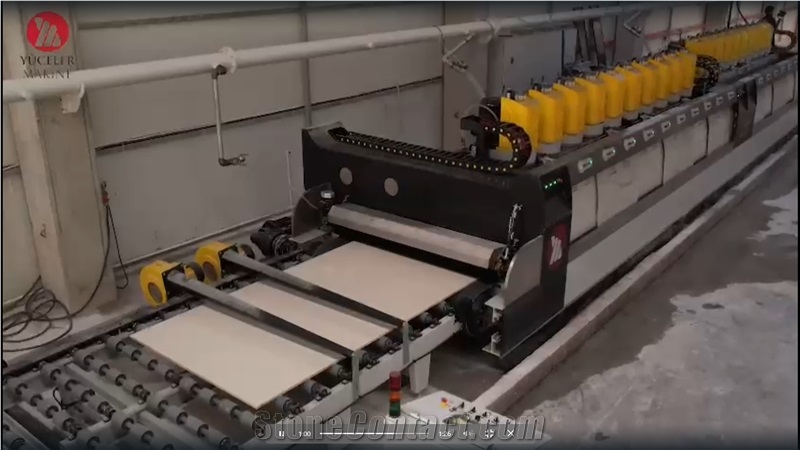

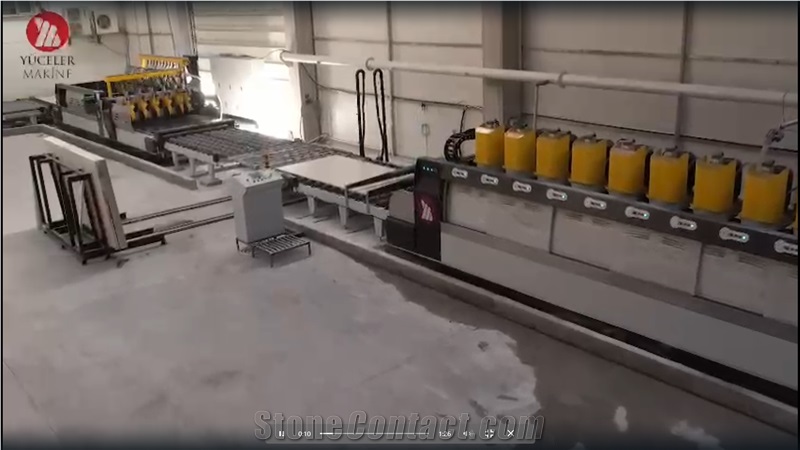

Marble Slab Polishing 10+10 Line Machine

Persica 2000 Slab Polishing Line Machine

10+10 Heads Slab Polishing Machine for Marble YCSP20
Working Head mm 2100
Polishing heads Pcs 20
Max. Working Thickness mm 100
Plate type Marble Double Q500mm double type
Bridge Pcs 2
Polishing Motor Power kw 11
Bridge Motor power kW (5,5x2)*2 Double Bridge
Belt Motor Power kW 5
Total power kW 258
Blest speed m/dk. 0,3-3
Bridge speed m/dk. 0-60
Water requirement lt./dk 680
Air requirement nl./dk. 600
Electric System Schneider&Eaton
Automation System Beckhoff & Delta
Screen 15” Endustrial PC
Automatic curtains YES
Air system Made in Italy MW brand valf and with pneumatic bonus long life
Automatic Oil Sysytem Alfett
Motor IE3 IE3 Motor electric saving
Abrasive Control Atek Abrasive lifetime warning with lineer slide
Paint Epoxy primer and paint with water based
Belt table 4 mm stainles steel Long life table and conveyor belt
belt 4 step 13mm special gear
Rulo
Entry 3,4mt motorized rulo, Exit 3,4mt Dryin rulo
with fans
Extra
Entry and exit water proof safety and pinion gear oil
box
