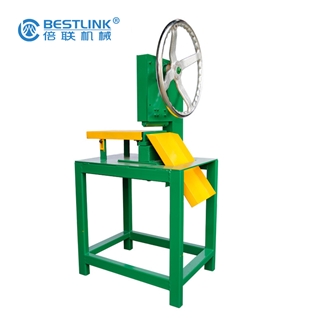

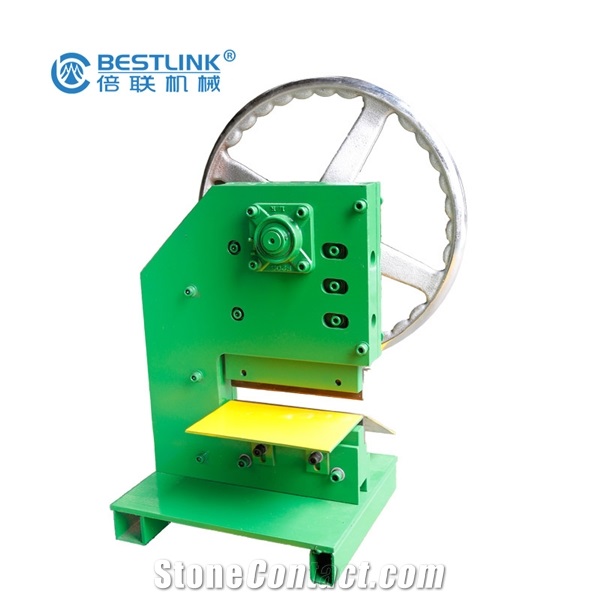

Bestlink Factory Price Portable Mosaic Stone Cutting Machine
FOB Price:$500-5500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Sandstone
After-Sale
Lead Time:
8 days
Warranty:6 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
7YR
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Contact supplier
Machinery Function Features
This Mosaic Stone cutting machine is perfect for cutting marble, stone and strip tile and with high precision into mosaic and micro mosaic.
We have two models, one is manual operation, and the other is electric operation.
Both the mosaic chopping machines are equipped with two blades in hardened steel: the lower one is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.
The mosaic stone cutting machine comes complete with one replacement blade.
We have two models, one is manual operation, and the other is electric operation.
Both the mosaic chopping machines are equipped with two blades in hardened steel: the lower one is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.
The mosaic stone cutting machine comes complete with one replacement blade.
Technical Data
Parameters |
Unit |
MS-02 |
Machine overall width |
mm |
400 |
Main motor power |
kw |
3 |
Max. cutting width |
mm |
240 |
Approx. Weight |
Kg |
85 |
Max. working thickness |
mm |
50 |
Machine overall length |
mm |
500 |
Machine overall height |
mm |
700 |

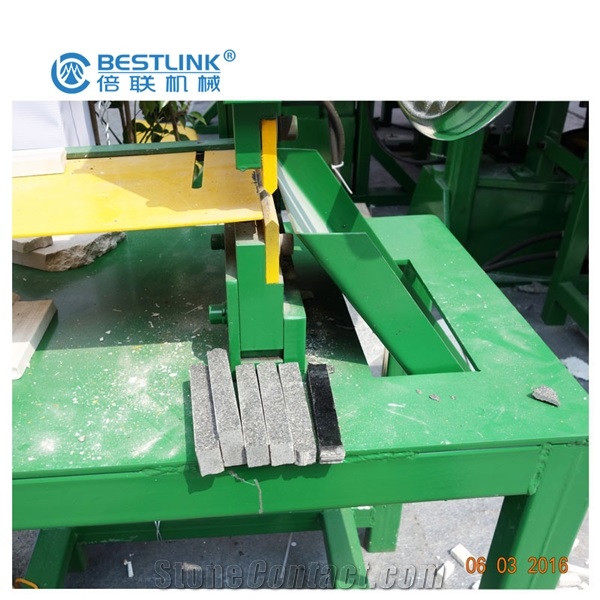

Processed Stone Photos
-
mosaic
Components
-
blade
Consumables
-
blade
