Hot Sale Pushing Air Bag for Marble and Granite Block Cutting
FOB Price:$180-1000
Type:
Stone Quarry MachinesQuarry Hydro-Bags, Rock SplitterQuarry Air Pushing Bags
Usage:
Granite, Marble
After-Sale
Lead Time:
7 days
Warranty:3 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
7YR
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Contact supplier
Machinery Function Features
Hot Sale Pushing Air Bag for Marble and Granite Block Cutting
1.Air pushing bag
2.put into the aperture easily
3.Strong pushing power
4.Max capacity:200 tons
5.can be used for many times

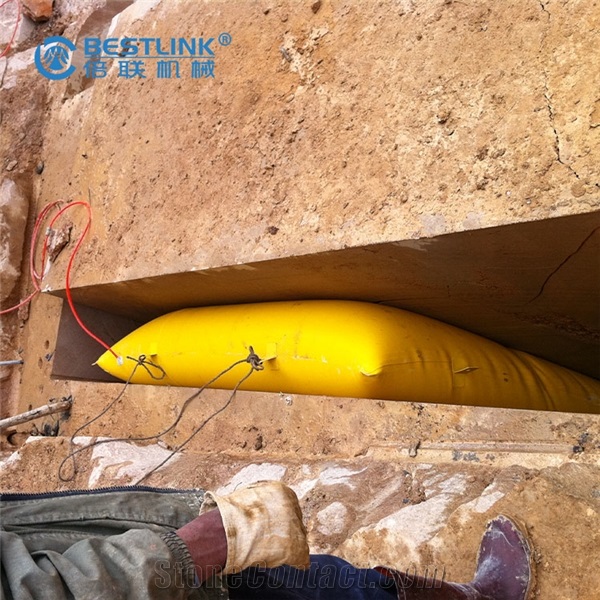

Pushing air bag is often used in stone quarrying after cutting by wire saw. High-materials
and special processing technique.
The characters of our air bags:
1. Less than 7mm thickness
2. Strong pushing power
3. High-tech materials and special processing techniques
4. No frequent problem in split and damage
5. Can be reused
It's max pushing capacity could reach to 200 tons.
IT CAN BE USED FOR MANY TIMES; SOME OF OUR CUSTOMERS JUST USE ONE BAG
ONE YEAR!
Technical Data
Model Specification Theoretical pushing capacity weight(kg)
BL1010 1.0m×1.0m 50tons 4.5kg
BL1015 1.0m×1.5m 75tons 6.8kg
BL1020 1.0m×2.0m 100tons 9.0kg
BL1515 1.5m×1.5m 115tons 10.2kg
BL2015 2.0m×1.5m 150tons 13.5kg
BL2020 2.0m×2.0m 200tons 18.0kg
BL3030 3.0m×3.0m 450tons 40.5kg
Control platfrom for above air bag air pressue 0-6bar,3 outlet 30.0kg
1.Air pushing bag
2.put into the aperture easily
3.Strong pushing power
4.Max capacity:200 tons
5.can be used for many times
Pushing air bag is often used in stone quarrying after cutting by wire saw. High-materials
and special processing technique.
The characters of our air bags:
1. Less than 7mm thickness
2. Strong pushing power
3. High-tech materials and special processing techniques
4. No frequent problem in split and damage
5. Can be reused
It's max pushing capacity could reach to 200 tons.
IT CAN BE USED FOR MANY TIMES; SOME OF OUR CUSTOMERS JUST USE ONE BAG
ONE YEAR!
Technical Data
Model Specification Theoretical pushing capacity weight(kg)
BL1010 1.0m×1.0m 50tons 4.5kg
BL1015 1.0m×1.5m 75tons 6.8kg
BL1020 1.0m×2.0m 100tons 9.0kg
BL1515 1.5m×1.5m 115tons 10.2kg
BL2015 2.0m×1.5m 150tons 13.5kg
BL2020 2.0m×2.0m 200tons 18.0kg
BL3030 3.0m×3.0m 450tons 40.5kg
Control platfrom for above air bag air pressue 0-6bar,3 outlet 30.0kg
Technical Data
Parameters |
Unit |
BL1010 Pushing Air Bag |
Bag Thickness |
mm |
5 |
Weight |
Kg |
4.5 |
Thrust Force(Pushing Capacity) |
T |
50 |
Motor Weight |
Kg |
30 |
Bag Size |
cm |
100*100*5 |
Processed Stone Photos
Components
Consumables
