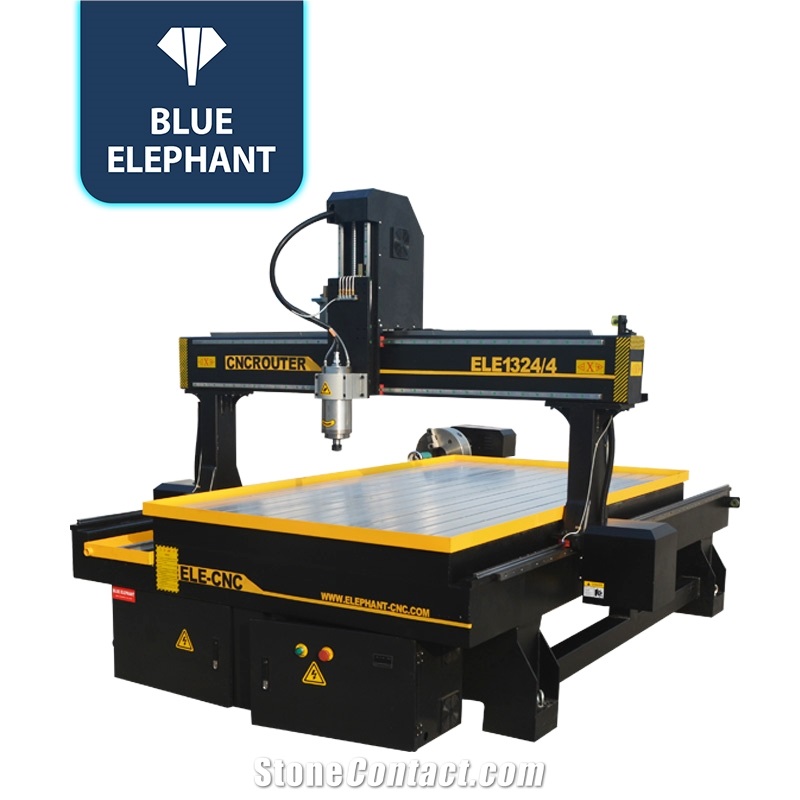

Affordable 1324 Portable Stone Engraving Machine For Marble Carving

FOB Price:€6000-9000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25-30 working days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Port: Qingdao- China
Delivery Details: FOB,CIF,EXW,DDU
Payment : Payment Payment Payment Payment

Supplier

Blue Elephant CNC Machinery

Blue Elephant CNC Machinery

Blue Elephant

ChinaChina level5YR idicon

Eatablished :Apr 03,2013

Main Product:

4 Axis Bridge Saw, 5 Axis Bridge Saw, Stone Engraving Machine, CNC Machining Center, 6 Axis Robotic|

Contact supplier

Start Order

  • Overview
  • Components
  • Trade Terms
Machinery Function Features
This is one of the typical features of stone CNC router. Compared with other stone CNC router, this machine was designed with a rotary device on one side of machine, it is very suitable for making cylinder.
1. With heavy duty frame which is made of thicker and bigger welded steel tube, it is stronger and more durable.

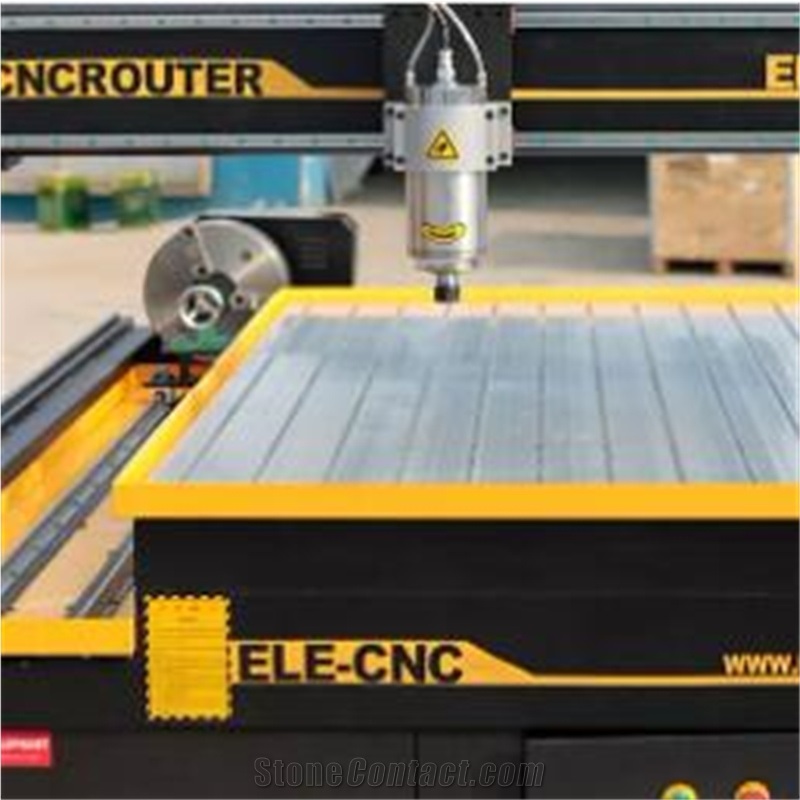

2. Be equipped with a 200 mm rotary on one side of machine, it is suitable for making cylinders. 3. DSP A18 control system supports 4 axis CNC router and is very convenient for operation.
4. All components are imported from international famous brands, which greatly extends the service life of the machine.
Technical Data
Parameters
Unit
ELE-1324
Max. working speed
m/min
25000
Main spindle motor power
kw
5.5
Repeated positioning/Ball screw precision
mm
±0.03
Control System
DSP A18 Control System
Machine overall height
mm
1850
Max. Processing Width
mm
1300
Number of engraving head
nr
1
Max. processing thickness
mm
DSP A18 Control System
Min. Processing Width
mm
x
Max. traveling speed
m/min
33000
Main spindle speed
r/min
0-24000RPM
Approx. Weight
Kg
1500
Max. processing length
mm
2400
Total power
kw
5.5
Machine overall width
mm
2140
Machine overall length
mm
3700
Software

Command Language:G Code


Computer Interface:USB


Software Compatibility:Type3/UcancameV9 Software, (Option: Artcam Software)

Work Example

Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.


Processed Stone Photos
  • Stone Carving Sample

    Stone Carving Sample

  • Stone Carving Sample

    Stone Carving Sample

  • Stone Carving Sample

    Stone Carving Sample

Components
  • Japan Yaskawa Servo Motor

    Japan Yaskawa Servo Motor

  • DSP Control System

    DSP Control System

  • Taiwan Delta Inverter

    Taiwan Delta Inverter

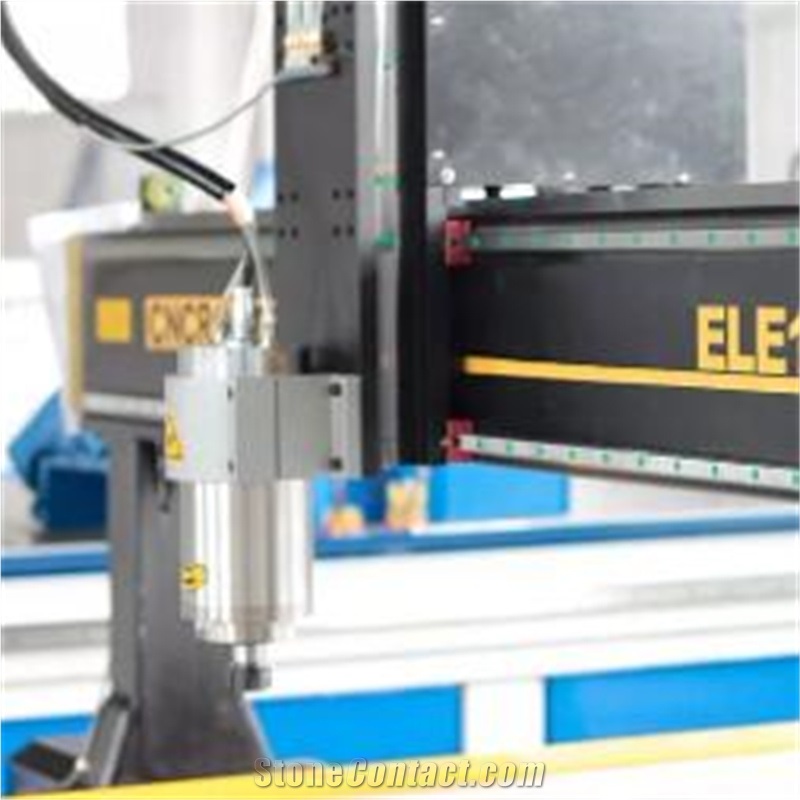

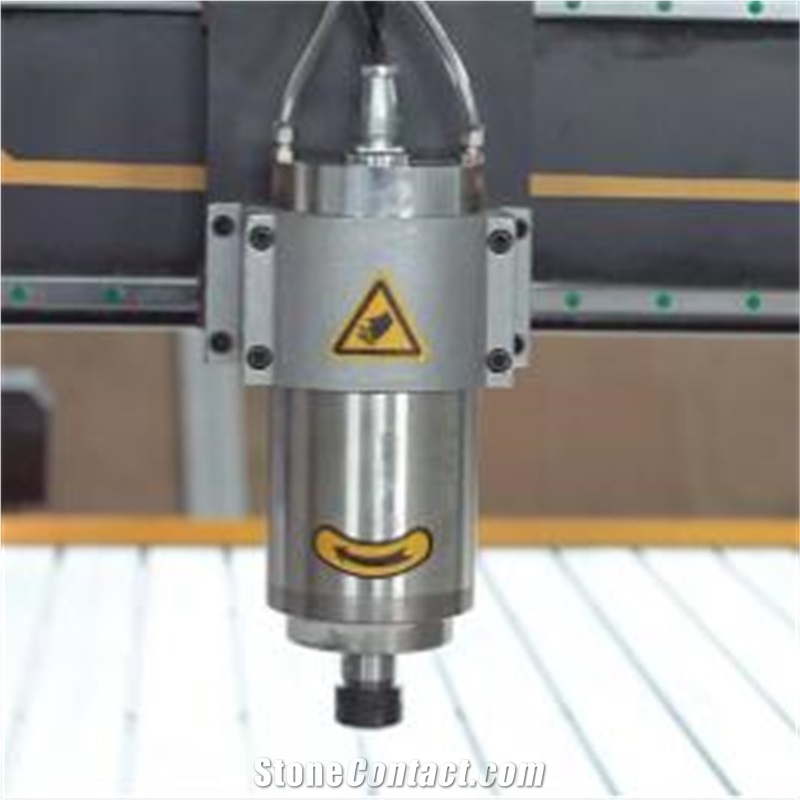

  • Water Cooling Spindle

    Water Cooling Spindle
