Granite Kerbstone / Curbstone Cutting Machine Line

kerbstone Cutting Machine Line DFLSX1200-13S
This machine line is mainly for cutting slab width above 50mm, the machine cut with 10-14pcs of blade at the same time which will dramatically increase cutting speed and overal output, daily capacity can reach 30-35m³/24h.The machine is widely used for kerbstone, roadside stone, cobblestone and tombstone etc.
Machine part：

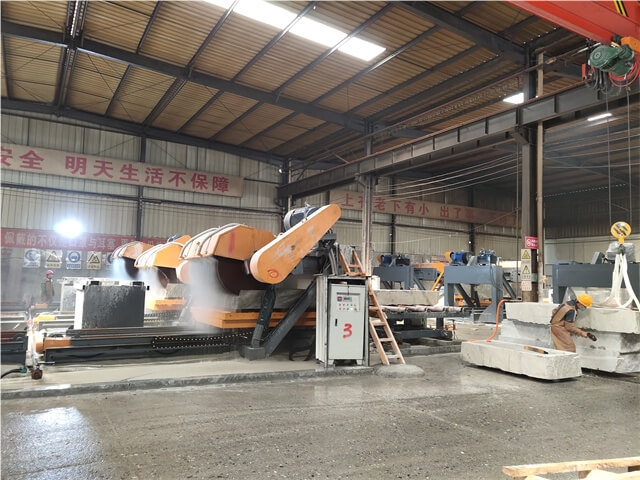

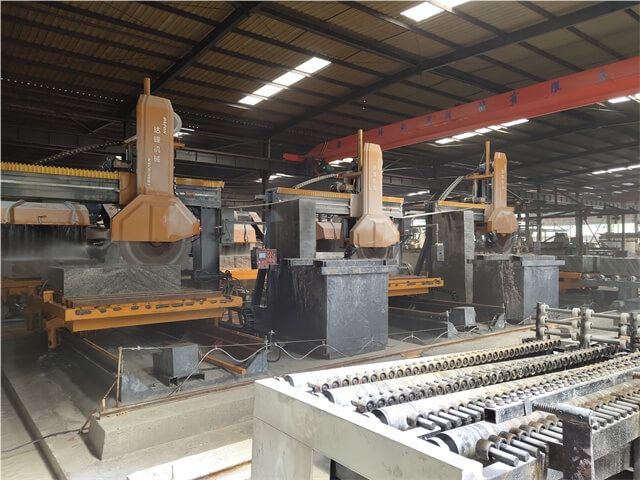

The machine line included one slicing machine(DF1200-12S) and one edge cutting machine(DF1200-1S), worker load thick slab to the slicing machine with a crane, after slicing machine finish cutting, the roller on worktable hydraulically lift up and transfer the stone to the next edge cutting machine.

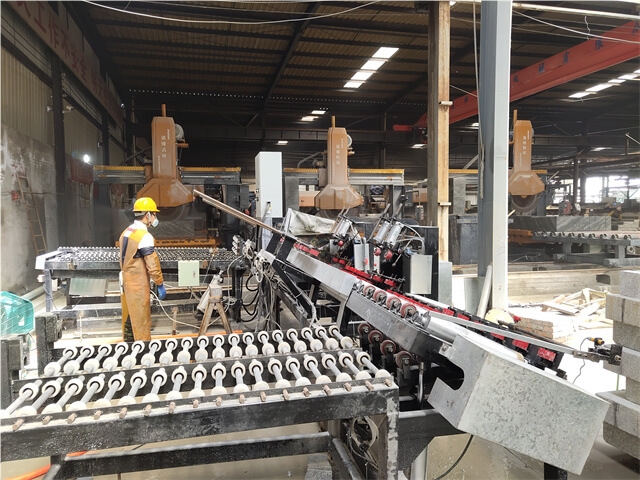

The edge cutting machine has hydraulic pushers to push all the stone with blade gap tight and together to ensure a precise cutting. After that, the cutting process is finished and ready for packaging.

electrical part:
Machine use Mitsubishi PLC control system, SIEMENS water proof button, Omron relays etc, the machine is equipped with remote control, worker can both use the controlling cabin or remote control during operation.

Advantage:
1.Segments saving: machine use multi-blade cut at the same time, every down cut is about 3-5mm(depends on stone and segment), which save segments consuming.
2.Labor saving: the entire machine line only need one worker to attend to it, machine adopts rollers to transfer stone and sensors for automatic stop and operation.
3.Workshop space saving: compared to other cutting methods, the machine need only 12*5m space when producing same capacity.

Features:
1. no cement foundation needed, easy installation and shipment(40’’ HQ).
2. the main shaft adopts high frequency modulation treatment, which will be more durable and wear-resisting.
3. machine uses main spindle and a vice spindle to seal all saw blades together which can ensure the machine stable while cutting hard granite.
4. it uses a simple program of movement on the controlling box, easy for setting, operating, and maintaining.
5. it adopts two hydraulic pillars(a set of hydraulic systems) on both sides of the machine to ensure the strength of cutting spindle lifting up and down.
6. Unlike traditional stone cutting, it dramatically increases productivity and reduces labor cost and power consumption and it consumes less diamond segment per cubic meter of production compared to the traditional cutting machine.
7. Cast iron is adopted in the main frame of the machine to make the machine more stable with less chance of vibration under the operating condition.
8.The regular worktable length of the shaft is 1.6m(1.8m optional)

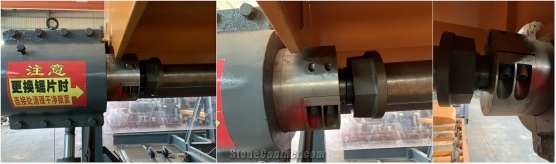

The slicing machine use a main spindle and a vice spindle sealing together which can ensure the machine stable while cutting hard granite.


Protectors for motor and wires to prevent from dust and water

Cast-iron
The spindle adopts High frequency modulation treatment, which will be more durable and wear-resisting
Galvanized protector to the chain and gear for safty handling

Complete Machine Line (1 Edge Cutting Machine + 1 Slicing Machine)
Slicing Machine DF1200-12S Edge Cutting Machine DF1200-1S
Dimension 5500×2300×2500mm Dimension 5500×4000×4500mm
Diameter of blade 1200mm Diameter of blade 1200mm
Number of blades 12pcs Number of blades 1pcs
Max.cutting size 2500×1800×450mm Worktable size 2500×1800mm
Worktable size 2500×1800mm Working length max 2500mm
Weight 10t Max.vertical stroke 600mm
Max.cutting depth 450mm Weight 9t
Main motor power 55kw-6 Max.cutting depth 450mm
Max.vertical stroke 600mm Main motor power 22kw-6
It produces about 30-35m³ of stone every day (24h) and covers a total space of 12m*5m.
