Pneumatic Air Leg Hand Held Jack Hammer Rock Drill
FOB Price:$130-300
Type:
Stone Quarry MachinesQuarry Drilling MachinePneumatic Hand-Held Rock Drill Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
7YR
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Contact supplier
You may also like
Machinery Function Features
Description:

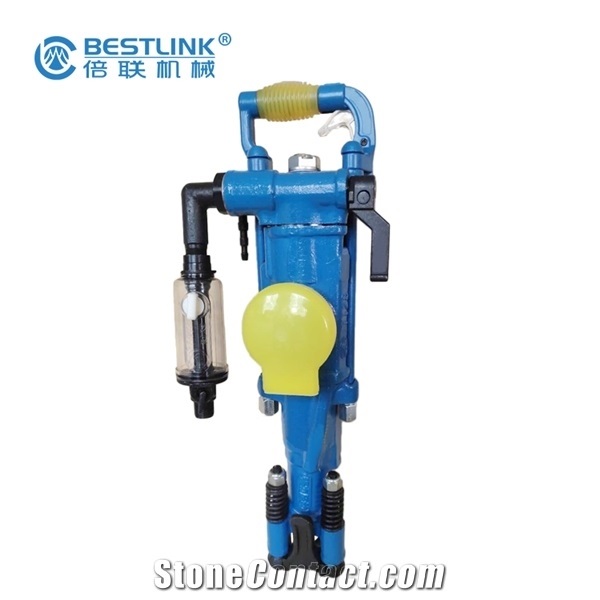

Pneumatic Air Leg Hand Held Jack Hammer Rock Drill for Mining
Products features:

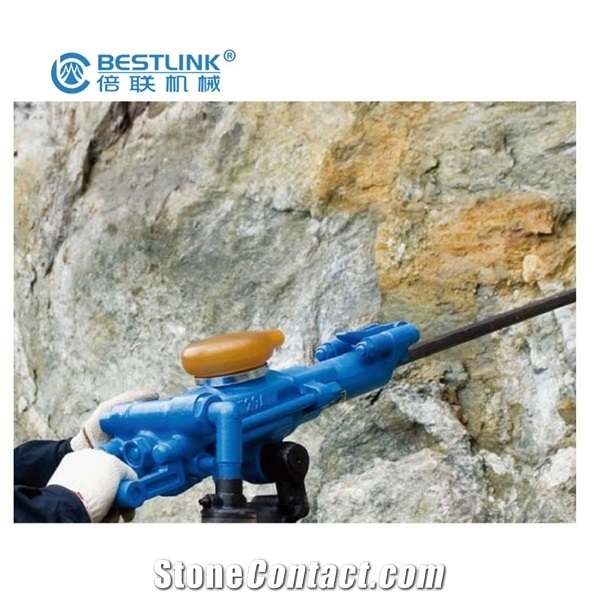

The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.

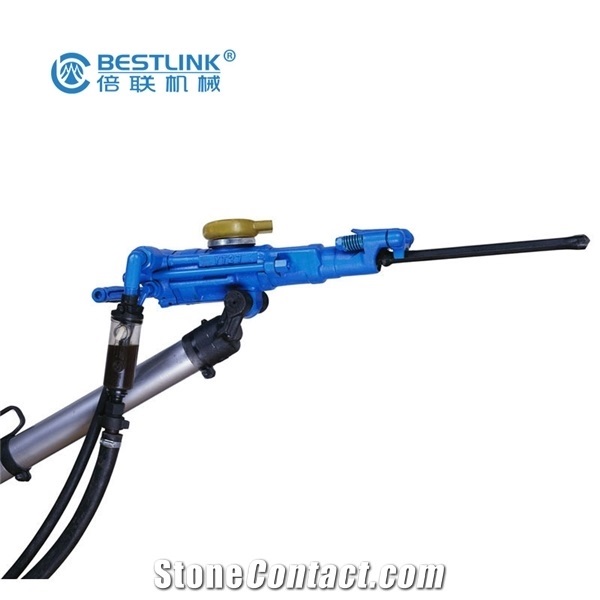

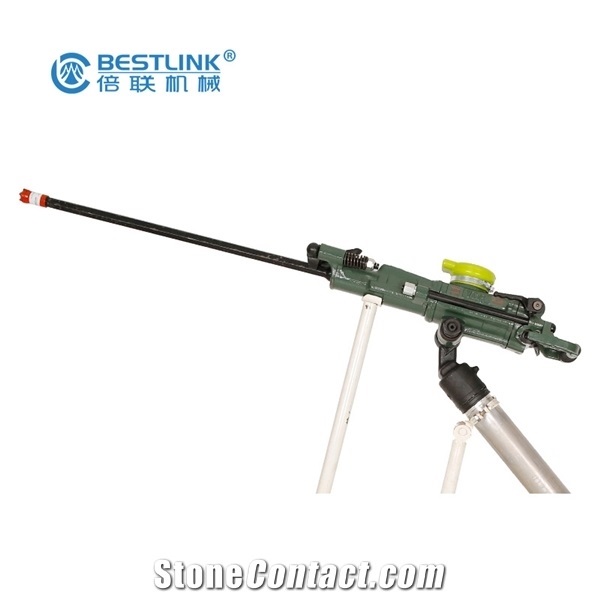

Air-Leg Rock Drill
1. Fit for wet drilling in medium-hard or hard rock.
2. Grouped control mechanism, quick to start up, with "air on, water on, air off, water off" machanism, convenient to handle and easy to maintain and repair.
3. YT28 differs from similar products particularly in its high efficiency strong flushing and powerful torque.
Pneumatic Air Leg Hand Held Jack Hammer Rock Drill for Mining
Products features:
The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.
Air-Leg Rock Drill
1. Fit for wet drilling in medium-hard or hard rock.
2. Grouped control mechanism, quick to start up, with "air on, water on, air off, water off" machanism, convenient to handle and easy to maintain and repair.
3. YT28 differs from similar products particularly in its high efficiency strong flushing and powerful torque.
Technical Data
Parameters |
Unit |
YT24 |
YT27 |
YT28 |
YT29A |
Drilling Depth |
m |
5 |
5 |
5 |
5 |
Overall Length |
mm |
678 |
668 |
654 |
659 |
Overall Width |
mm |
228 |
247 |
247 |
247 |
Total Weight |
Kg |
24 |
27 |
26 |
27 |
Air Consumption |
L/s |
≤52 |
≤57 |
≤81 |
≤62 |
Cylinder Stroke |
mm |
70*70 |
80*60 |
80*60 |
82*60 |
Overall Height |
mm |
184 |
195 |
195 |
195 |
Bore Diameter |
mm |
34-42 |
34-45 |
34-42 |
34-45 |
Shank |
mm |
22(25)x108 |
22x108 |
22(25)x108 |
22(25)x108 |
Water Hose Size |
mm |
13 |
13 |
13 |
13 |
Air Hose Size |
mm |
19 |
25 |
25 |
25 |
