QJD-1700 Multi-Blades Bridge Cutting Machine- Giant Disc Type
FOB Price:$58000-69900
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
5YR
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
You may also like
Machinery Function Features
1. The machine uses a unique structure of the central blade, saw blade mounted directly below the fuselage, superior cutting stability;
2. Spindle dual support structure to break the traditional equipment hanging saw blade a limited number of shortcomings，it can be hung to more pieces of saws. 1.5 meters wide blocks for a one-time cutting, greatly improving the cutting efficiency, Colleagues improve product quality.
3. Sharing adopts magnetic grid index, precision can reach micron grade.
4. Lifting mechanism rotary encoder adopts synchronous belt transmission method, and the signal is stable.
5. Elevator guide cylinder adopts the oil-less self-lubrication bearing with min wearing.
6. The shape of the spindle box is the rod design, Increase the strength of the tank, increase the cooling function, extend the life of the bearing.
2. Spindle dual support structure to break the traditional equipment hanging saw blade a limited number of shortcomings，it can be hung to more pieces of saws. 1.5 meters wide blocks for a one-time cutting, greatly improving the cutting efficiency, Colleagues improve product quality.
3. Sharing adopts magnetic grid index, precision can reach micron grade.
4. Lifting mechanism rotary encoder adopts synchronous belt transmission method, and the signal is stable.
5. Elevator guide cylinder adopts the oil-less self-lubrication bearing with min wearing.
6. The shape of the spindle box is the rod design, Increase the strength of the tank, increase the cooling function, extend the life of the bearing.
Technical Data
Parameters |
Unit |
QJD-1700 |
Quantity of blades |
pcs |
60 |
Cutting spindle diameter |
mm |
Φ180 |
Machine height |
mm |
7000 |
Maximum block width |
mm |
2200 |
Approximate Weight |
Kg |
32000 |
Maximum block length |
mm |
4500 |
Vertical disc diameter |
mm |
Φ1700 |
Machine length(front) |
mm |
12000 |
Machine width |
mm |
4500 |
Cooling water (1.5 bar pressure) |
m3/h |
150 |
Processed Stone Photos

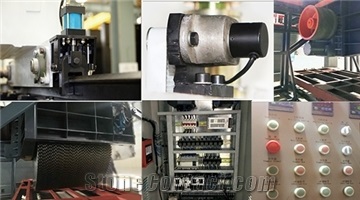

Components
