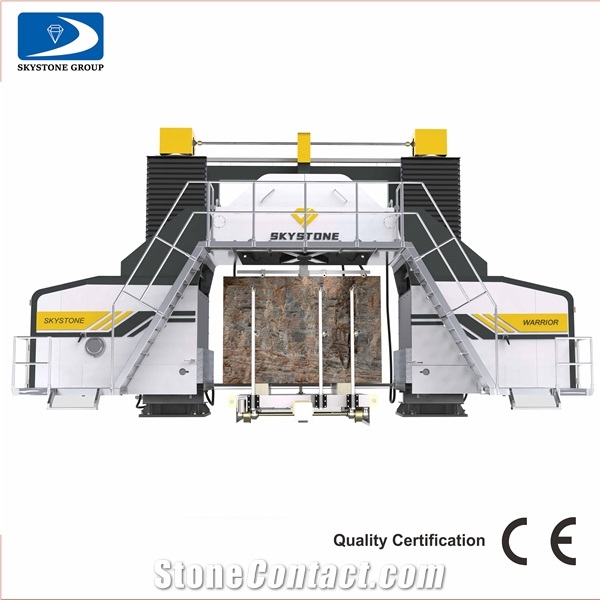

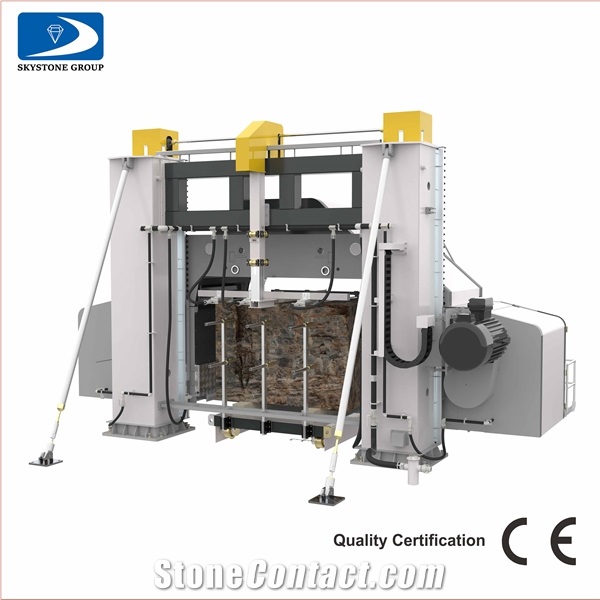

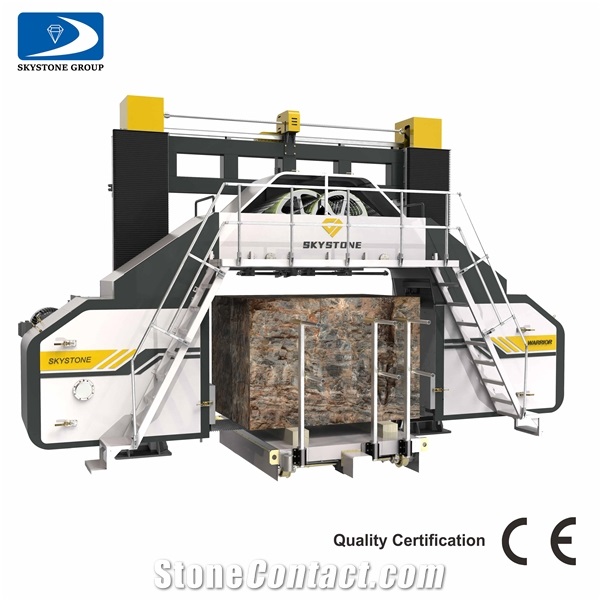

SMW12/32/50/74/76/80 Multi-Wire Saw Machine For Granite
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
4-6 month
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
fuzhou- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
6YR
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
Contact supplier
Machinery Function Features
The latest triangle structure technology, higher cutting efficiency, and the stability of running.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Technical Data
Parameters |
Unit |
SMW12 |
SMW16 |
SMW32 |
SMW50 |
SMW74 |
SMW76 |
Tension |
kg |
250 |
250 |
250 |
250 |
250 |
220 |
Machine size |
m |
10*3.0*6.5 |
10*3.0*6.5 |
10*4.5*6.5 |
10*5.0*6.5 |
10*5.5*6.5 |
10*5.5*6.5 |
Maxcut length |
mm |
3400 |
3400 |
3400 |
3400 |
3400 |
3500 |
Total power |
kW |
65 |
85 |
145 |
216 |
304 |
304 |
Maxcut height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
Wire quantities |
pcs |
12/9 |
16/12 |
32/24 |
50/38 |
74/55 |
76/57 |
Cooling water |
L/min |
180 |
250 |
500 |
750 |
1100 |
1100 |
Machine weight |
t |
18 |
22 |
38 |
55 |
70 |
70 |
Main motor power |
kW |
55 |
75 |
132 |
200 |
280 |
280 |
Line-speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
Wire diameter |
mm |
7.3 |
7.3 |
7.3 |
7.3 |
7.3 |
6.3 |
Slab thickness |
mm |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
Wire length |
m |
20 |
20 |
20 |
20 |
20 |
20 |

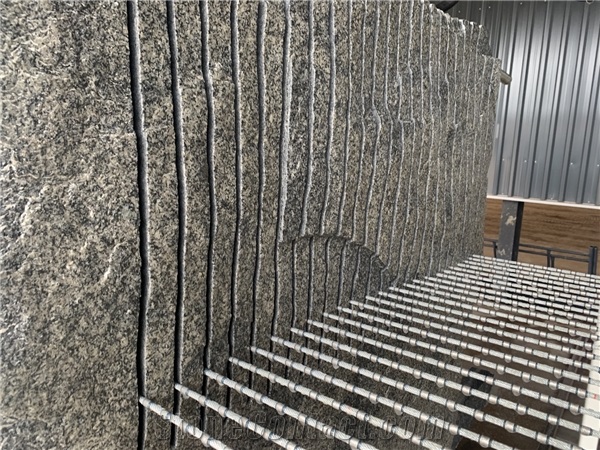

Processed Stone Photos
-

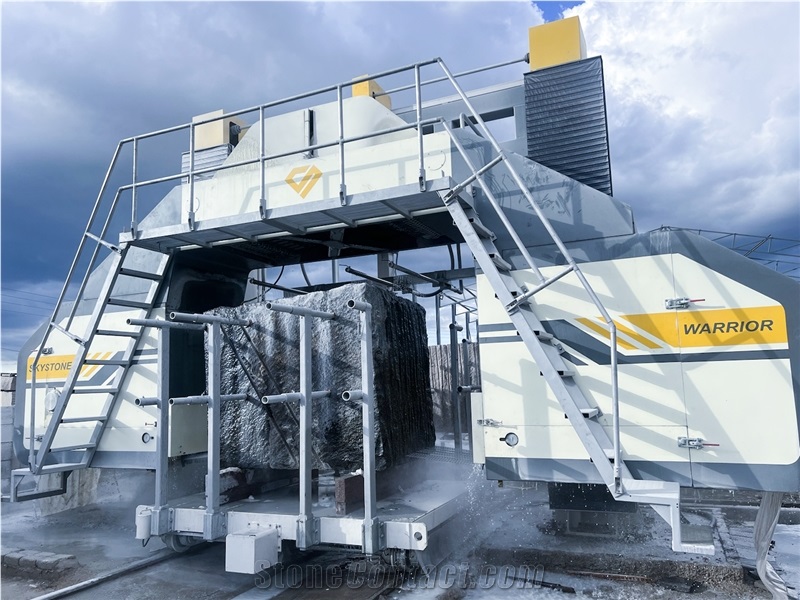

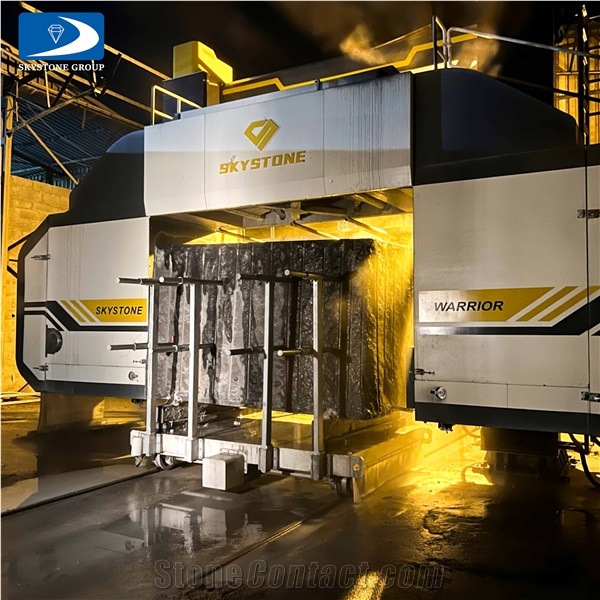

Cutting
Components
-

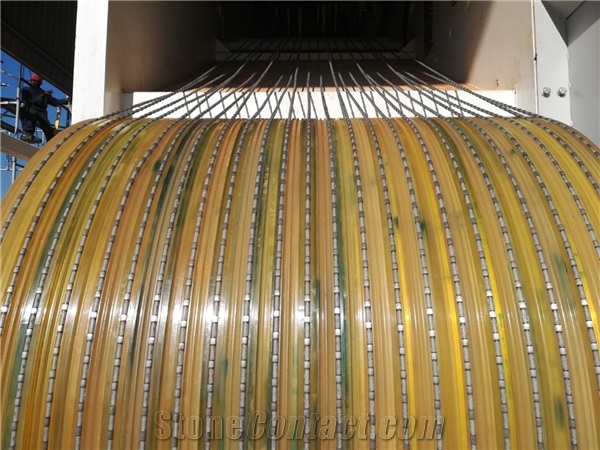

Driving wheel

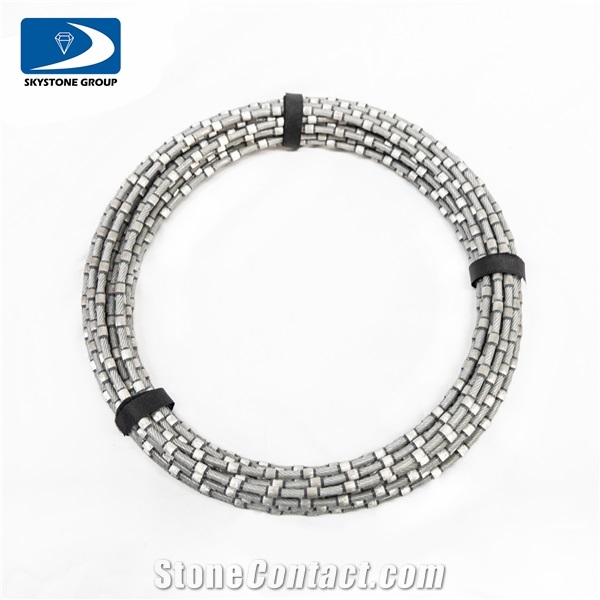

Consumables
-
Diamong wire

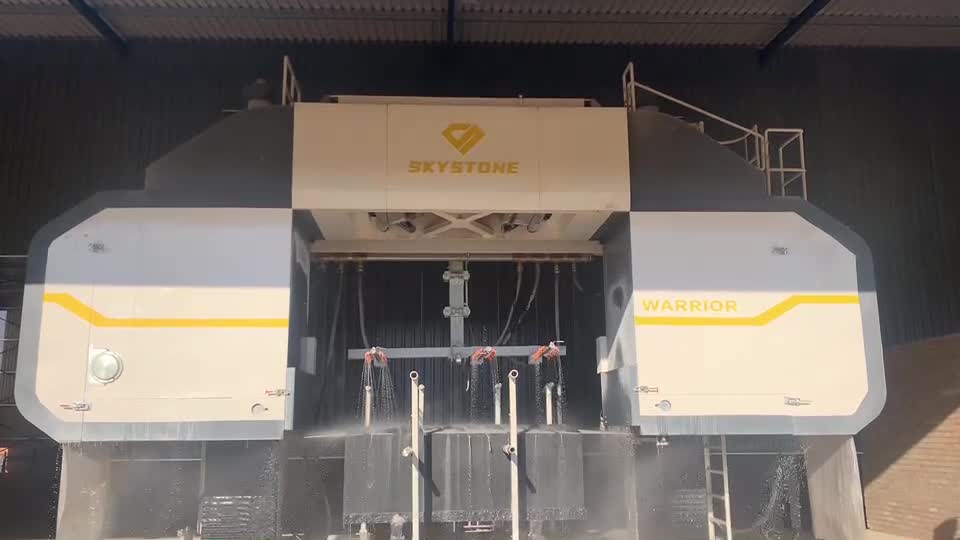

Customer Case
