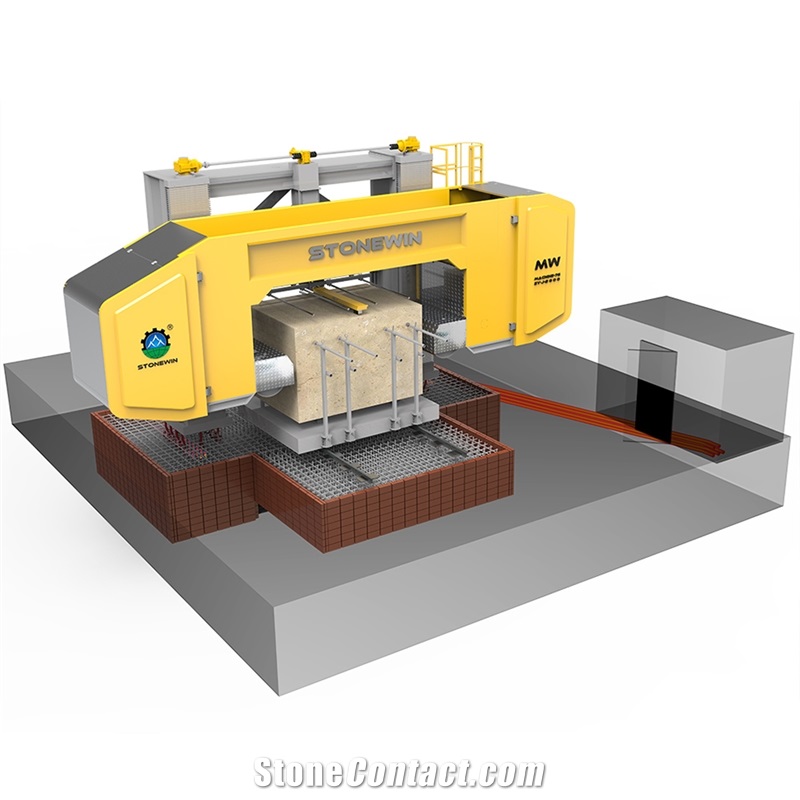

Multi-Wire Saw Machine For Granite And Marble Blocks Sawing
FOB Price:$300000-550000
With the main parts such as columns,transversal beam, cases ... are made of a whole Q355B steel plate after bending and heat treated, it ensure the machine main body solid and stable.
The Φ2.2m integral driving wheel drum and Φ880mm guiding wheel drums ensure the stable cutting and accurate slab thickness; and the individual liner bands for the grooves facilitate the maintenance of the machine.

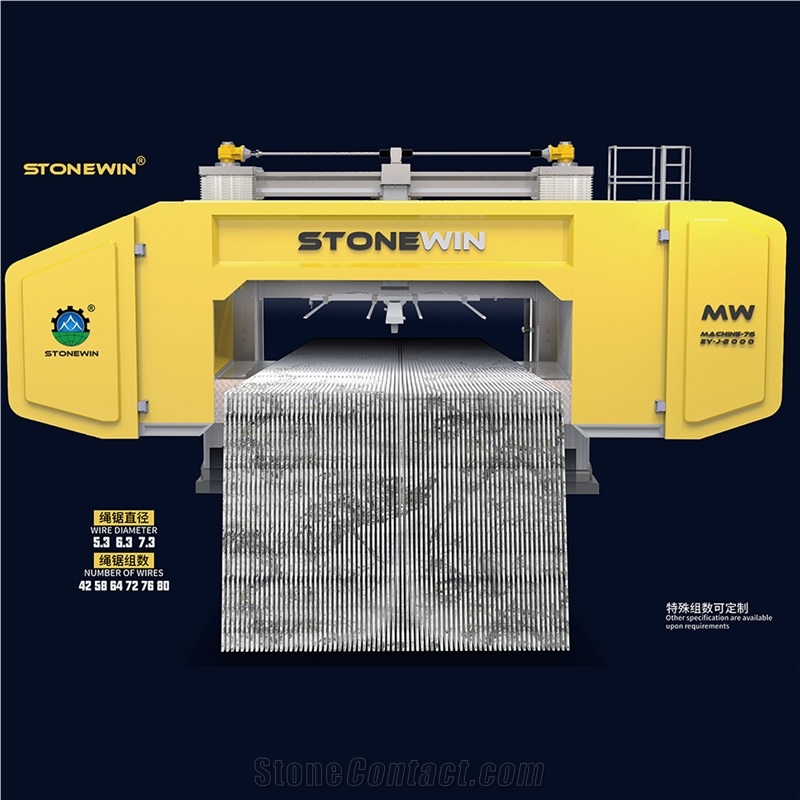

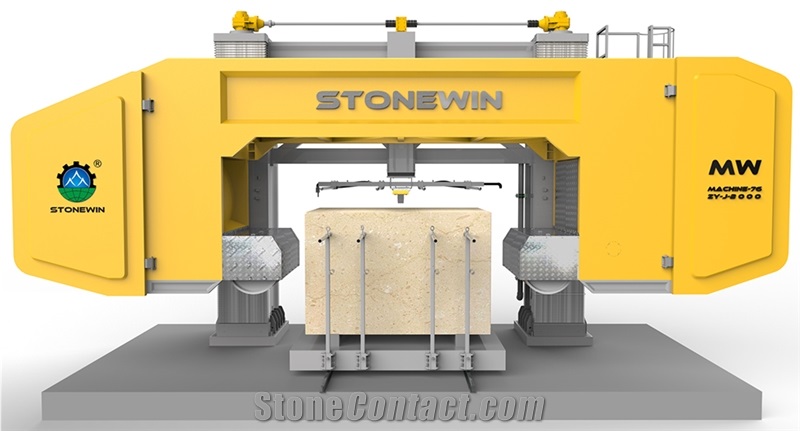

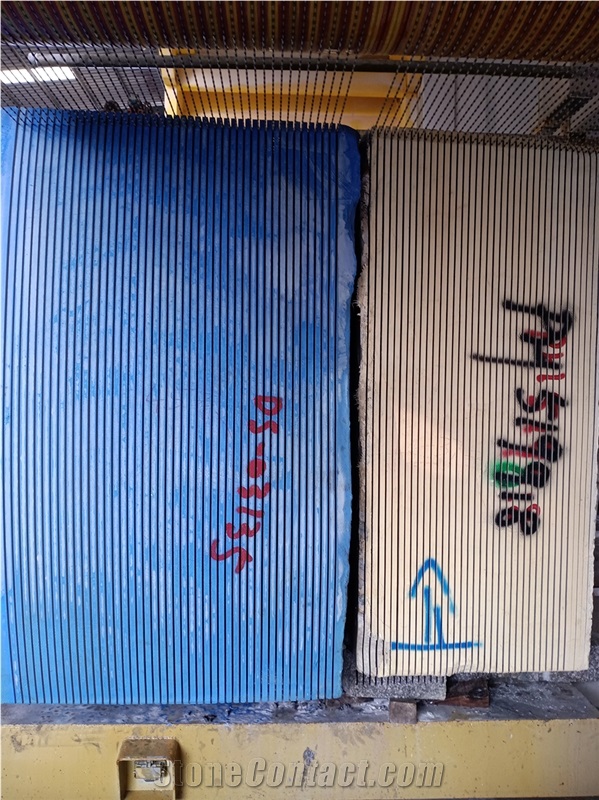

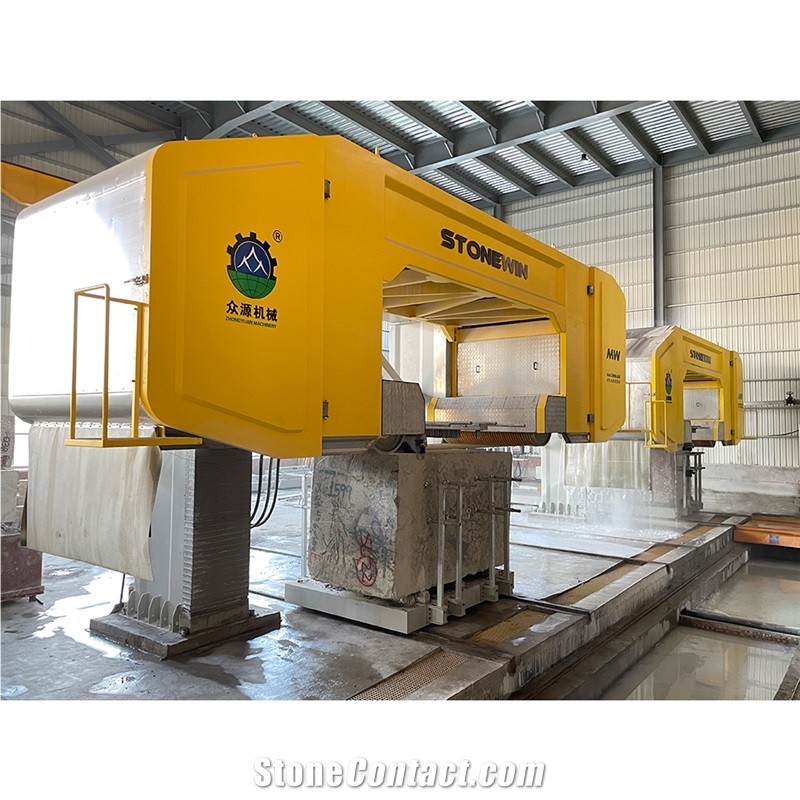

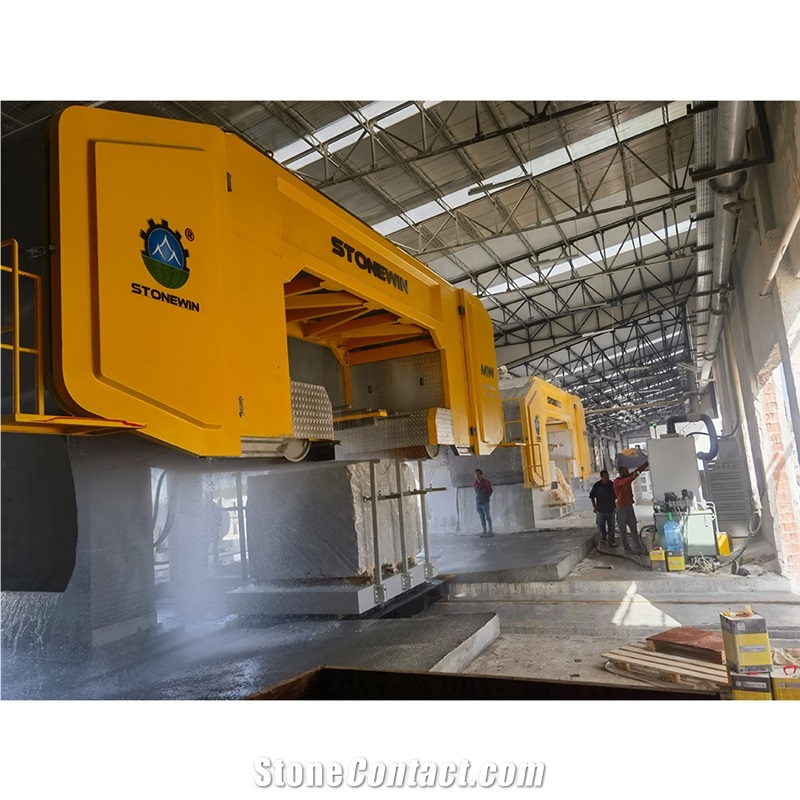

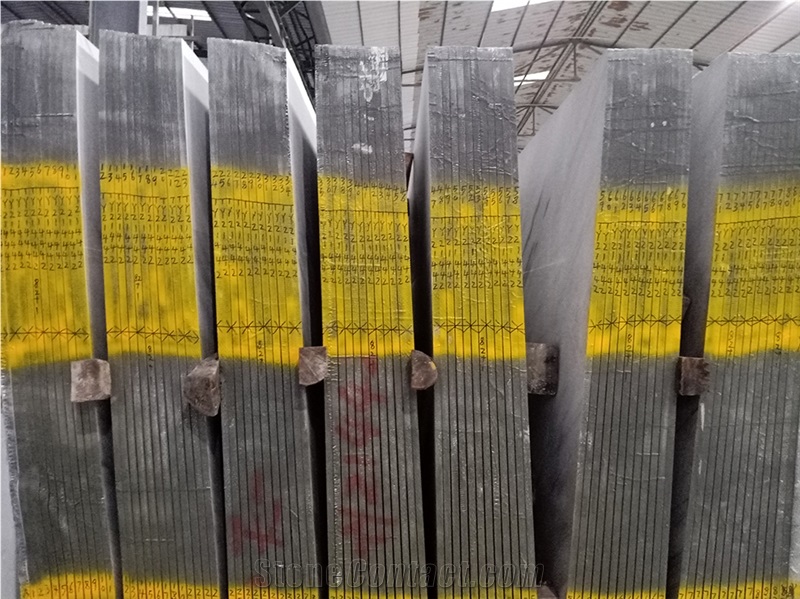

STONEWIN Multi-wire saw machine is designed to produce 1.2 / 1.8 / 2 / 3 / ... 15 cm slabs simultaneously from the same granite and marble blocks.
With the main parts such as columns, transversal beams, cases ... are made of a whole Q355B steel plate after bending and heat-treated, it ensure the machine main body solid and stable.

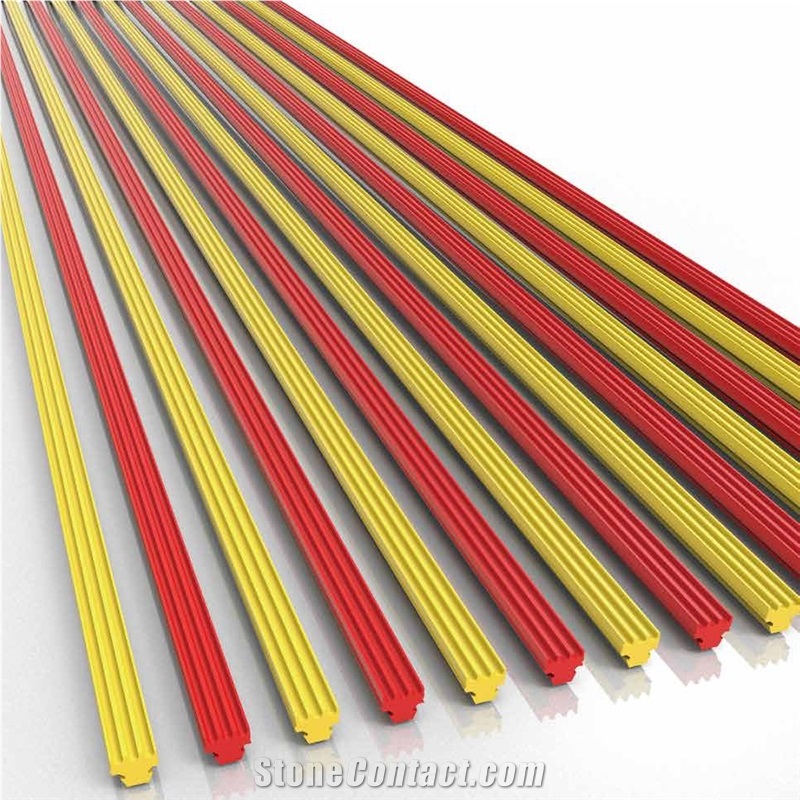

The Φ2.2m integral driving wheel drum and Φ880mm guiding wheel drums ensure the stable cutting and accurate slab thickness; and the individual liner bands for the grooves facilitate the maintenance of the machine.
FUNCTIONS AND FEATURES:
The main motor is the latest PMSM (permanent magnet synchronous motor) motor which is power-saving and efficient.

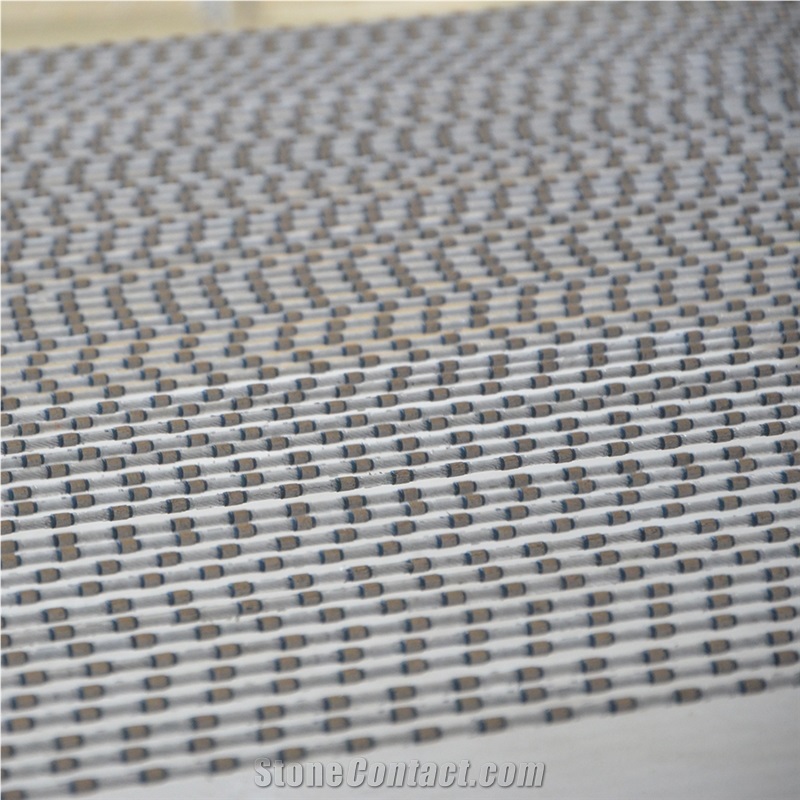

Being controlled by two sets of frequency inverters (driver), and applying constant tension control technology, the back-moving speed of the machine can be adjusted automatically according to the changes of the cutting force to ensure the diamond wire saw be in the best cutting condition all the time.
With a phase sequence protector, without special requirement for input phase sequence, it doesn’t need to change or distinguish the input-power phase sequence.
The machine has the following protection functions: diamond wire broken protection, over-loading protection, phase-failure protection, terminal limit, and so on.

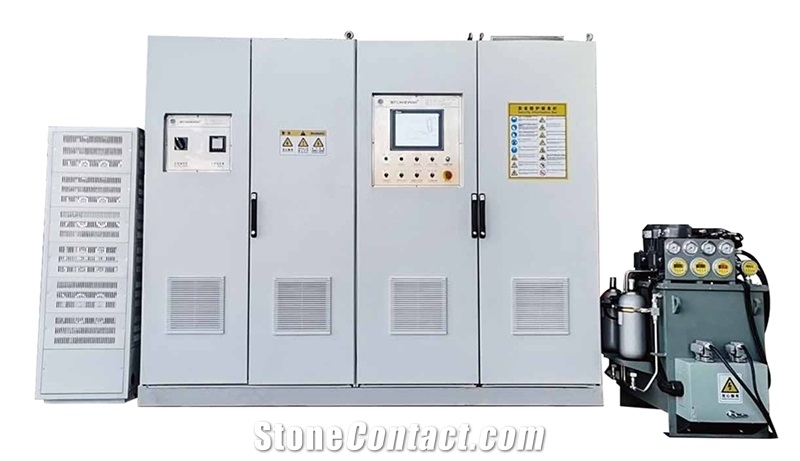

The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It ensures the operation and adjustment of the machine more convenient.
The machine can be operated by manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
Parameters |
Unit |
ZY-MW42 |
ZY-MW58 |
ZY-MW64 |
ZY-MW72 |
ZY-MW76 |
ZY-MW80 |
Slabs nominal thickness |
mm |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
Machine length (L) |
m |
12.945 |
12.945 |
12.945 |
12.945 |
12.945 |
12.945 |
Machine height (H) |
m |
6.18 |
6.18 |
6.18 |
6.18 |
6.18 |
6.18 |
Max. Cutting width |
mm |
1171 |
1618 |
1785 |
2008 |
2120 |
2160 |
Diamond wire length |
mm |
24000 |
24000 |
24000 |
24000 |
24000 |
24000 |
Max. Cutting height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
Installed electrical power |
kw |
250 |
280 |
280 |
315 |
345 |
345 |
Output number of slabs 20mm per linear mt. |
nr |
42 |
58 |
64 |
72 |
76 |
80 |
Max. Number of wires for sawing 30mm thick. |
nr |
31 |
43 |
48 |
54 |
57 |
60 |
Approximative Weight |
Kg |
45000 |
60000 |
61000 |
65000 |
66000 |
68000 |
Cooling water(min. required pressure 3.5 bar) |
L/min |
12600 |
17400 |
19200 |
21600 |
22800 |
24000 |
Output number of slabs 30mm per linear mt. |
nr |
31 |
43 |
48 |
54 |
57 |
60 |
Wire pitch for sawing 30mm thick. |
mm |
30/30.2 |
30/30.2 |
30/30.2 |
30/30.2 |
30/30.2 |
30/30.2 |
Wire pitch for sawing 20mm thick. |
mm |
20.9/21 |
20.9/21 |
20.9/21 |
20.9/21 |
20.9/21 |
21 |
Max. individual diamond wire tension |
Kg |
200/250 |
200/250 |
200/250 |
200/250 |
200/250 |
200/250 |
Main motor power |
kw |
285 |
315 |
315 |
350 |
380 |
380 |
Max. Number of wires for sawing 20mm thick. |
nr |
42 |
58 |
64 |
72 |
76 |
80 |
Diamond wires speed |
m/s |
0-35 |
0-35 |
0-35 |
0-35 |
0-35 |
0-35 |
Dim. Trolley Size/Worktable size |
m |
3.5*2.2 |
3.5*2.2 |
3.5*2.2 |
3.5*2.2 |
3.5*2.2 |
3.5*2.2 |
Voltage/Frequency |
V/Hz |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
Wires set width |
mm |
1171 |
1618 |
1785 |
2008 |
2120 |
2160 |
Diamond bead diameter |
mm |
5.3/6.3 |
5.3/6.3 |
5.3/6.3 |
5.3/6.3 |
5.3/6.3 |
5.3 |
Pitch groove wire driving |
mm |
9/9.3 |
9/9.3 |
9/9.3 |
9/9.3 |
9/9.3 |
9/9.3 |
Production efficiency 20mm thick. |
m2/h |
59-440 |
81-600 |
90-670 |
100-750 |
106-800 |
112-840 |
Max. Cutting length |
mm |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
Machine width (W) |
m |
4.12 |
4.74 |
4.74 |
5.06 |
5.06 |
5.06 |
Worktable max. rotate angle |
° |
0 |
0 |
0 |
0 |
0 |
0 |
Worktable load capacity |
T |
50 |
50 |
50 |
50 |
50 |
50 |
