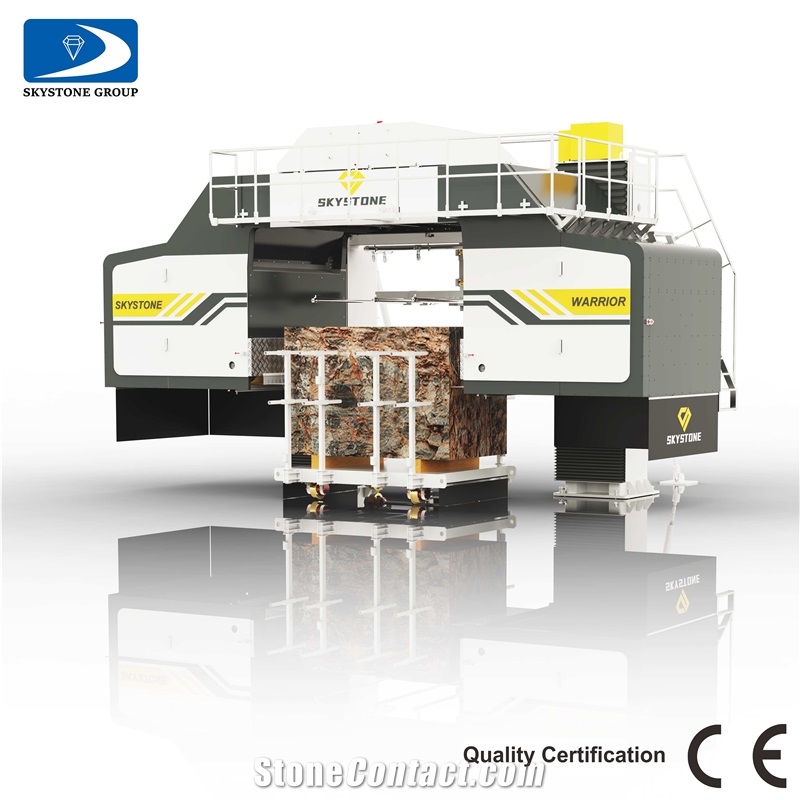

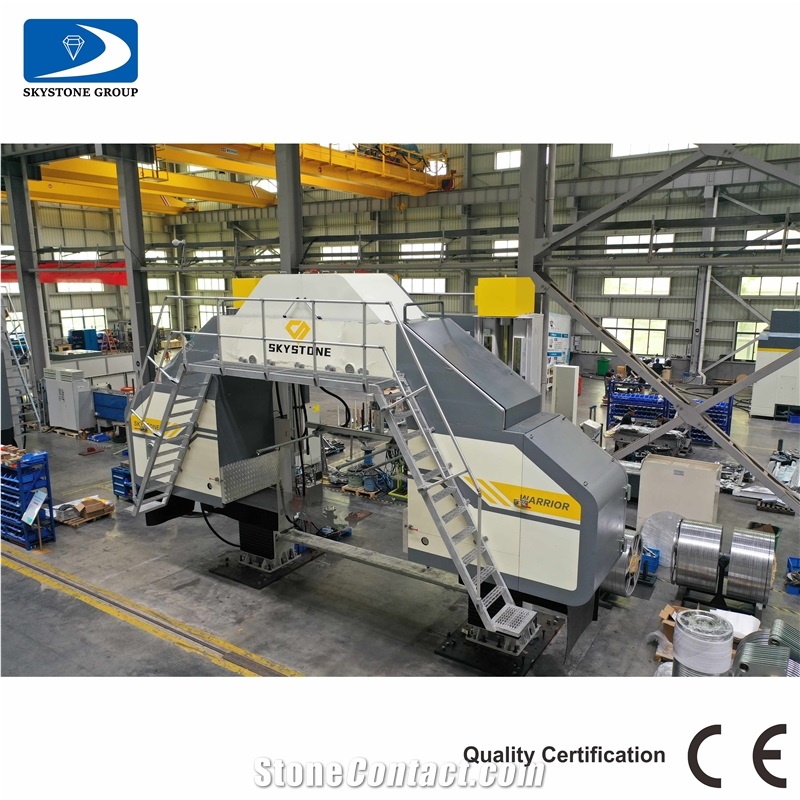

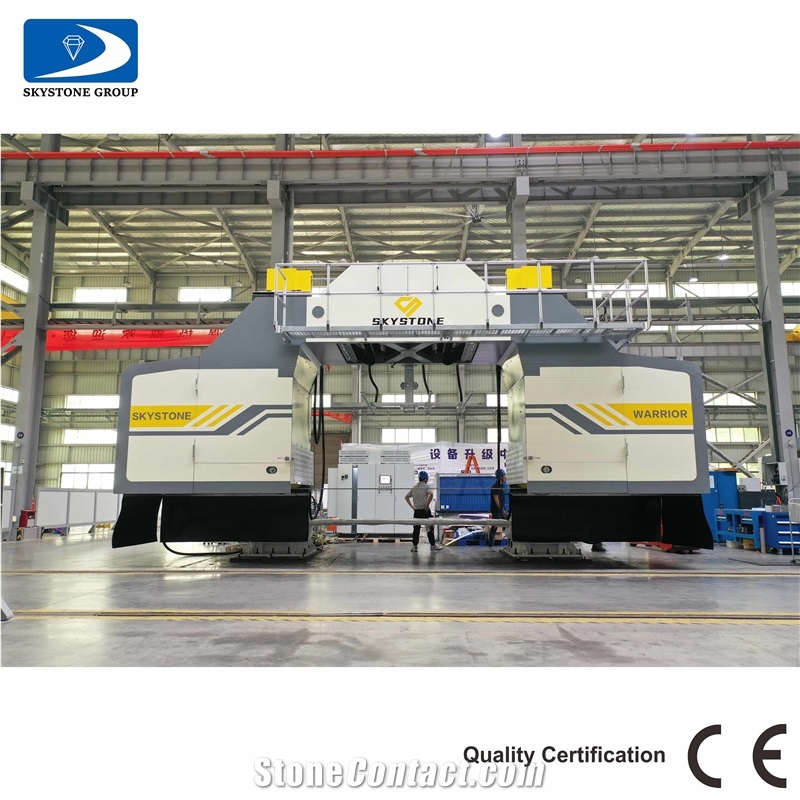

TSY-MW 50/52 Skystone Multi Wire Saw Machine With CE Certification
FOB Price:$9999999-9999999
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-6 months
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
Xiamen- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
6YR
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
Contact supplier
Machinery Function Features
The latest triangle structure technology, higher cutting efficiency, and the stability of running.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Technical Data
Parameters |
Unit |
SMW12 |
SMW16 |
SMW32 |
SMW50 |
SMW74 |
SMW76 |
Wire diameter |
mm |
7.3 |
7.3 |
7.3 |
7.3 |
7.3 |
6.3 |
Line-speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
Maxcut length |
mm |
3400 |
3400 |
3400 |
3400 |
3400 |
3500 |
Wire length |
m |
20 |
20 |
20 |
20 |
20 |
20 |
Slab thickness |
mm |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
Machine weight |
t |
18 |
22 |
38 |
55 |
70 |
70 |
Cooling water |
L/min |
180 |
250 |
500 |
750 |
1100 |
1100 |
Total power |
kW |
65 |
85 |
145 |
216 |
304 |
304 |
Tension |
kg |
250 |
250 |
250 |
250 |
250 |
220 |
Machine size |
m |
10*3.0*6.5 |
10*3.0*6.5 |
10*4.5*6.5 |
10*5.0*6.5 |
10*5.5*6.5 |
10*5.5*6.5 |
Wire quantities |
pcs |
12/9 |
16/12 |
32/24 |
50/38 |
74/55 |
76/57 |
Maxcut height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
Main motor power |
kW |
55 |
75 |
132 |
200 |
280 |
280 |

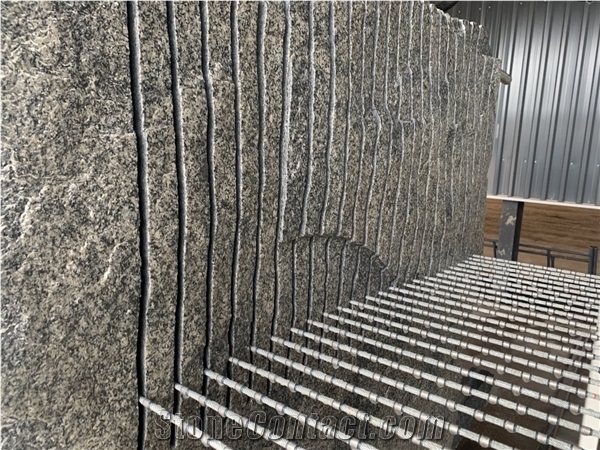

Processed Stone Photos
-

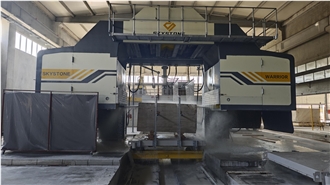

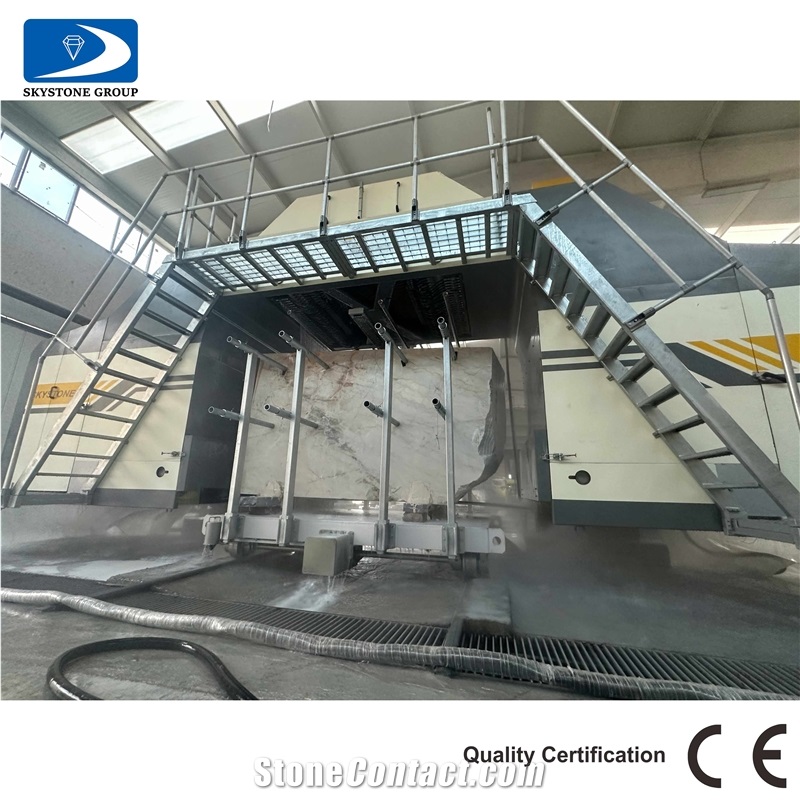

Cutting
Components
-

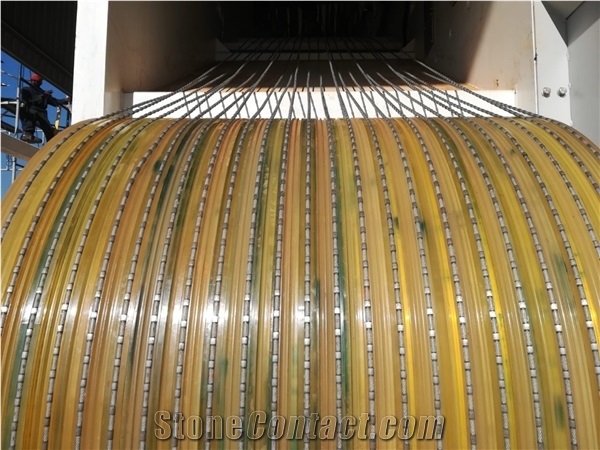

Driving wheel

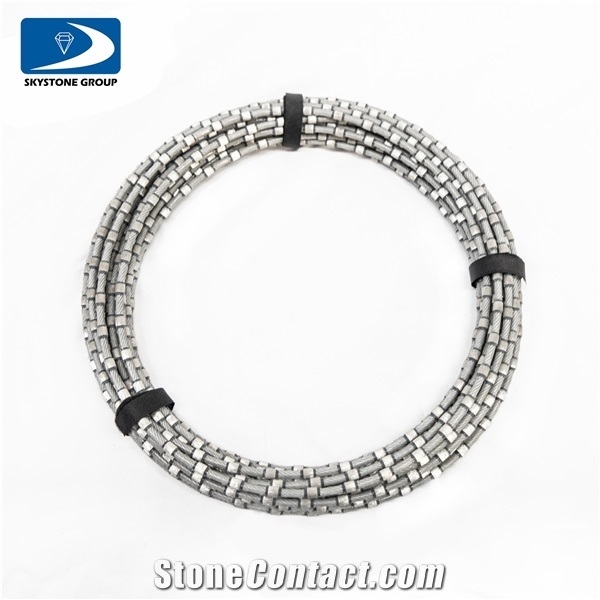

Consumables
-
Diamong wire

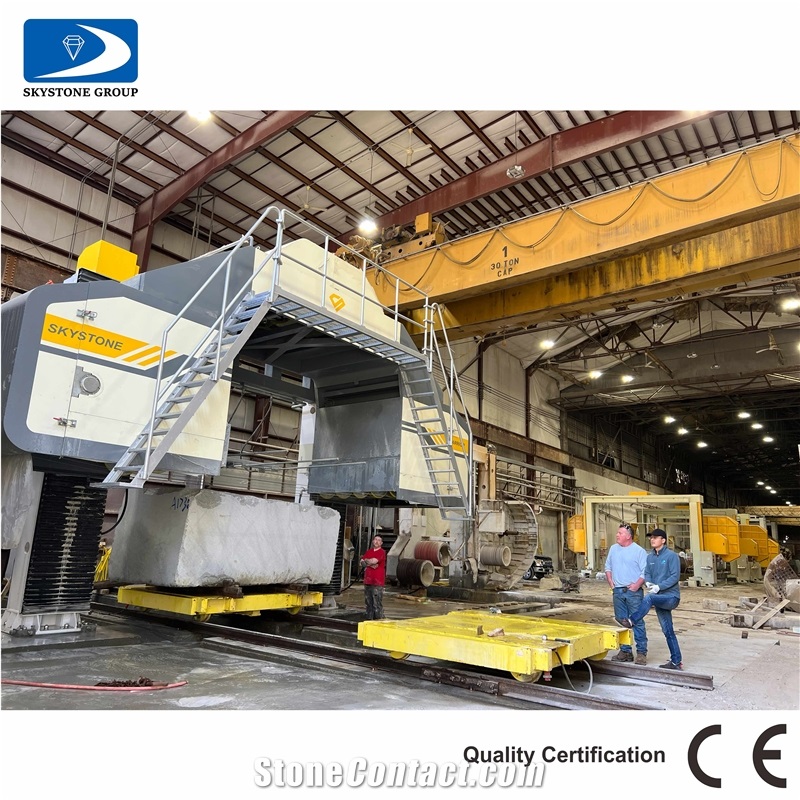

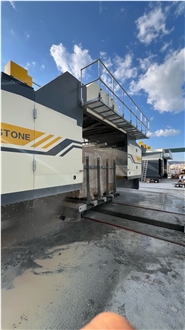

Customer Case
