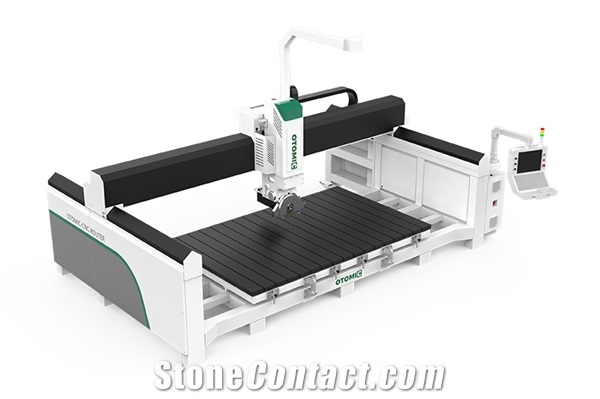

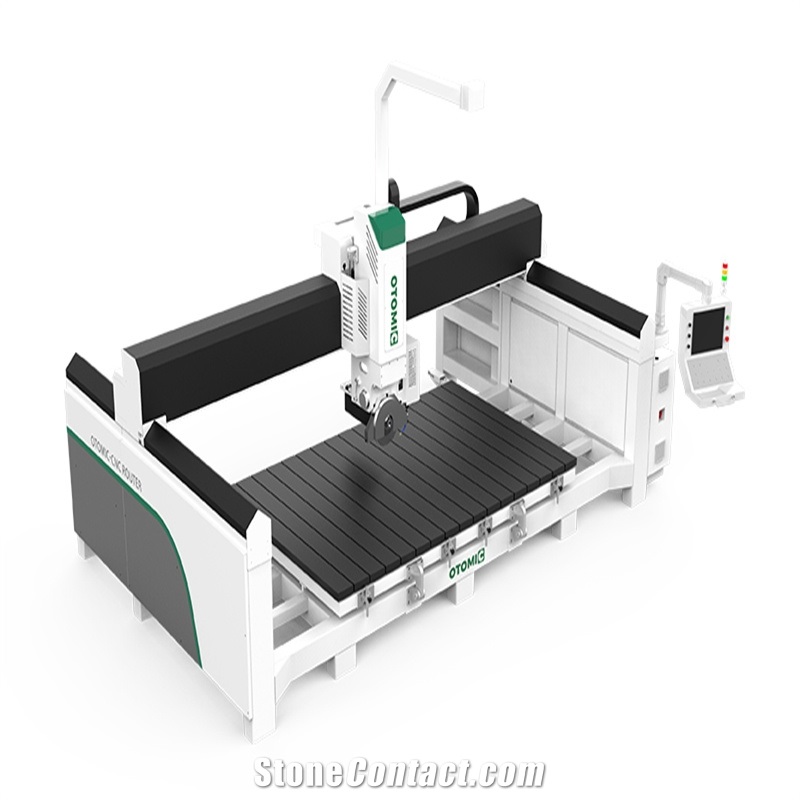

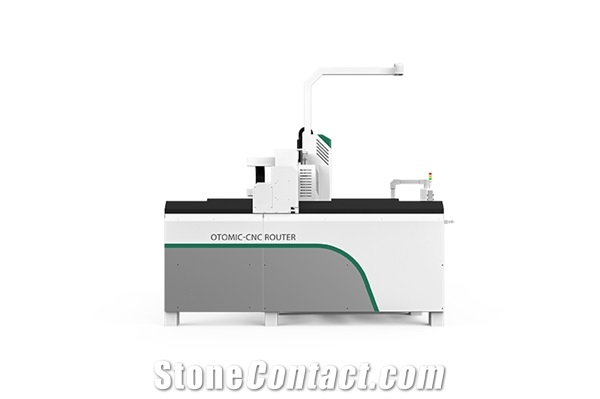

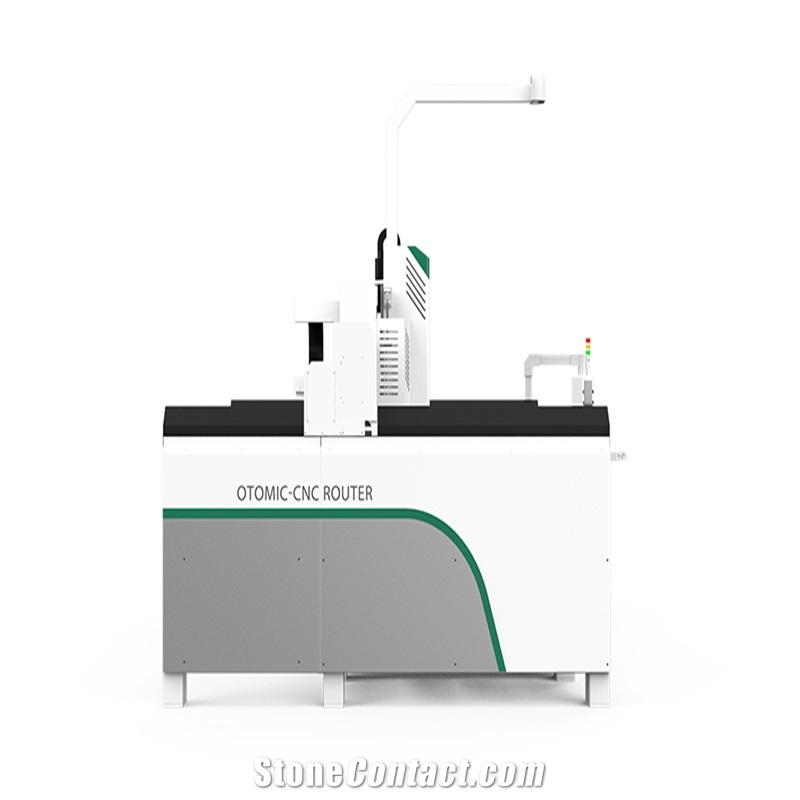

Infrared 4 Axis CNC Marble And Granite Bridge Saw Machine
FOB Price:$30000-40000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
120days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade
Trade Terms
Port:
Qingdao- China
Delivery Details: FOB,CIF,EXW,DDU
Payment :
Supplier
5YR
Eatablished :Apr 03,2013
Main Product:
4 Axis Bridge Saw, 5 Axis Bridge Saw, Stone Engraving Machine, CNC Machining Center, 6 Axis Robotic|
You may also like
Machinery Function Features
This is a new launched 4 axis marble bridge cutting saw has the c axis that can rotate 0° or 45° to automatically cut stone materials. Besides, it can also be added with a camera and infraded head to increase the positioning accuracy and precision. It gains great popularity in various stone processing industries.
1. The 4 axis bridge saw blade can be tilted by 45°to cut standard-size boards and realize four-sided chamfering, plane grooving, basin hole digging, etc.
2. The bridge saw worktable can overturn 85° to facilitate loading and unloading of stone materials.
3. The infrared ray head can locate the cutting position to make the cutting be faster and more accurate.
4. Automatic suction cup can move the board and avoid saw notch.
1. The 4 axis bridge saw blade can be tilted by 45°to cut standard-size boards and realize four-sided chamfering, plane grooving, basin hole digging, etc.
2. The bridge saw worktable can overturn 85° to facilitate loading and unloading of stone materials.
3. The infrared ray head can locate the cutting position to make the cutting be faster and more accurate.
4. Automatic suction cup can move the board and avoid saw notch.
Technical Data
Parameters |
Unit |
ES4-3220 4 Axis CNC Bridge Saw |
Worktable Weight |
Kg |
800 |
Worktable turn-over degree |
° |
85 |
Max. workable thickness |
mm |
60 |
Machine width |
m |
4.5 |
Max. cutting depth |
mm |
200 |
C axis blade rotation |
° |
360 |
Machine height |
m |
3.6 |
Machine length |
m |
5.85 |
Software
This 4 axis stone bridge cutting saw has infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it has an air-cooling spindle to better engrave stone patterns. So we can also call it 4+1 bridge saw machine for stone. Blue Elephant customized CNC control system will realize high-quality and precise cutting.
Work Example
- The bridge saw head can tilt 0° or 45° for stone chamfering and cutting
- The bridge saw table is tilted at 85° to facilitate loading and unloading.
- The main core components adopt international first-line brands such as Schneider, which is more stable
- The one-piece structure guarantees a small footprint and easy installation and movement.
- Equipped with a top camera, it can automatically typeset and position stone slabs.
- The extra water-cooling spindle can easily realize stone engraving with fast speed and high precision.

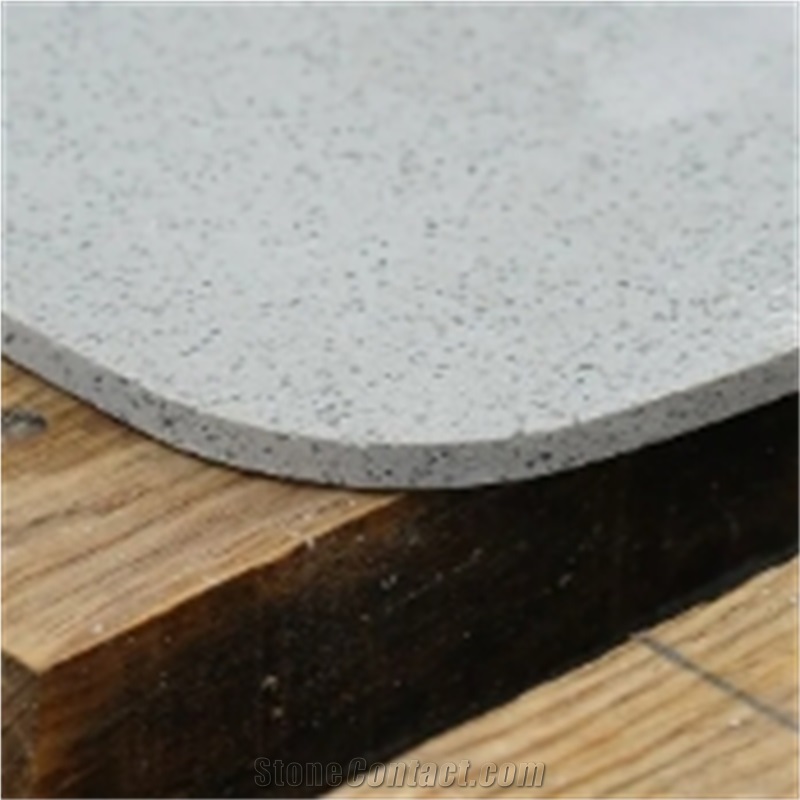

Processed Stone Photos
