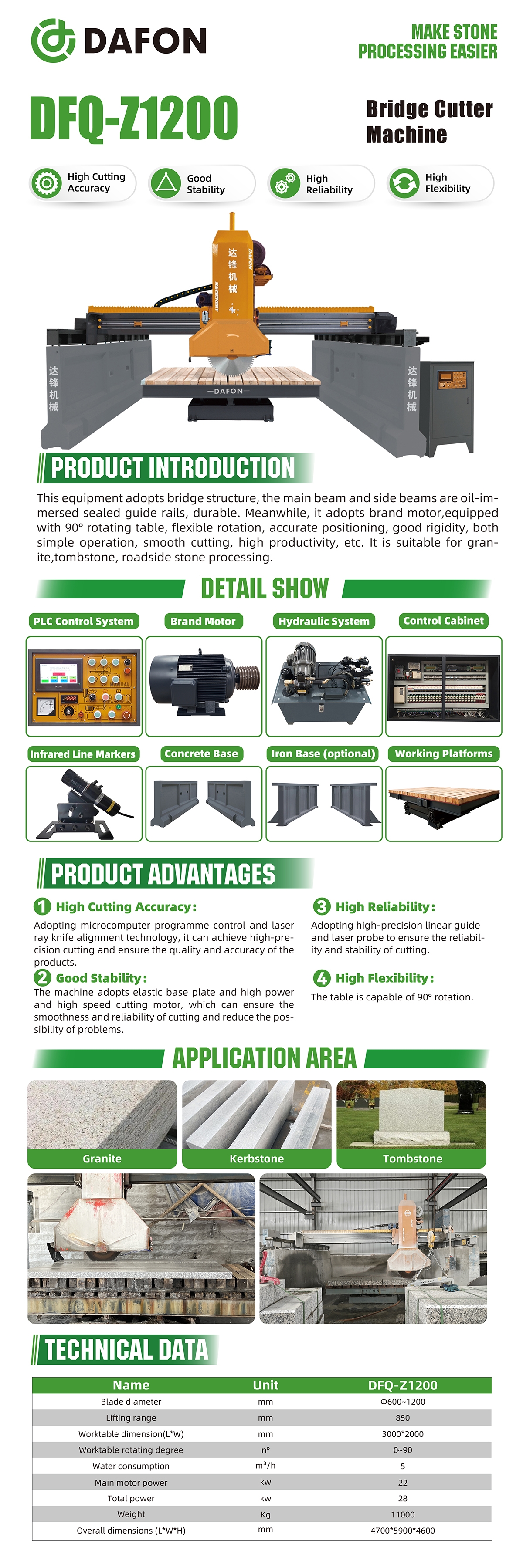

CNC Bridge Cutter Machine For Cutting Granite DFQ-Z1200

The Best Cutting Granite AND Marble Slabs Machine

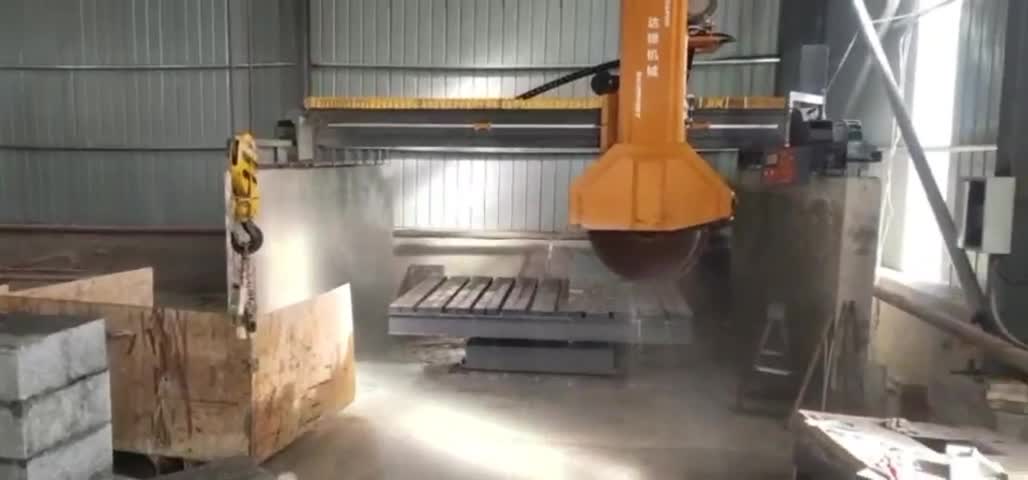

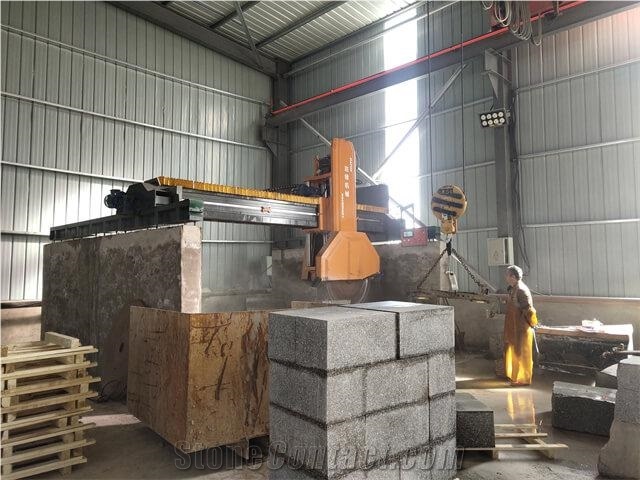

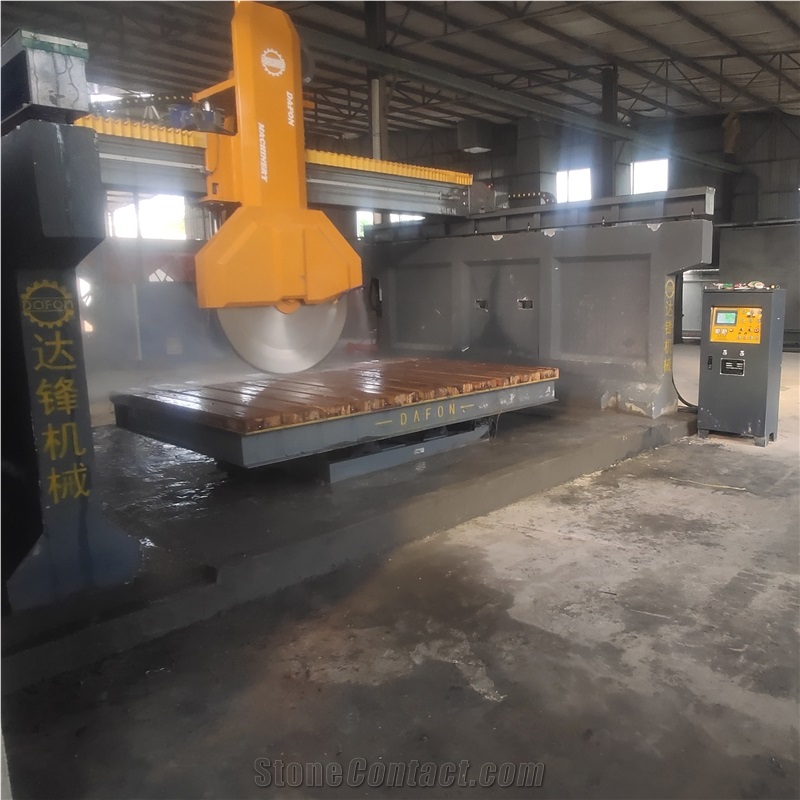

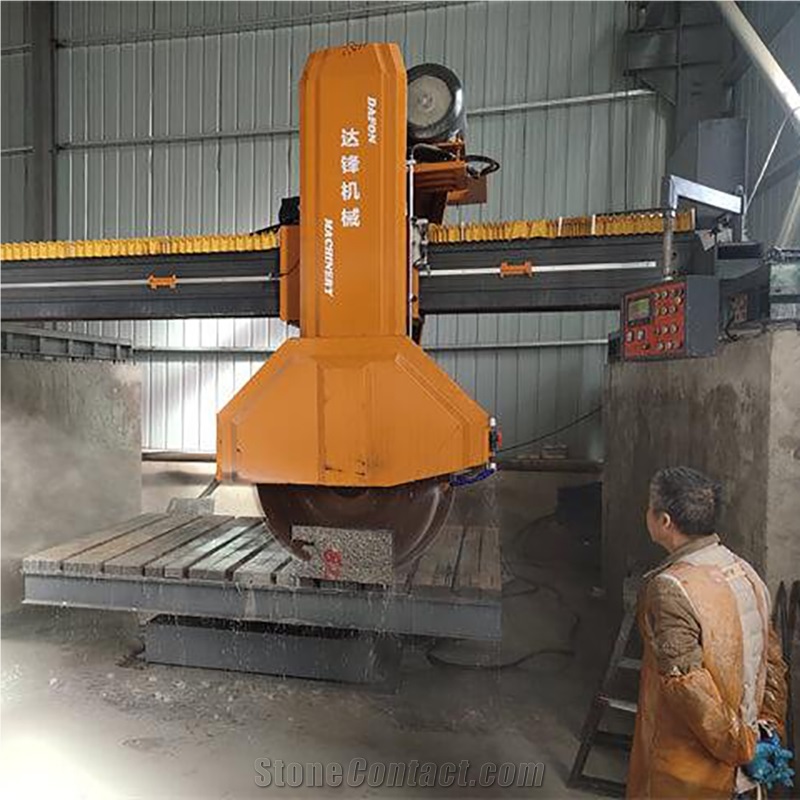

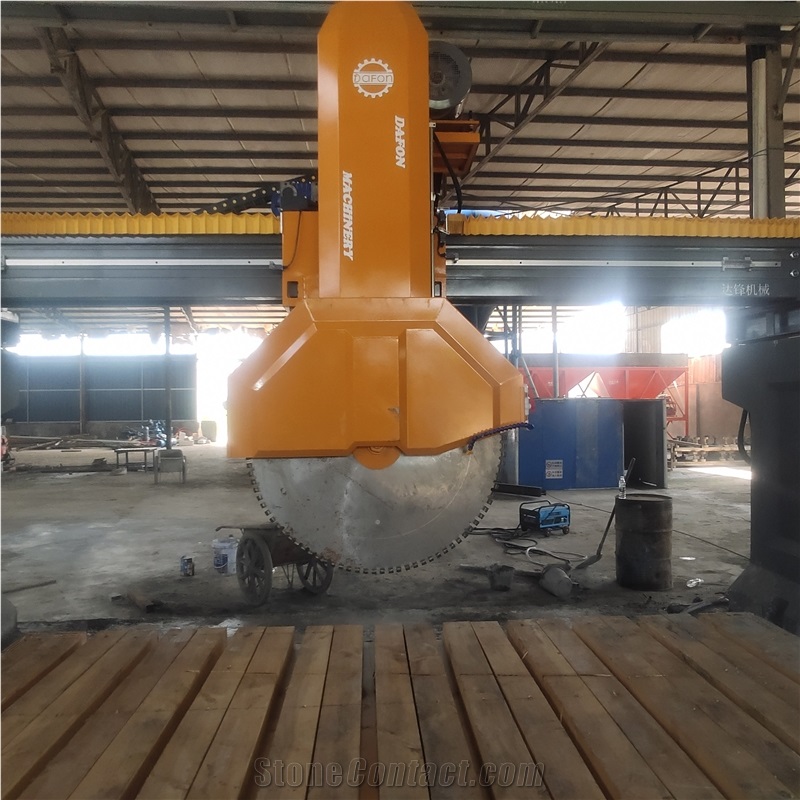

The machine adopts a bridge structure, and the main girder and side girders are all oil-immersed sealed guide rails. lt adopts imported frequency converter steples speed regulation cutting, equipped with a 90-degree rotating table, flexible rotation, accurate positioning, and good rigidity, This machine cuts smoothly and efficiently and is an ideal equipment for processing high-value stones, tombstone crafts, and road rocks.
Machine Features:
1. The machine adopts cast iron on the main part of the machine body to ensure stability while cutting

2. The inverter controls the cutting speed to achieve step-less adjustment, the head movements, table title up, rotation, and position use the hydraulic transmission to move. it can be cut manually and fully automatically easily.

3. It adopts a PLC programmable control system and touch screen operator and is combined with high precision encode positioning(Omron brand encoder)

4. The worktable is controlled by hydraulic rotation

5. It applies to cutting valuable and large-sized stone board for many specifications

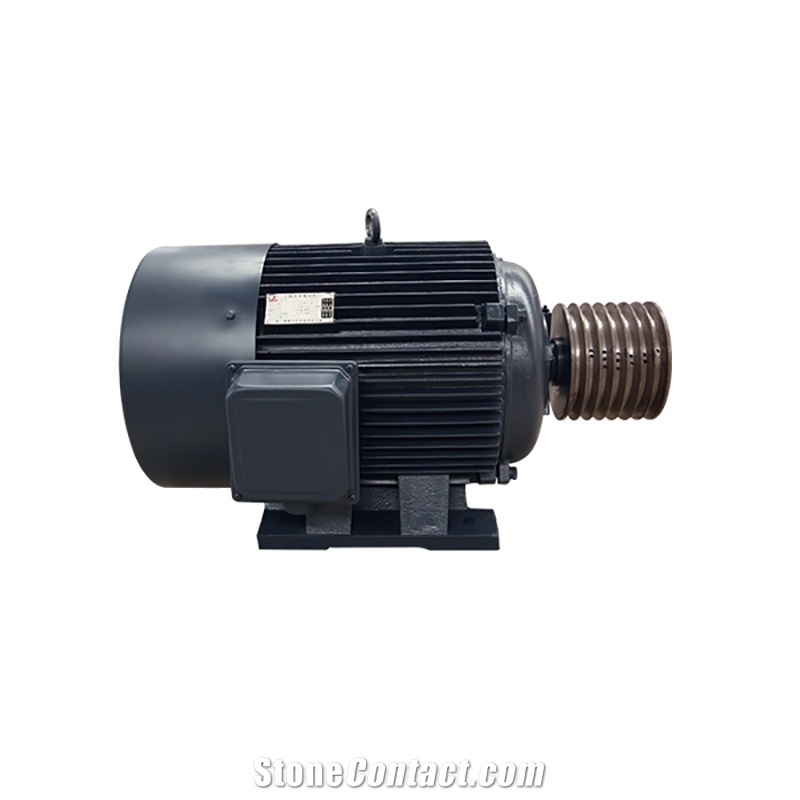

·Motor: Eagle brand or Mindong brand
·Hydraulic station: seven ocean hydraulic systems from Taiwan
·Cement foundation or metallic foundation
·Worktable:
Size: 3000*2000*700mm
Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt
Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
Inside details: 8 rotation wheels inside the worktable, not 6
Infrared line to show the cutting path which ensures precise cutting and high-cutting quality
