Manual Stone Slab Edge Cutting Machine 45 Degree Stone Cutter
FOB Price:$4150-4550
Type:
Stone Factory MachinesStone Slab Cutting MachinesAutomatic Edge Trimming Line for Slabs
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
4YR
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine|
You may also like

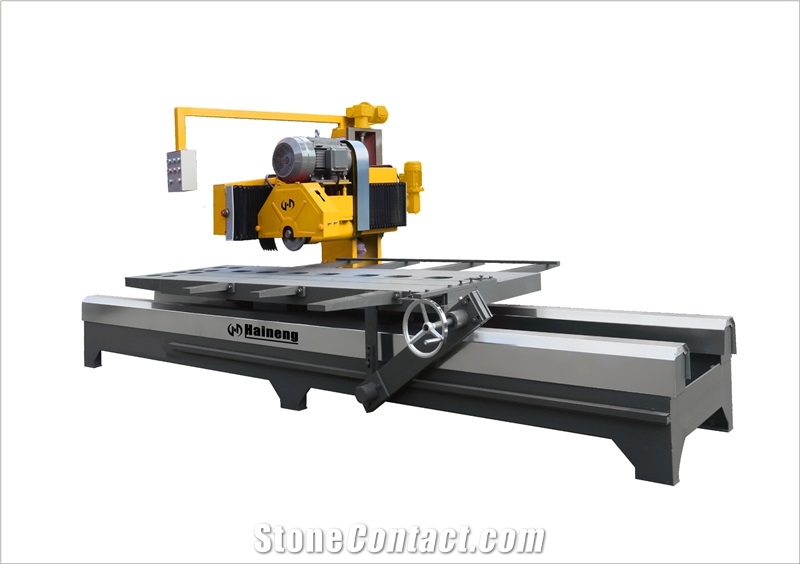

Machinery Function Features
Stone Slab Edge Cutting Machine is handle split oil-sealed track edge-cutter and made of strong cast-iron, It adopts independent adjustable structure of horizontal direction and vertical direction, which is convenient to cut different specifications slates. Head 360°free rotating. The whole machine is of strong strength, high efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.
Technical Data
Parameters |
Unit |
QBJ3000-5B |
QBJ3500-5B |
Gross power |
kw |
11.75 |
13.75 |
Max.cutting width |
mm |
1200 |
1200 |
Max.cutting thickness |
mm |
150 |
150 |
Overall machine width |
mm |
2500 |
2550 |
Overall machine length |
mm |
4860 |
5400 |
Machine weight |
Kg |
1950 |
1950 |
Exhausted water |
m³/h |
2 |
2.2 |
Main motor power |
kw |
11 |
13 |
Blade diameter |
mm |
Ø350-Ø600 |
Ø350-Ø600 |
Max.cutting length |
mm |
3000 |
3500 |
Overall machine height |
mm |
2100 |
2200 |
Processed Stone Photos
Components
-

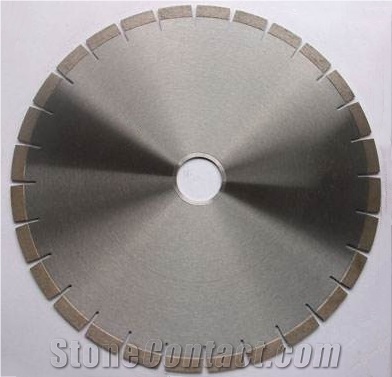

saw blade
