4 Axis Marble Router Equipment Stone Column CNC Carving Machine
FOB Price:$19800-21000
Supplier
3YR
Eatablished :Apr 17,1997
Main Product:
Stone Quarry Machine, Block Cutting Machine, Stone Polishing Machine, Slab Cutting Machine , Stone Engraving Machine, Stone Cnc Machine|

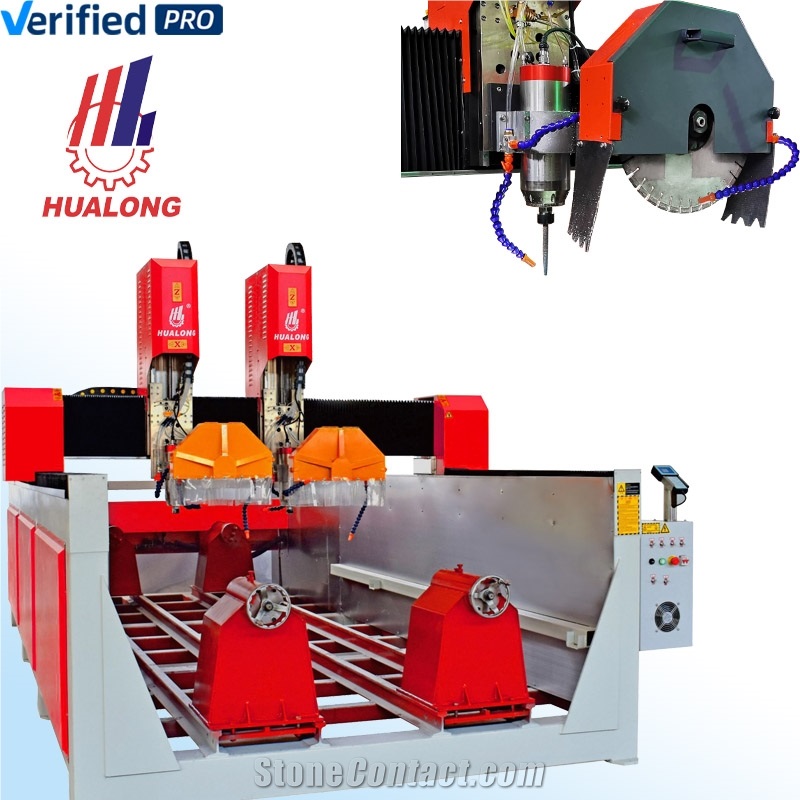

HUALONG 4-Axis Dual-Head Stone Engraving Machine
Precision Craftsmanship for Columns, Slabs & Monuments
Key Features
✅ 4-Axis Column Carving + 3-Axis Slab Engraving
- 4-Axis Mode:
Full-rotation processing for classical pillars (Ø100-800mm) with ±0.03° angular precision
- 3-Axis Mode:
Large-format engraving platform (2300×1300×300mm) for reliefs and inscriptions
✅ Intelligent Dual-Tool Management
- Console-Driven Transition:
Automated blade retraction → Operator clearance check → Spindle positioning
- Dual Efficiency:
Replace separate machines, save 50% space & 30% energy
Technical Specifications
4-Axis Mode: 2000kg load, ±0.03° accuracy
3-Axis Mode: 2300×1300mm flatbed, ±0.05mm precision
Tool Transition: <3min operator-guided process
Competitive Edge
✅ Optimized Process Control
- Automatic collision avoidance during transitions
- Dual-tool position memory (±0.02mm repeatability)
✅ Human-Machine Collaboration
- Real-time tool positioning indicators
- Built-in quality inspection phase
Global Applications
4-Axis Mode
- European Heritage: Gothic church columns, Baroque capitals
- Asian Culture: Dragon columns, Decorative columns
3-Axis Mode
- Tombstones: Multi-language engraving (40 slabs/day)
- Art & Decor: Marble mosaic tiles, granite relief walls
Limited-Time Offers
🔥 Offer 1: 3-Year Core Warranty Critical parts coverage extension.
🔥 Offer 2: Spare Parts Kit: Free blades, tools, and maintenance kits.
🔥 Offer 3: Design Resource Pack: 100+ engraving templates
Trust Cornerstone
87 Patents | 80+ Countries Served | Top 5 China Stone Machinery Brand
Parameters |
Unit |
HLSD-1525M-2 |

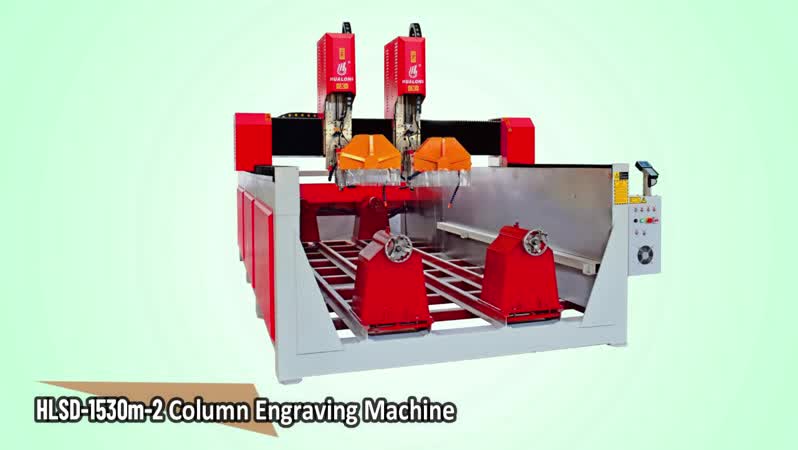

HLSD-1530M-2 |
HLSD-1535M-2 |
Max. processable cylinder size |
mm |
2500mm*ø600 |
3000mm*ø600 |
3500mm*ø700mm |
Number of engraving head |
nr |
2 |
2 |
2 |
Repeat positioning accuracy |
mm |
+/- 0.02 |
+/- 0.02 |
+/- 0.02 |
Feeding height |
mm |
≤ 400 mm（customizable） |
≤ 400 mm（customizable） |
≤ 600 mm（customizable） |
Max. relief working size |
mm |
1500*2500*350 |
1500*3000*350 |
1500*3500*500 |
Machine overall length |
mm |
4600 |
5100 |
5600 |
Main spindle motor power |
kw |
4.5 / 5.5 kw (customizable) |
4.5 / 5.5 kw (customizable) |
4.5 / 5.5 kw (customizable) |
Diameter of spindle tools |
mm |
ø3.175-16 |
ø3.175-16 |
ø3.175-16 |
Approx. Weight |
Kg |
3800 |
3900 |
4000 |
Machine overall height |
mm |
2200 |
2200 |
2200 |
Machine overall width |
mm |
2200 |
2200 |
2200 |
Saw motor power |
kw |
7.5 |
7.5 |
7.5 |
Positioning precision |
mm |
+/- 0.03 |
+/- 0.03 |
+/- 0.03 |
Main spindle speed |
r/min |
6000-24000 |
6000-24000 |
6000-24000 |
Electricity-Voltage |
V/Hz |
380/50 or 220/50 |
380/50 or 220/50 |
380/50 or 220/50 |
Top-tier stone engraving machine software from China Weihong.
We, China leading stone machinery manufacturer, CNC stone carving machine supplier, export:
- 4-axis dual-head engraver
- marble engraving equipment
- marble column egraving equipment
- 4-axis machine for stone column processing
- stone engravoer for sale
- global multi-functional stone engraver
- stone cnc router machine
- tombstone engraving machine
- automatic stone pillar carving machine for Roman designs
-

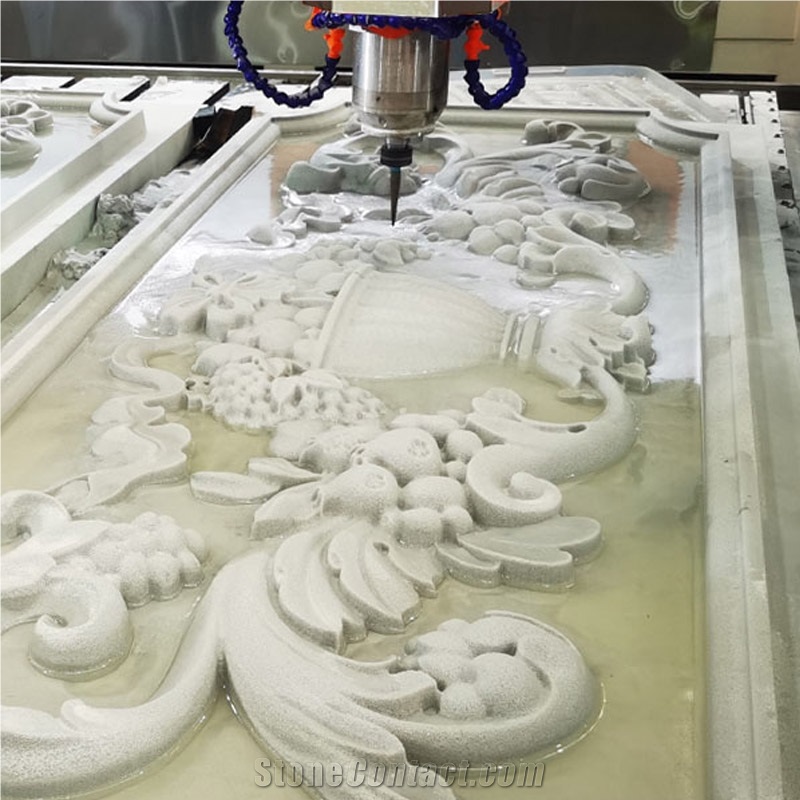

Stone Relief Carving
-
Granite Engraving
-

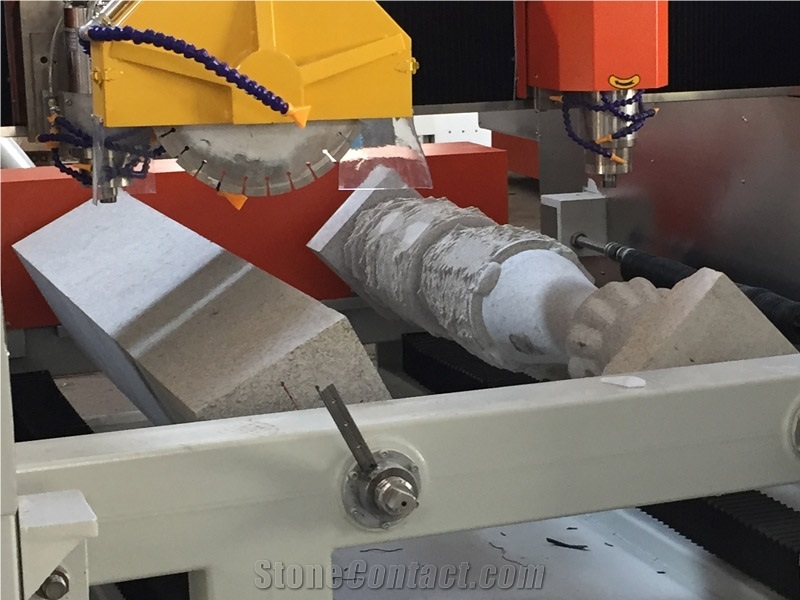

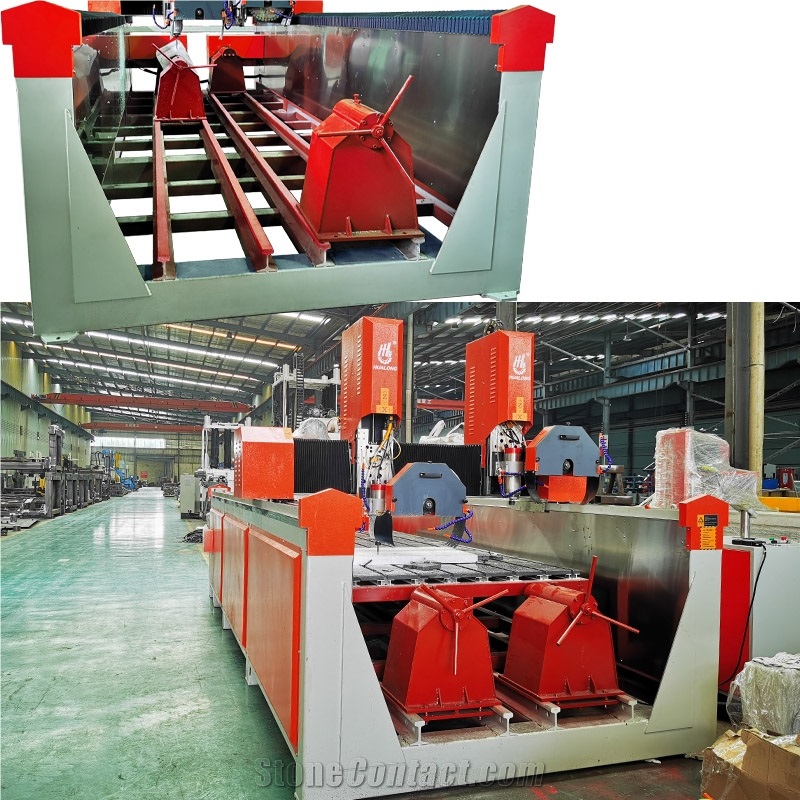

Pillars Cutting & Carving
-

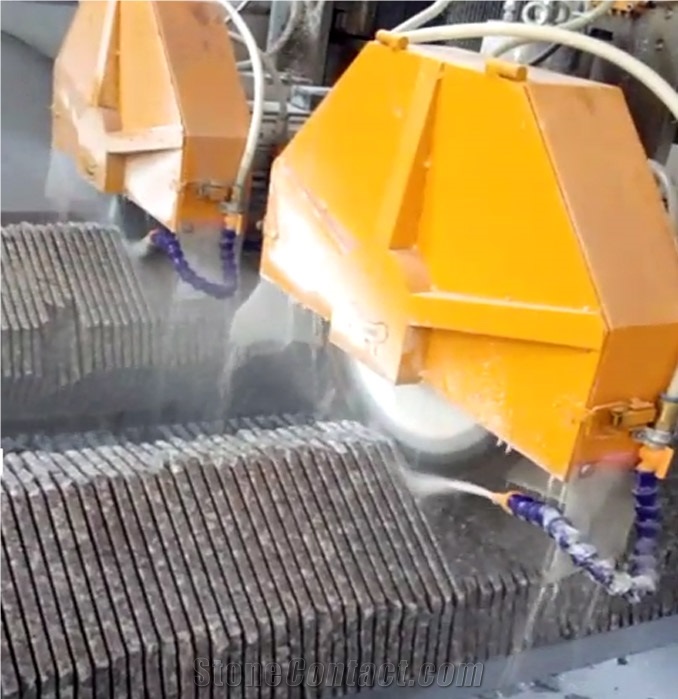

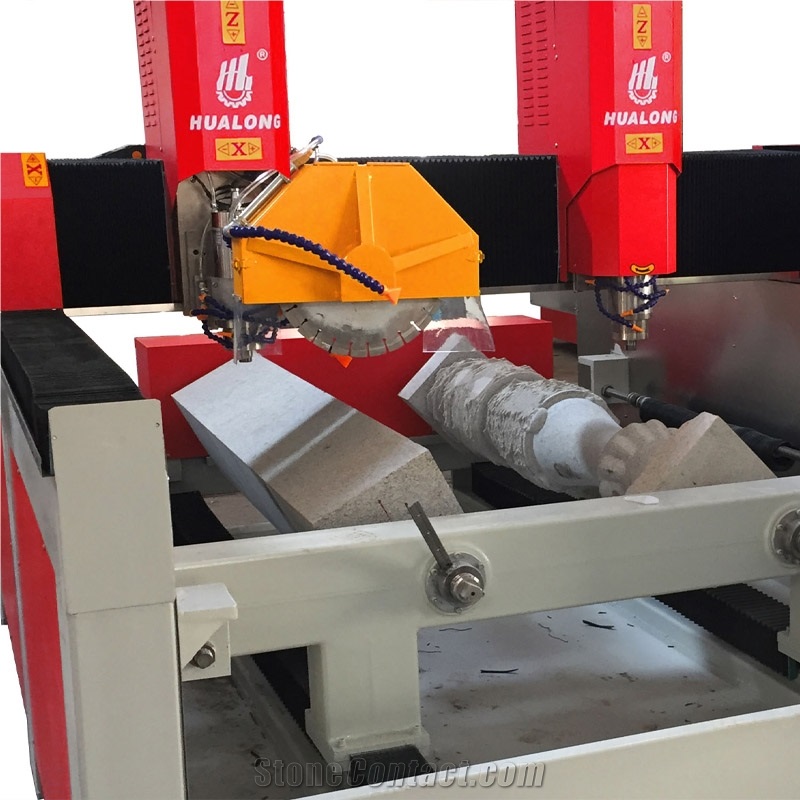

Pillars Rough Cutting
-

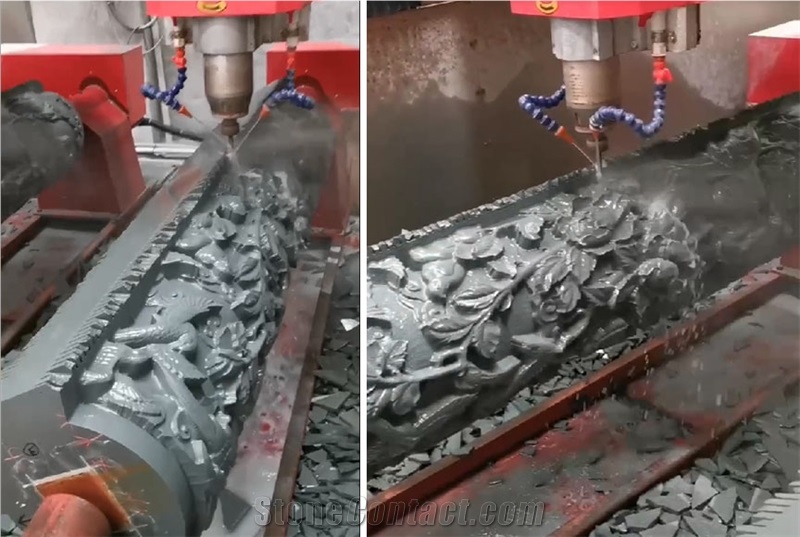

Dragon Colum Carving
-
Roman Pillars Carving
-
Column Pedestal Engraving
-

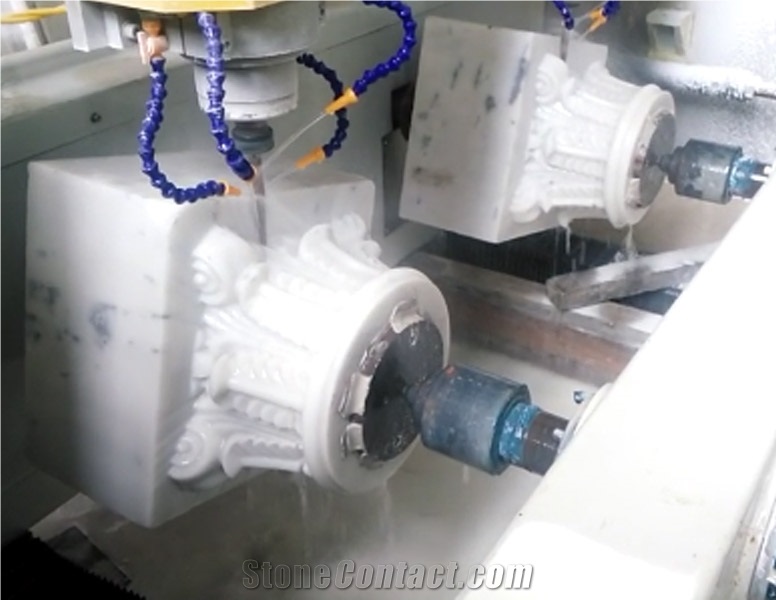

Corinthian Pedestal Carving
-

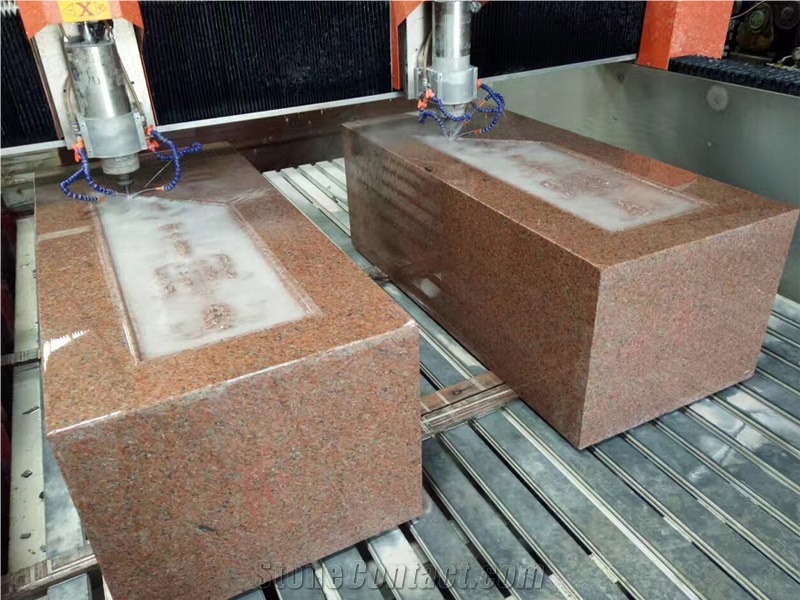

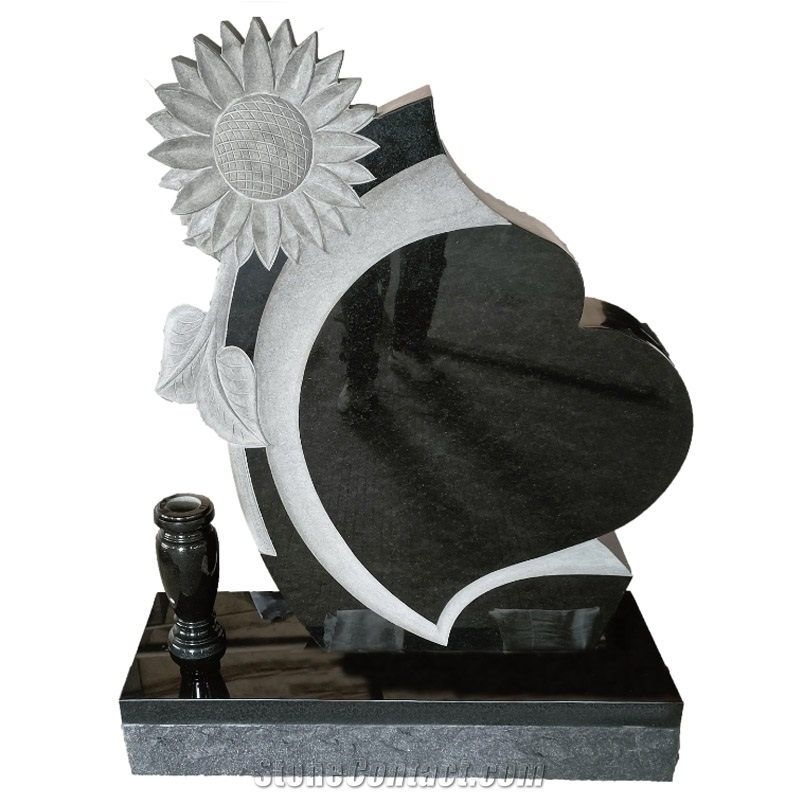

Tombstne Engraving
-

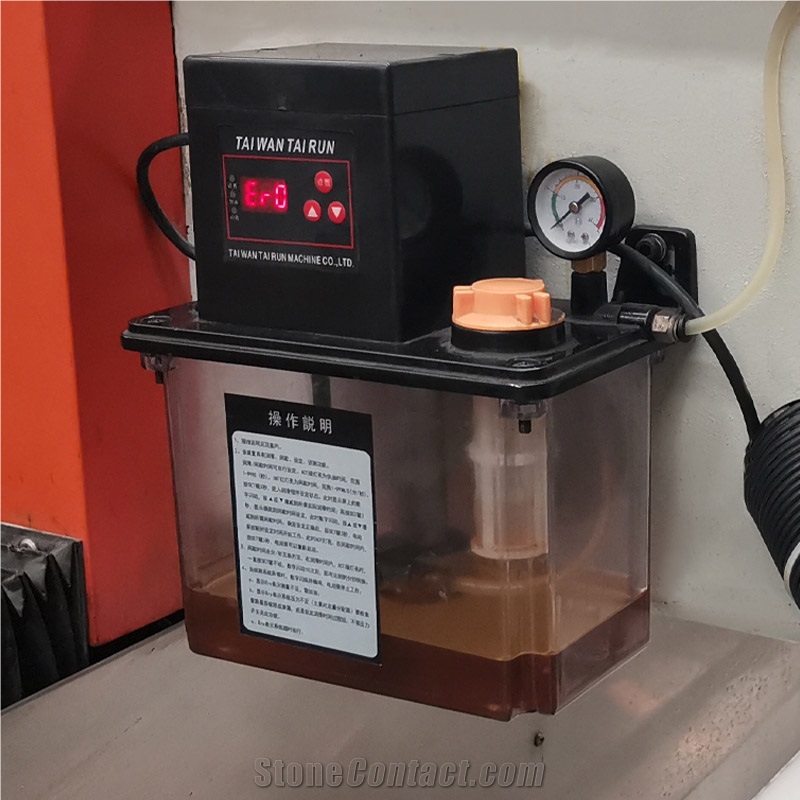

Lubrication System
-

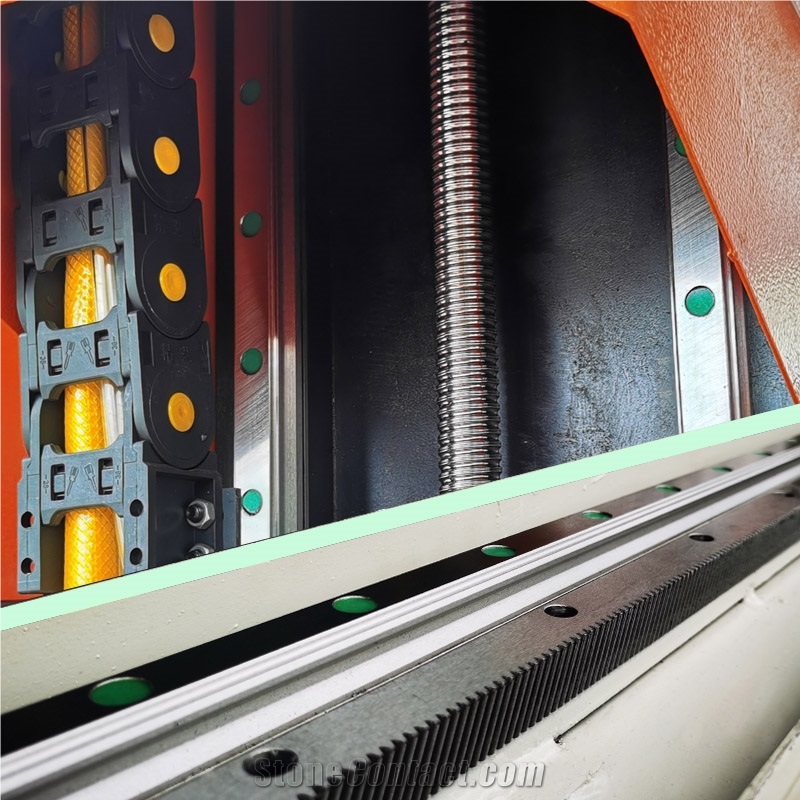

Linear Guides & Ball Screws
-
DSP Controller (optional)
-

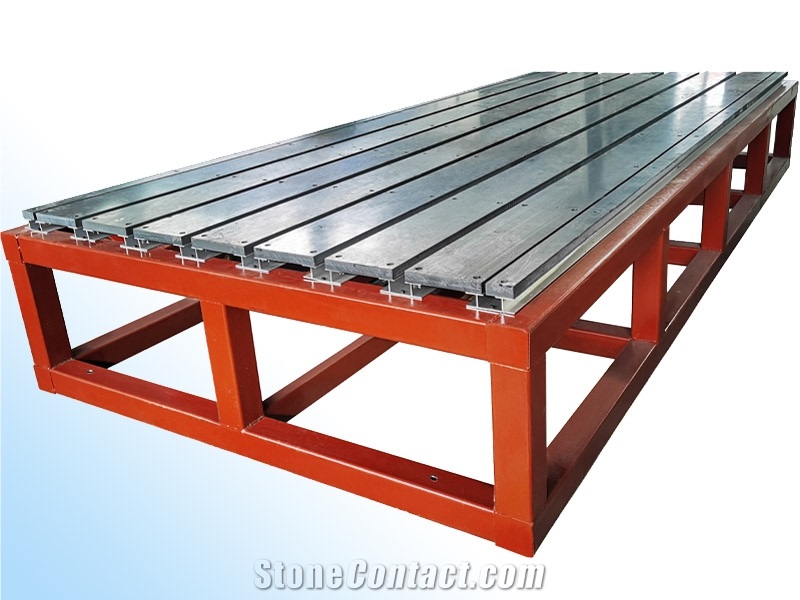

Flatbed for Relief Carving
-

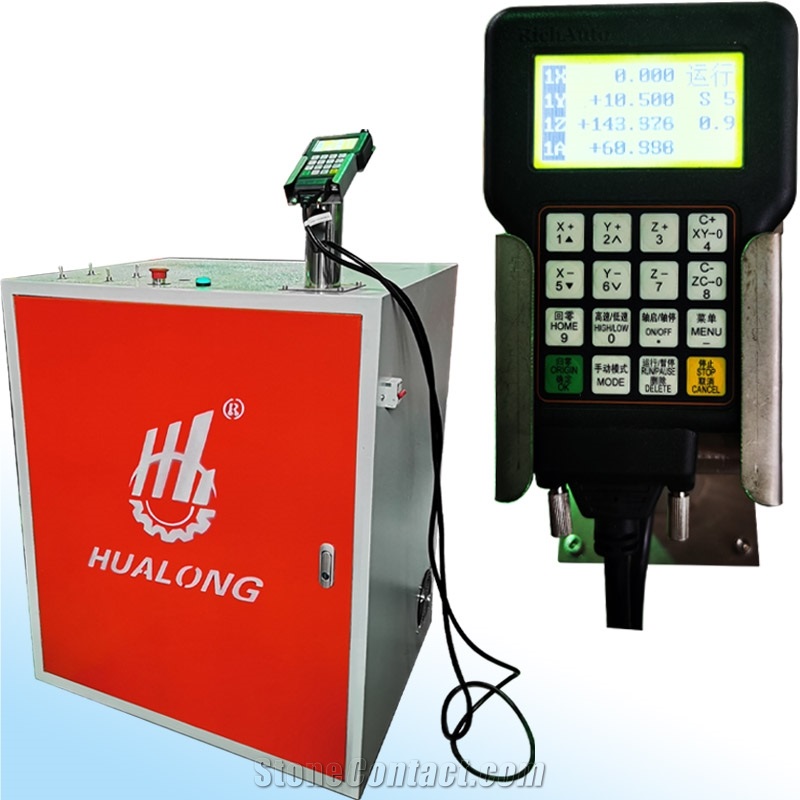

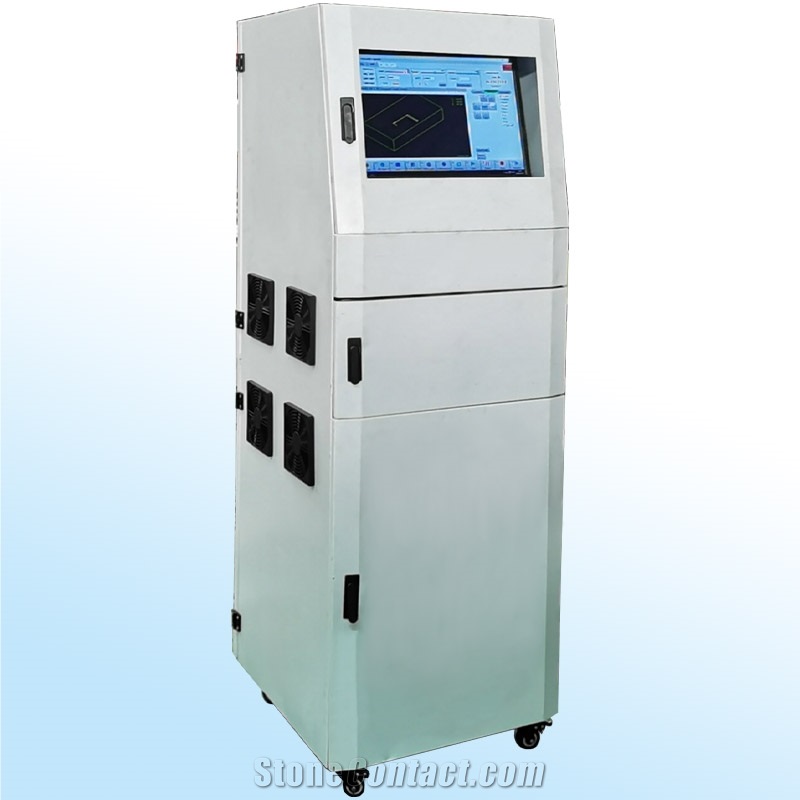

Console
-

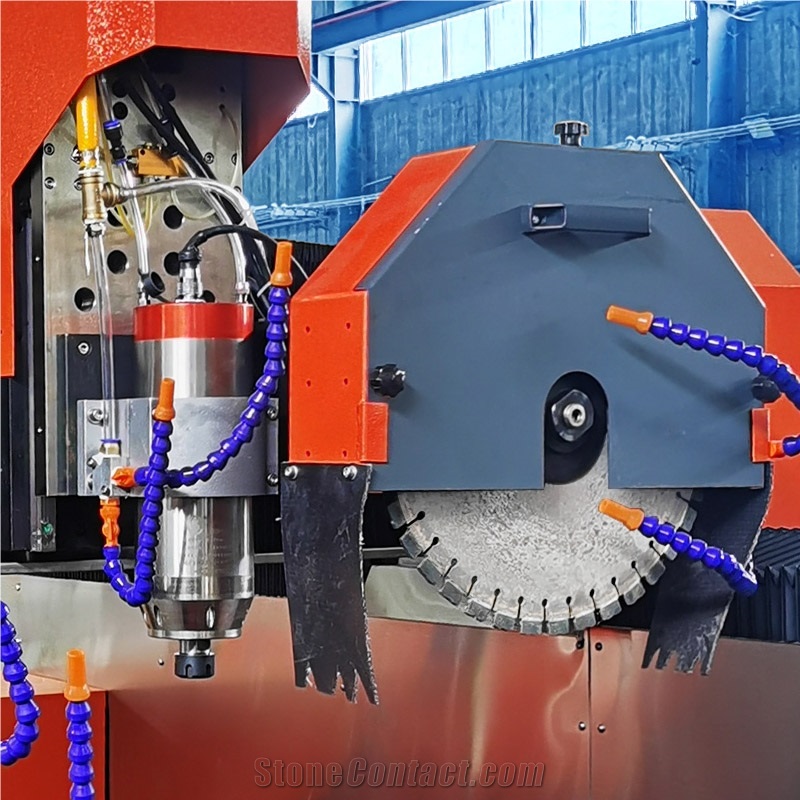

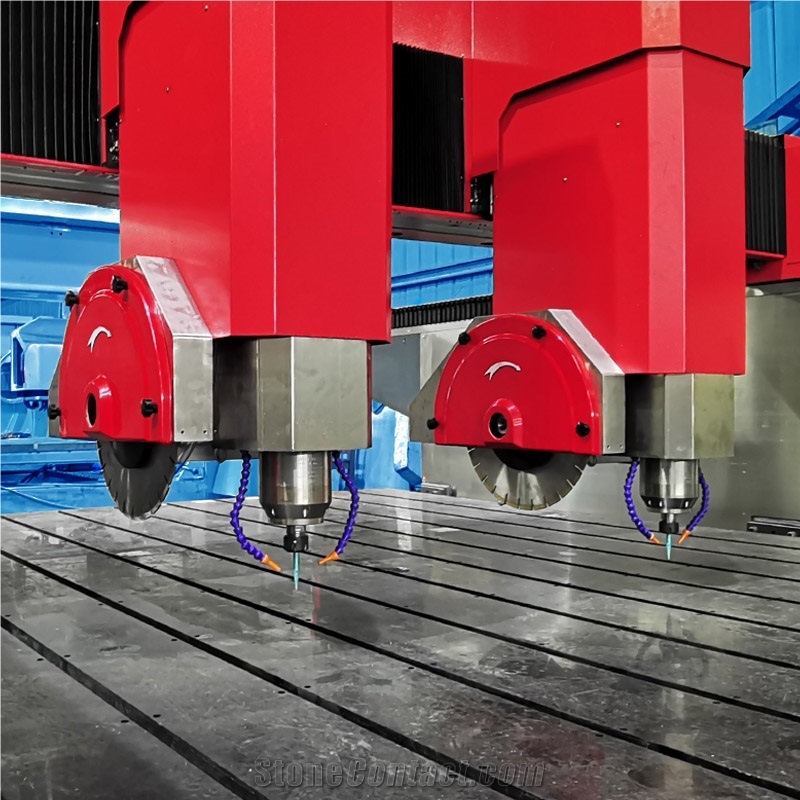

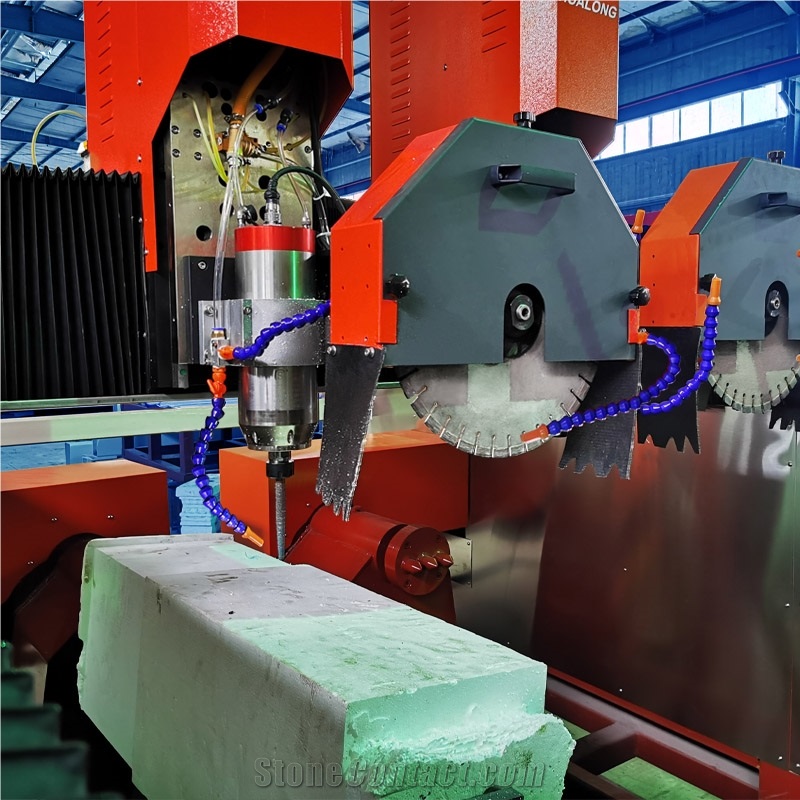

Main Spindle with saw in front
-

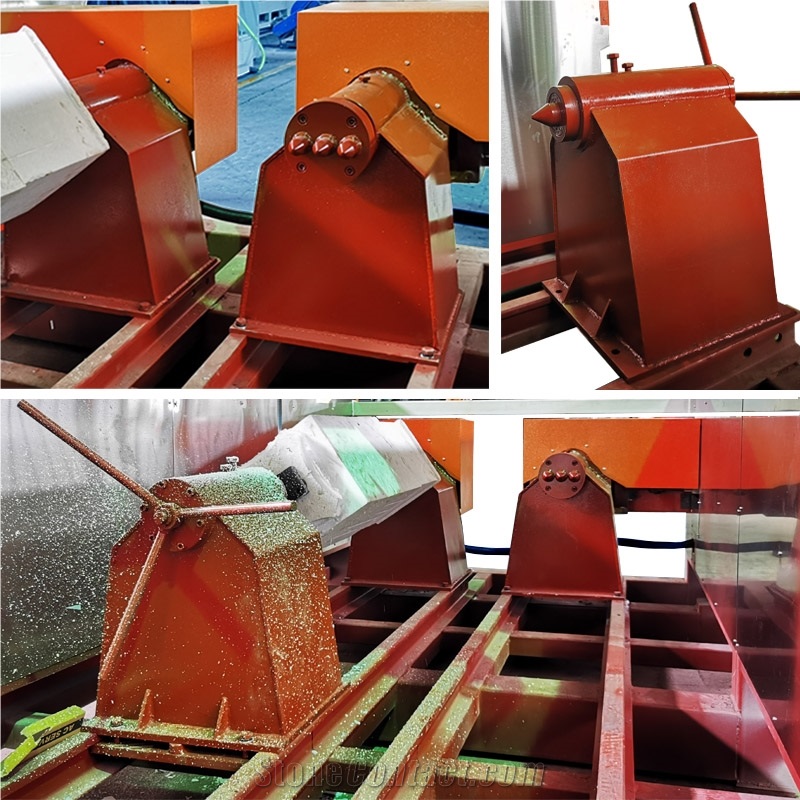

Clamp Device for Pillars Carving
-
Spindle with Saw at side (optional)
-

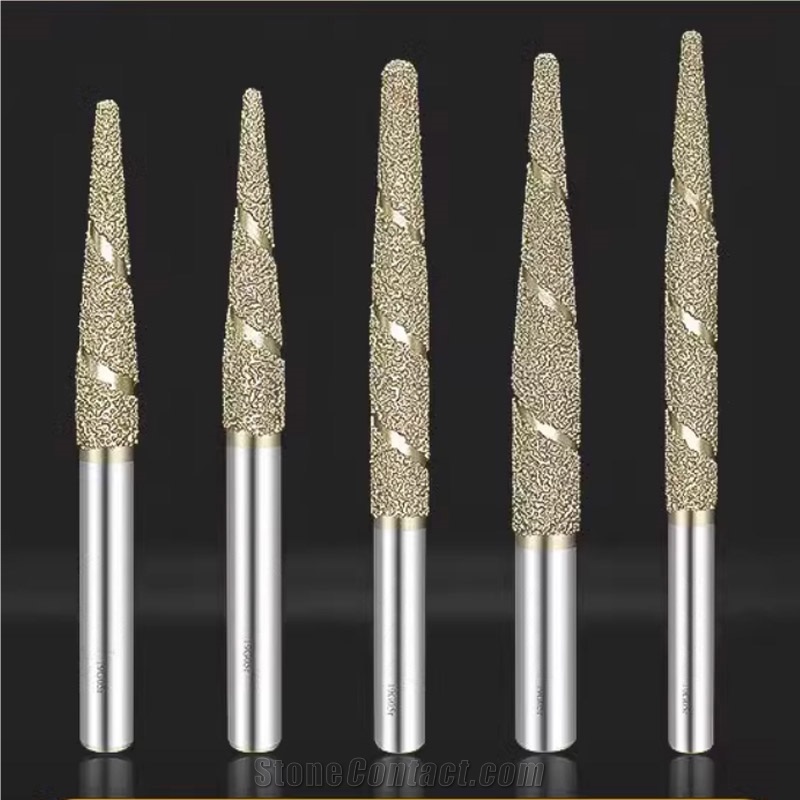

Brazed Enraving Bits
-
Sintered Carving Bits
-
Diamond Saw Blade
