7-Axis Robotic Stone Engraving 3D Marble Statue CNC Carving Machine
FOB Price:$78000-81000
Supplier
3YR
Eatablished :Apr 17,1997
Main Product:
Stone Quarry Machine, Block Cutting Machine, Stone Polishing Machine, Slab Cutting Machine , Stone Engraving Machine, Stone Cnc Machine|

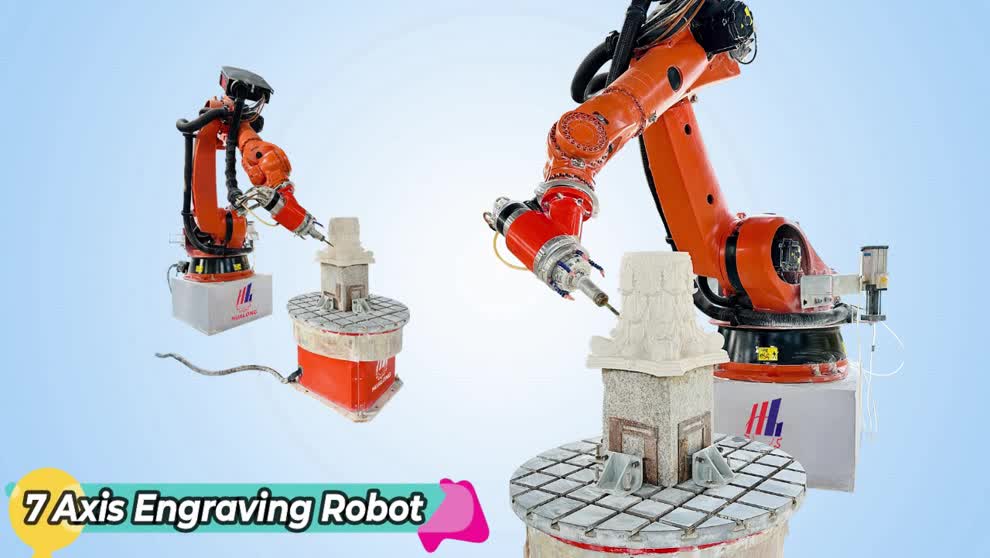

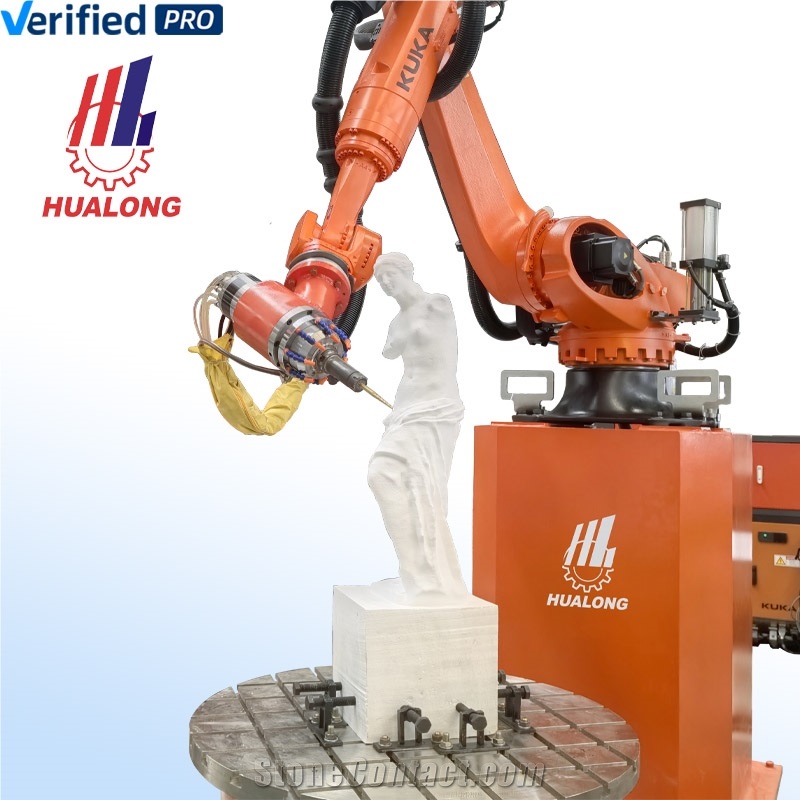

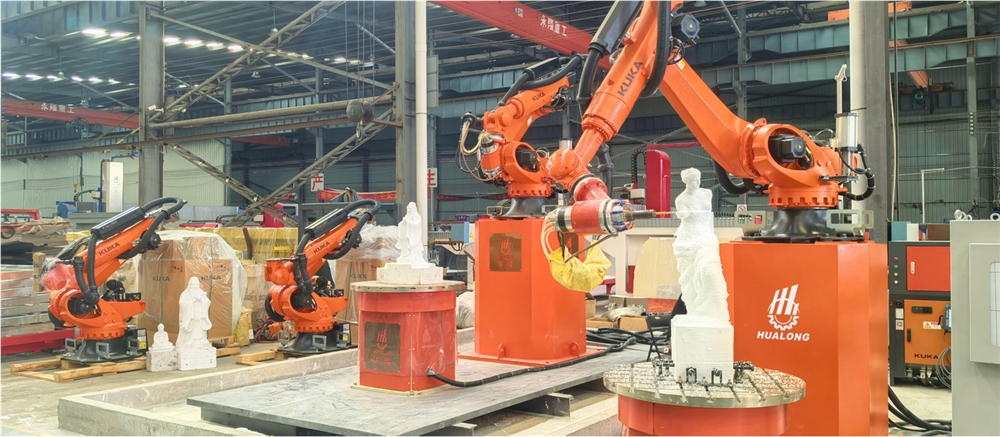

HLRB-7A3D 7-Axis Robotic Stone CNC Router
Industrial-Grade Solution for High-Precision 3D Stone Carving
CE Certified | KUKA-Based 7-Axis Robotic Arm | Standard & ATC Pro Configurations
Product Overview
The HLRB-7A3D 7-axis robotic stone sculptor revolutionizes monumental art creation and industrial stone processing. Designed for artisans seeking digital precision and factories demanding mass production efficiency, this KUKA-powered stone CNC router transforms raw marble and granite into museum-grade statues, architectural masterpieces, and custom memorials. With AI-assisted 3D modeling and modular automation upgrades, it bridges traditional craftsmanship and Industry 4.0 technology, empowering users to tackle complex human/animal sculptures and large-scale stone installations with unprecedented speed and accuracy.
Precision Engineered for Monumental Artistry
Next-Gen Stone Sculpture Automation
✅ 7-Axis Flexibility - 3100mm reach for large-scale marble/granite artworks
✅ 70,000h MTBF - Industrial durability for 24/7 statue production
✅ SprutCAM AI - Convert 3D models to robot paths in <15 minutes
Core Technology Highlights
1. KUKA-Based 7-Axis Robotic Arm
- German-engineered RV reducers ensure ±0.05mm engraving accuracy
- 360° continuous rotation for complex undercut carving
- IP65-rated for dusty workshop environments
2. Intelligent Sculpture Software
- SprutCAM Robot programming suite preloaded with:
✓ 80+ human/animal statue templates
✓ 3D portrait carving wizard
✓ Granite toolpath optimizer
3. Future-Ready Architecture
- Optional 12-tool ATC upgradeable via modular rail
- IoT-ready ports for automated sculpture production lines
Standard vs Pro Configurations
Choose Your Automation Leve
Capability ---------- Standard ----------- Pro (with ATC)
Tool Management: Single tool manual change --- 12/24 tools auto-swap in 4s
Daily Output: 9 x 50cm statues --- 22 x 50cm statues
Surface Finish: 3 grades (Matte-Satin) --- 7 grades (Matte-Mirror)
Ideal For: Medium reliefs, columns --- Complex 3D sculptures, monuments
Why 7-Axis Beats Traditional CNC in Statue Carving?
① Anatomical Precision
- 0.1mm facial accuracy for portrait statues
- Curved surface continuity <0.5μm (Ideal for marble animal sculptures)
② Production Scalability
- Batch carve 3m tall statues with 7th linear axis
- 68% faster than 5-axis CNC on detailed religious statues
③ Material Versatility
- Processes 280+ stone types from soft limestone to black granite sculptures
ATC Pro Upgrade: Your Path to Full Automation
20-Tool Changer System ($28,500)
▸ 4-Second Bit Swap - RFID tags auto-recognize 63 tool types
▸ 8kg Tool Capacity - Handle heavy diamond cup wheels
▸ Humidity-Controlled - Protect bits in dusty environments
Trust Accelerators
🔧 5-Year Warranty - Covers robotic arm & controller
📜 Certifications - CE, ISO 10218-1, ANSI/RIA R15.06
🌍 Global Proof - 17 ATC systems operationg in 8 countries
Parameters |
Unit |
HLRB-7A3D |
Motion range & Speed of Axis 5 |
+/-125° 110°/s |
|
Motion range & Speed of Axis 4 |
+/-350° 100°/s |
|
Diameter of Rotation Worktable |
mm |
1000 |
Tools supported |
saw for roughing/ milling cutter/ end mill/ polishing wheel |
|
Motion Range & Speed of Axis 1 |
+/-185° 86°/s |
|
Offline Software |
Sprut CAM latest version |
|
Max. processing length |
4 |
1000 |
Protect type |
waterproof & dustproof |
|
Main spindle motor power |
7 |
15 |
Motion range & Speed of Axis 2 |
0°/-146° 84°/s |
|
Repeat positioning accuracy |
mm |
＜ +/- 0.06 |
Motion range & Speed of Axis 7 |
endless rotation 84°/s |
|
Max. Armspread |
mm |
2700 |
Tools magazine |
optional |
|
Max. Processable height |
mm |
2500 |
Motion range & Speed of Axis 3 |
+155°/ -119° 84°/s |
|
Max. Processing Width |
4 |
1000 |
Actual Load |
kg |
210 |
Main spindle speed |
45 |
18500 |
Motion range & Speed of Axis 6 |
+/-350° 184°/s |
Sculpture/Stone

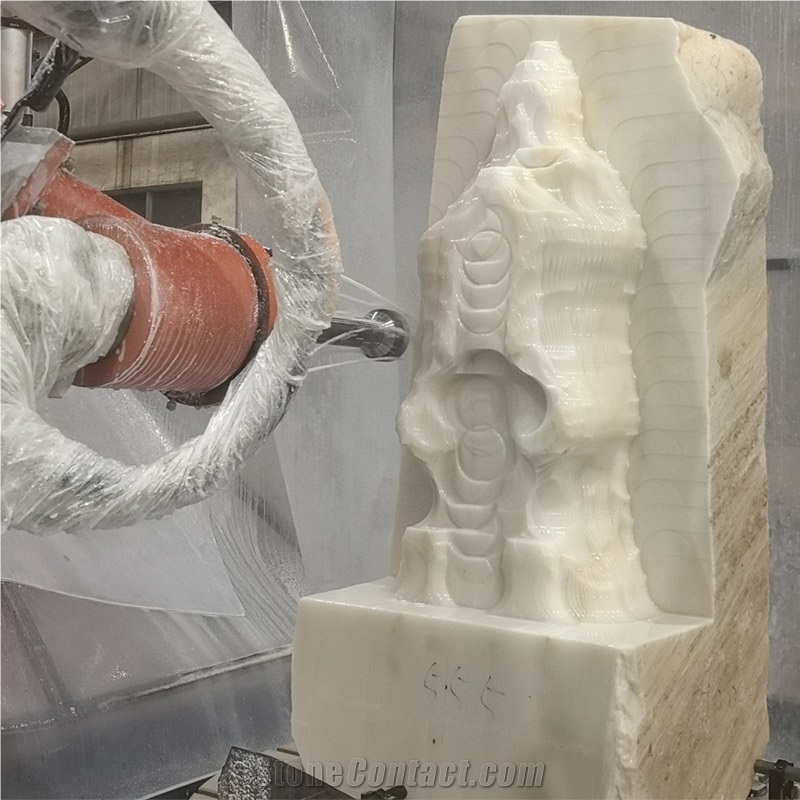

Stone roughing, disk tool, advanced 5D finishing for mesh models
SprutCAM X Robot allows manufacturers and integrators to create an accurate real-world cell with equipment and production components in a virtual environment, as well as simulate all robot functions on the screen.
The quality of simulation and detailing of digital twins in SprutCAM X Robot is second to none.
A wide range of certified post processors for most makes and models of robots guarantee error-free code. SprutCAM X Robot library of kinematic diagrams supports the largest selection of industrial robot brands. And with the MachineMaker app, you can quickly create an accurate kinematic model of any robotic cell.
We, Chinese leading stone cnc machinery manufacturer, are supplier of affordable stone engraving cnc for big or small workshops such as:
- Stone carving CNC machine
- Robotic stone engraving system
- 7-axis stone sculpting robot
- Marble engraving CNC router
- Granite monument carving machine
- Industrial stone CNC router
- Automatic stone sculpture robot
- 3D stone carving machine
-
5D Sculpture Carving
-
Marble Buddha Engraving
-
5D Statue Engraving
-

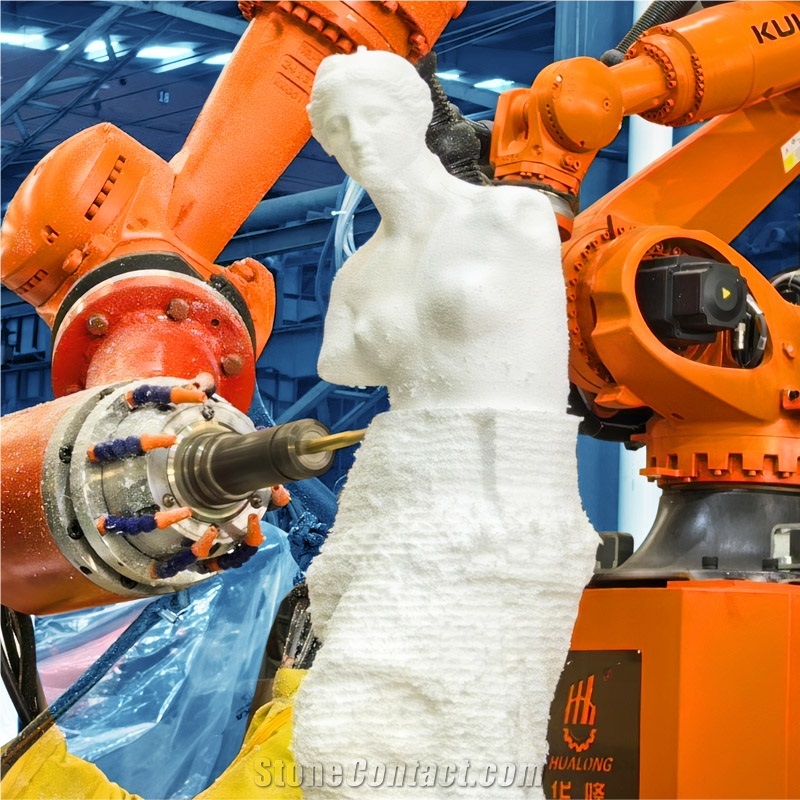

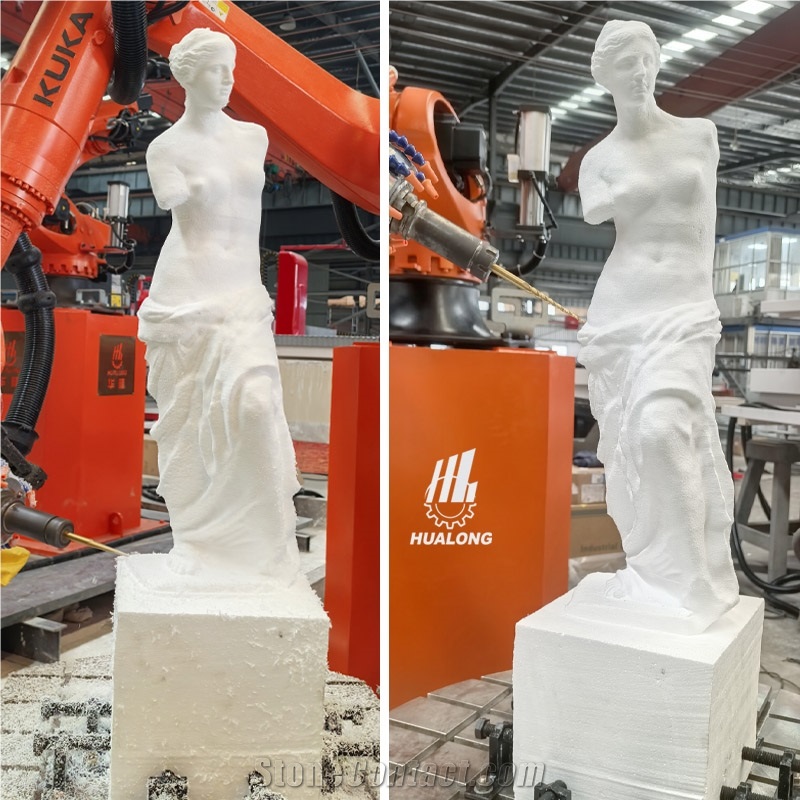

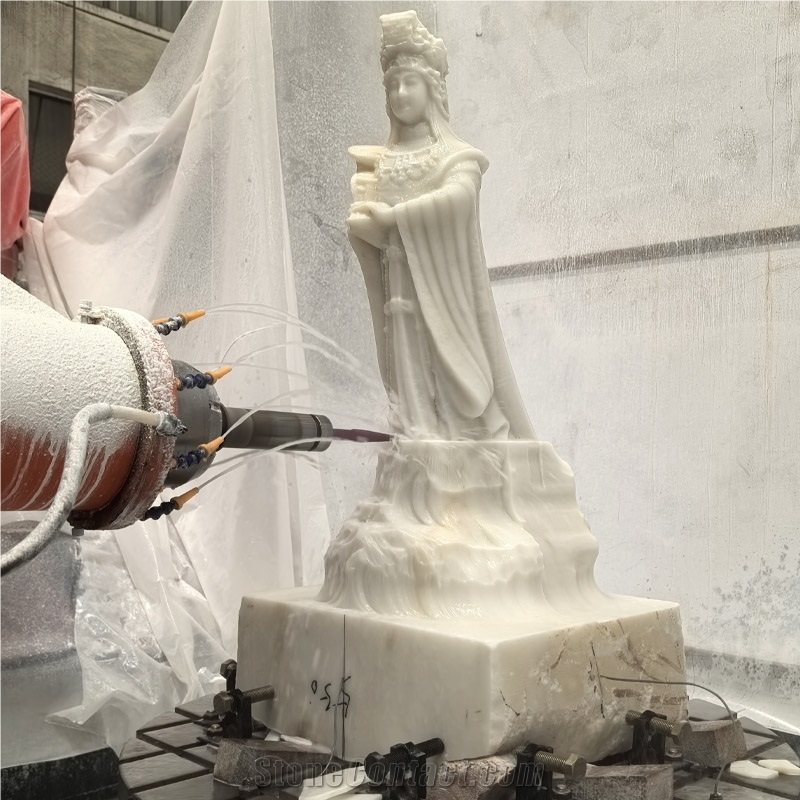

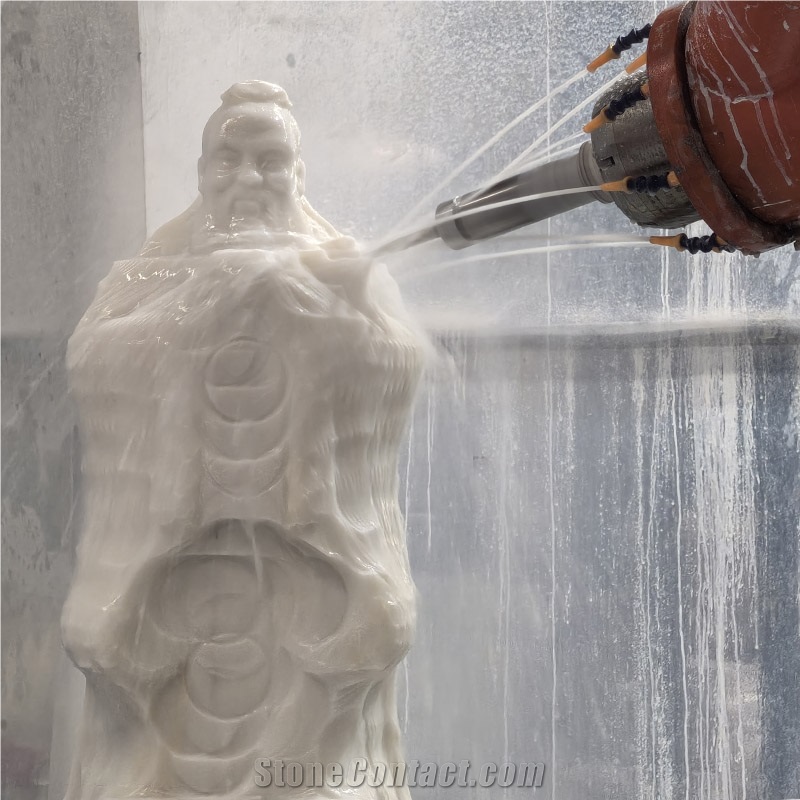

Marble Statue Carving
-

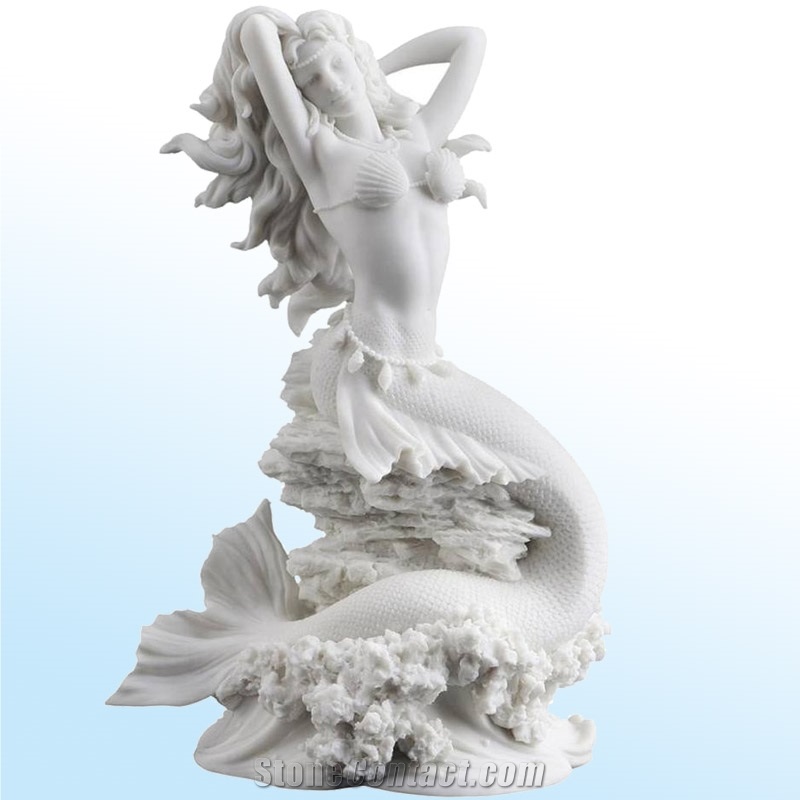

Marble Sculpture Engraving
-
Animal Statue Carving
-
Sculpture Shaping
-

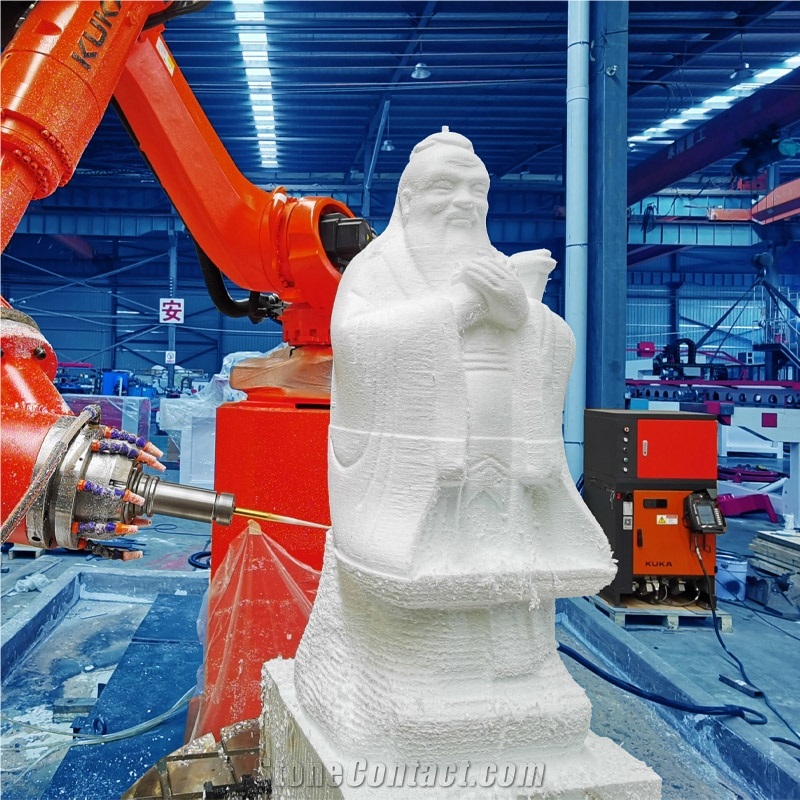

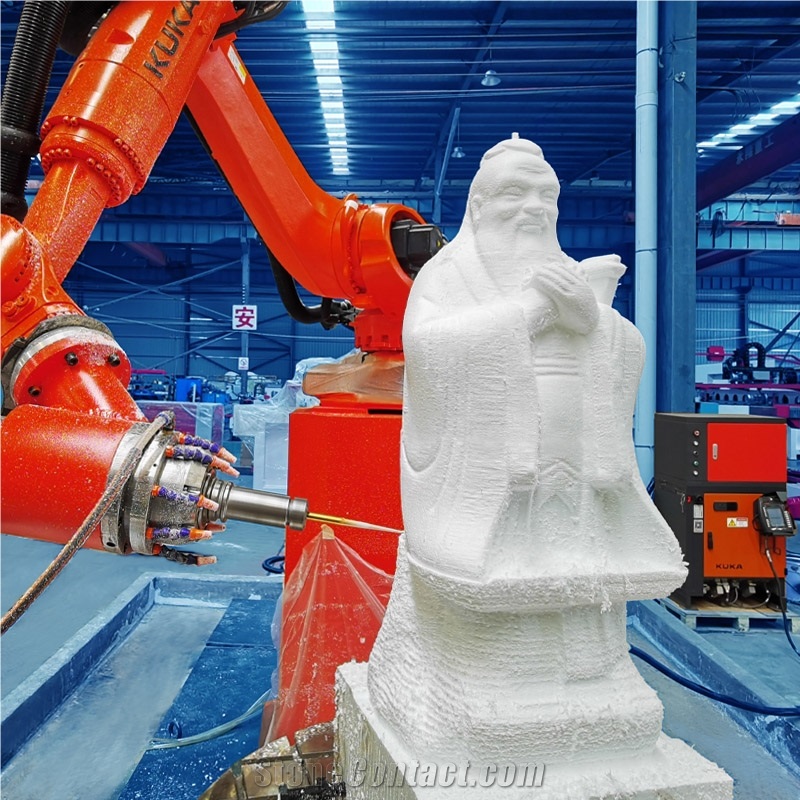

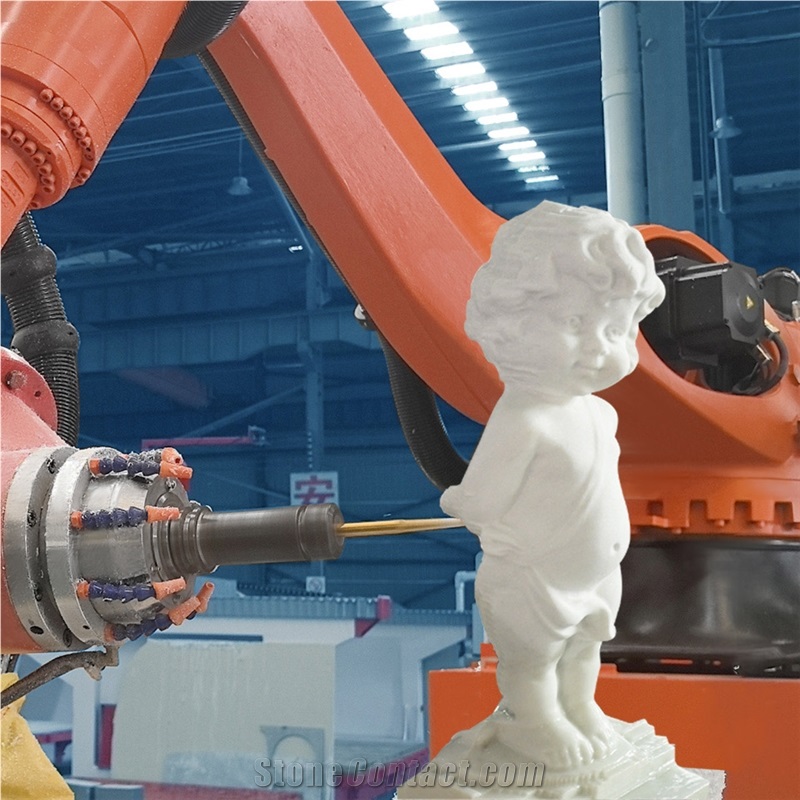

Robot Carving
-
Robot Enraving
-

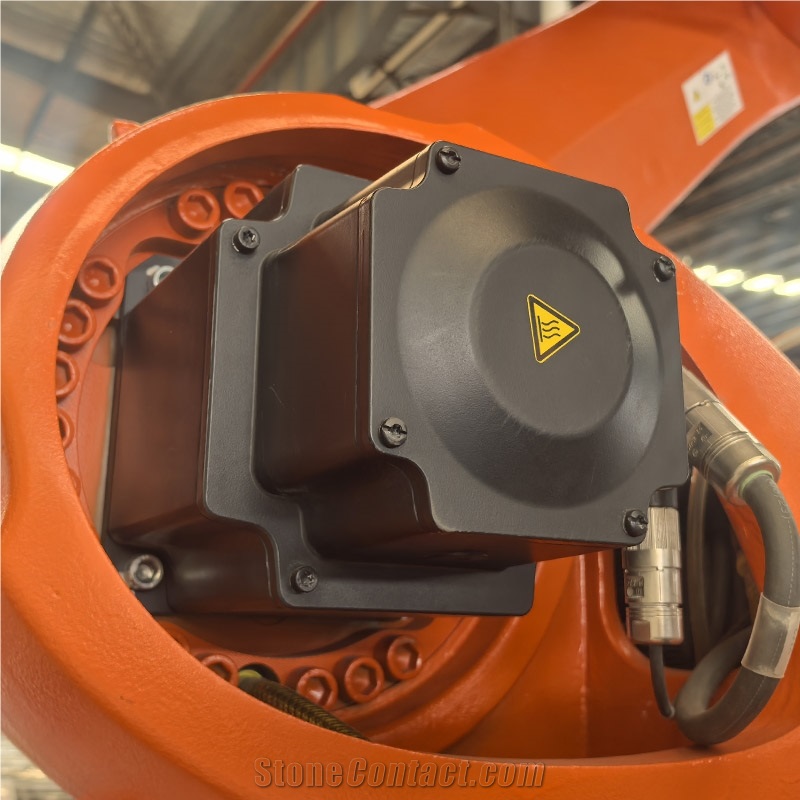

KUKU Servo Motor
-

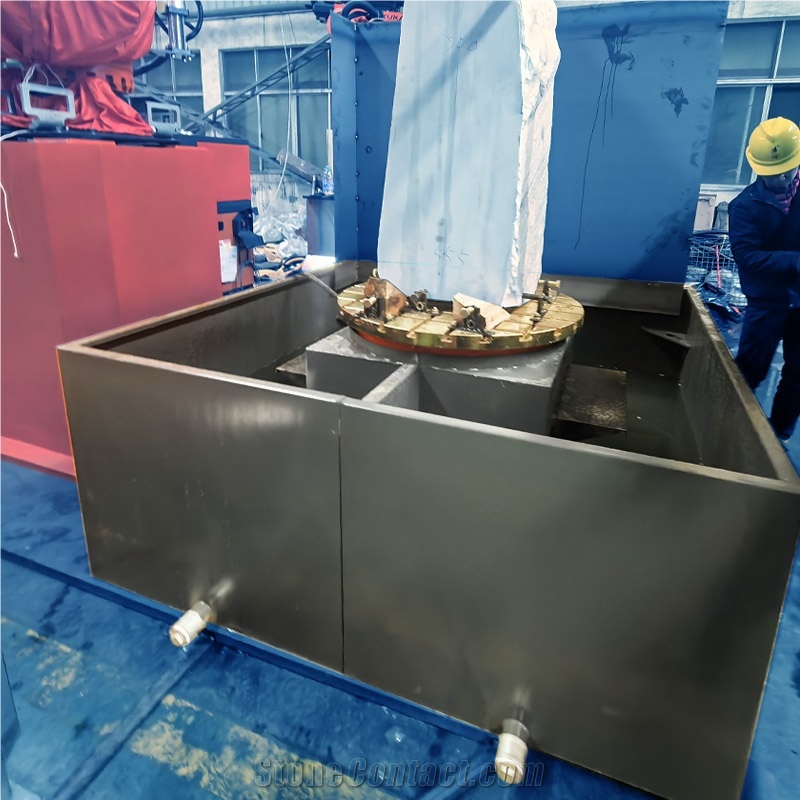

Water Tank
¥Payment Required -

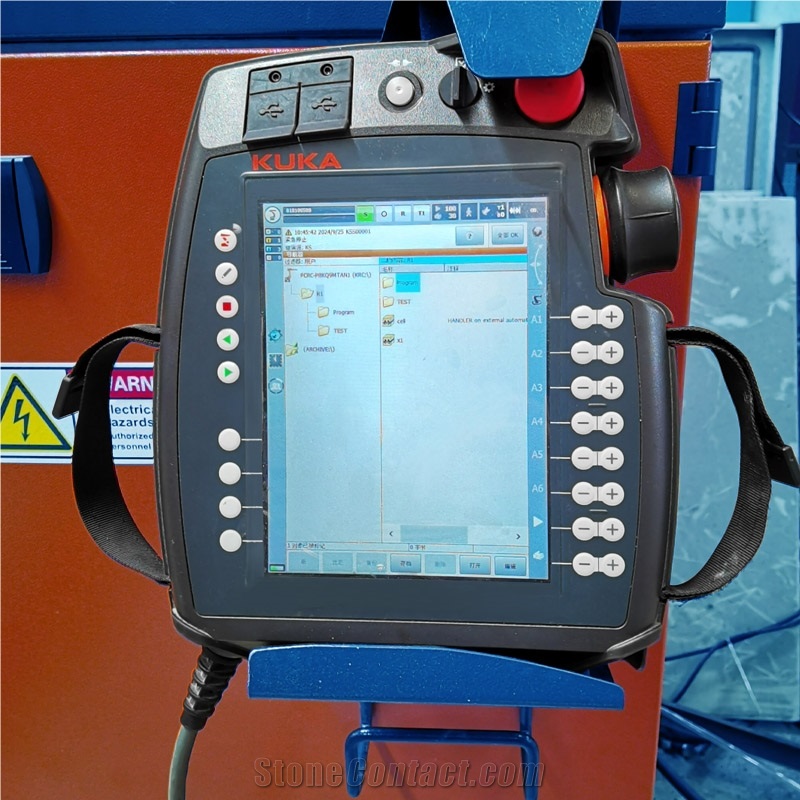

Console
-

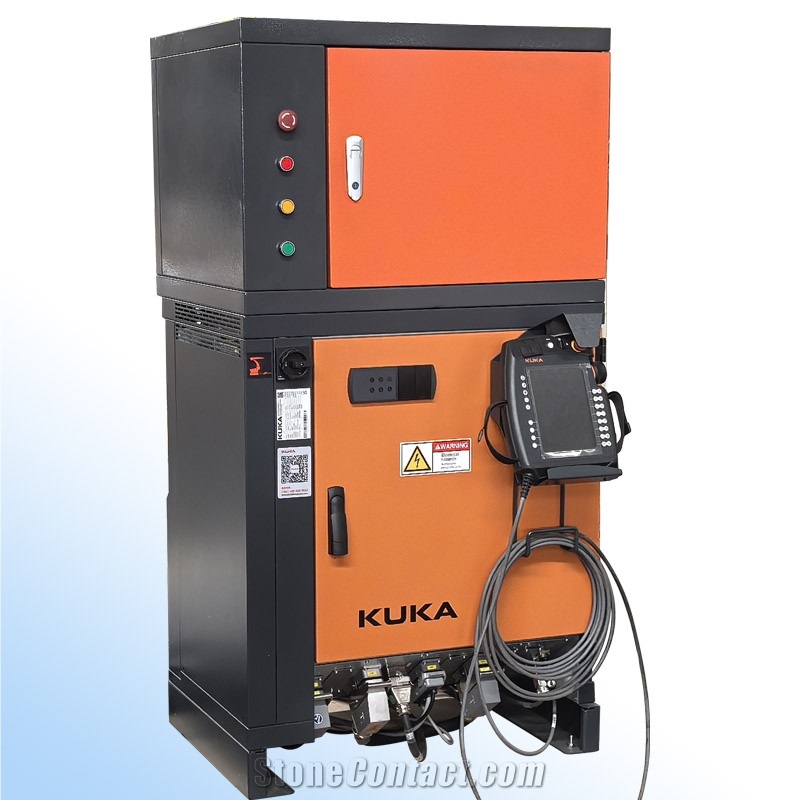

Electric Control Cabinet
-

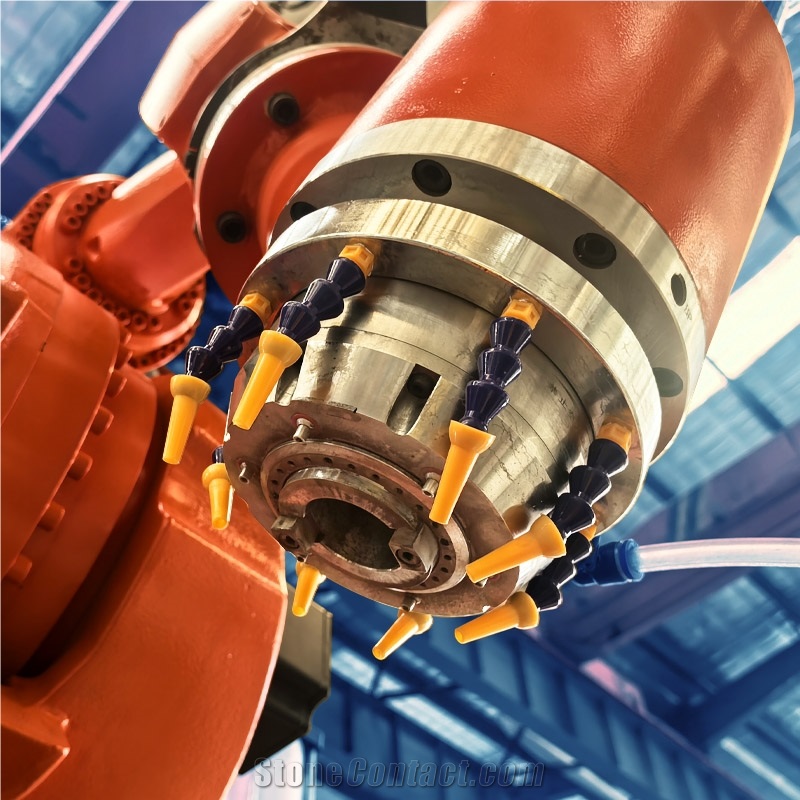

Working Head
-

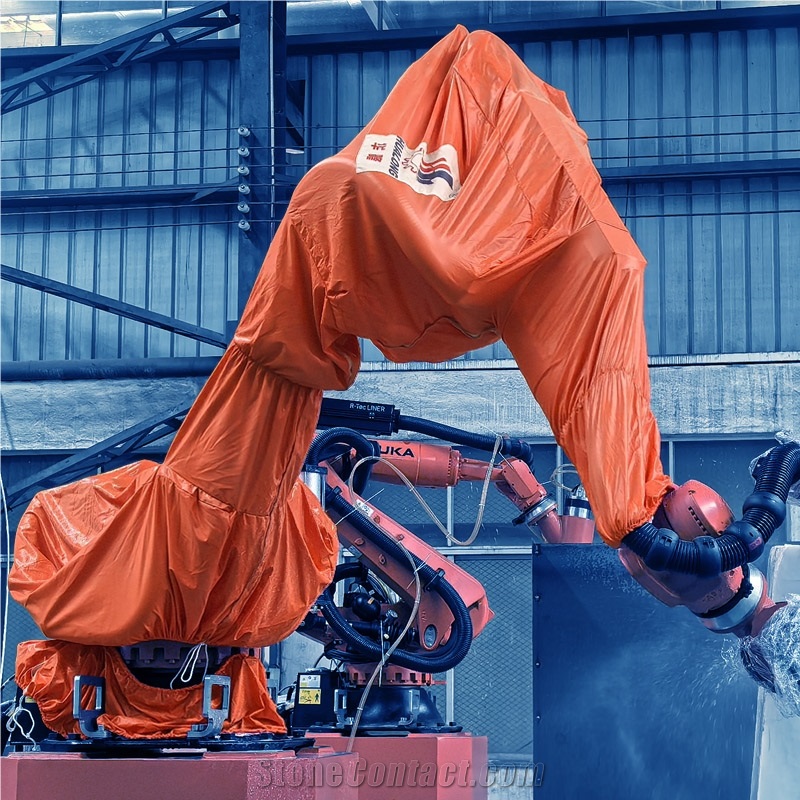

Clothe for Robot
¥Payment Required -

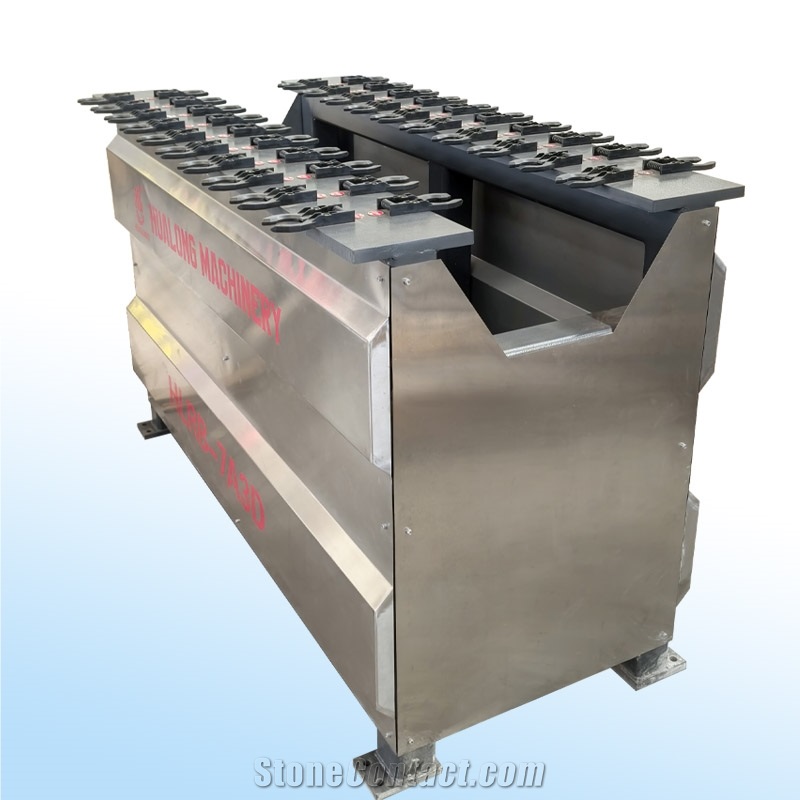

Tool Magazine
¥Payment Required -

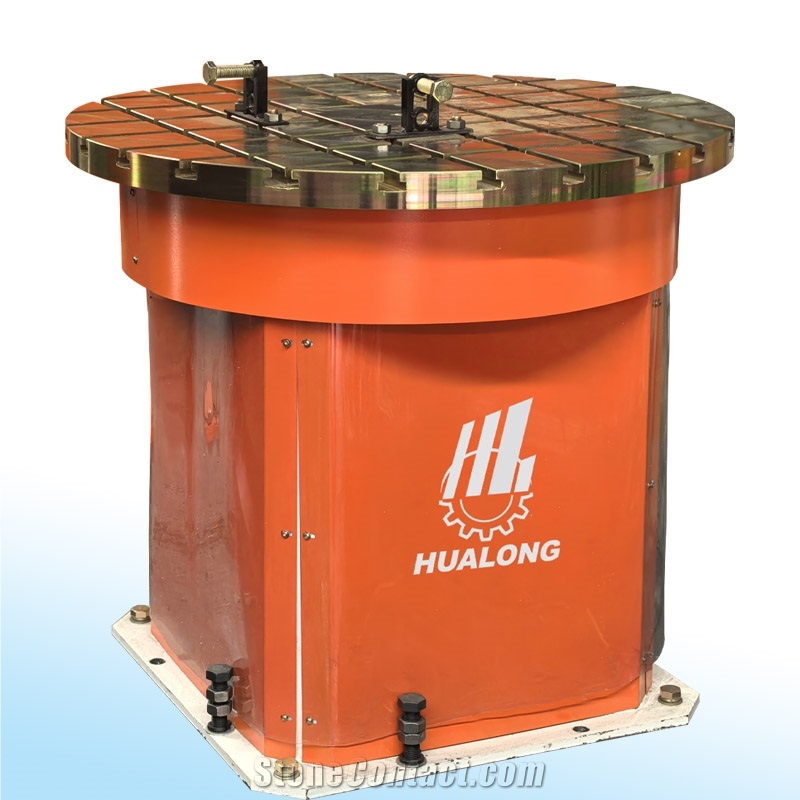

Rotation Working Platform
-

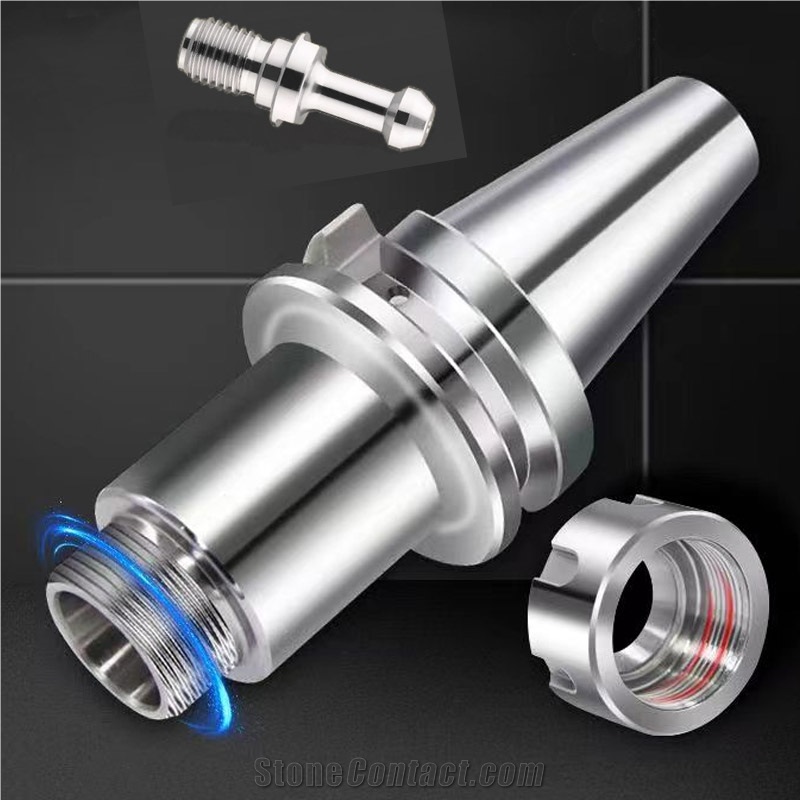

CNC Tool Holder
¥Payment Required -

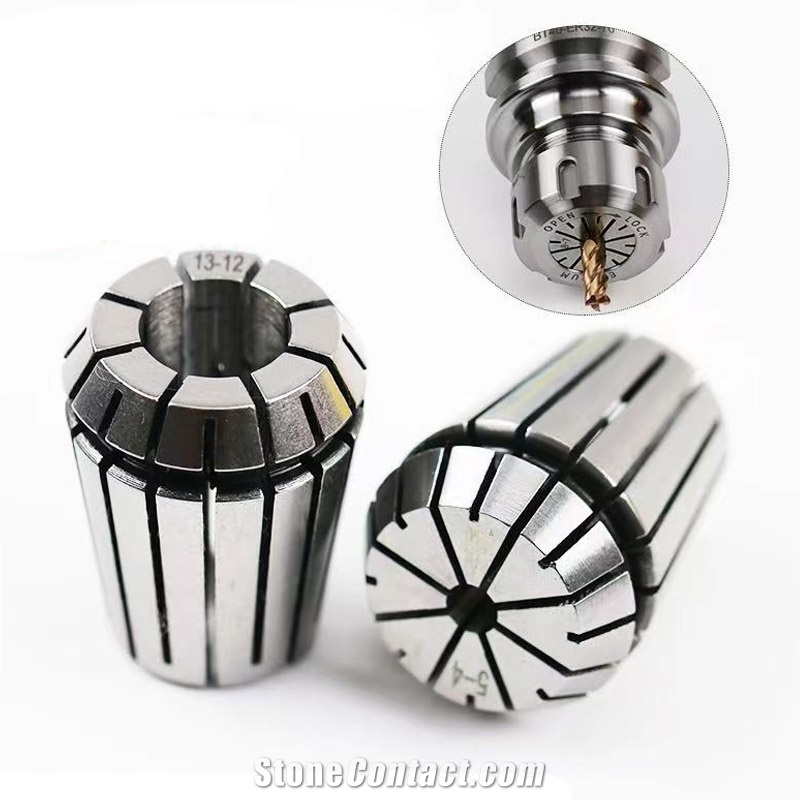

ER Collect
¥Payment Required
-

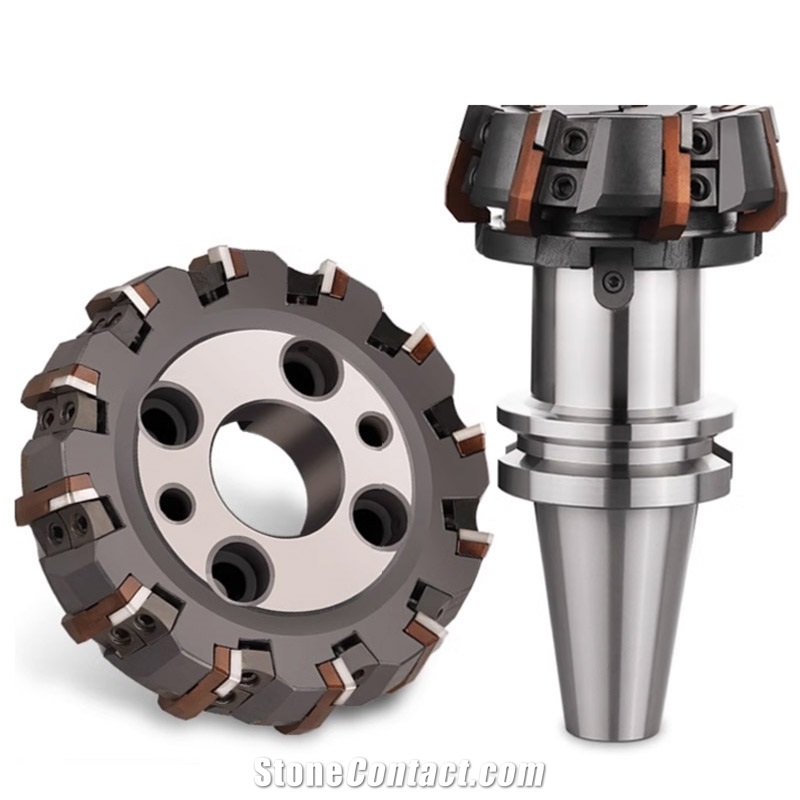

Indexable Face Mill
-

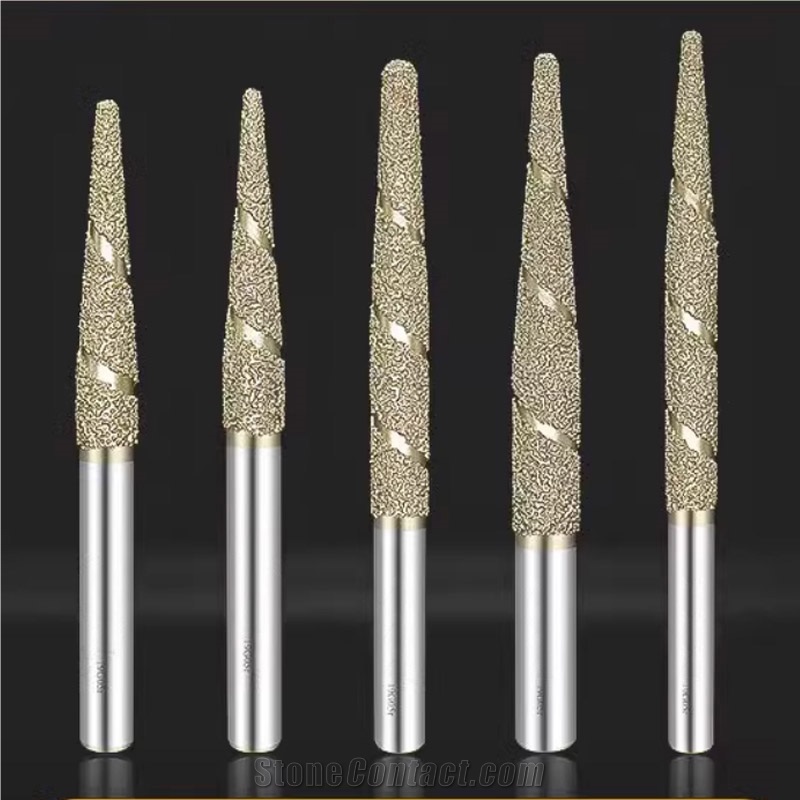

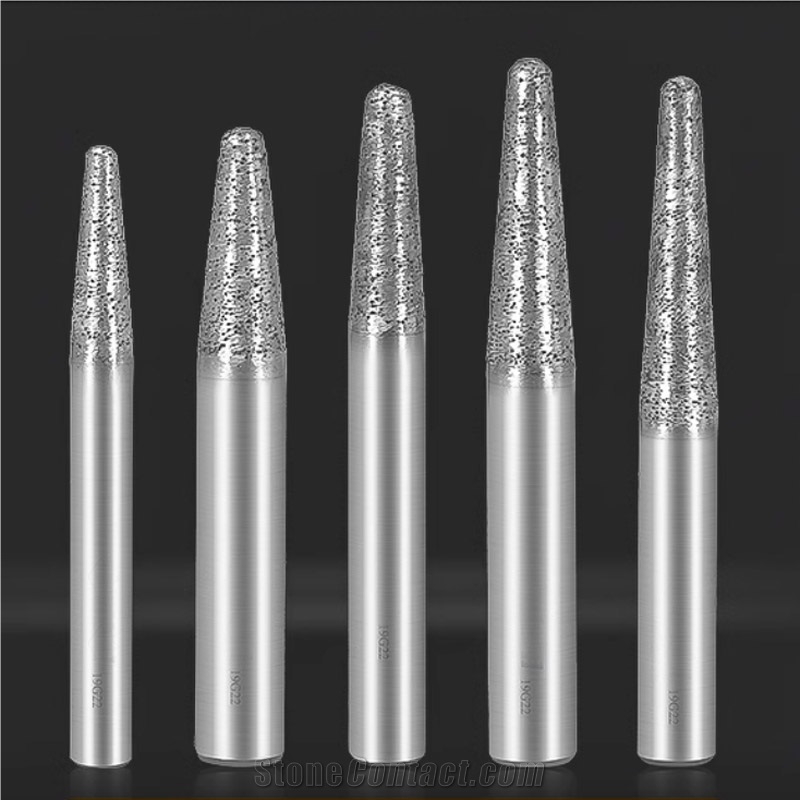

Brazed Engraving Bits
-
Sintered Milling Bits
