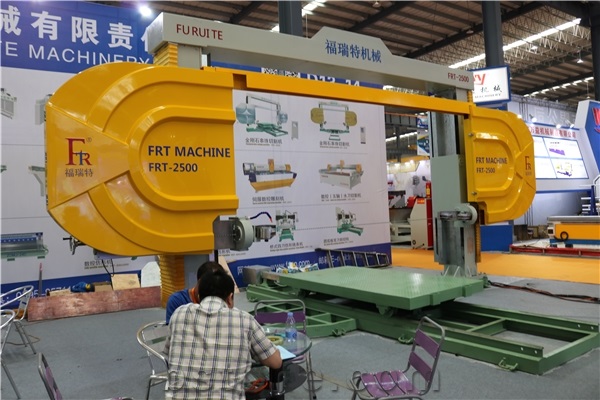

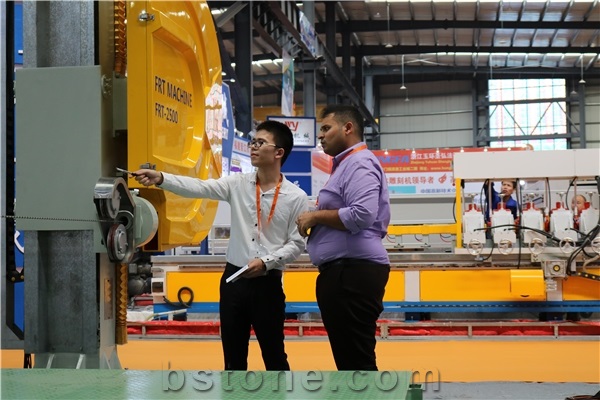

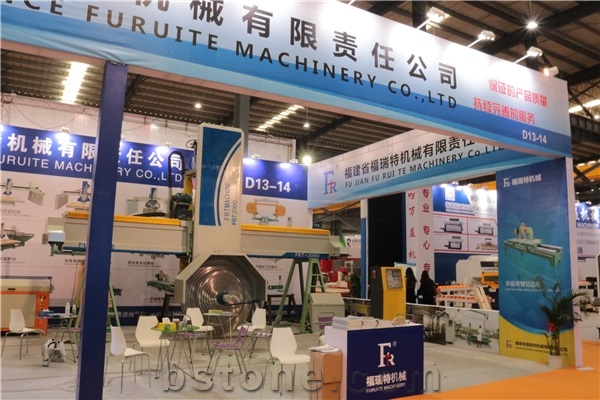

FRT-2000/2500/2800 multi blade disc stone cutting machine full automatic plc control for granite block slice on selling
FOB Price:$22500-30000
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Basalt, Sandstone
After-Sale
Lead Time:
15-30 working days for 3p380v50hz
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Machinery Function Features
This machine adopts PLC programmable control system, man-machine integrated touch screen interface, supplemented by ultra-high precision rotary encoder positioning slice, left and right cutting speed control by inverter, adjust the speed by stone material, up and down using hydraulic Combined with chrome-plated guide pin + wear-resistant guide sleeve sliding up and down, with a small gap wear, and muti-layer seal design in the guide sleeve, waterproof and dust-proof anti-spill, improve service life, automatically slice, blocks can be set directly on the ground, to save the cost of table and maintenance. High-speed movement parts are high-quality imported spare parts, so it has a high cutting efficiency, high-precision cutting, high stability, easy operation and flexible and etc., especially for high-value large-size granite , Marble slabs processing.
1.High process capacity,Max cutting capacity can be 300sqm/day(24h)
1.High process precision:slab can be 1250±0.5mm
2.Horizontal moving speed is adjusted by converter,vertical moving is hydraulic lifting
3.Forward&back moving by gear driving
4.PLC operation system can achieve slice easily
5.RV150-30 reducer for head can move left&right more stable
6.RV110-60 and RV75-10 double reducer for moving forward&backward.
1.High process capacity,Max cutting capacity can be 300sqm/day(24h)
1.High process precision:slab can be 1250±0.5mm
2.Horizontal moving speed is adjusted by converter,vertical moving is hydraulic lifting
3.Forward&back moving by gear driving
4.PLC operation system can achieve slice easily
5.RV150-30 reducer for head can move left&right more stable
6.RV110-60 and RV75-10 double reducer for moving forward&backward.
Technical Data
Parameters |
Unit |
FRT-2000 |
FRT-2500 |
FRT-2800 |
Cut/return motor power |
kW |
4 |
4 |
4 |
Bridge displacement motor power |
kW |
4 |
4 |
4 |
Cut/return stroke ( X axis) |
mm |
3500 |
3000 |
2500 |
Average equivalent sound pressure level |
dbA |
100 |
100 |
100 |
Disch vertical stroke ( Z axis) |
mm |
1400 |
1400 |
1600 |
Bridge displacement speed (Y axis) |
mt/min |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Maximum block height |
mm |
1200 |
1200 |
1500 |
Average level of sound power |
dbA |
80 |
80 |
80 |
Installed power |
kW |
47 |
55 |
65 |
Max. cutting depth |
mm |
850 |
1100 |
12500 |
Machine height |
mm |
6000 |
6000 |
6000 |
Machine width |
mm |
5000 |
5000 |
5000 |
Approximate Weight |
kg |
9800 |
11500 |
13000 |
Disc motor power |
kW |
37 |
45 |
55 |
Maximum block width |
mm |
2500 |
2500 |
2500 |
Disc diameter |
mm |
1200-2200 |
1200-2500 |
1200-2800 |
Disc cutting speed ( X axis) |
mt/min |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Machine length ( front ) |
mm |
6900 |
6900 |
6900 |
Maximum block length |
mm |
3500 |
3000 |
2500 |
Bridge transversal stroke (Y axis) |
mm |
2500 |
2500 |
2500 |
Cooling water (1.5 bar pressure) |
lt/min |
266 |
266 |
266 |
Vertical displacement motor power |
kW |
2.2 |
2.2 |
2.2 |
Vertical displacement speed (Z axis) |
mt/min |
0.4 |
0.4 |
0.4 |
Software
This machine adopt full automatic plc control systemThere are two language.Chinese and English
We can transfer another language as per your request because the program is eddited by us.
Work Example
0.High process capacity,Max cutting capacity can be 300sqm/day(24h)1.High process precision:slab can be 1250±0.5mm
2.Horizontal moving speed is adjusted by converter,vertical moving is hydraulic lifting
3.Forward&back moving by gear driving
4.PLC operation system can achieve slice easily
5.RV150-30 reducer for head can move left&right more stable
6.RV110-60 and RV75-10 double reducer for moving forward&backward.
Components
-
encoder
-
remote control
-
360° worktable
¥Payment Required -
20mm blade divider
¥Payment Required -
water cover
¥Payment Required -
Proximity switch
-
main motor
¥Payment Required -
sprinkler
-
front bezel
¥Payment Required -
spindle box
¥Payment Required -
plc
¥Payment Required -
side beam
¥Payment Required -
operation box
¥Payment Required -
30mm blade divider
¥Payment Required -
touch screen
¥Payment Required
