Stone Block Cutting Machines
( 564 )A stone block cutter is a machine used to cut marble, granite and natural stone blocks into slabs of standard thickness. Various cutters and large machines designed according to these cutters are used to cut stone blocks. Some block cutting machines use very wide cutting discs, some use monolama blades, and some use special wire ropes. Gang Saw block cutters can be with 2 columns or 4 columns and it’s characterized by a bundle of vertical discs (single or multi disc) plus a horizontal disc with a tiles automatic unloader (optional). The gang saw block cutters differ between block-cutting machines for marble and block-cutting machines for granite. Block cutting machines are large-scale machines and need a large working area. On Stonecontact.com you can find various brand old/new models for cutting stone blocks for any type of stone and according to your budget.
More Hide
Categories:
Monolama Cutting Machine (12)
Closed Frame Gang Saw (22)
Multi Blade Gang Saw Cutting Centre–Vertical (6)
Multi Blade Gang Saw Cutting Centre–Horizontal (2)
Multi Blade Gang Saw (48)
Giant Disc Saw Machine (18)
Single Arm Block Cutting Machine (26)
Giant Disc Bridge Saw Machine (163)
Multi Wire Saw Machine (104)
Single Wire Block Squaring Machine (82)
CNC Diamond Wire Shaping Machine (74)
Vertical-Horizontal Block Cutting Machine (7)
Show More
-

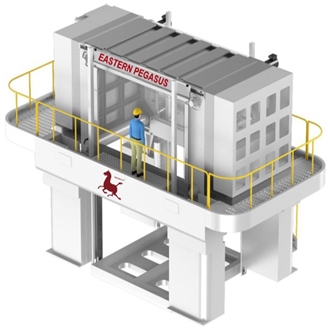

Add To CompareType: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
FOB Price:$150000-550000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Functions and Features:
The machine abandoned the traditional linear roller system, and fully adopted the precision linear slide to ensure the stable operation of the column linear slide during the processing. The adoption of the international new digital control technology has ensured the smooth operation of the machine. And the independent development tensioning system, PLC digital control system and modular combination of each part makes the machine has the advantages of simple structure, convenient operation, less occupied area, high efficiency, clean and environment protection. The machine is mainly used for granite, marble and artificial stone slabs' processing. It is the recommended alternative equipment for gang saw machine. And due to a variety of specifications are available which will provide the possibility for the stone enterprises to process the large stone slabs and broaden the scope of application of the multi-wires saw machine. This machine consists of the following main components: driving system, tensioning system, trolley moving system, speed and pressure regulator system, sprinkler system, lubricating system, etc. -
Add To CompareType: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
FOB Price:$29000-35000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
The trolley is not necessary when cutting.
You can lie the block on the ground, and the processing is smooth, reliable and no shaking. You can also cutting several blocks of different sizes together at the same time.
Owing to the special design, the function of slab slicing is achieved by the crossbeam movement on the side beams.
This is totally different from other machines on which the slab slicing is by trolley feeding. There precise cutting and less maintenance are available by this machine.
Feeding trolley with rails is available upon request. -
Add To CompareType: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
FOB Price:$29000-50000
Warranty: 12 Months
Usage: Granite, Marble, Sandstone
Machinery Function Features:
This machine is used for cutting slabs and profiling stone. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc. We have 3 model QCXE-1500,QCXE-1800,QCXE-2200. QCXE-1500 can cut maximum block heigth 1500mm, QCXE-1800 can cut maximum block heigth 1800mm and QCXE-2200 can cut maxium block heigth 2100mm, this is the main difference, other functions are the same. -
Add To CompareType: Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
FOB Price:$60000-70000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
BWT-3500 XIANDA block dressing machine adopts PLC control. With stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming stone block. The special design for 360°worktable will fullfil your need, somemore this machine is able to compatitable with CNC system, model CNC-3500. Once changed, CNC-3500 will have multi-function with profiling, squaring, trimming and cutting. -
Add To CompareType: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
FOB Price:$50000-80000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
kerbstone Slicing Machine Line DFLSX1200-13S
This machine line is mainly for cutting slab width above 50mm, the machine cut with 10-14pcs of blade at the same time which will dramatically increase cutting speed and overal output, daily capacity can reach 30-35m³/24h.The machine is widely used for kerbstone, roadside stone, cobblestone and tombstone etc.
Machine part：
The machine line included one slicing machine(DF1200-12S) and one edge cutting machine(DF1200-1S), worker load thick slab to the slicing machine with a crane, after slicing machine finish cutting, the roller on worktable hydraulically lift up and transfer the stone to the next edge cutting machine.
The edge cutting machine has hydraulic pushers to push all the stone with blade gap tight and together to ensure a precise cutting. After that, the cutting process is finished and ready for packaging.
electrical part:
Machine use Mitsubishi PLC control system, SIEMENS water proof button, Omron relays etc, the machine is equipped with remote control, worker can both use the controlling cabin or remote control during operation.
Advantage:
1.Segments saving: machine use multi-blade cut at the same time, every down cut is about 3-5mm(depends on stone and segment), which save segments consuming.
2.Labor saving: the entire machine line only need one worker to attend to it, machine adopts rollers to transfer stone and sensors for automatic stop and operation.
3.Workshop space saving: compared to other cutting methods, the machine need only 12*5m space when producing same capacity.
Features:
1. no cement foundation needed, easy installation and shipment(40’’ HQ).
2. the main shaft adopts high frequency modulation treatment, which will be more durable and wear-resisting.
3. machine uses main spindle and a vice spindle to seal all saw blades together which can ensure the machine stable while cutting hard granite.
4. it uses a simple program of movement on the controlling box, easy for setting, operating, and maintaining.
5. it adopts two hydraulic pillars(a set of hydraulic systems) on both sides of the machine to ensure the strength of cutting spindle lifting up and down.
6. Unlike traditional stone cutting, it dramatically increases productivity and reduces labor cost and power consumption and it consumes less diamond segment per cubic meter of production compared to the traditional cutting machine.
7. Cast iron is adopted in the main frame of the machine to make the machine more stable with less chance of vibration under the operating condition.
8.The regular worktable length of the shaft is 1.6m(1.8m optional)
The slicing machine use a main spindle and a vice spindle sealing together which can ensure the machine stable while cutting hard granite.
Protectors for motor and wires to prevent from dust and water
Cast-iron
The spindle adopts High frequency modulation treatment, which will be more durable and wear-resisting
Galvanized protector to the chain and gear for safty handling
Complete Machine Line (1 Edge Cutting Machine + 1 Slicing Machine)
Slicing Machine DF1200-12S Edge Cutting Machine DF1200-1S
Dimension 5500×2300×2500mm Dimension 5500×4000×4500mm
Diameter of blade 1200mm Diameter of blade 1200mm
Number of blades 12pcs Number of blades 1pcs
Max.cutting size 2500×1800×450mm Worktable size 2500×1800mm
Worktable size 2500×1800mm Working length max 2500mm
Weight 10t Max.vertical stroke 600mm
Max.cutting depth 450mm Weight 9t
Main motor power 55kw-6 Max.cutting depth 450mm
Max.vertical stroke 600mm Main motor power 22kw-6
It produces about 30-35m³ of stone every day (24h) and covers a total space of 12m*5m.
Project showcase:
★ chamfering machine for stone cutting machine line DF400
( With stone loading and turnover system )
The chamfering machine can be combined with above-cutting machine as a whole line for kerbstone cutting machine cutting, only 4 workers needed from loading to packaging the finished products.
Technical Data
Dimension (mm) 6000*1650*1600
diameter of blade (mm) 300
Chamfering range (mm) 100-500
Motor(kw) 11+11
Complete line showcase:
Space for entire line:24*5m -

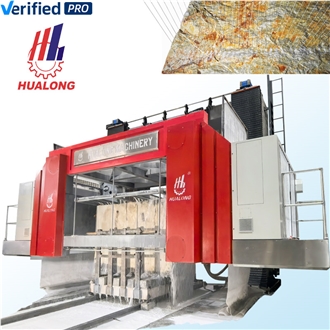

Add To CompareType: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
FOB Price:$150000-550000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
The latest triangle structure technology, higher cutting efficiency, and the stability of running.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions. -
Add To CompareType: Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine
FOB Price:$12800-17000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1. Fully sealed four-cylinder guide rail is used for rising and falling system, which makes the whole structure more stable.
2. Traditional screw lift is replaced by hydraulic lift, which reduces mechanical wear, maintenance costs and time and lowers production costs, and keeps the machine in the best working stable for a long time.
3. Cylinder Trolley to solve all the problems of traditional reducer traction, which leads to stable and reliable operation and long service life, needn 't regular maintenance.
4. It can be equipped with electric split trolleys according to actual needs -
Add To CompareType: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
FOB Price:$29000-32000
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
QSQ-2200/2500/2800/3000 Bridge multiblade block cutter:
QSQ2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.
It is also flexible in modification for Single blade cutting. -
Add To CompareType: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
FOB Price:$29000-45000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine major in cutting slabs and profiling granite and marble. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc -
Add To CompareType: Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
FOB Price:$50000-60000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
PLC cutting -
Add To CompareType: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$35000-58000
Warranty: 12 Months
Usage: Granite, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
kerbstone Cutting Machine Line DFLSX1200-13S
This machine line is mainly for cutting slab width above 50mm, the machine cut with 10-14pcs of blade at the same time which will dramatically increase cutting speed and overal output, daily capacity can reach 30-35m³/24h.The machine is widely used for kerbstone, roadside stone, cobblestone and tombstone etc.
Machine part：
The machine line included one slicing machine(DF1200-12S) and one edge cutting machine(DF1200-1S), worker load thick slab to the slicing machine with a crane, after slicing machine finish cutting, the roller on worktable hydraulically lift up and transfer the stone to the next edge cutting machine.
The edge cutting machine has hydraulic pushers to push all the stone with blade gap tight and together to ensure a precise cutting. After that, the cutting process is finished and ready for packaging.
electrical part:
Machine use Mitsubishi PLC control system, SIEMENS water proof button, Omron relays etc, the machine is equipped with remote control, worker can both use the controlling cabin or remote control during operation.
Advantage:
1.Segments saving: machine use multi-blade cut at the same time, every down cut is about 3-5mm(depends on stone and segment), which save segments consuming.
2.Labor saving: the entire machine line only need one worker to attend to it, machine adopts rollers to transfer stone and sensors for automatic stop and operation.
3.Workshop space saving: compared to other cutting methods, the machine need only 12*5m space when producing same capacity.
Features:
1. no cement foundation needed, easy installation and shipment(40’’ HQ).
2. the main shaft adopts high frequency modulation treatment, which will be more durable and wear-resisting.
3. machine uses main spindle and a vice spindle to seal all saw blades together which can ensure the machine stable while cutting hard granite.
4. it uses a simple program of movement on the controlling box, easy for setting, operating, and maintaining.
5. it adopts two hydraulic pillars(a set of hydraulic systems) on both sides of the machine to ensure the strength of cutting spindle lifting up and down.
6. Unlike traditional stone cutting, it dramatically increases productivity and reduces labor cost and power consumption and it consumes less diamond segment per cubic meter of production compared to the traditional cutting machine.
7. Cast iron is adopted in the main frame of the machine to make the machine more stable with less chance of vibration under the operating condition.
8.The regular worktable length of the shaft is 1.6m(1.8m optional)
The slicing machine use a main spindle and a vice spindle sealing together which can ensure the machine stable while cutting hard granite.
Protectors for motor and wires to prevent from dust and water
Cast-iron
The spindle adopts High frequency modulation treatment, which will be more durable and wear-resisting
Galvanized protector to the chain and gear for safty handling
Complete Machine Line (1 Edge Cutting Machine + 1 Slicing Machine)
Slicing Machine DF1200-12S Edge Cutting Machine DF1200-1S
Dimension 5500×2300×2500mm Dimension 5500×4000×4500mm
Diameter of blade 1200mm Diameter of blade 1200mm
Number of blades 12pcs Number of blades 1pcs
Max.cutting size 2500×1800×450mm Worktable size 2500×1800mm
Worktable size 2500×1800mm Working length max 2500mm
Weight 10t Max.vertical stroke 600mm
Max.cutting depth 450mm Weight 9t
Main motor power 55kw-6 Max.cutting depth 450mm
Max.vertical stroke 600mm Main motor power 22kw-6
It produces about 30-35m³ of stone every day (24h) and covers a total space of 12m*5m. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$16440-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
This machine adopts the PLC control system, the operation interface is a combination of touch screen and mechanical button to control the interface ,input operating parameters through interface (including cutting size specification, moving speed) Etc), the cutting process is automated and programmed.The touch screen adopts Chinese、English and Russian operation interface, Suitable for most countries and regions.Adopting the processing method of slice cutting, the spindle can hang multiple saw blades, uses high-precision screw nut driving, combined with ultra-high precision rotary encoder, high slicing precision and high cutting efficiency.This machine adopt four guide column with double hydraulic lifting structure, with high stability to ensure the machine safe operation.The left- right moving of the saw blade and the back- forth moving of the beam are driven by three-phase asynchronous motor, adjusts the speed by inverter control and encoder feedback. The beam and side beam adopt rack and pinion and v-shaped slide rail structure, with high precision, low failure rate and durable. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine
$13000-14000
Warranty: 12 Months
Usage: Granite, Marble, Sandstone
-
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$60000-70000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
CNC-3500 XIANDA CNC Diamond Wire Saw Machine adopts CNC control.
This machine automatically completes slab cutting and processing by means of vertical feed and automatic slicing by the numerical control machine, featuring steady cutting. The special design for 360° worktable enables to trim all the surfaces. It is the ideal equipment for cutting, slicing and trimming. Also CNC System with high automation level and easy operation. It is used to process arc slabs, Roman poles, column, numbers, letters and characters at different specifications. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$20000-38000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Technical parameters for block cutter：
Technical data
main motor power 37-55kw
total motor power 40-48kw
beam size 500*600*7500mm
blade size 1600-2500mm
max vertical stroke 1100mm
max processing length 4000mm
max processing width 2200mm
water consumption 8.5m³/h
machine size and weight 7800*4500*6500mm, 12T
We provide customization products please contact our sales with detailed requirements, we will manufacture machines accordingly:
Special customization size:
Crossbeam length: 6500-10500mm
Side beam length:4500-8000mm
Features:
The bridge cutting machine is mainly for granite and marble, it adopts multidisc and PLC programmable control and man-machine interface, combined with a super-precision rotary encoder for slicing, uses frequency converter to control left-right feeding and adjusts the speed according to the stone material. It adopts a hydraulic lifting system and forward-backward slicing adopts high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials. The block can be placed on the ground directly, saving the cost of trolley and maintenance. It is especially suitable for cutting high-value granite and marble block because of its high-efficiency cutting rate, high precision slicing, flatness, stability, and easy operation.
Production process:
1. Customer need to prepare two sides foundation first withdrawing provided by us
2. Install machine and blades
3. Machine cut
4. take down the slab from blocks one by one, we can make a mold to support the slab, a machine can cut directly to the end and the slab will not fall apart
5. Trolley is optional according to customers’ requirement
After-sales service
We provide skilled and rich experience technicians for installation and after-sale service
Machine details:
Blade: two ways of blade combination
1. Big-medium-small combination
2. Big-small combination
The Hi-win liner guide is optional as per the customer
Packaging & Shipping
The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$21000-41000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC/PC-2200/2500/2800-4D uses PLC system and Human-machine Interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding, adjusts speed according to the stone material. It uses hydraulic lifting system, combination of Chrome-plated guide pin and wear guide bush,with small gap,wearable, beautiful structure, and Guide Sleeve with multi-layer seals, with waterproof,dustproof, anti-spill,improving the service life. Forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials; the block can be placed on the ground directly to economize the worktable and its maintenance costs; thus the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note: 360° rotating worktable can be selected if customer requires. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
$169999-179999
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine mainly consists of the following main parts: driving system, tension system, lifting system, trolley system, speed regulation system, sprinkler system, and lubrication system.Its main features as follows:
1. This machine abandons the traditional linear roller system and adopts high precision linear sliding track in an all-round way to ensure the stable operation of the vertical column linear slider during the machining process.
2. This machine adopts the new international digital control technology to provide a comprehensive guarantee for the smooth operation of the equipment.
3. This machine adopts the self-developed tensioning system to ensure the consistency of each wire saw and make the machine run more smoothly.
4. This machine adopts PLC digital control system to realize the modular combination of various parts, display the running status of the equipment in real time through the display screens, and realize the automatic operation by setting the operating parameters you desired.
5. The design of the machine is reasonable, stable operation, convenient operation, small floor space occupied, high processing efficiency, energy saving and environmental protection.
6. Various specifications available to cut different widths of blocks, mainly used for processing large slabs of granite, marble and artificial stone. It is the ideal replacement for sand saws and provides more choices for large-scale processing among various stone enterprises. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$22000-33000
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
*multi blade working to give high production
*suitable for big slab cutting 950mm
*brand motor, PLC and inventer, Fuji Contactor etc
*smart operaton system- touch sensitive screen with smart syste, easy operatioin
*Strong Mechanical body that crossbeam is made of casting iron
*easy maintainess
*service team available for oversea service.
-
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$29000-45000
Warranty: 12 Months
Usage: Granite, Marble, Sandstone
Machinery Function Features:
This machine major in cutting slabs and profiling granite and marble. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$60000-70000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Discover 5 adopts latest 5 axis CNC system, it can process different size arc slabs, column, roman column, number,
letter,chinese words also different shapes of marble or granite. And it can also process 3D shapes. Main Body with advanced
and unique structure, makes its cutting with excellent precision, stability, efficiency etc advantages. Itis the ideal equipment
for processing the special shapes stone. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$25000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine is for cutting granite and marble blocks in a different size. The combination of multiblade with different dimensions increases working efficiency. Linear guide path imported from Taiwan is used on the transverse moving structure, this will ensure the high stability of cutting, endure it is service time, easy to replace. Sliding ways of up/down system is quantity proceed by completely new grinding machine, for the purse of high precision and quality. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
$299995-300005
Warranty: 12 Months
Usage: Granite, Basalt
Machinery Function Features:
This machine mainly consists of the following main parts: driving system, tension system, lifting system, trolley system, speed regulation system, sprinkler system, and lubrication system.Its main features as follows:
1. This machine abandons the traditional linear roller system and adopts high precision linear sliding track in an all-round way to ensure the stable operation of the vertical column linear slider during the machining process.
2. This machine adopts the new international digital control technology to provide a comprehensive guarantee for the smooth operation of the equipment.
3. This machine adopts the self-developed tensioning system to ensure the consistency of each wire saw and make the machine run more smoothly.
4. This machine adopts PLC digital control system to realize the modular combination of various parts, display the running status of the equipment in real time through the display screens, and realize the automatic operation by setting the operating parameters you desired.
5. The design of the machine is reasonable, stable operation, convenient operation, small floor space occupied, high processing efficiency, energy saving and environmental protection.
6. Various specifications available to cut different widths of blocks, mainly used for processing large slabs of granite, marble and artificial stone. It is the ideal replacement for sand saws and provides more choices for large-scale processing among various stone enterprises. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$60000-70000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
DISCOVERY 4 - 2500R/3000R/2500S/3000S adopts CNC control, Four-Axis linkage, which can process the circular stone slab, roman column,
numeral, letter, Chinese characters and other designed shapes.
1， It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less
friction and higher precision.
2， The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy
increased by the conbine of lead screw and double nuts.
3， Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel， guide wheel is controlled by CNC.
Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating
angle.
4， Worktable is running by lead screw and railway.
5， There has automatic alarm and memory function if wire broken, on top of it.
6， Aluminum wheel diameter is 1590mm.One fly wheel slide through sheave, hydraulic oil pump control rope tension. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
$32000-52000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone
Machinery Function Features:
Designed by the man-machine intelligent system, It is easy for operation. And its full protective function makes production more safe.
The machine has the advantages of low energy consumption, and all accessories are standard which ensure low comprehensive cost in use and maintenance.
The machine could be customized to realize user’s different demands.
Our Global Professional Service Net allow us have rapid response to customer needs, and also allow us provide a complete set of customized solutions for cutting & production. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
$123000-157000
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone
Machinery Function Features:
Our technology of gangsaw is from Italy BM company,and the technology of multiwire is from Spain nodosafer company
It is the advanced technology in the world, and our machine can cut the slab in stable and precise,fast in efficience,save in energy
We are well-received in domestic and overseas markets -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
$325555-335555
Warranty: 12 Months
Usage: Granite
Machinery Function Features:
This machine mainly consists of the following main parts: driving system, tension system, lifting system, trolley system, speed regulation system, sprinkler system, and lubrication system.Its main features as follows:
1. This machine abandons the traditional linear roller system and adopts high precision linear sliding track in an all-round way to ensure the stable operation of the vertical column linear slider during the machining process.
2. This machine adopts the new international digital control technology to provide a comprehensive guarantee for the smooth operation of the equipment.
3. This machine adopts the self-developed tensioning system to ensure the consistency of each wire saw and make the machine run more smoothly.
4. This machine adopts PLC digital control system to realize the modular combination of various parts, display the running status of the equipment in real time through the display screens, and realize the automatic operation by setting the operating parameters you desired.
5. The design of the machine is reasonable, stable operation, convenient operation, small floor space occupied, high processing efficiency, energy saving and environmental protection.
6. Various specifications available to cut different widths of blocks, mainly used for processing large slabs of granite, marble and artificial stone. It is the ideal replacement for sand saws and provides more choices for large-scale processing among various stone enterprises. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$30600-35400
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine adopts long-span bridge structure, the beam side beam sealed oil-immersed guide rail, automatic displacement splice, the lifting system adopts hydraulic lifting (or screw lifting) transmission, to achieve smooth and fast lifting and dropping tool, the transverse cutter adopts frequency converter to achieve stepless speed regulation. Automatic walking cutting, and specially equipped with lifting and side beam transmission protection device.During processing, raw materials can be directly placed on the ground to save the trolley and its maintenance costs. The machine has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$60000-70000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
DISCOVERY 4-2000/2500/3000 adopts CNC control, which can process the circular stone slab, roman column,
numeral, letter, Chinese characters and other designed shapes.
1， It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less
friction and higher precision.
2， The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy
increased by the conbine of lead screw and double nuts.
3， Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel， guide wheel is controlled by CNC.
Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating
angle.
4， Worktable is running by lead screw and railway.
5， There has automatic alarm and memory function if wire broken, on top of it.
6， Aluminum wheel diameter is 1590mm.One fly wheel slide through sheave, hydraulic oil pump control rope tension. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
$459999-469999
Warranty: 12 Months
Usage: Granite
Machinery Function Features:
This machine mainly consists of the following main parts: driving system, tension system, lifting system, trolley system, speed regulation system, sprinkler system, and lubrication system.Its main features as follows:
1. This machine abandons the traditional linear roller system and adopts high precision linear sliding track in an all-round way to ensure the stable operation of the vertical column linear slider during the machining process.
2. This machine adopts the new international digital control technology to provide a comprehensive guarantee for the smooth operation of the equipment.
3. This machine adopts the self-developed tensioning system to ensure the consistency of each wire saw and make the machine run more smoothly.
4. This machine adopts PLC digital control system to realize the modular combination of various parts, display the running status of the equipment in real time through the display screens, and realize the automatic operation by setting the operating parameters you desired.
5. The design of the machine is reasonable, stable operation, convenient operation, small floor space occupied, high processing efficiency, energy saving and environmental protection.
6. Various specifications available to cut different widths of blocks, mainly used for processing large slabs of granite, marble and artificial stone. It is the ideal replacement for sand saws and provides more choices for large-scale processing among various stone enterprises. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine
$12000-17000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1. Fully sealed four-cylinder guide rail is used for rising and falling system, which makes the whole structure more stable.
2. Traditional screw lift is replaced by hydraulic lift, which reduces mechanical wear, maintenance costs and time and lowers production costs, and keeps the machine in the best working stable for a long time.
3. Cylinder Trolley to solve all the problems of traditional reducer traction, which leads to stable and reliable operation and long service life, needn 't regular maintenance.
4. It can be equipped with electric split trolleys according to actual needs -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$22000-42000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine uses inverter to control left-right feeding ,adjusts speed according to the stone material. It uses hydraulic lifting system,combination of Chrome-plated guide pin and wear guide bush ,with small gap,wearable,beautiful structure,and Guide Sleeve with multi-layer seals.with waterproof,dustproof,anti-spill,improving the service life. Forward - backward slicing uses high-precision screw nut driving ,automatic slicing ,main spare parts adopt imported good-quality materials;the block can be placed on the ground directly to economize the worktable and its maintenance costs .Thus the whole machine is featured with high cutting effciency ,high slicing precision ,flatness of plate after cutting ,high stability,easy-operating to suit granite and marble block with high value. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$60000-70000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
CNC-2000/2500/3000 adopts CNC control, which can process the circular stone slab, roman column,
numeral, letter, Chinese characters and other designed shapes.
1， It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less
friction and higher precision.
2， The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy
increased by the conbine of lead screw and double nuts.
3， Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel， guide wheel is controlled by CNC.
Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating
angle.
4， Worktable is running by lead screw and railway.
5， There has automatic alarm and memory function if wire broken, on top of it.
6， Aluminum wheel diameter is 1590mm.One fly wheel slide through sheave, hydraulic oil pump control rope tension. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
$555555-599999
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine mainly consists of the following main parts: driving system, tension system, lifting system, trolley system, speed regulation system, sprinkler system, and lubrication system.Its main features as follows:
1. This machine abandons the traditional linear roller system and adopts high precision linear sliding track in an all-round way to ensure the stable operation of the vertical column linear slider during the machining process.
2. This machine adopts the new international digital control technology to provide a comprehensive guarantee for the smooth operation of the equipment.
3. This machine adopts the self-developed tensioning system to ensure the consistency of each wire saw and make the machine run more smoothly.
4. This machine adopts PLC digital control system to realize the modular combination of various parts, display the running status of the equipment in real time through the display screens, and realize the automatic operation by setting the operating parameters you desired.
5. The design of the machine is reasonable, stable operation, convenient operation, small floor space occupied, high processing efficiency, energy saving and environmental protection.
6. Various specifications available to cut different widths of blocks, mainly used for processing large slabs of granite, marble and artificial stone. It is the ideal replacement for sand saws and provides more choices for large-scale processing among various stone enterprises. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$26000-31000
Warranty: 12 Months
Usage: Granite, Basalt
Machinery Function Features:
QSQ Series Bridge granite block cutting machine combines different diameters of blades working simultaneously as single column multiblade block cutter with several pcs same diameter blades. The crossbeam moves forward and backward for feeding thus the working table is not needy, but it is available upon request. Heavy duty structure, logical control system, easy operation with WANLONG blades and segments give high production, flat slabs etc. It is also flexible in modification for single blade cutting. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
$27000-45000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine major in profiling processing of the granite and marble, can cutting different sizes of arc slab, solid columns and hollow columns and large-scale stone line, letter etc. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$50000-60000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Cutting Block to Strip For Granite -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
$150000-550000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone
Machinery Function Features:
The latest triangle structure technology, higher cutting efficiency, and the stability of running.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions. -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$31000-33500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts a microcomputer control system and human-machine interface, uses an inverter to control left-right feeding, adjusts the speed according to the stone material. It uses a hydraulic lifting system, combination of chrome-plated guide pin and wears guide bush, with a small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, the main motor uses a brand energy-efficient motor, reduces the later using cost; forward-backward automatic slicing uses high-precision screw nut driving, main spare parts adopt imported good-quality materials; The block can be placed in the ground directly to save worktable and its maintenance costs; thus the whole machine is featured as high cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit especially cutting granite and marble block with high value and big size.
Note: 360°rotating worktable can be selected if the customer requires -
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
$29000-49000
Warranty: 12 Months
Usage: Granite, Marble, Onyx
Machinery Function Features:
Diamond wire saw stone block trimming machine adopts computer digital control,four-spindle linkage with stable cutting, used to trimming the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block,and trimming stone block.
-
Add To Compare
Type: Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
$30000-40000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
BTC-2200/2500/2800, Whole machine adopt 4 column structure, uses inverter to control left-right feeding, speed adjustable. It
uses double hydraulic lifting system, combined with four guide poles, also Guide Sleeve with multi-functions layer seals, like
waterproof, dustproof, anti-spill. Forward-backward slicing uses high-precision screw nut driving, automatic slicing. Main
spare parts adopt imported good-quality materials, the block can be placed on the ground directly. Thus the whole machine is
featured with high cutting efficiency, high slicing precision, high flatness of plate after cutting, high stability, easy-operating
etc. It is a ideal equipment for your fabricating plant.
Note: 360°rotating worktable can be selected if customer requires. -
Add To CompareNEW
Type: Factory MachinesStone Block Cutting MachinesVertical-Horizontal Block Cutting Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
SCHIND Big Bro 3520 which is designed to process with small blocks and thick stones or to size more marble and granite slabs in one time. The operator has the opportunity to cut both vertically and horizontally at different angles by this new model. -
Add To CompareNEW
Type: Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Our SCH80 Gang Saw machine is created for rapid cutting of natural stone blocks with cast iron flywheel & double connecting rods which has a linear movement to minimize vibration.
Our machine is wagon uplift type. The blades frame is at a fixed height and the block transport trolley is raised towards the diamond blades by synchronized screw shaft system. Our Multi Blade Gang Saw Machine which works in the logic of mass production, provides energy efficiency thanks to excellent harmony between counterweighted cranks & connecting rods, moving diamond blade holder & tension tie rods.
It is designed as 2 pieces of cutting wagons + 1 piece of transfer wagon line + 2 pieces of waiting station.
The movement of the cutting wagon is provided by a trapezoidal screw with a diameter of 90 mm and a pitch of 12 mm, and the installed system has a block lifting capacity of 40 tons.
The block raising station is locked with zigzag wedges strongly. The station moves on two rigid chrome plated prismatic and two flat slides connected to 4 columns, preventing any deviation in the vertical axis.
80 flat diamond blades are connected to the hydraulic tensioning system that provides equal tension to each blade with tension tie rods.
There is an automatic brake stop, audible and light alarm system, if the oil is finished, the main bearings break down, the plate is broken, the flywheel speed decreased or any problem occurs.
PLC Control panel, Telemecanique brand materials, SKF or FAG Bearing.
Roller bearing guide way system working in the oil pool (saves energy compared to friction slides, has a longer life).
Power transmission between main engine and flywheel is provided by energy efficient multiple belt system.
When the block reaches a certain height during cutting (distance adjustable system), the machine automatically stops to fix the plates and the system gives an alarm.
The lifting speed of the block to be cut can be adjusted automatically according to the hardness of the stone. Thanks to the sensors, cutting is made a constant pressure between multi blade saws and stone block.
The up and down movement of the cutting wagon is on the square of friction resistant precision guides (bronze slides) without vibration.
All the mechanical parts and gears we used in our machines are our own production and there is no shortage of spare parts.
Our machine is covered by a 1 year warranty for electronic parts and 2 years for mechanics. And we give spare parts supply guarantee for next 10 years. -
Add To CompareNEW
Type: Factory MachinesStone Block Cutting MachinesVertical-Horizontal Block Cutting Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
SCHIND ST-P 1800 - PLC- Marble, Stone and Granite Block Cutting Machine
Our ST machine, which does not vibrate during cutting with its solid steel chassis structure and performs vertical and horizontal precision linear cutting in PLC automation logic, is a patented design due to its chamfering specification.
Our ST block cutting machine is manufactured using very strong steel material in order to achieve cutting precision in saw moving directions.
Therefore, this machine, which works at high speed, does not have a vibration problem, its saw life is longer than our competitors.
In addition to making vertical and horizontal precise cutting with PLC automation system, it makes chamfering at exactly 45 °. The operator can change the angle from screen if he wishes.
The movement of the bridge on the chassis and the movement of the cutting group on the bridge are provided by first-class friction resistant bronze slides and rack gears.
The rotation speeds of the vertical saws (first saw 800 – the next 1200mm, so 400mm difference) work at different speeds considering the diameter variation.
The rotation speeds of the horizontal saws are the same. Due to horizontal saws move one after another, the life of the saws are much longer and provides an advantage for mass production. -
Add To CompareNEW
Type: Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SCHINDMACHINES SMW10 MULTI WIRE GRANITE & MARBLE BLOCK CUTTING MACHINE
Natural stone block cutting machines have gained a quite different level with the latest technology. Wire gang saw or, in other words, multi wire block cutting machine, has become the first need of factories.
Schind has succeeded in being a solution partner for cutting granite blocks or cutting marble and travertine blocks for manufacturers who want fast production.
Thanks to its strong chassis structure and separately pneumatic wire tensioning, you can cut plates of different thicknesses with high precision.
We proud of to say we have high demands received for the Schind multi wire gang saw that we have developed in-house from the domestic and international markets.
Supporting the cutting group with a hydraulic cylinder has increased the life of the system 5 times by reducing the load on the nuts and reducer system to 10% during the up and down movement of the machine.
Linear rays are completely protected by bellows.
With our SCHIND SMW10, SCHIND SMW15, SCHIND SMW38 models, we have succeeded in being the supplier of manufacturers who make slabs from block with these cutting-edge multi-diamond wire block cutting machines. With this diamond wire stone cutting technology, we succeeded in overcoming difficulties such as precision in multi-plate cutting, ability to move independently of the vein structure of the stone, and faster product removal with less breaking from the gang saw.
The cost of diamond wires is around 30% more than that of the saw blades. These values may differ depending on the type of stone and the quality of the diamond wire.
Based on the same number of blades and wires, multi-wire cuts 3 times faster than the gangsaw blades.
Minimum slab thickness is 18 mm at lamella gangsaw block cutting machine. Minimum slab thickness is 8 mm thin with the shifting technique in the multi-wire block cutting machine.
Since the lamellar gang saw works with back and forth movement, it makes a hydraulic impact to the stone block and the cracked stone slabs can be easily broken. This does not happen in multi-wire gangsaw, the stone is cut without impact.
If we explain mathematically so that our customers can make correct calculations and compare the machines;
The energy consumption of the Multiple Wire Block Cutting machine is 110 KW.
Let’s say our block is 3 meters. Cutting speed is 60 cm/hour.
3mt x 0.6 = 1.8 m² x 44 diamond wires then we can get max = 79.2 m² / hour
110 Kw / 79.2 m² = 1.38 Kw / hour / m²
The energy consumption of the 80 Blades Gang-Saw Block Cutting Machine is 160 Kw.
Let’s say our block is 3 meters. Cutting speed is 20 cm/hour.
3mt x 0.2 = 0.6 m² x 80 = 48 m² / hour
160 Kw / 48 m² = 3.33 Kw / hour / m²
Result: We spend 1.38 Kw/hour cutting 1 m² of plate with diamond wire block cutting method… We spend 3.33 Kw/hour when cutting 1 m² with a gang saw block cutting method …
Have a Question? Ask our expert
