Multi Blade Stone Cutting Machine For Marble Granite
FOB Price:$15000-18000
Type:
Stone Factory MachinesStone Slab Cutting MachinesMulti Blade Automatic Slab Cutting Line
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7 days after receiving deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
Xiamen Port- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
More
Machinery Function Features

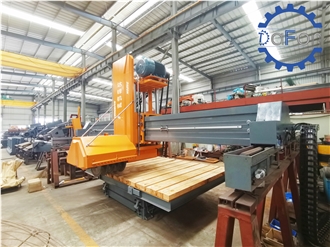

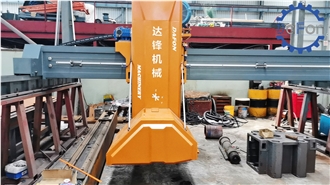

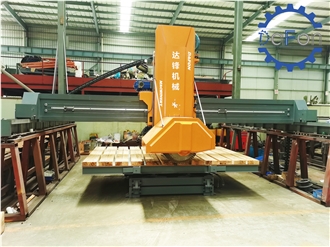

Introduction of Multi Blade Marble Stone Cutting Machine

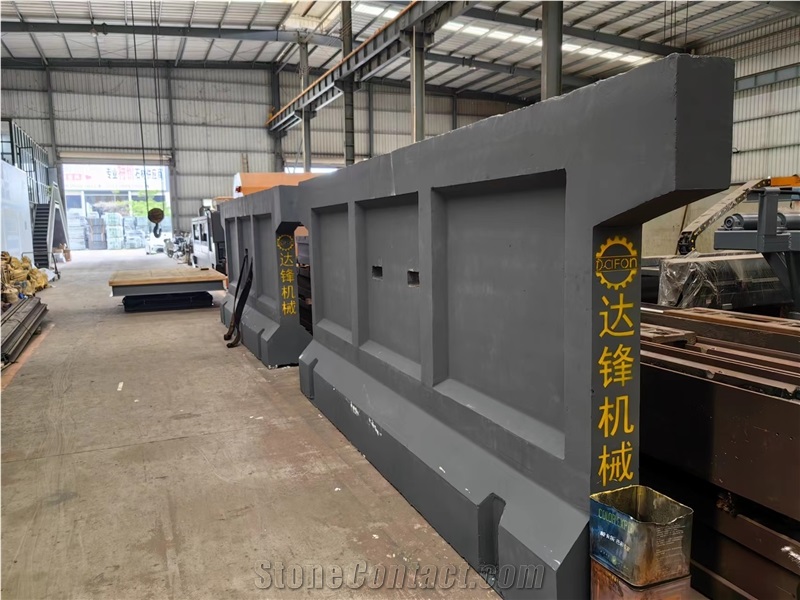

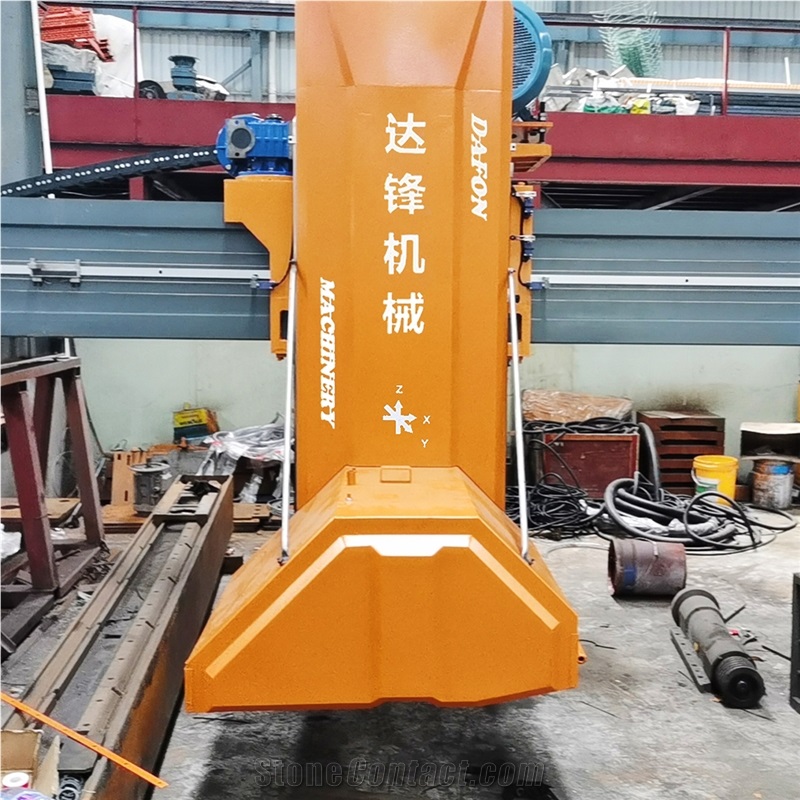

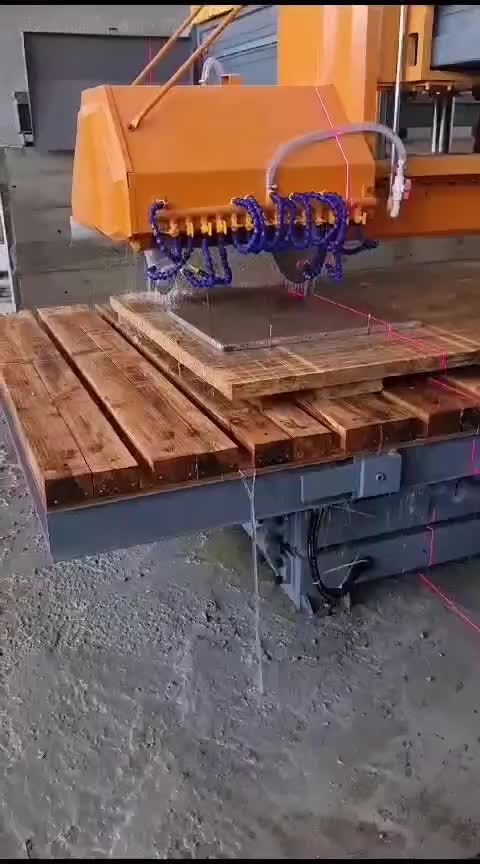

bridge multi-blade saw is improved and upgraded on the basis of the bridge cutter, adopting PlC to control multiple saw blades cutting at the same time. use up to 7 pieces of 800 diameters saw blades, the table can be rotated by 90 °, which saves the cutting process and greatly improves the production efficiency, the heavy-duty cross beam and the larger horsepower motors make the mult-slice cutting more comfortable, it very suitable for cutting paving stone, kerbstone, and cut-to-size granite and marble cutting.
The Advantages of Multi Blade Marble Stone Cutting Machine
Advantages of Multi Blade Stone Cutting Machine:
Wide range of use: Multi Blade Stone Cutting Machine can cut marble, granite, rock, limestone and other types of stone

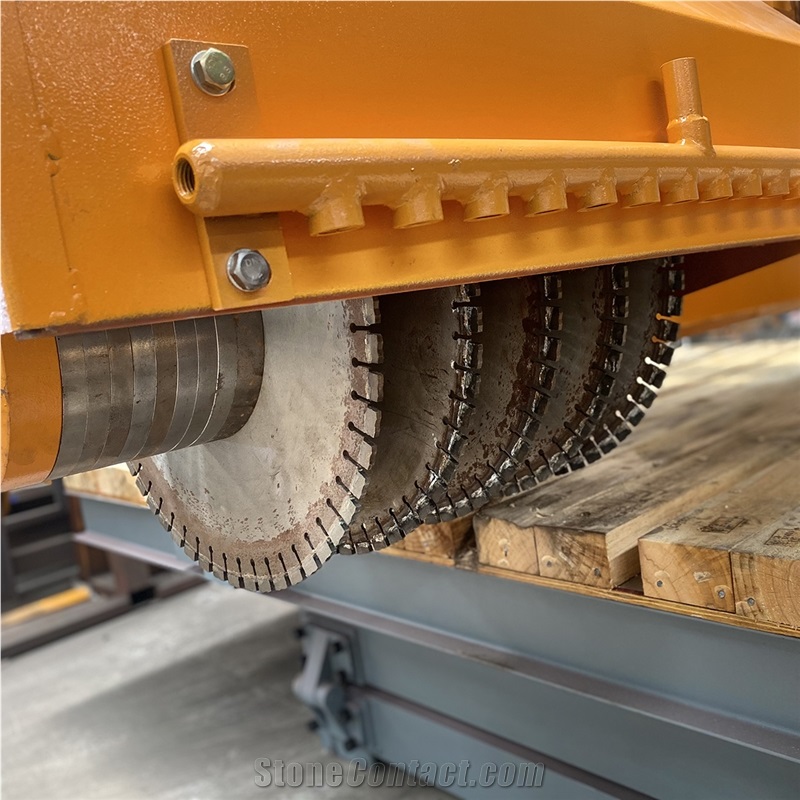

High cutting efficiency: 7 saw blades can be hung at the same time to reduce the number of cuts and improve work efficiency
High yield rate: simultaneous cutting can effectively reduce cutting errors and ensure cutting accuracy.
Reduce labor costs: the same workload, shorten cutting time, improve work efficiency, and reduce labor wages
Easy to learn: Quick to use the machine, simple operating steps, easy to learn
Compare Multi Blade Stone Cutting Machine with infrared stone cutter
Multi Blade Stone Cutting Machines and infrared stone cutters are commonly used in cutting equipment
Multi Blade Stone Cutting Machine
Multi Blade Stone Cutting Machine refers to a cutting machine that is composed of multiple saw blades. It can achieve up to seven 800mm saw blades for simultaneous cutting. Compared with the infrared stone cutter, it has higher cutting efficiency, deeper cutting depth, high cutting accuracy and high cutting efficiency. Fast speed and wide application range.
infrared stone cutter
The infrared stone cutter uses infrared technology to quickly and accurately cut various stone materials, such as granite, marble, slate, ceramic tiles, etc. The infrared bridge edge trimmer has a high-precision cutting effect and can achieve fine cutting to ensure the quality and aesthetics of the product. The cutting accuracy is relatively low and the cutting speed is also slow.
bridge multi-blade saw is improved and upgraded on the basis of the bridge cutter, adopting PlC to control multiple saw blades cutting at the same time. use up to 7 pieces of 800 diameters saw blades, the table can be rotated by 90 °, which saves the cutting process and greatly improves the production efficiency, the heavy-duty cross beam and the larger horsepower motors make the mult-slice cutting more comfortable, it very suitable for cutting paving stone, kerbstone, and cut-to-size granite and marble cutting.
The Advantages of Multi Blade Marble Stone Cutting Machine
Advantages of Multi Blade Stone Cutting Machine:
Wide range of use: Multi Blade Stone Cutting Machine can cut marble, granite, rock, limestone and other types of stone
High cutting efficiency: 7 saw blades can be hung at the same time to reduce the number of cuts and improve work efficiency
High yield rate: simultaneous cutting can effectively reduce cutting errors and ensure cutting accuracy.
Reduce labor costs: the same workload, shorten cutting time, improve work efficiency, and reduce labor wages
Easy to learn: Quick to use the machine, simple operating steps, easy to learn
Compare Multi Blade Stone Cutting Machine with infrared stone cutter
Multi Blade Stone Cutting Machines and infrared stone cutters are commonly used in cutting equipment
Multi Blade Stone Cutting Machine
Multi Blade Stone Cutting Machine refers to a cutting machine that is composed of multiple saw blades. It can achieve up to seven 800mm saw blades for simultaneous cutting. Compared with the infrared stone cutter, it has higher cutting efficiency, deeper cutting depth, high cutting accuracy and high cutting efficiency. Fast speed and wide application range.
infrared stone cutter
The infrared stone cutter uses infrared technology to quickly and accurately cut various stone materials, such as granite, marble, slate, ceramic tiles, etc. The infrared bridge edge trimmer has a high-precision cutting effect and can achieve fine cutting to ensure the quality and aesthetics of the product. The cutting accuracy is relatively low and the cutting speed is also slow.
Technical Data
Parameters |
Unit |
DF-800-7D |
Water consumption |
m³/h |
5 |

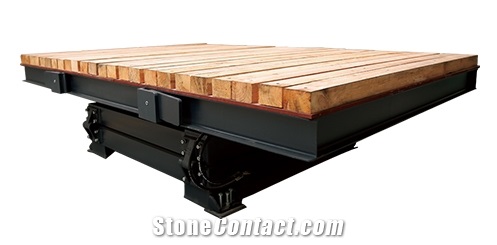

Worktable rotating degree |
N° |
0-90° |
Gross weight |
kg |
13500 |
Worktable tilting degree |
N° |
0-85° |
Max. cutting depth |
mm |
250 |
Blade number |
pcs |
7 |
Main motor |
kw |
37 |
Up and down range |
mm |
550 |
Overall dimension(LxWxH) |
mm |
6300×4700×3800 |
Worktable dimension |
mm |
3200×2000 |
Effective shaft length |
mm |
600 |
Total motor |
kw |
44 |
max blade diameter |
mm |
Φ600-800 |
