FLYING TOP SLABS, STRIPS AND TILES POLISHING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting
Machinery Function Features
The perfect partner to satisfy even the most specific production needs.
Flying Top perfectly meets the needs of modern workshops. It can be designed and customized on demand. To give you more than you expect.
1 Hot dip galvanisation
Ensures the benches will last through time
2 Compactness
The size of the machine is small for the number of heads it contains, making it perfect for workshops with little space
3 Customisable
It is possible to configure the machine with a variable number of abrasive heads and calibrators
Flying Top perfectly meets the needs of modern workshops. It can be designed and customized on demand. To give you more than you expect.
1 Hot dip galvanisation
Ensures the benches will last through time
2 Compactness
The size of the machine is small for the number of heads it contains, making it perfect for workshops with little space
3 Customisable
It is possible to configure the machine with a variable number of abrasive heads and calibrators
Technical Data
Parameters |
Unit |
3-0 |
4-0 |
2-3 |
3-3 |
3-4 |
4-4 |
Machine overall width |
mm |
1870 |
1870 |
1870 |
1870 |
1870 |
1870 |
Spindles bridge speed |
m/min |
20 |
20 |
20 |
20 |
20 |
20 |
Total installed electrical power |
kw |
68 |
90 |
64 |
86 |
91.5 |
114 |
Machine overall height |
mm |
2280 |
2280 |
2280 |
2280 |
2280 |
2280 |
Approx. Weight |
Kg |
5250 |
6200 |
6500 |
7450 |
7850 |
8800 |
Number of polishing heads/honing units |
nr |
3 |
3 |
4 |
4 |
||
Calibrating spindles motor power |
kw |
22 |
22 |
22 |
22 |
22 |
22 |
Slabs min. processable thickness |
mm |
10 |
10 |
10 |
10 |
10 |
10 |
Number of abrasives for each plate |
nr |
5 |
5 |
5 |
5 |
||
Calibrating plate diameter |
mm |
870 |
870 |
870 |
870 |
870 |
870 |
Slabs max. processable width |
mm |
800 |
800 |
800 |
800 |
800 |
800 |
Number of calibrating spindles |
nr |
3 |
4 |
2 |
3 |
3 |
4 |
Slabs max. processable thickness |
mm |
70 |
70 |
70 |
70 |
70 |
70 |
Machine overall length |
mm |
4000 |
4900 |
5870 |
6770 |
7170 |
8070 |
Diameter of abrasive-holding plates |
mm |
360 |
360 |
360 |
360 |
||
Cooling water requirement |
L/min |
75 |
100 |
125 |
150 |
175 |
200 |
Polishing heads/honing units motor power |
kw |
5.5 |
5.5 |
5.5 |
5.5 |
||
Conveyor system forward speed |
m/min |
0-3 |
|||||
Belt advancement motor power |
kw |
1.1 |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |

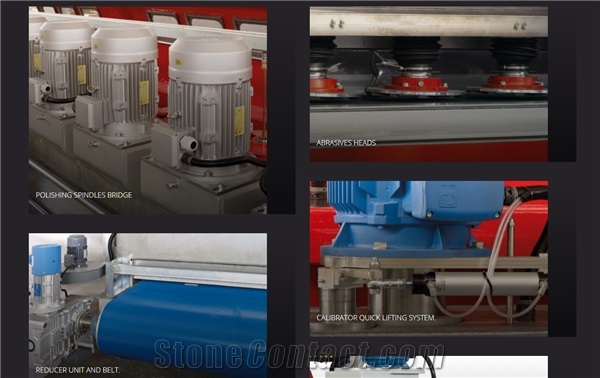

Components
