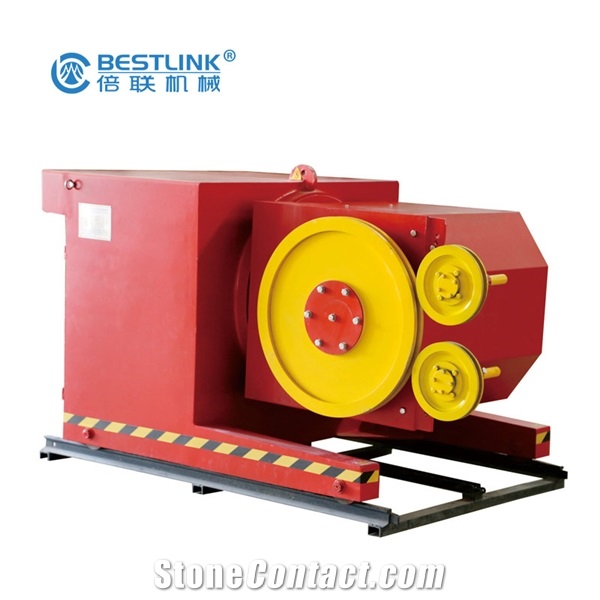

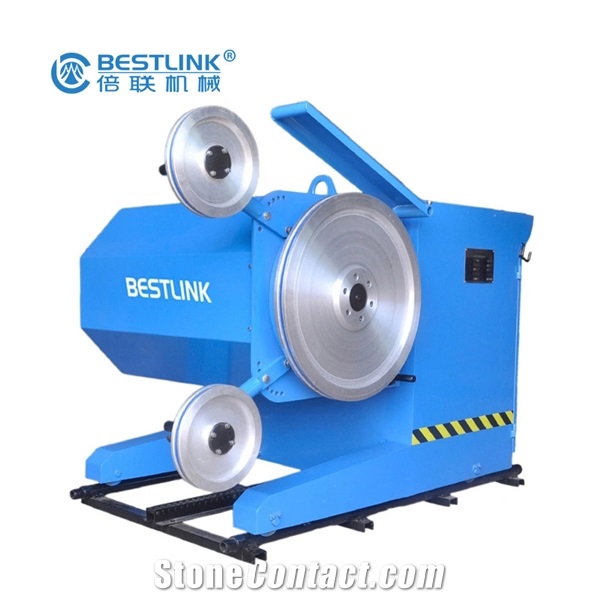

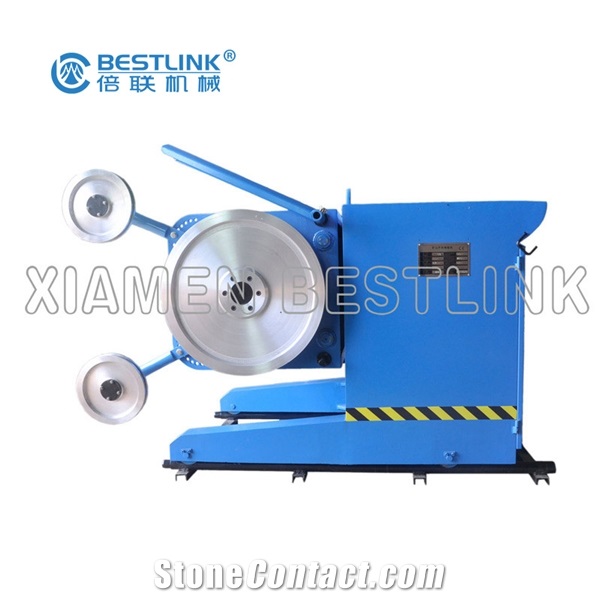

Quarry Diamond Wire Rope Saw Machine for Rock Cutting
FOB Price:$15000-168000
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
Quarry Diamond Wire Rope Saw Machine for Rock Cutting
Products Feature:

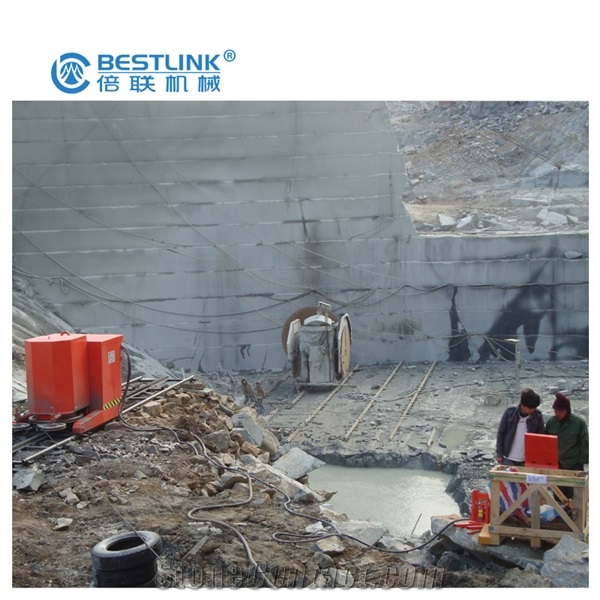

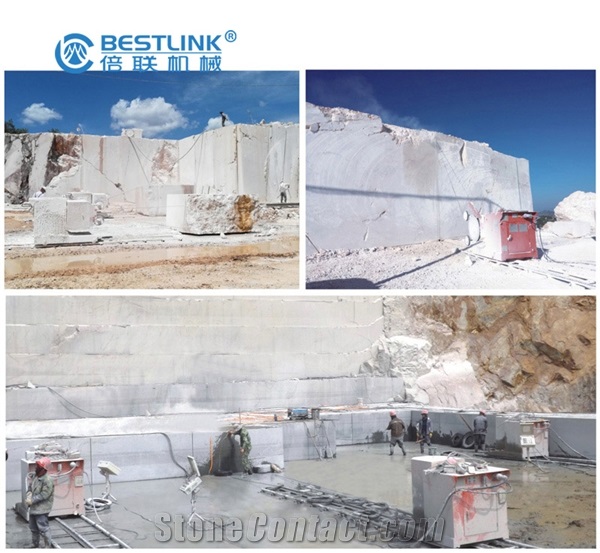

This BL Series Diamond wire saw can apply horizontal, vertical and acclivity and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition and increase the safety factor.
Advantage:
1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatic controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including: wire broken, Machine overload, cutting finished, and others malfunction happened.
5.Display an saving with digitization: the value of cutting current, linear speed and moving speed indicated on the panel, and the cutting time can be saved.
6. The machine without phase request. It is needn't to change and distinguish .
Products Feature:
This BL Series Diamond wire saw can apply horizontal, vertical and acclivity and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition and increase the safety factor.
Advantage:
1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatic controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including: wire broken, Machine overload, cutting finished, and others malfunction happened.
5.Display an saving with digitization: the value of cutting current, linear speed and moving speed indicated on the panel, and the cutting time can be saved.
6. The machine without phase request. It is needn't to change and distinguish .
Technical Data
Parameters |
Unit |
BL-11G |
Total Weight |
Kg |
350 |
Wire Saw Speed |
m/s |
0-40 |
Feed Motors Power |
kw |
0.75 |
Length of rails |
m |
2m*3 |
Power of Hydraulic Unit Motor |
kw |
11 |
Power Supply |
V/Hz |
380/50 |
Max. Wire Length |
m |
10-20 |
Motor Flywheel Unit Rotation |
° |
360 |
Main Flywheel Diameter |
mm |
550 |
