Portable Drilling Machine For Undercut Anchors Hole Expanding Machine
FOB Price:$900-1000
Type:
Stone Hand Held MachinesStone Hand Drill Machines
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-7 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Trade Terms
Port:
Xiamen Port- China
Delivery Details: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery
Payment :
Supplier
Eatablished :May 01,2010
Main Product:
Undercut Anchors, Aluminium Brackets, Stainless Steel Brackets, Stone Fixing Systems, Drill Bits, Drill Machines|
You may also like
Machinery Function Features
Portable Drilling Machine For Undercut Anchors Hole Expanding Machine
Application:This stone hand drill machine is used with diamond drill bits, to drill undercut holes for back bolts which are widely used to fix in cladding panels.
Different types of panels all can be mounted, such as ceramic panels,granite panels, marble panels, travertine panels,limestone panels, sand stone panels, concrete panels, high density cement fiber boards, etc.
Specification: 350mm(Length)x380mm(Width)x500mm(Height).
Accessory: Air Compressor, Water Pump, drill bits, tools.
Advantages:
1. High quality with long life.
2. High working efficiency.
3. Portable and light, easy to carry.
4. Easy to adjust and operate, flexible in drilling.
Application:This stone hand drill machine is used with diamond drill bits, to drill undercut holes for back bolts which are widely used to fix in cladding panels.
Different types of panels all can be mounted, such as ceramic panels,granite panels, marble panels, travertine panels,limestone panels, sand stone panels, concrete panels, high density cement fiber boards, etc.
Specification: 350mm(Length)x380mm(Width)x500mm(Height).
Accessory: Air Compressor, Water Pump, drill bits, tools.
Advantages:
1. High quality with long life.
2. High working efficiency.
3. Portable and light, easy to carry.
4. Easy to adjust and operate, flexible in drilling.
Technical Data
Parameters |
Unit |
VTDM-P01 |
Apr. weight |
Kg |
13 |
Overall height |
mm |
500 |
Power source |
Electric Supply |
|
Overall length |
mm |
380 |
Output power |
w |
1250 |
Min. drill rod diameter |
mm |
7 |
Rotating speed/Drilling speed |
r/min |
12000 |
Frequency |
Hz |
50 |
Rated voltage |
V |
220 |
Processing type(Dry or Wet) |
Wet |
|
Overall width |
mm |
350 |
Max. drilling depth |
mm |
50 |
Max. sound |
dB |
60 |
Drill rod length |
mm |
25 |
Max. drill rod diameter |
mm |
13 |

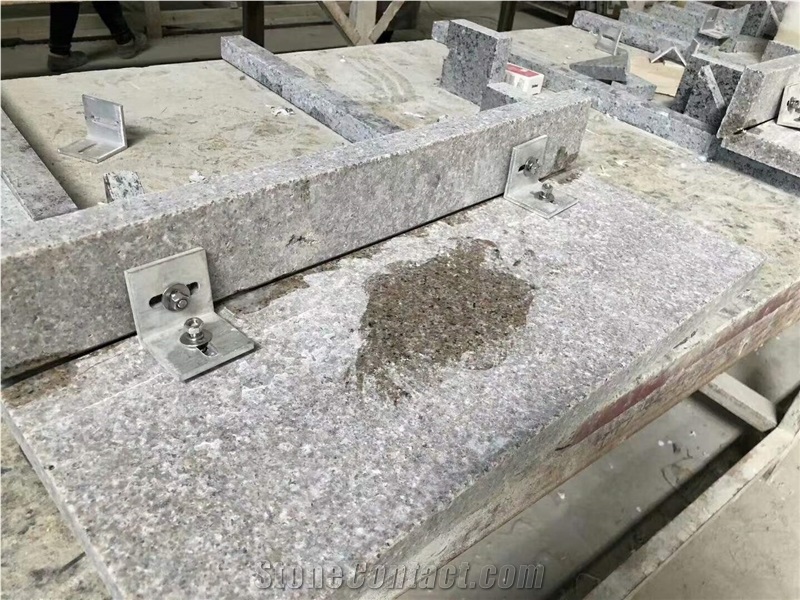

Processed Stone Photos
Components
-
Water Pump
¥Payment Required -

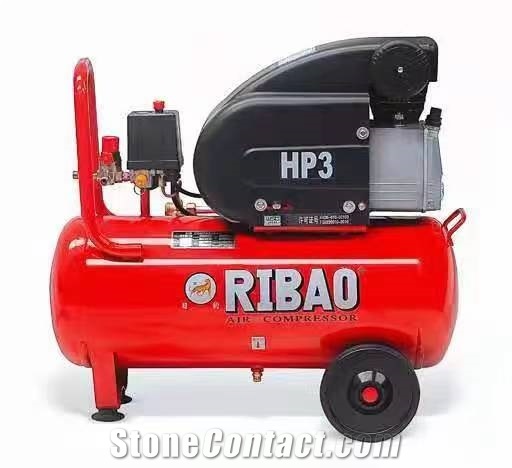

Air Compressor
¥Payment Required
Consumables
-
Diamond Drill Bit
Need to be replaced
