CNC-600 5 Axis CNC Manufacture Cutting Machine

FOB Price:$58000-59000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Jan 21,2014

ISO 9001

Main Product:

Bridge Cutting Machine, Medium Block Cutting Machine, Stone Profiling Machine, Stone Turnover Machine, Block Cutting Machine, Manual Edge Cutting Machine|

Contact supplier

  • Overview
  • Components
  • Video
Machinery Function Features
CNC-600 is a fully 5 axis interpolated and numerical controlled sawing and milling machine, which equipped with a suction cups device for moving cut pieces to increase the production process while reducing processing time. It’s good for processing slabs and block of granite, marble, quartz and other natural or artificial stone. Particulary appropriate to cut countertop, steps and floors, to make profiles and bas-relief and also artistic working on solid blocks. It is fast, accurate and reliable.
Technical Data
Parameters
Unit
CNC-600
Machine weight
kg
6200
Gross power
kw
22.8
Maxhine dimensions
mm
5200*3300*2600
Table size
mm
3300*2200
Max disc size
mm
400-600
Spindle motor with invertor for speed adjustment
kw
Yes(0-3000RPM)
Servo motor for A C aixs
kw
0.85
Disc motor power
kw
15/18.5
Water consumption
m3/h
2
Servo motor for X Y Z aixs
kw
1.3
Processed Stone Photos
  • Granite

    Granite

Components
  • Electric panel

    Electric panel

  • Hydraulic system

    Hydraulic system

  • Linear guide

    Linear guide

  • Main motor

    Main motor

Consumables
  • Oil seal ring

    Oil seal ring

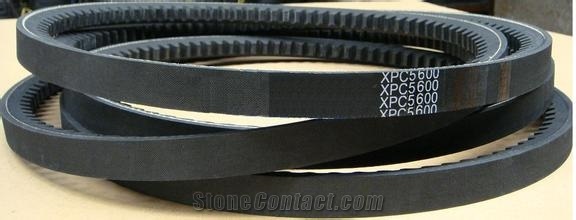

  • Triangle belt

    Triangle belt

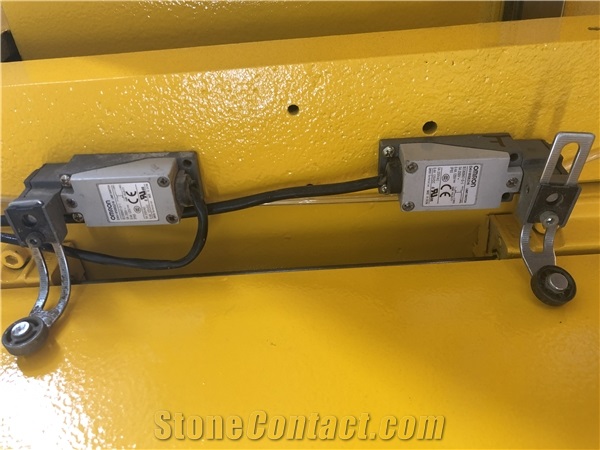

  • Travel switch

    Travel switch
