CNC Bridge Cutting Machine

( 392 )
Suppliers:
  • Best 4 Axis CNC Bridge Saw Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$13500-15000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    This machine adopts a bridge structure and uses an inverter for step-less speed regulation, it is equipped with a rigid cutting work platform and double servo synchronous drive, p6 grinding helical gea, oil-in-pending sealed linear guide, and other high-precision accessories to make it with high precision, high stability, simple operation, etc, it is processing all kinds of stone products. ideal equipment
    Bridge cutters are powerful machines designed for cutting granite, marble, and other natural stones. These machines are highly efficient and precise, offering superior performance for cutting large pieces of materials. They are ideal for use in the stone industry, offering a range of cutting options, including straight cutting, mitre cutting, and curved cutting. Bridge cutters are also equipped with a variety of advanced features, such as automatic lubrication systems, digital control panels, and high precision cutting tools. They are considered essential tools for any stone fabrication project and help to streamline the cutting process, reducing labor costs and delivering high-quality results.
  • CNC Bridge Saw Granite Cutting Machine For Sale DFQ - H450/600/800
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$8000-18000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    motor: Eagle brand or Mindong brand(top brand in China)
    Hydraulic station: seven ocean hydraulic systems from Taiwan
    cement foundation or metallic foundation optional
    Worktable size: 3000*2000*700mm
    Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt
    Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
    Inside details: 8 rotation wheels inside the worktable, not 6
    The infrared line shows the cutting path which ensures precise cutting and high cutting quality

    Main features
    The machine adopt cast iron on the main part of the machine body to ensure stability while cutting
    The cutting speed is controlled by an inverter to achieve stepless adjustment, the head movements, table title up, rotation, and position use hydraulic transmission to move. it can be cut manually and fully automatically easily.
    It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning(Omron brand encoder)
    The worktable is controlled by hydraulic rotation and also can be locked in any position Manually
    It is applicable to cutting valuable and large-sized stone slabs for many specifications
    Appellation DF-450 DF-600 DF-800 Unit
    Blade diameter Ø300~450 Ø350~600 Ø400~800 mm
    Max.vertical stroke 230 350 350 mm
    Worktable tiling degree 0~85 0~85 0~85 N°
    Worktable rotating degrees 0~90/0~360 0~90/0~360 0~90/0~360 N°
    Max.cutting depth 110 180 280 mm
    Water consumption 1.8 1.8 1.8 m³/h
    Main motor 15 18.5 22 kW
    Total motor 24.5 26 26 kW
    Overall dimension (L*W*H) 6000*4800*2900 6000*4800*3000 6000*4800*3000 mm
    Gross weight 4500 5600 5600 kg
    Worktable dimension 3200*2000 3200*2000 3200*2000 mm

    ◆ Configuration for controlling box:
    item brand origin
    PLC Mitsubishi Japan
    AC drive/inverter Sunye China
    Air switch Delixi China
    Button/switch ABB Switzerland
    contactor Shihlin Taiwan
    Relay Shihlin Taiwan
    ◆ Commercial Terms & Conditions:
    Delivery term: FOB Xiamen, China
    Delivery time:15 days after receiving a 30% deposit
    Payment term:30% T/T deposit when order placed, 70% T/T before shipment
    Quotation validity:30 days
  • CNC 5 Axis Bridge Cutting Machine CNC450/600/700-5 AI
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$40500-58500

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    CNC450-5 five-axis CNC bridge cutting machine adopts industrial computer and is equipped with Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc. can be performed.The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter. In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer. The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate.


    Features:

    1)5 axis linkage control with CNC control system.
    2)Easy to use interface with 17" color touch-screen. 3)The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import.
    4)The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability. 5)The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive. 6).Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 7).The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive. 8).A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision.
    9)Working platform can tilt 85 degrees, easy for slabs loading.
    10)Milling cutter function.
    11)Suction cup function(optional).
    12)Thickness measurement function(optional).
  • QS1600-QS1800-QS2000 Bridge Type Two-Way Stone Cutter - CNC Bridge Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$32400-36000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Around the machine structure of large span bridge, feeding the multi-stage transmission, frequency control of motor speed, and lift adopts mechanical transmission, shard before and after adopting high precision lead screw and nut, spindle power head adopts dual axle gear train, the level of knife lift guide pillar using cylindrical guide rail, hydraulic automatic feed, the control system adopts PLC programmable control system and human-machine interface, lifting, feeding, shard adopt high precision encoders count, ensure the machine cutting precision, durable and reliable. Lifting large stroke, cutting directly on the root of the plate, according to the need of layered cutting, so as to avoid the trouble of manual unloading, improve efficiency.
    This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.
    Note:If the production process needs, the user can add 360 rotary table.
  • SQC-600-CAM Computer-Assisted Intelligent Bridge Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$20000-24900

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    The intelligent bridge cutting machine is based on the four-post guide bridge cutting machine, equipped with upscale industrial table computer and ultra-high precision camera system. The high-level programming language made by the application computer, which achieve automatically processing of laser stone cutting machine for the first time. The automation includes automatically analysis orders, automatic identification, measurement, layout, cutting, counting and record. In addition, it supports to load orders by WIFI remote connect and remote monitoring. The intelligent bridge cutting machine supports two working modes: intelligent mode and traditional mode, which is compatible for traditional laser bridge cutting machine. The machine is featured with quick and simple operation, high efficiency and less labor and time.

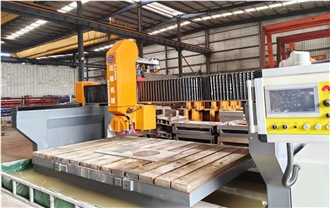

  • CNC Monoblock Bridge Saw Machine For Marble Granite
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$15000-16000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    CNC Monoblock Bridge Saw Machine R&D Background
    The 5-axis CNC bridge saw can achieve cutting of various shapes, but compared with the 3-axis and 4-axis stone cutting machines, it is expensive and the general processing factory has an insufficient budget.
    Therefore, dafon machinery has added a milling cutter on the basis of the 4-axis stone cutting machine, which can be professionally used for drilling and cutting of countertops. It is the best choice for drilling and cutting countertops such as granite, marble, and quartz stone.

    Introduction of CNC Monoblock Bridge Saw Machine
    Bridge saw machines are more cost-effective than five-axis cutting machines. This is a new type of machine developed by Dafeng Machinery. Mainly processing washbasin countertops, circles, rectangles and other conventional shapes. It is equipped with a cutting head and engraving head that can rotate 45-90 degrees. Compared with the conventional 4-axis stone cutter, it has more complete functions and can process the table faster, more accurately, and more efficiently.

    Features of CNC Monoblock Bridge Saw Machine
    High cutting accuracy: multi-angle cutting, straight lines, and curves can be achieved to improve cutting accuracy.
    High cutting efficiency: cutting of complex shapes can be achieved, thereby improving cutting efficiency.
    Wide range of applications: can cut various stone materials, including marble, granite, jade, etc.
    High-cost performance: Compared with the 5-axis CNC bridge saw, the price is more attractive, and compared with the 4-axis stone cutter, the cutting function is more comprehensive
  • Bestlink Factory Thin Veneer Saw for Cutting Cobble Stone
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$12500-16000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone

    Machinery Function Features:

    The mighty stone saw (30 horsepower) model is compact, portable, and lighter - making the task of hauling much easier. This model comes with a smaller and faster 30 in. Blade for quicker cutting of your everyday stones. Effectively changing the stone cutting industry,
    this mighty stone saw has been designed to be safe, sturdy and simply low maintenance. Every aspect-from components to assembly-was designed to fit all the below criteria and do it at a reasonable price.
  • New Design 5 Axis CNC Stone Bridge Saw For Quartz Marble Granite
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$30000-40000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields.

    1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation. 2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
    3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
    4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
    5. This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.
  • Best 5 Axis CNC Stone Bridge Saw For Marble Quartz Granite
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$20000-23000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields

    1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.
    2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
    3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
    4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
    5. This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.
  • CNC Bridge Cutter Machine For Cutting Granite DFQ-Z1200
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    FOB Price:$15000-20000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone

    Machinery Function Features:

    The Best Cutting Granite AND Marble Slabs Machine
    The machine adopts a bridge structure, and the main girder and side girders are all oil-immersed sealed guide rails. lt adopts imported frequency converter steples speed regulation cutting, equipped with a 90-degree rotating table, flexible rotation, accurate positioning, and good rigidity, This machine cuts smoothly and efficiently and is an ideal equipment for processing high-value stones, tombstone crafts, and road rocks.
    Machine Features:
    1. The machine adopts cast iron on the main part of the machine body to ensure stability while cutting

    2. The inverter controls the cutting speed to achieve step-less adjustment, the head movements, table title up, rotation, and position use the hydraulic transmission to move. it can be cut manually and fully automatically easily.

    3. It adopts a PLC programmable control system and touch screen operator and is combined with high precision encode positioning(Omron brand encoder)

    4. The worktable is controlled by hydraulic rotation

    5. It applies to cutting valuable and large-sized stone board for many specifications
    ·Motor: Eagle brand or Mindong brand
    ·Hydraulic station: seven ocean hydraulic systems from Taiwan
    ·Cement foundation or metallic foundation
    ·Worktable:
    Size: 3000*2000*700mm
    Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt
    Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
    Inside details: 8 rotation wheels inside the worktable, not 6
    Infrared line to show the cutting path which ensures precise cutting and high-cutting quality
  • ICON400 CNC Bridge Saw Stone 5 Axis Sink Countertop Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $32800-38800

    Warranty: 12 Months

    Usage: Granite, Marble, Artificial Stone, Quartzite

    Machinery Function Features:

    1. Compact size without needing the ground base.
    2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators.
    3. With powerful functions, the machine can work almost all the jobs of a small factory.
    4. With less electricity and more efficiency, the cost is decreased much.
    5. High quality accessories and electric parts are used to secure long service life and low cost.
  • CNC Bridge Saw Machine For Cutting Granite DFQ-H600
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $11000-18000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    motor: Eagle brand or Mindong brand(top brand in China)
    Hydraulic station: seven ocean hydraulic systems from Taiwan
    cement foundation or metallic foundation optional
    Worktable size: 3000*2000*700mm
    Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt
    Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
    Inside details: 8 rotation wheels inside the worktable, not 6
    The infrared line shows the cutting path which ensures precise cutting and high cutting quality

    Main features
    The machine adopt cast iron on the main part of the machine body to ensure stability while cutting
    The cutting speed is controlled by an inverter to achieve stepless adjustment, the head movements, table title up, rotation, and position use hydraulic transmission to move. it can be cut manually and fully automatically easily.
    It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning(Omron brand encoder)
    The worktable is controlled by hydraulic rotation and also can be locked in any position Manually
    It is applicable to cutting valuable and large-sized stone slabs for many specifications
    Appellation DF-450 DF-600 DF-800 Unit
    Blade diameter Ø300~450 Ø350~600 Ø400~800 mm
    Max.vertical stroke 230 350 350 mm
    Worktable tiling degree 0~85 0~85 0~85 N°
    Worktable rotating degrees 0~90/0~360 0~90/0~360 0~90/0~360 N°
    Max.cutting depth 110 180 280 mm
    Water consumption 1.8 1.8 1.8 m³/h
    Main motor 15 18.5 22 kW
    Total motor 24.5 26 26 kW
    Overall dimension (L*W*H) 6000*4800*2900 6000*4800*3000 6000*4800*3000 mm
    Gross weight 4500 5600 5600 kg
    Worktable dimension 3200*2000 3200*2000 3200*2000 mm

    ◆ Configuration for controlling box:
    item brand origin
    PLC Mitsubishi Japan
    AC drive/inverter Sunye China
    Air switch Delixi China
    Button/switch ABB Switzerland
    contactor Shihlin Taiwan
    Relay Shihlin Taiwan
    ◆ Commercial Terms & Conditions:
    Delivery term: FOB Xiamen, China
    Delivery time:15 days after receiving a 30% deposit
    Payment term:30% T/T deposit when order placed, 70% T/T before shipment
    Quotation validity:30 days
  • 4 Axis Marble Granite Quartz Bridge Saw For Stone Cutting Engraving
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $30000-40000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Blue Elephant 4 axis bridge cutting saw is equipped with infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it is equipped with Blue Elephant customized CNC control system to realize high-quality and precise cutting.
    1. The bridge saw head can be tilted 45° for chamfering and cutting.
    2. The bridge saw table is tilted at 85° to facilitate loading and unloading.
    3. The main core components adopt international first-line brands such as Schneider, which is more stable.
    4. One-piece structure guarantees small footprint and easy installation and movement.
    5. Equipped with a top camera, it can automatically typeset and position.
  • 5 Axis 4 Axis CNC Stone Marble Granite Tilting Head Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $15000-24000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Quartzite, Travertine

    Machinery Function Features:

    1.The machine adopts a bridge-type integrated structure, the machine bed is strong and stable, and has good stability.
    2.The 4-axis adopts high-precision linear square rail, which has high precision, wear resistance and long service life
    3.The machine head can be rotated in parallel of 0-90 degrees any angle's chemfer cutting, and can be cut horizontally, vertically, circular,and diamond-shaped.
    4.The machine head can automatically perform 45-degree chamfer cutting, with high precision and high efficiency.
    5.The system adopts independent research and development PLC programming system, touch screen operation interface, convenient operation and strong humanity.
    6.The 4 axis adopts high-power servo motor, which has fast walking speed and high precision.
    7.One-piece structure, no need to disassemble, easy to install and easy to move.
    8.The platform can be tilted from 0 to 85 degrees, which is convenient for placing large stones.
  • K 900 CNC bridge saw with tilting head and 5 interpolated axes
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    SASSO K 900 CNC SAW 5 AXYS
    The best of K series at maximum power
    CNC bridge saw with tilting head and 5 interpolated axes. It can perform arches, cuts inclined at 90°, plus profile roughing and shoulder blade finishing. Ideal for kitchen and bathroom tops, and pieces machined from solid block.
    1 A top-notch product for architecture
    The K900 can use a disk to cut up to a maximum diameter of 900 mm, and thanks to its 42 HP S6 of disk motor and to the 600 mm of the Z axis track, it offers a wide range of possibilities of working in architecture.
    2 Versatile and powerful
    Thanks to its 5 axis, the machine can quickly make straight, oblique or curved cuts, polish profiles (including curved ones), make incisions and bas-relief (optional).
    3 Easy to use
    Thanks to the touch screen PC and the SASSO software, the machine is very easy to program, and can even generate cutting programs by itself, using the dxf files for kitchen tops and 2D. A 5-axis that anyone can use.
    ·5 Minutes to Input the Data
    ·15 Minutes to Cut the slab
    ·Fully Automatic Processing programmed at the machine or front office programming
    ·CUT More Slabs, With LESS MISTAKES
    Additional Abilities to perform:
    Shape and milling with 5 axis
    ·Mitered Drop-edge cuts
    ·Sink cutouts with Finger Bits
    ·Faucet Hole Core Drilling
    Advanced Feature 5 Axis Head
    FULL CNC Programmability
    Full Hot Galvanized Frame
  • Star Plus Bridge saw cutting machine for marble-granite
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    STAR, CHAMPION and TANGO bridge saws are designed and built for the processing of marble, granite, artificial quartz, ceramic and natural stones.

    Powered by a numerical control interfaced with CAD/CAM systems, they are divided in:

    4 interpolated axis bridge saws (STAR) suitable for linear cutting and profiling;

    5 interpolated axis bridge saws (STAR, CHAMPION and TANGO), ideal for complex works like linear, curved and inclined cutting, drilling, profiling, engravings and bas-reliefs.

    Whether for the production of unique pieces or for serial production STAR, CHAMPION and TANGO bridge saws are mainly used for slab cutting.

    CHAMPION CNC machines may be customized according to the Customer’s needs about production and space available into his factory.

    Easy to manage

    Automatic Cutting and displacement of the pieces

    “Cut & Move” suction cup manipulator

    (Prussiani Engineering European Patent EP 1651409)

    Machine stability and perfect cutting quality bridge movement by two motors, one on the right and one on the left

    (GANTRY system)

    Machine easy to use intuitive CAD/CAM software

    Greater grip and non-deformability of work Tables top of the working table made of a special Prussiani rubber

    Easy and lowered maintenance planning controlled and guided by CNC

    No risk of oil stains on the marble slabs lubrication with EP1 density grease

    Attention to people safety machines compliant with the most recent safety standards
  • Qicheng HQC450/600/700-4D Laser Bridge Cutting Machine(Guide Post)
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $11000-18000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Qicheng HQC400/600/700-4D Laser Bridge Cutting Machine(Guide Post)
    Features:
    1.Special structure for the guide pulley and side beam makes its cutting high accuracy, high stability, high efficiency
    2. The machine is controlled by a microcomputer, its worktable can be 90 /360 rotating.
    3. PLC terminal controlling system for convenience of setting parameters through LCD touch screen.Each slab is cut automatically individually throughout the process, with blade input speed flexibly adjusted by variable frequency adjustable speed system according to slab characteristics;
    4. An infrared ray cutter aligner is installed;
    5. Double hydro-cylinder: blade elevation is more stable.
    It's suitable for processing the marble&granite with high value.
  • CNC 4 Axis Marble Granite Quartz Cutting, Engraving Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $30000-40000

    Warranty: 12 Months

    Usage: Granite, Marble, Quartzite

    Machinery Function Features:

    This is a new launched 4 axis marble bridge cutting saw has the c axis that can rotate 0° or 45° to automatically cut stone materials. Besides, it can also be added with a camera and infrared head to increase the positioning accuracy and precision. It gains great popularity in various stone processing industries.
    1. The 4 axis bridge saw blade can be tilted by 45°to cut standard-size boards and realize four-sided chamfering, plane grooving, basin hole digging, etc.
    2. The bridge saw worktable can overturn 85° to facilitate loading and unloading of stone materials.
    3. The infrared ray head can locate the cutting position to make the cutting be faster and more accurate.
    4. Automatic suction cup can move the board and avoid saw notch.
  • 4 Axis CNC Integrated Bridge Cutter Edge Cutting Machine DF-400
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $10500-11000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone

    Machinery Function Features:

    1. The machine adopts microcomputer control and, a touch operation interface, with wireless remote control, the operation is more flexible and free.
    2. The main control components are all internationally famous brand components, the horizontal cutting adopts step-less frequency conversion speed regulation, and the beam and vertical slicing mechanism adopts a linear guide rail and high-precision magnetic ruler for counting, which ensures the smooth and stable operation of the machine.
    3. The fuselage is integrated with the base of the worktable, which has a small footprint (less than 15 square meters), easy installation, convenient transportation, etc., which ensures the stability of the machine.
    4. This machine is especially suitable for home improvement factories to cut slate, artificial stone, marble, granite, and other home improvement building materials.
  • Denver SKEMA PLUS Monoblock Bridge Saw 4 axes Cutting machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Skema plus is a modern monobloc bridge saw with tilting head and hot zinc coated frame for an exceptionally long lasting sturdiness and accuracy. It features 4 interpolated axes travelling on steel guideways with revolving balls and steel bands with revolving rollers protected by bellows and lubricated by a centralized system. The 0-90 tilting head with adjustable 45 reference stop along with the 0-180 rotation ensure a highly productive and versatile machine with the highest degree of comfort for the operator.
  • 4 Axis CCD Bridge Cutting Saw Machine For Marble Granite Quartz Cut
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $20000-25000

    Warranty: 12 Months

    Usage: Granite, Marble

    Machinery Function Features:

    Blue Elephant 4 axis bridge cutting saw is equipped with infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it is equipped with an air cooling spindle to better engrave stone patterns. So it is also known as 4+1 bridge saw machine for stone. And the Blue Elephant customized CNC control system will realize high-quality and precise cutting.

    1. The bridge saw head can be tilted 0° or 45° for stone chamfering and cutting.
    2. The bridge saw table is tilted at 85° to facilitate loading and unloading.
    3. The main core components adopt international first-line brands such as Schneider, which is more stable.
    4. One-piece structure guarantees small footprint and easy installation and movement.
    5. Equipped with a top camera, it can automatically typeset and position stone slabes.
    6. The extra water cooling spindle can easily realize stone engraving with fast speed and high precision.
  • 5 Axis CNC Stone Bridge Saw For Marble Granite Quartz Cutting Carving
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $25000-30000

    Warranty: 12 Months

    Usage: Granite, Marble, Quartzite

    Machinery Function Features:

    This is a 2023 newly designed 5 axis CNC bridge saw for stone cutting. It is added with a camera to automatically position plates. And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. So it is widely used in slate application industry, prefabricated building industry, home decoration industry, etc. Its maximum cutting length is 2800mm, maximum cutting widths is 1200mm, and maximum cutting thicknesses is 100mm. The worktable can tilt up to 80°and the spindle can rotate to 90° or 360°. It is the ideal machine for large and industrial stone professing factory.

    1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
    2. It is equipped with a high-precision on-board camera, which brings higher-definition images and can provide high-precision stone processing. Moreover, it can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.
    3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.
    4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting, 45 miter cutting, drilling, external edge polishing, etc.
    5. The robotic system has a lift capacity of 75 kgs for stone slab moving.
    6. The 5-axis cutting head can miter and interpolate in any direction.
  • Marble Granite Quartz Cutting Polishing 5Axis Bridge Cutting Saw
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $30000-40000

    Warranty: 12 Months

    Usage: Granite, Marble, Quartzite

    Machinery Function Features:

    This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields. It is the ideal machine for cutting stone slabs with different shapes and sizes.

    1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation. 2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
    3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
    4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
    5. It is capable of cutting lengths of up to 2800mm, widths of 1200mm and thicknesses of 100mm. 6. The table automatically tilts up to 80 degrees. And the spindle is automatically rotated 90° or 360°by hydraulic pressure.
  • 5 Axis CNC Bridge Saw Machine Quartz Slab Production Line For Granite
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $60000-80000

    Warranty: 12 Months

    Usage: Granite, Marble, Quartzite

    Machinery Function Features:

    This quartz stone cutting production line is a high-end stone processing center newly developed and manufactured by Blue Elephant. The 5 axis bridge saw quartz stone cutting line is consisted of three parts: a loading machine, a 5 axis bridge saw machine and an an unloading machine. This quartz stone production line is specifically designed to solve various special-shaped processing of stone materials. It is compatible with functions of stone cutting, profiling, special-shaped cutting, edge grinding, polishing and so on. It is often used in stone processing for waterscapes, gardens, and high-end villas.

    1. Automatic stone loading
    Place the large stone slabs on the fully automatic loading machine. Thus it will transport the stone slabs to the 5-axis bridge cutting machine, saving loading time and labor, and improves work efficiency.
    2. 5 axis bridge saw machine
    The 5 axis bridge saw machine can take pictures and position through the visual function. It can also cut according to the pre-arranged engineering documents, making it more intelligent and easier to operate.
    3. High automation
    The production line control system automatically sets tools, moves stone slabs, and completes stone cutting.
    4. Automatic stone unloading
    The automatic unloading machine can be assigned to designated wire racks or palletizing racks according to the process, which greatly saves unloading time and reduces manual errors.
  • Fixer L-3818 CNC Bridge Cutting Machine -6 Axis
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Sandstone, Travertine

    Machinery Function Features:

    ÖZELLİKLER FİXER L-3718 KÖPRÜ KESME MAKİNASI
    NET ÇALIŞMA ALANI 3700X1800X600 MM
    ŞASE TİPİ KARE PROFİL DEMİR ŞASE 15MM DOLU DEMİR
    SPİNDLE MOTOR HİTECO / ALDEMİR
    SPİNDLE MOTOR GÜCÜ 11 / 15 KW
    SPİNDLE DEVRİ 24000/18000
    HIZ KONTROL 2.2/5 KW.
    HAREKET MOTORLARI SERVO
    X/Y/C/B EKSENİ MEKANİK LİNEER RAY, 35MM
    Z EKSENİ MEKANİK AKSAM LİNEER RAY, VİDALİ MİL ÇAP:40
    CNC KONTROL SİSTEMİ SİNTEC / ALFACAM / KOLAY KESİM KUTUP HANE
    TABLA TİPİ DAMPER KALKAR TABLA
    PROGRAM HASSASİYETİ 0,01 MM
    SOĞUTMA SİSTEMİ OTOMATİK SU SOĞUTMA
    PANO PROFESYONEL ENDÜSTRİYEL TİP PANO
    TAKIM TUTMA TİPİ ER25/ER20/ER32
    ÇALIŞMA KOD SİSTEMİ STANDART ISO G KODU
    EMNİYET SİSTEMİ ELEKTRONİK SENSÖR
    ELEKTRİK KESİNTİSİNDE KALDIĞI YERDEN DEVAM EDER
    ELEKTRİK DONANIMI CE NORMLARINDA
    ARTICI EKSEN TORNA
  • 5 Axis CNC 3D Granite Bridge Saw Machine For Marble Quartz Granite
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $60000-80000

    Warranty: 12 Months

    Usage: Granite, Marble, Slate, Quartzite

    Machinery Function Features:

    This fully automatic 5 axis granite CNC bridge saw machine cutting line integrates cutting, milling, drilling, polishing into one. It can realize granite slab cutting, quartz section cutting, marble block cutting, etc. In addition, the granite production line also has advanced functions, including photo positioning and typesetting, automatic measurement, automatic loading and unloading, etc. It is an ideal choice for tombstone manufacturing, cabinet stone countertops, bathtubs, stone dressing tables, ceramic tiles and other stone machining industries.

    1. Complete intelligent stone processing line: automatic loading, automatic typesetting, automatic knife setting, automatic stone cutting, and automatic unloading.
    2. This 5 axis CNC granite bridge saw machine cutting line can realize X-Y-Z-A-C 5-axis linkage, which can rotate 0°-365° and tilt 90° for cutting in any direction and at any angle, which has wider utilization.
    3. Equipped with granite saw blade, the 5 axis CNC bridge saw is highly practical and can finish granite stone cutting, chamfering, polishing, grooving, drilling, arc grinding, etc.
    4. The granite slab and block cutting line can cut marble, granite, jade, bluestone, black stone and other artificial and natural stones, as well as ceramics. So it has a wide application in hotels, construction industry, construction sites, energy and minerals, advertising industries, garden design, etc.
  • Scandinvent Sx5 - 5-Axis CNC Saw Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Interpolated 5-axis fully automatic CNC stone saw
    The SX5 is an interpolated, 5-axis, powerful (15-21 HP spindle) fully automated stone CNC saw.
    The SX5 follows ScandInvent’s tradition of brilliant innovation for simple operation. The SX5 ensures high production and efficient stone fabrication.
    The SX5 is an interpolated, 5-axis, powerful (15-21 HP spindle) fully automated stone CNC saw.
    The SX5 follows Scandinvent’s tradition of brilliant innovation for simple operation. The SX5 ensures high production and efficient stone fabrication.
    With a unique 3-sides open gantry and hydraulic table tilt, the SX5 makes it easy to load your granite, marble and engineered stone slabs. Like all of Scandinvent’s stone CNC machines, the SX5 comes with ScandSOFT™, the stone fabrication industry’s most innovative software. The interpolated axes allow the SX5 to cut in any direction, with all axes working together. With a laser attached to the blade cover, you’re able to align your slab and direct cuts when using the manual cut feature.
    With an intelligent speed regulator, the SX5 can be left to work. No operator is required to monitor the machine during single or multiple cuts, the full shape you have programmed will be cut without the need for adjustments.
    Or, if you like, you can switch the saw to manual mode for simple sawing operations. With the SX5, it’s up to you.
    Benefits To Be Mentioned
    • Easy to install and operate
    • Compact size
    • ScandSOFT software included
    • Hydraulic tilt-table and 3 -sides open gantry
    • Interpolated, automatic 5-axis
    • One program = complete cut outs
    • Preview your cut outs with ScandSOFT
    • Intelligent Speed Regulation
    • Laser alignment
    • Continuous 360 saw spindle rotation
  • 5 Axis CNC Marble Stone Bridge Saw Machine Assembly Line For Quartz
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $60000-80000

    Warranty: 12 Months

    Usage: Granite, Marble, Slate, Quartzite

    Machinery Function Features:

    This 5 axis CNC marble stone bridge saw machine assembly line integrates multiple functions into one, such as high-definition scanning, typesetting, and automatic cutting. It is also known as the 5 axis bridge saw CNC quartz stone cutting line or 5 axis CNC quartz bridge saw production line. This marble stone production line is very popular in the stone processing industry like garden architecture, house construction, stone sculpture, furniture industry, etc.
    1. Automatic loading platform It continuously transports stone slabs, saving loading time and labor.
    2. Camera The camera of the 5 axis marble stone bridge saw machine can make photos to locate the specific slab position, and generate a variety of reasonable layout plans.
    3. Automatic cutting The marble five-axis bridge cutting saw generates codes with one click and automatically cuts the marble slabs, which is simple and convenient.
    4. Automatic unloading platform The unloading platform can automatically classify stone slabs of different shapes and sizes to improve working efficiency.
  • High Speed Laser Bridge Cutting Machine For Cutting Granite & Marble
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $18500-19500

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable. 2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
    3.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
    4.Imported and domestic premium brand electric components.Germany Siemens inverter,feeding more stable;electrical components are used imported or domestic first-line brands.
    5.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
    6.Using permanent magnet synchronous motors (servo motors) for left and right walking and front and rear slicing. Compared with the current ordinary three-phase asynchronous motor,the speed increased 2 times for the retraction of front & rear splitting and the left & right walking,it makes the cutting much more efficiency.
    7.Single-Beam lifting machine(Optional).
    8.Steel rigid stand(Optional).
  • 4+1 CNC Bridge Saw 4 Aixs Marble Stone Bridge Saw Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $14000-20000

    Warranty: 12 Months

    Usage: Granite, Marble, Slate, Quartzite

    Machinery Function Features:

    This the latest economical and lightweight 4+1 CNC bridge saw launched by Blue Elephant. This 4 axis 4+1 stone CNC bridge cutting machine is equipped with an additional 5.5kw water-cooled spindle, which can work alternately with the saw blade, greatly improving processing efficiency. But unlike the heavy-duty 4 axis 4+1 CNC bridge saw machine, it cannot be added with a camera or material moving device.
    1. The economical 4 axis 4+1 CNC bridge saw can realize cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45° chamfering, under-counter basin and in-counter basin cutting, etc. However, edge grinding and polishing are not supported.
    2. The diameter of the 4+1 stone CNC bridge saw blade is 350mm and the 4+1 stone CNC bridge saw spindle speed is 24000rpm/min. So it can realize the maximum cutting thickness of 80mm. Moreover, the spindle and saw blade can work alternately without affecting each other.
    3. Use Blue Elephant customized control system and imported parts to ensure high-precision processing and smooth operation of the 4-axis 4+1 marble CNC bridge cutting saw.
    4. High-power saw blade motor, size and voltage of the economical 4+1 quartz bridge saw machine can be customized and upgraded.
  • CNC 5 Axis Stone Cutting And Milling Machine Bridge Saw For Marble
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $35500-37500

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    1)5 axis linkage control with CNC control system.
    2)Easy to use interface with 17" color touch-screen. 3)The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import.
    4)The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability. 5)The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive. 6).Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 7).The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive. 8).A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision.
    9)Working platform can tilt 85 degrees, easy for slabs loading.
    10)Milling cutter function(standard).
    11)Suction cup function(optional).
    12)Thickness measurement function(optional).
  • 5 Axis CNC Cutter Bridge Saw Cutting Machine For Granite Marble
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $45000-55000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone

    Machinery Function Features:

    JOBORN CNC450-5 five-axis CNC bridge cutting machine, adopts industrial computer and is equipped with Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc. can be performed.The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter. In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer. The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate.
  • Joborn CNC AI Vision Intellegent 5 Axis Bridge Saw Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $45500-52500

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Main Feature:
    1.5 Axis linkage control with CNC control system;
    2.Easy to use interface with 17" color touch-screen;
    3.The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import;
    4.The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability;
    5.The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive;
    6.Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive;
    7.The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive;
    8.A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision;
    9.Working platform can tilt 85 degrees, easy for slabs loading;
    10.Photo taking & tool setting function;
    11.Milling cutter function;
    12.Suction cup function(optional);
    13.Thickness measurement function(optional);
  • ENZO 1400S FULL CNC BRIDGE MILLING MACHINE
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Sandstone

    Machinery Function Features:

    Bridge milling machine up to 7 interpolated axes managed by CNC, Sturdy structure, cast iron based side supports and working head to ease vibration while working.

    This machine executes several operations such as orthogonal, circular, angled cuts, shaping, edge trimming and other milling operations through an advanced software system.

    Advanced CNC system and brushless motors to manage all machine movements (axis X-Y-Z-C-A).
    Hydraulic electro spindle ISO 50; water cooling system and tool change.
    Strengthened basement frames equipped with linear guides and bearings, endless screw and bearing unit, PVC protective caps for transmission units.

    This model has no working operation limits and allows high performance manufacturing processes.
  • High Efficiency CNC Multi Blade Stone Cutter
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $59000-70000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Basalt, Quartzite

    Machinery Function Features:

    1. This machine is a combination of Hydraulic multi blade stone cutter’s high productivity and bridge multi-blades stone cutter’s precision. A double trolley can put two pieces of a stone block at the same time, PLC automatic control, with higher production and quality.
    2. Sharing adopts magnetic grid index, precision can reach micron grade.
    3. Elevating’s rotary encoder uses a synchronous belt transmission way with a stable signal.
    4. Elevator guide cylinder adopts the oil-less self-lubrication bearing with min wearing.
    5.The shape of the spindle box is the rod design, Increase the strength of the tank, increase the cooling function, extend the life of the bearing.
  • WKQ-1200 CNC Bridge Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $20000-26000

    Warranty: 12 Months

    Usage: Granite, Marble, Artificial Stone, Basalt

    Machinery Function Features:

    This machine is with single-cylinder sliding plate structure,it can adjust the wear space,lift up and down speed fast and stable.It’s suitable for cutting thick slabs, and paving stones.
  • BTC-2200/2500/2800 CNC Bridge Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $32000-38000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Onyx, Sandstone, Travertine

    Machinery Function Features:

    Fujian Xianda BTC-2200/2500/2800 ,This machine use inverter to control the left-right feeding, it can adjust the speed according to different kind stones. It uses hydraulic lifting system ,forward-backward slicing use high-precision screw nut driving ,automatic slicing ,main parts daopt imported materials;  The block can be placed in the ground directly to save worktable and its maintenance costs ;Thus the whole machine is futured as high cutting efficiency , high slicing precison ,flatness of plate after cutting ,high stability ,easy-operating to suit specially cutting granite and marble block with high value.
  • Pressure-Retaining Valve For Bridge Cutting Machines
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $30-50

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    The pressure-retaining valve is a hydraulic device used in conjunction with the solenoid valve, which can keep the oil pressure stable.
  • 5 Axis Processing CNC Bridge Saw Stone Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $15000-20000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.
    CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling and more.
    The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.
  • 45 Degree Stone Cutting Saws For Sale DFQ-S350A/B
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $12000-18000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone

    Machinery Function Features:

    45 Degree Stone Cutting Saws are suitable for cutting slate, marble, artificial stone, granite, ceramic tiles, cement products, and other building materials. They are ideal equipment for small and medium-sized factories and processing stores.
    1 Small footprint: The machine is 5 meters long, 3 meters wide, and has an overall height of 2.7 meters. It occupies a small area of only 15 square meters.
    2. Simple operation: touch human-machine interface, intuitive operation.
    3. High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
    4. High precision: All kinematic pairs adopt high-precision linear guide rails and are matched with high-precision helical gear transmission to achieve high precision.
    5. Energy saving and consumption reduction: The machine can be equipped with a permanent magnet synchronous main motor, which saves 30% of electricity than a conventional three-phase asynchronous motor.
  • Joborn CNC AI Vision Intellegent 5 Axis Bridge Saw Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $45500-52500

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    Main Feature:
    1.5 Axis linkage control with CNC control system;
    2.Easy to use interface with 17" color touch-screen;
    3.The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import;
    4.The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability;
    5.The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive;
    6.Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive;
    7.The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive;
    8.A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision;
    9.Working platform can tilt 85 degrees, easy for slabs loading;
    10.Photo taking & tool setting function;
    11.Milling cutter function;
    12.Suction cup function(optional);
    13.Thickness measurement function(optional);
    NEW
  • 5 Axis CNC Cutter Bridge Saw Cutting Machine For Granite Marble
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $45000-55000

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone

    Machinery Function Features:

    JOBORN CNC450-5 five-axis CNC bridge cutting machine, adopts industrial computer and is equipped with Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc. can be performed.The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter. In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer. The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate.
    NEW
  • LEXTA 36 FULL CNC Bridge Cutting Machine
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    Warranty: 12 Months

    Usage: Granite, Marble

    NEW
  • CNC 5 Axis Stone Cutting And Milling Machine Bridge Saw For Marble
    favorites
    Add To Compare

    Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

    $35500-37500

    Warranty: 12 Months

    Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

    Machinery Function Features:

    1)5 axis linkage control with CNC control system.
    2)Easy to use interface with 17" color touch-screen. 3)The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import.
    4)The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability. 5)The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive. 6).Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 7).The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive. 8).A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision.
    9)Working platform can tilt 85 degrees, easy for slabs loading.
    10)Milling cutter function(standard).
    11)Suction cup function(optional).
    12)Thickness measurement function(optional).
    NEW

Have a Question? Ask our expert

FAQ icon
Ask now
Clear All
Compare (0/4)
StoneContact
loading
Tips

Tell Suppliers what you want to buy

Tips

Submitted successfully, thank you!
