5 Axis 4 Axis CNC Stone Marble Granite Tilting Head Cutting Machine
FOB Price:$15000-24000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Quartzite, Travertine
After-Sale
Lead Time:
15days
Warranty:24 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
You may also like
Machinery Function Features

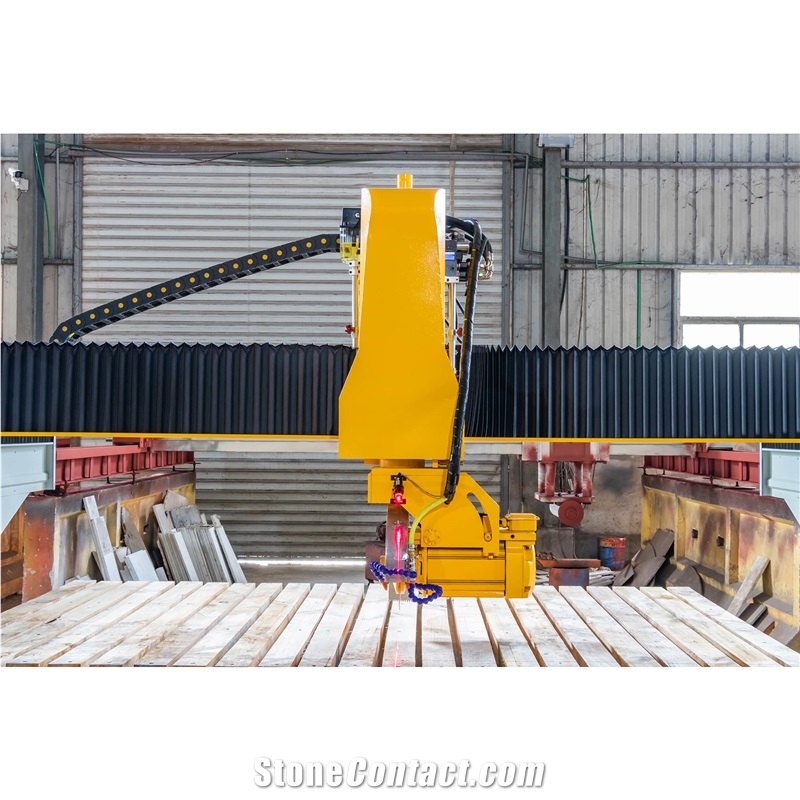

1.The machine adopts a bridge-type integrated structure, the machine bed is strong and stable, and has good stability.
2.The 4-axis adopts high-precision linear square rail, which has high precision, wear resistance and long service life

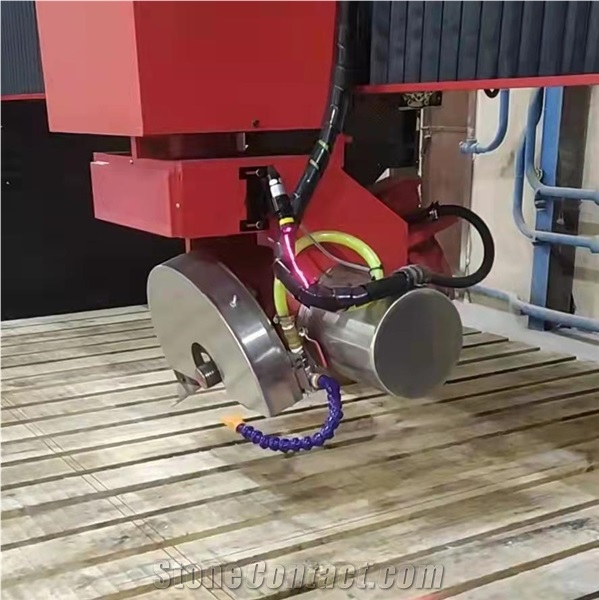

3.The machine head can be rotated in parallel of 0-90 degrees any angle's chemfer cutting, and can be cut horizontally, vertically, circular,and diamond-shaped.

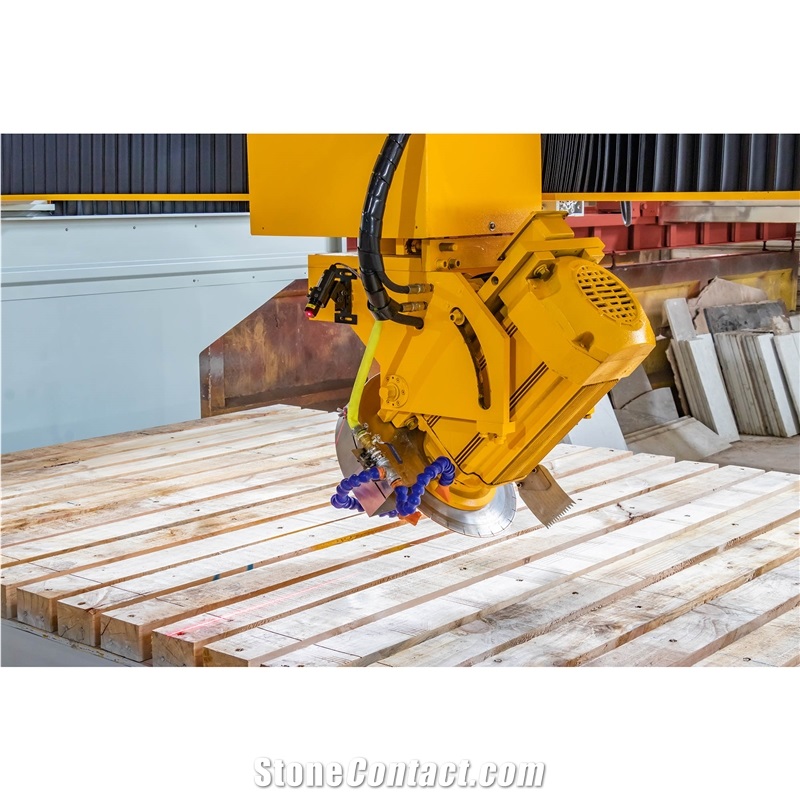

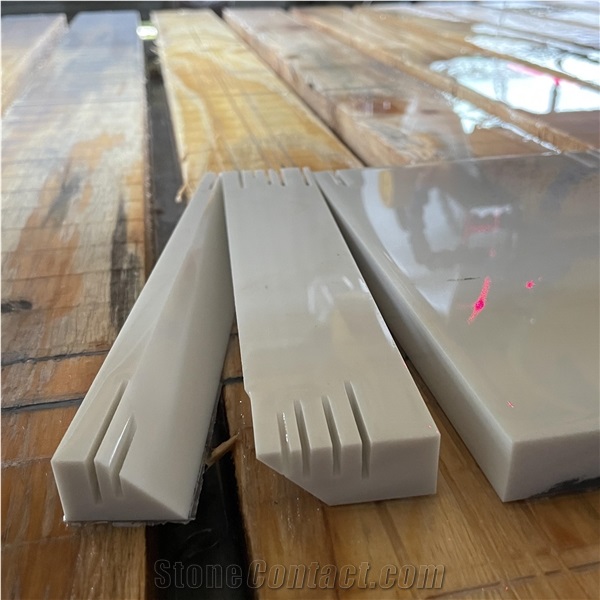

4.The machine head can automatically perform 45-degree chamfer cutting, with high precision and high efficiency.

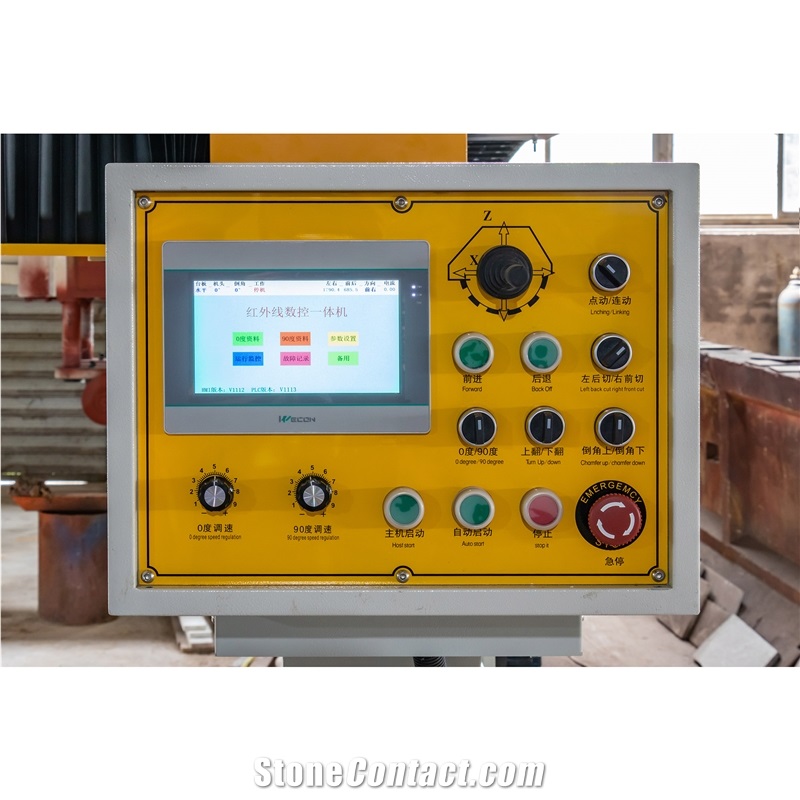

5.The system adopts independent research and development PLC programming system, touch screen operation interface, convenient operation and strong humanity.
6.The 4 axis adopts high-power servo motor, which has fast walking speed and high precision.
7.One-piece structure, no need to disassemble, easy to install and easy to move.

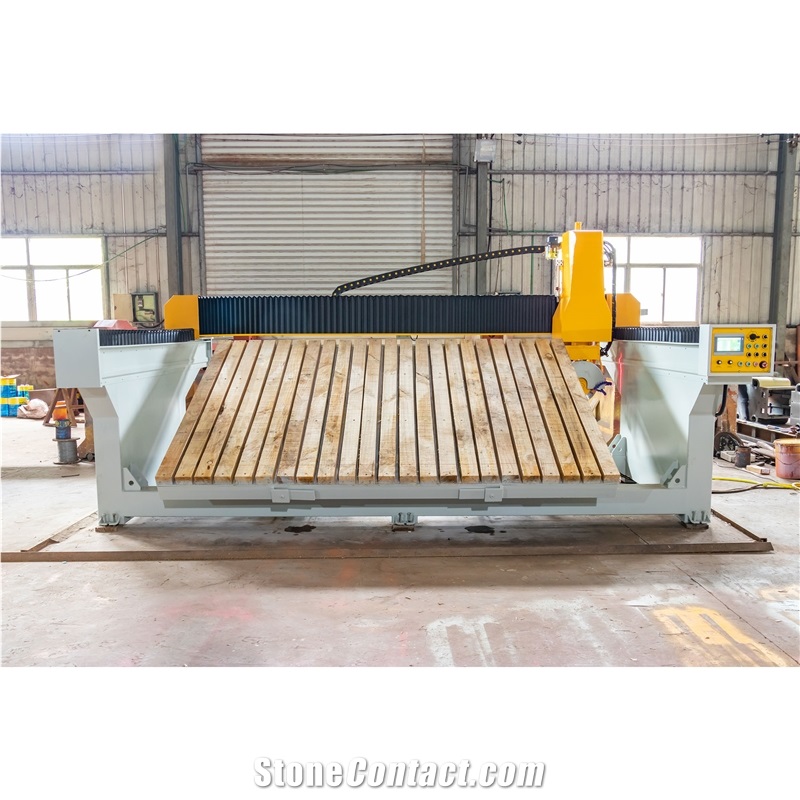

8.The platform can be tilted from 0 to 85 degrees, which is convenient for placing large stones.
2.The 4-axis adopts high-precision linear square rail, which has high precision, wear resistance and long service life
3.The machine head can be rotated in parallel of 0-90 degrees any angle's chemfer cutting, and can be cut horizontally, vertically, circular,and diamond-shaped.
4.The machine head can automatically perform 45-degree chamfer cutting, with high precision and high efficiency.
5.The system adopts independent research and development PLC programming system, touch screen operation interface, convenient operation and strong humanity.
6.The 4 axis adopts high-power servo motor, which has fast walking speed and high precision.
7.One-piece structure, no need to disassemble, easy to install and easy to move.
8.The platform can be tilted from 0 to 85 degrees, which is convenient for placing large stones.
Technical Data
Parameters |
Unit |
HLYT-4 Axis |
Max. working width |
4 |
2000 |
Machine overall length |
4 |
5100 |
Water requirement |
30 |
4 |
Max. working length |
4 |
3200 |
Machine overall width |
4 |
2800 |
Machine overall height |
4 |
2600 |
Max. diameter of the blade |
4 |
400 |
Max. working thickness |
4 |
80 |
Dimensions of the work table (length x width) |
4 |
3200*2000 |
Total Power required |
7 |
16.5 |
Approx. Weight |
26 |
3500 |
Standard voltage |
Volt |
380v |
