Discovery 4-2000/2500/3000 CNC Diamond Wire Shaping Machine

Name: Discovery 4-2000/2500/3000 CNC Diamond Wire Shaping Machine
Brand: FUJIAN XIANDA MACHINERY CO., LTD.
SKU: 5930
Price: 32000 USD
Availability: InStock

FOB Price:$32000-38000

Type: Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine

Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: within 15 workdays

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

FUJIAN XIANDA MACHINERY CO., LTD.

XIANDA MACHINERY

China

Eatablished :Dec 20,1984

Main Product:

Cnc Wire Saw Machine, Carving Machine, Profiling Machine, Polishing Machine, Bridge Saw, Column Processing Machine|

Contact supplier

Start Order

You may also like

DISCOVERY 4-2000/2500/3000 CNC Diamond Wire Shaping Machine

Cnc diamond wire saw machine, CNC Diamond Wire Shaping Machine

SHXJ1500(I) Five-Axis CNC Diamond Wire Profiling Machine

Stone CNC Wire Saw Machine

CNC Wire Saw Circular Slab Stone Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Customer Case

Machinery Function Features

Discovery 4 is our Ultimate version in CNC Diamond Wire Saw Machine .Lifting structure adopt 16 surface slideway, 28pcs rolling wheels structure. Trolley using double nut structure ,the track using steel frame-type reinforcement structure; Cantilever gearbox use S-type channel waterproof structure ,Main motor have variable frequency speed control function,with more advantages during processing , like cutting more precision ,precision more durable,cutting more stable,more efficiency,etc.Meanwhile this machine adopts CNC control , four-spindle linkage, which can process the circular stone slab, column , numeral, letter, Chinese characters and other shapes for the stone.

Technical Data

Parameters	Unit	Discovery 4-2000	Discovery 4-2500	Discovery 4-3000
Max processing size	mm	200030001500	250030001500	300030001500
Water consumption	m³/h	4	4	4
Wire speed	m/s	0~40	0~40	0~40
Overall dimensions (without perimeter fencing) lenght	mm	6800	7800	8800
Overall height	mm	3950	3950	3950
Outline dimension(with rotary worktable)	mm	No option	780063004250	880068004250
Rotary trolley size(with rotary worktable)	mm	No option	1400*2000	1600*2000
Overall widht	mm	6300	6300	6300
Max processing size(with rotary worktable)	mm	No option	250025001500	300030001500
Trolley size	mm	1400*2500	1400*2500	1400*2500
Gross weight	kg	6000	6250	6500
Main motor	kw	11	11	11

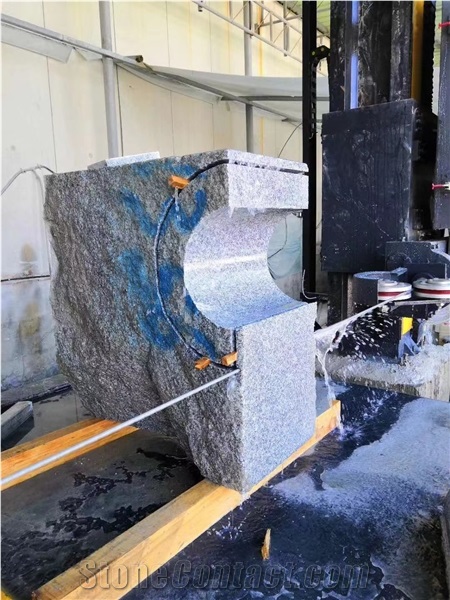

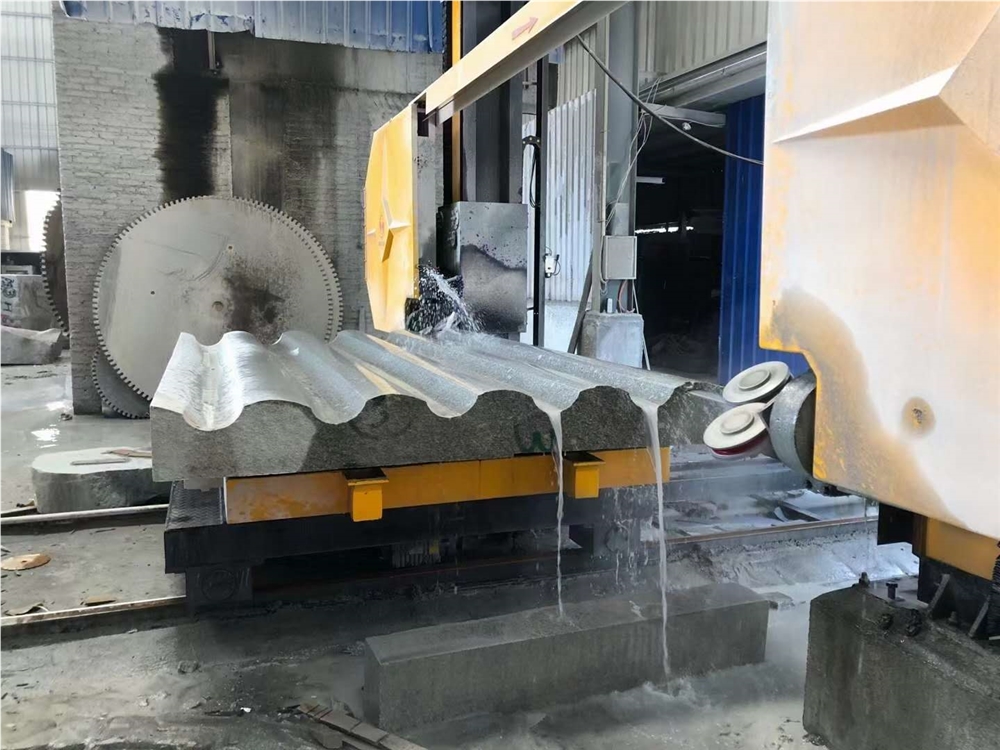

Work Example

Fujian Xianda DISCOVERY 4-2000/2500/3000,Discovery 4 is our Ultimate version in CNC Diamond Wire Saw Machine .Lifting structure adopt 16 surface slideway, 28pcs rolling wheels structure. Trolley using double nut structure ,the track using steel frame-type reinforcement structure; Cantilever gearbox use S-type channel waterproof structure ,Main motor have variable frequency speed control function,with more advantages during processing , like cutting more precision ,precision more durable,cutting more stable,more efficiency,etc.Meanwhile this machine adopts CNC control , four-spindle linkage, which can process the circular stone slab, column , numeral, letter, Chinese characters and other shapes for the stone.
