Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
Machinery Function Features:
The machine GR 80 TAR is the perfect image of strength, power and control.
STRENGTH: Structure especially designed to resist high speed cutting. It has two large connecting rods and the most suitable forgings.
POWER: Its 132 Kw engine cuts all kind of material, soft or hard.
CONTROL: Automated system that controls the cutting conditions, regulating the sinking speed within the consumption of the main engine.
Besides its huge capacity, the sinking speed makes the gang saw GR 80 TAR the perfect choice for a clean and safe work.
Its cooling system by water combined with the sinking speed reduce the consumption of diamond and the risk of breaking precious material.
GR 80 TAR, designed with high technology can cut marble and granite blocks at the same time, giving the marble factories an excellent product to cover all the different stages of Stone processing.
Garcia Ramos
Spain
Garcia Ramos
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Marble Gang Saw Machine Marble gang saw is a gang saw with parallel-transport diamond blades, block jacking-up mocing, and with a closed structure frame. It is suitable for cutting marble slabs, and suitable for mass production.
MKS
Turkey
MKS Marble Cutting and Polishing Machines Co.Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:$135000-150000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The diamond frame data series is the result of the latest design application in the research and development of marble cutting machinery technology. HLKJ80/100 is a machine that USES long strokes to cut raw marble. Longer sawing frame strokes in the process provide unprecedented cutting output. And ensure the stability of cutting.
From the beginning of development to the closing process of manufacturing, through careful study of mechanical properties and habits and cooperation with the world's best diamond tool manufacturers, this machine can not only guarantee the world's top performance in each different stone, but also have the perfect reliability of the mechanical structure and a long service life. -
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
"ORIGINAL" NEW & SECOND-HAND/RECONDITIONED BM MACHINES:
MARBLE SINGLE BLADE: - BM SUPER/420 - BM SUPER/800
MARBLE MULTI BLADES:
OPEN FRAME STRUCTURE DIAMOND BM 10-15 STROKE 500 - DIAMOND BM 30-40-50 STROKE 600
CLOSED FRAME STRUCTURE - DIAMOND BM 80-100 STROKE 800- DIAMOND BM 80-100 STROKE 1000
MARBLE STRIPS 100 BLADES: - MAXFIL/800
GRANITE SINGLE WIRE: - MONOFIL BM 2300 - MONOFIL BM 1000
GRANITE MULTI WIRE 2 COLUMNS: - KODIAK EVOLUTION 5->15
GRANITE MULTI WIRE 4 COLUMNS: - KODIAK EVOLUTION 20 UP TO 84 WIRES
GRANITE MULTI BLADES: - GRIZZLY SUPER
BM S.r.l.
Italy
BM S.r.l.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:$120000-138000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

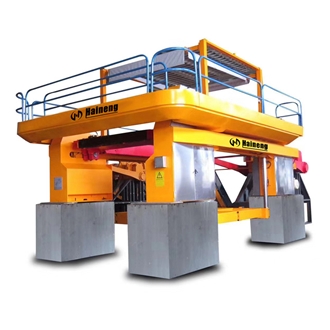

It is a frame saw with diamond blade translation, block jacking and closed structure. Used for cutting large marble board, suitable for mass produce.
New Haineng
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Maximum block dimensions (LxHxW): 3200x2000x2000 mm
Maximum no. of blades: 80~100 pcs
Maximum width of the blade pack: 2000 mm
Strokes per minute: 90 n/min
Length of stroke: 700 mm
Main motor power: 110Kw
Max. speed of slow down-feed: 620 mm/h
Rapid down-feed speed: 360 mm/min
Overall dimensions (WxLxH): 450x1330x550 cm
Water requirements: 800 L/min
Machine mass (approx): 50 Ton
Average level of equivalent sound pressure: 88 dbA
Tamkarsang
Iran
Tamkarsang
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Travertine
Machinery Function Features:
Teknik Özellikler Technical Data K-80 x 80
Kesme Lama Sayısı Max. Number Of Blades Adet / Pcs 80
Dakikadaki Strok Sayısı Stroke Per Minute 80
Lama Kursu Blade Stroke mm 800
Lama Ebatı Baldes Dinemsion mm 4200 x 180
Ana Motor Gücü Main Motor Power Kw / Hp 90 / 125
Seri Kaldırma İndirme Motor Gücü Engine Power Series Lifting Downloads Kw / Hp 7,5 / 11
Yavaş Kaldırma İndirme Motor Gücü Kw / Hp 4 / 6
Maksimum Blok Ebatları(En x Boy x Yükseklik) Maximum Block Size (Width x Depth x Height) mm 2000 x 3250 x 2000
Makine Ebatları(Boy x En x Yükseklik) Machine Dimensions (Length x Width x Height) mm 12000 x 4500 x 5150
Toplam Elektrik Gücü Kw / Hp 101,5 / 140
Toplam Makine Ağırlığı Total Machine Weight Kg 50,000
Karan
Turkey
Karan Makina Mad. San. Tic. Ltd. Sti.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:€35000-35000
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Basalt, Quartzite, Travertine
Machinery Function Features:
For sale, Remanufactured (2021) Gang-saw multi-blade with 40 blades (standard) to 60 blades for cutting blocks of marble, travertine or tufa.
Every piece of the frame: pillars, cross members, crossbars, pulleys, etc., was disassembled and cleaned to pure metal by sandblasting. Next, the pieces were taken to a machine-shop and rebuilt, one by one, putting in new bearings, bushings, screws, etc. Then they were painted with epoxy anti-rust primer and acrylic paints.
Both the main machine and the block transport trolley was deliberately left unpainted, which is also rebuilt and fully functional (wheels, motor, etc.). It is spotlessly clean without rotting, cement residues, marble mud, etc. and the buyer can either use it directly or cover it with cement according to his needs.
The base of the main electric motor (78KW) is newly manufactured.
The main electric motor (78KW) is in best condition.
The brake-system of the trolley is also made new. You may see it in the attached photos and videos.
All the above can be seen in the attached photos and videos, because there are no remains of marble mud, broken pieces from being cemented into its cemented-basements, and the whole machine is spotless.
The price of 35,000 Euros does not include the electric control panel. A new electric control panel can be made for an additional 3,000 Euro.
The price does not include the cost of unloading and loading. In case that we undertake the responsibility of dismantling and loading into a container, the total cost is 2500 Euro.
If you do it yourself, then, you will pay only the crane which will be a very low amount.
35,000 Euros includes everything that can be seen in both the photos and the description.
The crate is located at our factory in the village of Katuntsi in Bulgaria, 10 kilometers from Greek-Bulgarian boarders..
Any question will be replied, immediately.
Best regards
Mr Dimitrios Papaevagelou
Dr Geologist Engineer
Headquarters: Serres, Greece
Factory: Katuntsi, Bulgaria
arpes - vranas
Greece
ORAMA LITHOS
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:$200000-
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Description
SAHAND-80 SAHAND-145 DUAL DIM TECHNICAL DATA
80 145 /PCS Maximum number of blade
(20MM STONE- 4MMBLADE) (20MM STONE- 4MMBLADE)
800 800 MM Blade run
4400 4400 MM Blade length
95 75 N/MIN Storks per minute
3500-10 3600-11 MM-TON Fly wheel weight & diametric
110 132 KW Mine motor power ( +power saving system)
11/2.2 15/3 KW Rapid raising/descending motor
3200-2100-2100 3200-3800-2100 MM Maximum block dimension (L-W-H)
FULL PLC+TOCH MONITOR FULL PLC+TOCH MONITOR - Control system programmable
63 70 TON Machine weight
Amin
Iran
Amin
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
FOB Price:
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Maximum block length cm 320
Maximum block height cm 200
Number of strokes no 80
Machine stroke length cm 80
Blade length cm 4300
Blade tension kg 8.000
Main motor power kw 90
Cutting speed motor power kw 4
Water requirement l/min 500
Weight kgs 32.000 -
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The open frame gang saw can cut marble slabs of various thickness. The open frame gang saw is realized to install from 10 up to 50 diamond blades. The open structure means that the blade holder frame is moving up and down following the cut of the block.
The trolleys are entering only on laterally. The 10 and 15 models have a linear stroke of the blade of 500 mm.
The 30, 40 and 50 models have a linear stroke of the blade of 600 mm. The rectilinear movement is given on 4 articulated rectilinear guides attached to the open frame structure. These rectilinear articulated guides vastly reduce maintenance costs because they do not require replacement like the traditional slide ways which are subject to a continuous wearing. They are aligned with the fulcrum of the connecting rods. The thrust is along the same axis which means a perfectly balanced gang saw.
BM
Italy
BM Officine Meccaniche S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Granite, Marble, Basalt, Quartzite
Machinery Function Features:
GS 121 OPEN FRAME GANG SAW
This machine, that was designed for the quick sawing of marble irregular blocks, represents the synthesis of the best technical solutions extensively experienced by Alpe and the most advanced manufacturing technology used to day by Pedrini.
Pedrini
Italy
Pedrini S.p.a. ad Unico Socio
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The closed frame gang saw can cut marble slabs of various thickness. The closed frame gang saw is realized to install from 80 up to 100 diamond blades. The closed structure means that the blade holder frame is not moving up and down, the vertical movement of the block is given by n.4 worm screws connected to the block trolley. The rectilinear movement is given on 4 articulated rectilinear guides attached to the closed frame structure. These rectilinear articulated guides vastly reduce maintenance costs because they do not require replacement like the traditional slide ways which are subject to a continuous wearing. The best solution for higher speed , more accuracy and precision is one where the connecting rods move together with the blades horizontally along a single axis only. This means there is no dispersion of mechanical thrust in other directions. The block is stable when fixed on the upward.
BM
Italy
BM Officine Meccaniche S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Automatic Marble Blocks Closed Frame Gang Saw Machine -
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
Machinery Function Features:
The closed frame gang saw can cut marble slabs of various thickness. The closed frame gang saw is realized to install from 80 up to 100 diamond blades. The closed structure means that the blade holder frame is not moving up and down, the vertical movement of the block is given by n.4 worm screws connected to the block trolley.
The rectilinear movement is given on 4 articulated rectilinear guides attached to the closed frame structure. These rectilinear articulated guides vastly reduce maintenance costs because they do not require replacement like the traditional slide ways which are subject to a continuous wearing. The best solution for higher speed , more accuracy and precision is one where the connecting rods move together with the blades horizontally along a single axis only. This means there is no dispersion of mechanical thrust in other directions. The block is stable when fixed on the upward moving platform. The platform runs on 2 plane and 2 prismatic vertical slide ways. These plane and prismatic slide ways prevent any deviation or tilting away from the vertical axis. The trolleys are entering laterally and frontally. The 80 and 100 models have a linear stroke of the blade of 800 mm or 1000, the longer stroke guarantee a bigger production
BM
Italy
BM Officine Meccaniche S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
The closed frame gang saw MAXFIL 800 installs 100 diamond blades to cut the marble strips.
Against the traditional block cutters, MAXFIL system guarantees:
– four times the production with a quarter of the electrical consumption.
– more product recovery (m2) from a given block thanks to a narrower cutting width
MAXFIL: 4 mm against 9 mm of circular blade of the block cutters.
– reduced sawing cost (blade instead of disc).
– less material waste to dispose of.
– lower environmental noise pollution.
– possibility to cut flawed blocks that are usually waste or crushed.
– better environmental impact because of less waste of material.
– operator cost saving: the operator does not need to stay at the machine for all the 8 hours of work like the block cutter operation system, this because the MAXFIL works automatically, so the operator when the machine is working has the time to make some other activities.
– better working conditions of the operator, because the operator doesn’t stay all the time in a wet place, with a lot of pollution and noise.
BM
Italy
BM Officine Meccaniche S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
The SFERA gangsaws have a rectilinear motion for the rapid sawing of marble blocks. The model SFERA is available in the version with 80 and 100 blades. The blade rack is at a fixed height, moved by a double connecting rod, whilst the block carrying trolley is installed on a platform and rises towards the diamond blades.
SIMEC
Italy
Simec S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
BATTERY UNIT
The battery supports have been designed to allow easy maintenance and facilitate the replacement of the roller bearings without having to break the cement foundations.The flywheel weighs 8 tons and has a diameter of 3300 mm.
STRAIGHT ARTICULATED GUIDES
The blade holder is made of steel plates joined solidly together, each of which has a section of 800x60 mm, and slides on straight articulated guides that are practi-cally maintenance free.
THE CONNECTING RODS
Equal distribution of mechanical thurst over all machine components
Advantages of two connecting rods:
• All the energy and mechanical thrust towards the blade holder is spread on two connecting rods and two cranks instead of just one.
• The two connecting rods which are attached to the extremes of the blade holder help the articulated guides to ensure that it’s movement remains perfectly rectilinear without any deviation.
BIG CUTS IN ALL SAWING COSTS!
ELECTRICAL POWER
Lower electrical power consumption thanks to:
A - Direct motor flywheel transmission by V-belts
B - Hydraulic coupling to compensate for dead times and facilitate start-ups
C - 3.300 mm diameter - 8 ton flywheel
D - Electronic emergency brake, which together with the hydraulic coupling permits fast machine stop while protecting the motor (optional)
E - “SCR” power control system (optional)
MAINTENANCE
Major points of wear eliminated thanks to:
A - Articulated rectilinear guides
B - Stainless steel parts
C - Less stress on all moving parts thanks to the 800 mm stroke and the reduced number of cycles/minute.
DIAMOND BLADE YIELD
Blade yield increased thanks to:
A - The lengthening of the blade-holder stroke to 800 mm, which facilitates the removal of the mud produced during sawing
B - The new open-duct water sprikling system, ensuring more homogeneous water distribution
C - Fewer cycles with reduced inversion of the diamond tool
BM for Breton - Diamond-bladed saw for marble with block raising
Entirely made and assembled in Italy with european parts and first-rate international components.
Italy
Breton S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
$40-60
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
STONE GANGSAW TENSIONING SYSTEMS & TIE RODS
We are the worl leader for the manufacturing the #tierods for #marble and #granite and tensioning systems. The company is located in Istanbul, Turkey. Moreover it is the trading and engineering partner of Gangsaws' users for tie rods and tensioning systems such us Breton, Simec, Pedrini, BM, Gaspari, Karl Mayer, Toksel, Mks, BM Drogan etc...
Our type;
#turkishgangsaw
#italiangangsaw
#germanygangsaw
#spaingangsaw
#chinesegangsaw
Other #gangsaw
Bergibo
Turkey
Samet Sahin Bergibo Human Resourse
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
MAVECO Stone Machinery BV
Netherlands
MAVECO Stone Machinery BV
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Basalt, Sandstone, Travertine
Machinery Function Features:
The Tornado gang saw is the result of over 23 years of ZMK’s experience in the natural stone sector. The gang saw was designed for the quick sawing of marble blocks. The model Tornado is available in the versions with 80 and 100 blades. The blade frame is at a fixed height and moved by a double connecting rod, whilst the block carrying trolley is installed on a platform which rises towards the diamond blades.
The frame moves on a system of V type sliders that run along oil bath steel guides. Thanks to the use of special metals and mechanisms this is an extremely efficient, simple system with very low friction resistance that does not require complex dynamic or hydraulic mechanisms and requires very little maintenance.
The block lifer platform moves precisely up on 4 slides (2 flat and 2 prismatic) fixed to the columns and plated with a thick coat of chrome to guarantee a long working life. The lifting of the platform is guaranteed by four big screws of large diameter working perfectly synchronized. All slides are opportunely protected by rubber or stainless steel guards, as to avoid water infiltration and sawing residuals that could compromise the efficiency of the gang saw as time goes by.
The flywheel weight 9.500 Kg and made of a cast iron. The diameter of the flywheel is 3.500 mm which is one of the heaviest and largest flywheels in the market. It guarantees a constant cutting speed.
The system with two connecting rods provides clear and time tested advantages over a single connecting rod system. All the power and mechanical thrust transferred to the blade holder are shared between two connecting rods instead of just one.
ZMK’s gang saw is supplied with touch screen control panel. This system allows the complete supervision and programming of the cutting phases. In fact, this system enables to set various cutting speeds according to the different cutting phases (beginning, intermediate and final).
· 1 pcs transfer waggon and 2 pcs block waggon are available.
· The machine stops in case of lack water and water cuts.
· The power panel is placed over the ground to prevent it from getting affected by water.
· The plugs of block and transfer waggons are water resistant.
· The flywheel and connecting rods are surrounded by safety barriers.
· The machine is controlled by PLC and touch screen.
· The block waggon can be locked vertically and horizontally.
· The machine is able to be accessed by internet connection for determining the problems.
· 10 tons hydraulic tensioner and spacers are available.
· Slab break sensors are available.
Zimek
Turkey
Zimek Machine Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
GS131 is a gang saw designed for the quick sawing of marble blocks by means of diamond blades.
Stemming from the fusion of extensively tested technical solutions and PEDRINI cutting edge technology, GS131 allows for high cutting stroke and ensures straight cuts and maximum lowering speed.
The special “pendulum” system which allows the blades holder frame to move without any friction, makes this machine smooth and efficient.
The gang saw GS131 is mainly composed of:
. four-columns structure connected to each other;
. raising and lowering platform housing the block carrier trolley;
. closed blades holder frame;
. group with double connecting rod flywheel for the constant movement of the blades holder frame.
Mechanical components large dimension render GS131 a machine at the highest level in quality, sturdiness and reliability thus providing the user the maximum performances in time. The standard equipment of the machine
includes a block carrier trolley.
The four very large section columns are made in heavy normalized steel work.
Each column has been built and machined as a solid piece, that comprises the relevant guide for the block holder platform vertical slliding, to guarantee the perfect geometry of the entire machine.
The accurate machining operation performed on all the connecting surfaces allows for easy and correct assembly of the columns with the transversal and the longitudinal beams, to form the machine supporting structure.
The compactness of the structural welding and of the mechanical parts is ultrasound controlled.
All the parts have undergone structural checks following the FEM (Finite Element Method) and their precision ensures perfect machine geometry and easy and correct in loco assembly.
The structural components surfaces are protected with three coats applied after the sandblasting operation.
The raising and lowering movement of the block carrier trolley holder platform is performed through four large screws, moved upward by four rotating lead nuts equipped with drop-free devices and wear control.
The four gear motors containing the lead nuts are connected by a direct transmission, without any interposition of chains, driven by a gear motor
for top and low speeds.
The screws threads have been finished with a rolling operation that provided the pitch precision and an hardened smooth surface.
The block carrier trolley lifting platform slides on two “V”prismatic guides and on two flat guides; all the guides are covered by interchangeable stainless steel plates.
The correct vertical sliding movement is ensured by sliding blocks lined with low friction coefficient material and held in contact with the guides by a pre-loaded system that amortizes the cutting stress.
Pedrini
Italy
Pedrini S.p.a. ad Unico Socio
Contact Supplier
- 1
Have a Question? Ask our expert
Ask now
Hot Product
