Beam Chain Saw Machines

Electric diamond belt sawing machine, designed to make tunnel cuts, vertical and horizontal. The JET BELT 940 is composed of two columns with two telescopic extensions for the machine fixing, connected with an horizontal beam of 462 cm that bears the electric cutting unit. This is composed of the main motor and the cutting arm with the diamond belt installed. The column bases are motorized for an easy positioning of the whole structure. The cutting tool consists of a special plastic belt with sintered diamond segments. Only water is used during the cutting phase, both for lubrication and cooling, so that no dust is produced during the cutting phase. Another advantage of diamond belt cutting system respect to the traditional one, is that no grease or oil are used, so that the cut is very clean and free from pollution load.

SQB/P Sectioning Sawing Machine

The chain mode sectioning sawing machine SQB/P is a hydraulic machine consisting of a portal that runs on tracks with a horizontal arm capable of vertical cuts for the squaring off and blocking of hard and/or abrasive stones. The cuts are programmable by means of a computerised system loaded with positioning and cutting parameters.

Once the cutting sequence has been programmed, the machine can operate in an automatic cycle, even during night-time hours, without requiring any operator interventions.

Fantini cutting machines can be customised using high automation systems depending on customer requirements.

Technical Specifications

Power installed: 50 kW

Max. cutting width (L): 3,500/4,000 mm

Max. cutting height (H): 2,500 mm

Variable chain speed: 0-2 metres/ sec

Variable arm descent: 0-15 cm/min

Width of cut: 27 mm – 38 mm

Machine travelling speed on tracks: 3-30 metres/min

Weight: 14,000 Kg

Technical characteristics may be subject to variations

The chain mode sectioning sawing machine SQB/P is a hydraulic machine consisting of a portal that runs on tracks, and a horizontal arm that can make vertical cuts for squaring off and blocking hard and/or abrasive stones. The cuts can be programmed by means of a computerised system loaded with positioning and cutting parameters.

Once the cutting sequence has been programmed, the machine can operate in an automatic cycle, even during night-time hours, without the need for interventions by an operator.

Fantini cutting machines can be customised with high automation systems, according to customer requirements.

Technical Specifications

Power installed: 50 kW

Max. cutting width (L): 3,500/4,000 mm

Max. cutting height (H): 2,500 mm

Variable chain speed: 0-2 metres/ sec

Variable arm descent: 0-15 cm/min

Width of cut: 27 mm – 38 mm

Machine travelling speed on tracks: 3-30 metres/min

Weight: 14,000 Kg

Technical characteristics may be subject to variations

The grease loading station is an useful equipment for the ordinary maintenance of Fantini chain saw machines. It includes a compressor, a tank, a greasing pump necessary for recharge the grease for the cutting operations. The station can be transported inside the quarry by lifting it through the barycentric hook or by the coupling device to the fork supplied with machines for blocks handling.
Grease capacity: 180 kg
Compressor power: 2,9 kw
Total weight: 450 kg about
Grease pump technical specification
Compression ratio: 50:1
Min pressure: 4 bar
Max pressure: 8 bar
Max capacity: 0.700 kg/min
Supported models:
- All chain saw machines
- All chain saw machines for underground quarries

Diamond belt sawing machine for vertical and horizontal cuts. The cutting tool consists of a special plastic belt with sintered diamond segments. Only water is used during the cutting phase, both for lubrication and cooling. The system can really be considered “ecological”, because no grease or oil are used during the working phase, so that to prevent dust production and grease pollution. The SUPER JET BELT 950 is electric driven, with electronic control of speed and advance; it can cut up to 400 cm depth.

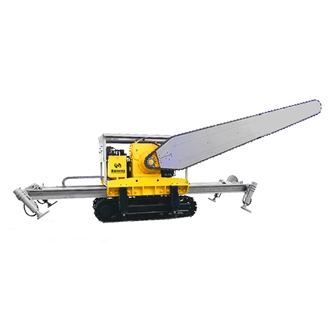

The machine is used to vertically cut mining benches, to divide large stone into small ones or to square irregular shaped blocks.
The machine can move freely on its caterpillar track, independent of any other hoist machinery.
Power by diesel engine
Dry cut, no need water supplying
Remonte controlling function.
