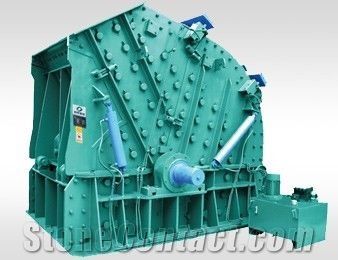

CGF Impact Crusher
FOB Price:
Type:
Stone Quarry MachinesRock Crushers, Jaw Crushers
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Supplier
Eatablished :May 14,2008
Main Product:
Jaw Crusher , Impact Crusher, Cone Crusher, Roll Crusher , Hammer Crusher, Stone Crushing Plant|
Machinery Function Features

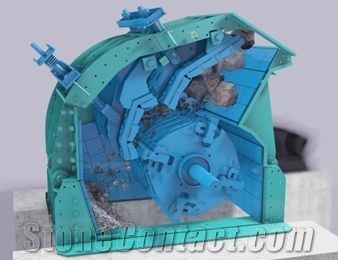

Features of CGF Impact Crusher
1. Designed based on international advanced technologies.

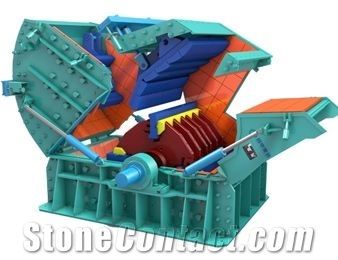

2. Front and rear racks can be opened automatically by using the hydraulic adjusting device.
3. The discharge opening size can be adjusted by using the hydraulic device.
4. Most of the liners with same dimensions can be exchanged with each other.
5. Liner is fastened by wedge plate which is easy to install and replace.
6. The third cavity adopts the concept of “stone strikes stone”.
1. Designed based on international advanced technologies.
2. Front and rear racks can be opened automatically by using the hydraulic adjusting device.
3. The discharge opening size can be adjusted by using the hydraulic device.
4. Most of the liners with same dimensions can be exchanged with each other.
5. Liner is fastened by wedge plate which is easy to install and replace.
6. The third cavity adopts the concept of “stone strikes stone”.
Technical Data
Parameters |
Unit |
CGF-1010 |
CGF-1313 |
CGF-1515 |
CGF-1618 |
CGF-1820 |
Roter size (Diameter x Length) |
mm |
Φ1000x1000 |
Φ1280x1340 |
Φ1540x1500 |
Φ1600x1800 |
Φ1800x2000 |
Weight |
Kg |
10000 |
19800 |
30000 |
40200 |
65000 |
Discharge size |
mm |
≤40 |
≤60 |
≤60 |
≤60 |
≤80 |
Feed opening width X depth |
mm |
350x1020 |
500x1360 |
504x1530 |
550x1800 |
650x2000 |
Capacity |
t/h |
80-110 |
160-220 |
320-380 |
450-580 |
600-800 |
Max. feed size (Input Size) |
mm |
200 |
200 |
300 |
350 |
600 |
Power |
kw |
110 |
200 |
315 |
250x2 |
355x2 |
