Saw-Cut Face Stone Splitting Machine

$5000-500000

Type: Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Sandstone
After-Sale
Lead Time: 15days
Warranty:12 Months
Install and Guarantee:Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Contact supplier
Saw-Cut Face Stone Splitting Machine

China

XIAMEN BESTLINK FACTORY CO., LTD.

Eatablished :Dec 21,2000

Main Product:

Stone Splitting Machine| Stone Cutting Machines| Stone Splitter| Pushing Air Bag| Button Bit Grinder| Drilling Tools Dth Hammer Button Bit|

View Company profile
Machinery Function Features
Hydraulic Natural Stone Splitting machine
It suitable for splitting all types of natural and artifical stones, used for the production of large and small materials for mosaic and stone flooring. And characterized by high reliability and easy handling, every splitting machine can be integrated in a production line, especially designed according to your needs.
Technical Data
Parameters
Unit
BRT320T
Flow rate
L/min
210
Machine length (L)
mm
3300
Main Motor Power
kw
15
Max. working height
mm
300
Machine width (W)
mm
1200
Electric current
A
30
Max. working width
mm
1000
Oil tank capacity
L
780
Machine height (H)
mm
2850

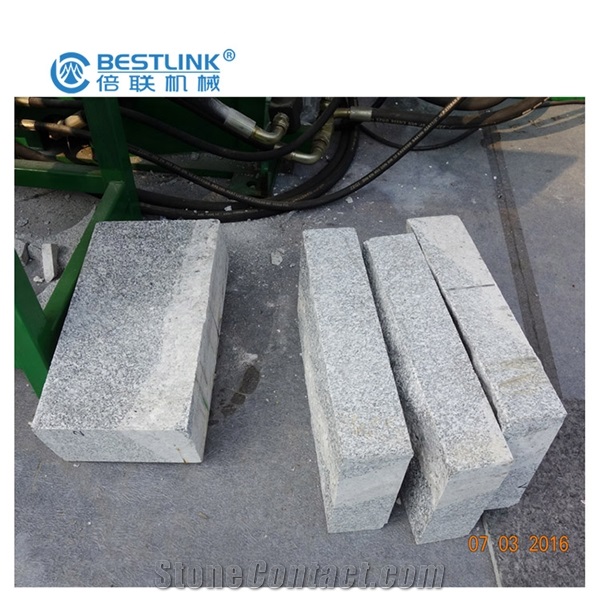

Processed Stone Photos
  • /Bpicture/Processedstonephoto/20209/temp/saw-cut-face-stone-splitting-machine-ca7339e7-Processedstonephoto--B.jpg

Software

Using our splitting machines you could produce a wide range of products like: Cobble stones, Paving stones, Tiles for paving and cladding, Wall stones and Kerb stones, etc. Our machines are known also as splitters, hydraulic splitting machines, stone splitter or stone cutter (for rustic products).
The hydraulic system of our machines mainly uses the hydraulic components of German Bosch Rexroth with stable performance, no oil leakage, low noise and long service life and so on.
Electrical system of our machines is safe, reliable, convenient and flexible and the components are from the brands of Schneider and Omron.
The machines can be operated automatically or manually and move continuously or single-step. Equipped with a separate control cabinet, the electric control part can be operated by a total station and a button box. The start-up and operation is very convenient.
The character of the machine is of intelligent gear cutting head, can adjust itself according to the condition of the stone face, and then, generate hydraulic power to split the stone down in a spot. Therefore it is of high speed, good quality, low consumption and so on, which can improve products quality and production efficiency in a high degree.















































































Close frameBRT70T 800*300 MBRT120T 1000X300 MBRT200T 1200X500 MBRT320T 1200*800 M
Splitting pressure70120200320
Max splitting width800100012001200
Max splitting height300300500800
Electric power11151522
Standard electric supply3phase,380V/50Hz,customized motor will be available.
Electric current22303042.5
Oil flux (L/min.)185210240300
Oil tank cubage (L)550780850850
Overall size(L*W*H)1570*1140*24901700*1200*28502010*1240*28552370*1500*3840mm
Weight300040006000

8000

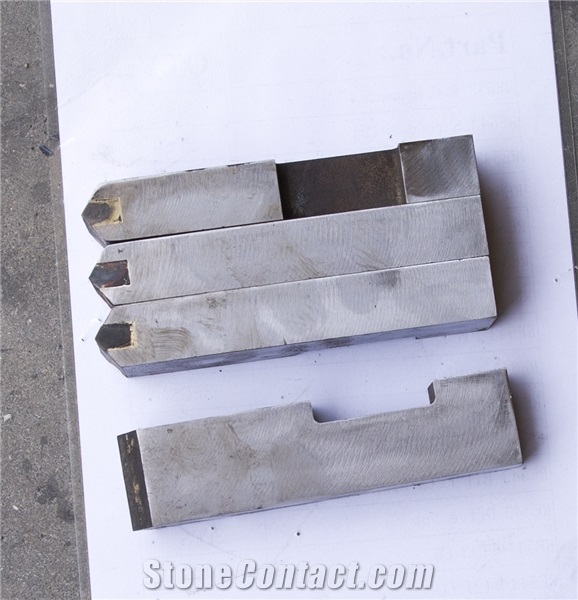

Components
  • Blade

    Blade

Consumables
  • Blade

    Blade
