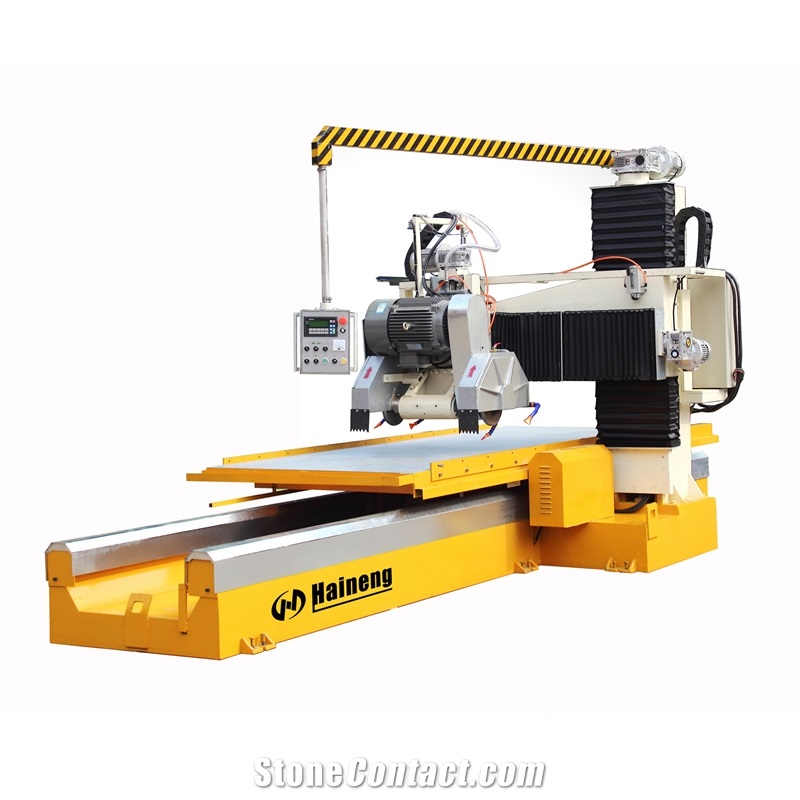

Automatic Special Shapes Profiling Cutting Machine

Type
Strip Cutting,Edge Trimming Machine
Usage
Granite, Sandstone, Travertine, Artificial Stone, Marble, Limestone, Basalt, Slate, Quartzite

After-Sale

Lead Time
25 days
Warranty
12 months
Install and Guarantee
Customer pay for installation, Remote guidance installation
Maintenance
Regular guidance & maintenance, Remote troubleshooting

$8,500 - $9,000

New Haineng China

Usage: Granite, Sandstone, Travertine, Artificial Stone, Marble, Limestone, Basalt, Slate, Quartzite

New Haineng

SupplierSupplier Detail

Established: Apr 13,2017

Main Product: Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine

Rick Lee

Rick Lee
MD

Tel: +86 15359207713

Adr: No. 7, Jinyuan Road, Wuli Industrial Park, Jinjiang , Quanzhou City, Fujian Province.

Machinery Function Features

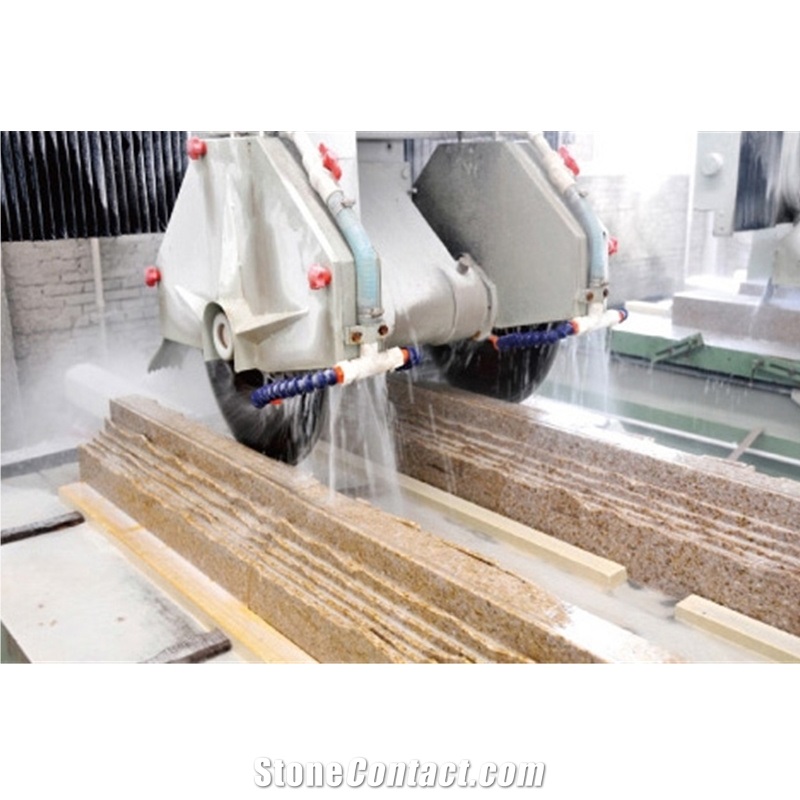

The machine automatically tracks the model of the curved (straight) line model through the optical soldering probe, and automatically cuts the stone crafts such as stone lines in the shape of a curved (straight) line with a diamond circular saw blade. The upper and lower lifting and the left and right passes are all frequency-converted. Speed regulation can be adjusted according to the material of the stone. For example, the rotary table can be selected, and the arc-shaped line can be processed. The whole machine adopts PLC programmable control, high degree of automation and high cutting precision. Double-knife design and cutting efficiency High, stable and easy to operate, it is especially suitable for the processing of shaped stones such as lines, arc-shaped lines, Roman columns and large circular arc plates. Remarks: The CNC system can be modified to eliminate the trouble of making templates, and the degree of automation and cutting accuracy is higher.

BASIC TECHNICAL PARAMETERS

Technical Data
ParameterUnitDFX-3200-2(For 2 blades)DFX-3200-4(For 4 blades)
Machine weight35003600
Max. length of slab32003200
Overall machine width19002150
Max./Min. blade diameter350-600350-600
Gross powerkw19.522.8
Overall machine length54005400
Overall machine height23002500
Main motor powerkw1518.5
Useful working width600×2200×4
Max. working slab thickness(marble/granite)300300
Exhausted waterm³/h34.5

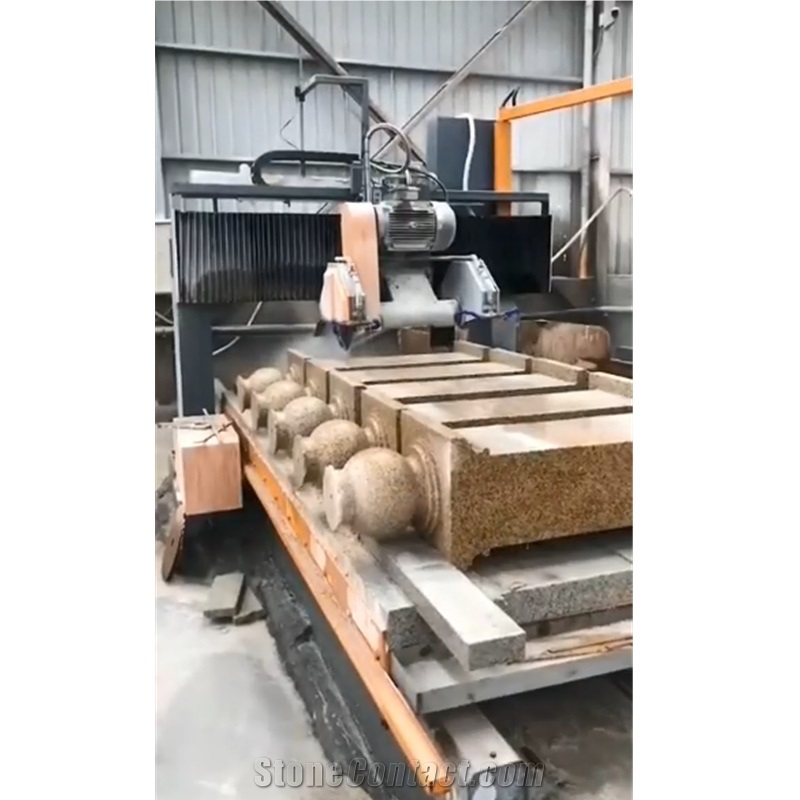

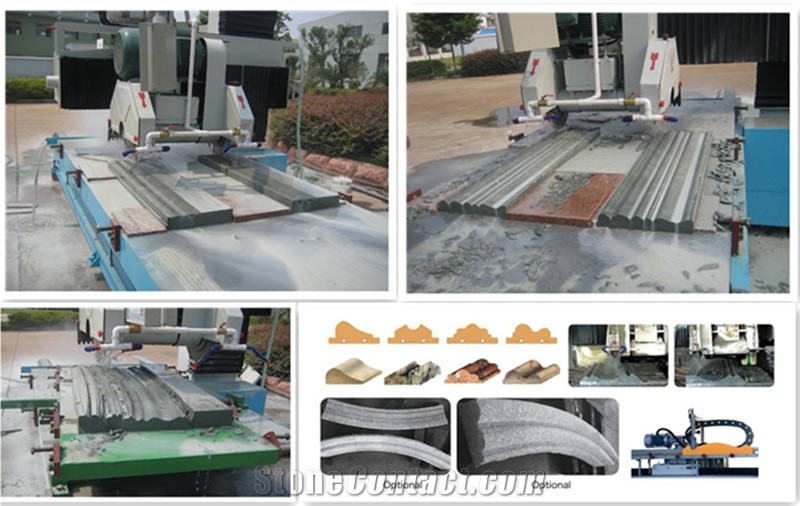

Processed Stone Photos

Processed Stone Photos

Components

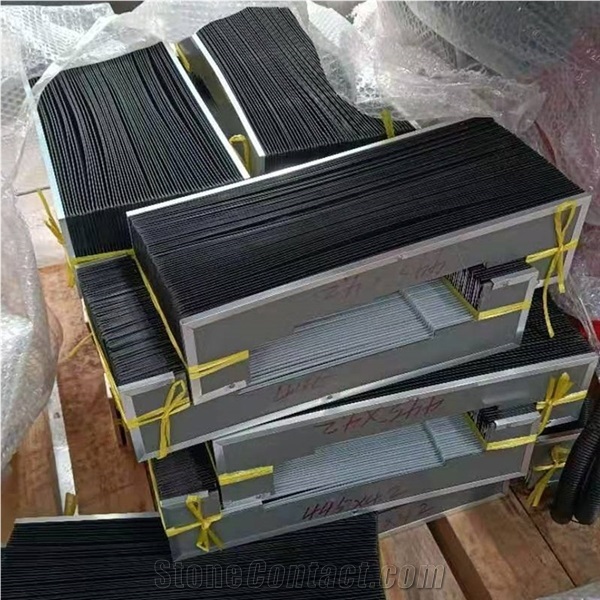

dust cover

dust cover

Consumables

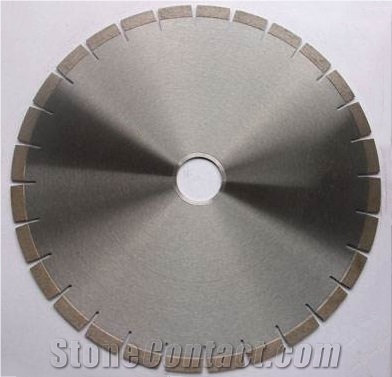

Saw blade

Saw blade

350-600

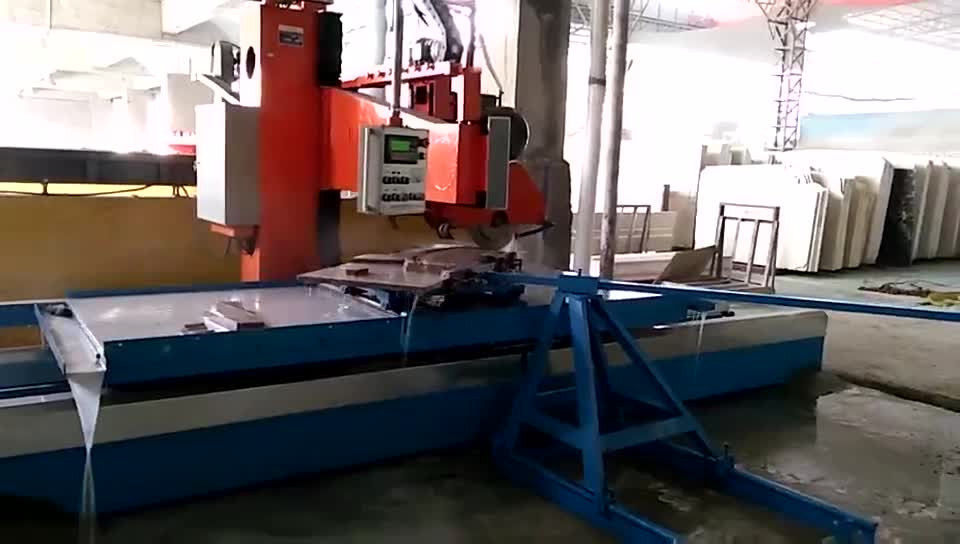

Install Video

Operation Video

After-Sale

Lead Time
25 days
Warranty
12 months
Install and Guarantee
Customer pay for installation, Remote guidance installation
Maintenance
Regular guidance & maintenance, Remote troubleshooting
