Cross Cutter-CR65
FOB Price:$4500-7000
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Machinery Function Features

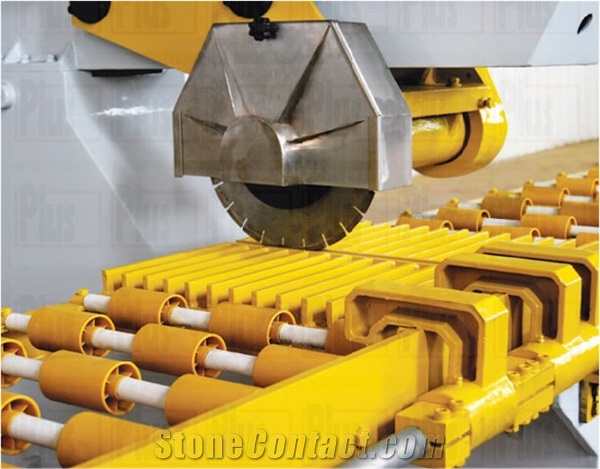

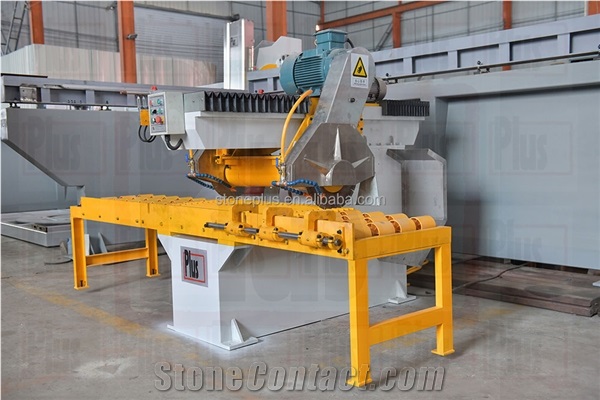

Cross Cutter-CR65
It is a midium and small size cross cutting machine for granite and marble.
It is made in compact.
It is easy for installation and future moving.
The stone material can be loaded quickly and easily.
The spindle slides on cast iron V shape guides in oil bath,driven by an electric motor.
It works manual and automatically.
The operation is easy.
The cutting speed is controlled by an inverter
The machine is specially for cutting small slabs.
It is a midium and small size cross cutting machine for granite and marble.
It is made in compact.
It is easy for installation and future moving.
The stone material can be loaded quickly and easily.
The spindle slides on cast iron V shape guides in oil bath,driven by an electric motor.
It works manual and automatically.
The operation is easy.
The cutting speed is controlled by an inverter
The machine is specially for cutting small slabs.
Technical Data
Parameters |
Unit |
CR65 |

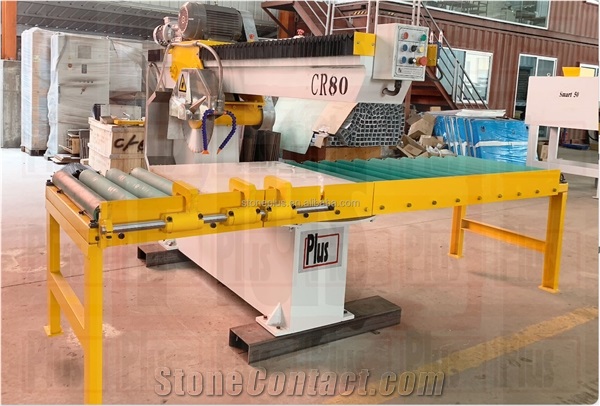

CR80 |
Total power |
Kw |
7.0 |
7.0 |
Dimensions of machine |
mm |
3000/1800/1800 |
3000/2000/1800 |
Power of disc motor |
Kw |
5.5 |
5.5 |
Max cutting width |
mm |
650 |
800 |
Useful cutting thickness |
mm |
50 |
50 |
Roller table dimensions |
mm |
3000/700 |
3000/850 |
Blade diameter |
mm |
350 |
350 |
