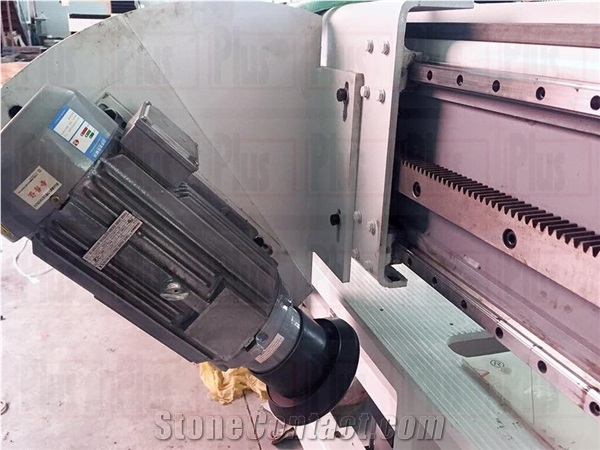

Edge Cutting Machine-Joint 45°
- Type
- Mitre Saw, Edge Cutting Machine
- Usage
- Granite, Onyx, Sandstone, Travertine, Artificial Stone, Marble, Limestone, Basalt, Quartzite, Slate
After-Sale
- Lead Time
- 3 weeks
- Warranty
- 12 months
- Install and Guarantee
- Customer pay for installation, Remote guidance installation, Third-party team installation
- Maintenance
- Online software upgrade, Field troubleshooting, Regular guidance & maintenance, Remote troubleshooting
$4,000 - $9,000
STONEPLUS
China
Usage: Granite, Onyx, Sandstone, Travertine, Artificial Stone, Marble, Limestone, Basalt, Quartzite, Slate
STONEPLUS
SupplierSupplier Detail
Established: Jan 01,2007
Main Product: stone cutting machine, edge machine, stone polishing machine, block cutting machine, multi edges profiling and polishing machine
Peggy Su
Sales Manager
Tel: +8613505053519
Adr: No. 1 Jiashi Road, Anping Industrial District, Anhai 362261
Machinery Function Features
The advantage of using this machine
1. Very accurate cutting of 45°, much better than what bridge cutters can do.
2. The X- axis cutting speed is adjustable. Therefore nearly all kinds of materials can be processed.
3. No width limitation of the slab to be cut, Even the narrowest strips can be cut thanks to the pneumatic pistons holding the slab.
4. Designed with slab“face down”, it allows performing perfect 45°cut even on un-calibrated slabs.

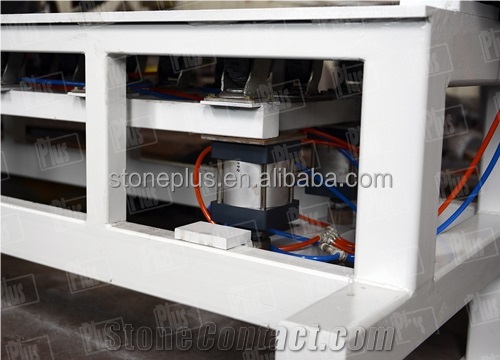

5. The table's liftable rollers help move slabs smoothly, up/down driven by pneumatic pistons.
6. it is safe and easy to use. Maintenance is very simple.
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | 3200 | 3600 |
|---|---|---|---|
| Dimensions of machine | mm | 4400/1400/1600 | 4800/1400/1600 |
| Min. width of stone | mm | 20 | 20 |
| Power of disc motor | Kw | 5.5 | 7.5 |
| Cutting speed | m/min | 0-8 | 0-8 |
| Dimensions of table | mm | 3800/800 | 4200/800 |
| Max. thickness of stone | mm | 40 | 50 |
| Weight of machine | Kg | 1200 | 1400 |
| Max. length of stone | mm | 3200 | 3600 |
| Disc diameter | mm | 350 | 350-500 |
Processed Stone Photos
Components
Consumables
After-Sale
- Lead Time
- 3 weeks
- Warranty
- 12 months
- Install and Guarantee
- Customer pay for installation, Remote guidance installation, Third-party team installation
- Maintenance
- Online software upgrade, Field troubleshooting, Regular guidance & maintenance, Remote troubleshooting
Supplier Detail
Established: Jan 01,2007
Main Product: stone cutting machine, edge machine, stone polishing machine, block cutting machine, multi edges profiling and polishing machine
Peggy Su
Sales Manager
Tel: +8613505053519
Adr: No. 1 Jiashi Road, Anping Industrial District, Anhai 362261
