Multi-Blades Stone Cutting Machine
- Type
- Multi-Blade Cross-Cutter,Trimming
- Usage
- Granite, Artificial Stone, Marble, Basalt, Limestone, Quartzite, Slate, Sandstone, Travertine
After-Sale
- Lead Time
- 30 days
- Warranty
- 12 months
- Install and Guarantee
- Customer pay for installation, Remote guidance installation
- Maintenance
- Regular guidance & maintenance, Remote troubleshooting
$17,300 - $17,800
New Haineng
China
Usage: Granite, Artificial Stone, Marble, Basalt, Limestone, Quartzite, Slate, Sandstone, Travertine
New Haineng
SupplierSupplier Detail
Established: Apr 13,2017
Main Product: Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine
Rick Lee
MD
Tel: 86-13757603958
Adr: No. 7, Jinyuan Road, Wuli Industrial Park, Jinjiang , Quanzhou City, Fujian Province.
Machinery Function Features
1.This machine applies to the factory that provides a great deal of specification stone
material toward huge construction engineering. The machine features as the high
efficiency, accurate specification and stable function. It is well-received by vast customer.
2.Efficient multiple stone machine adopt the portal structure, the main spindle saw
blade rotates, wheel box output. Use the increaser and double-sided wheel together. The rotating, feeding, and retrieving of the machine’s blades as well as the bodily horizontal movement of the trolley are entirely controlled from an electric control unit. It has high automation level, with excellent machine-ability. Stable performance as well as high efficiency and low energy consumption. Cuts the rubble stone, curb stone. It is the most ideal stone material for engine bed.
3.Before the machine is used, adjusting the distance between the saw blades(it can be
produced according to the consumer’s needs), the most can packing up 6 saw blades
aone time, and the machine can cut the slates with standard homologous specification
and homologous quantity. The saw blade is of electric up and down, back and forth auto cutting. The largest width it can process is 1100mm
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | KDQ-600 |
|---|---|---|
| Main motor power | kw | 37 |
| Gross power | kw | 42 |
| Exhausted water | m³/h | 5.2 |
| Max.cutting height | mm | 200 |
| Main shaft dia. | mm | 100 |
| Gross weight | kg | 5200 |
| Max.cutting length | mm | 2000 |
| Trolley size | mm | 1600*1400 |
| Flange size | mm | 180 |
| Main shaft length | mm | 1400 |
| Max.cutting width | mm | 1400 |
| Blade diameter | mm | 600 |
| Overall size | mm | 7000*3130*2450 |

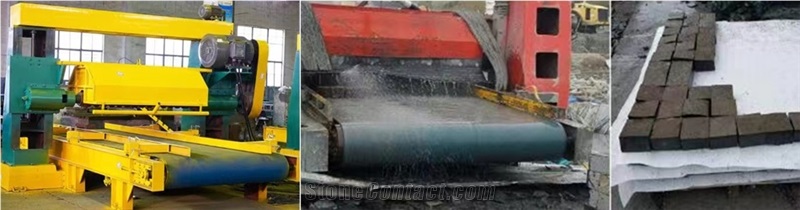

Processed Stone Photos
Components

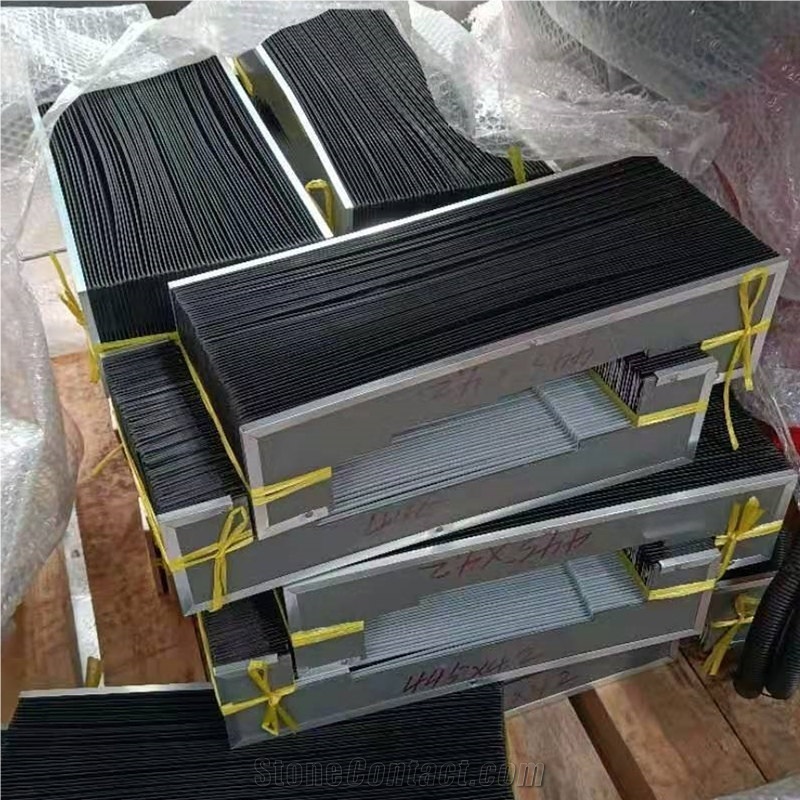

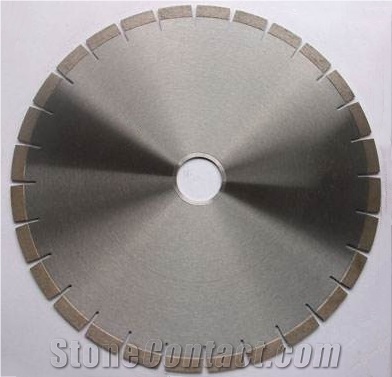

Consumables
Install Video
Operation Video
After-Sale
- Lead Time
- 30 days
- Warranty
- 12 months
- Install and Guarantee
- Customer pay for installation, Remote guidance installation
- Maintenance
- Regular guidance & maintenance, Remote troubleshooting
