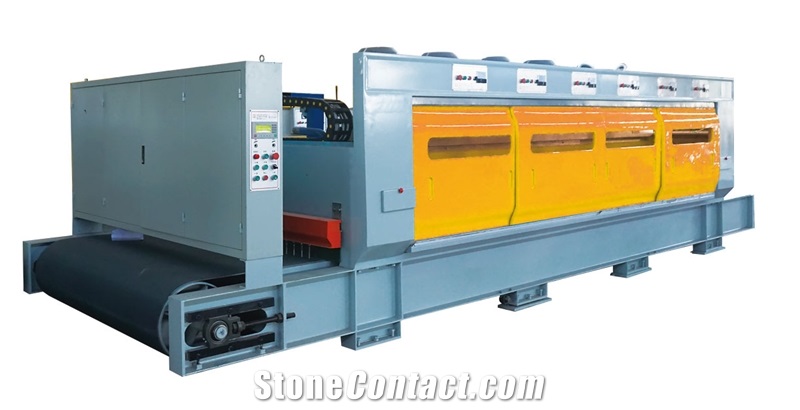

4+2/(5+3) FIXED THICKNESS ROUGHING MILL Calibrating Machine
FOB Price:$-15000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 day
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
5YR
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
4+2/(5+3) FIXED THICKNESS ROUGHING MILL
Technical Data
Parameters |
Unit |
1600 |
2200 |
Main motor power |
kw |
89/104 |
89/104 |
Max.cutting width |
mm |
1650 |
2250 |
Number of grinding heads |
pcs |
2/3 |
2/3 |
Number of miling head assembly |
pcs |
4/5 |
4/5 |
Diameter of thickness panel |
mm |
580 |
650 |
Overall dimensions(L xW xH) |
mm |
5800/8000x2600x2200 |
6800/8000x3000x2200 |
Water consumption |
m³/h |
12 |
12 |
Weight |
kg |
9000 |
13000 |
Max.cutting thickness |
mm |
100 |
100 |
Polished grinding head diameter |
mm |
520 |
520 |
