Home ProductsStone MachineryStone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Suppliers:
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
FOB Price:$21000-23000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC-450/600/700 (Sliding Plate Type) uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device,uses inverter to control left-right feeding, adjusts the speed according to the stone material.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.Thus the whole machine is featured as high cutting effciency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
FOB Price:$15000-18000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The multi-blade stone cutting machine is an improvement and upgrade based on the infrared bridge cutting machine. It uses PLC to control 7 saw blades to cut stone simultaneously. The host machine can hang up to 7 pieces of 800-diameter saw blades. The work trolley can be rotated 90° to save the cutting process. Greatly improve production efficiency. Heavy-duty beams and higher horsepower motors make multi-piece cutting more comfortable. It is ideal for cutting pavers, curbs, and dimension boards.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
FOB Price:$17000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts the PLC control system, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed) Etc), the cutting process is automated and programmed.
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
FOB Price:$24000-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Floor-standing type electric control cabinet, wireless remote control, this machine adopts the PLC control system, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed, Etc), the cutting process is automated and programmed.The touch screen adopts Chinese、English and Russian operation interface, Suitable for most countries and regions.This machine adopt four guide column with double hydraulic lifting structure,with high stability to ensure the machine safe operation.The left- right moving of the saw blade and the back- forth moving of the beam are driven by three-phase asynchronous motor,adjusts the speed by inverter control and encoder feedback.The beam and side beam adopt rack and pinion and v-shaped slide rail structure, with high precision, low failure rate and durable.The worktable can be turn over and it is driven by double hydraulic cylinders with good stability.
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
FOB Price:$11000-16000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone
Machinery Function Features:

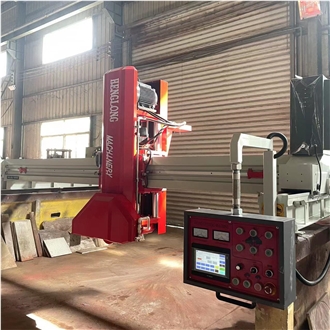

HLQC-600/800 infrared automatic stone bridge cutting machine has two type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equiped through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble. -
Add To CompareType: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$15000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This equipment adopts a PLC programmable control system and human-machine interactive operation interface, which is simple to operate and can easily complete the stone cutting work with no need for professional skills. Meanwhile, it adopts a laser ray to align the saw to ensure accurate cutting, which is suitable for straight line cutting and
processing of granite, marble, rock slab, tile, and other stones.
● High Cutting Accuracy: Adopting microcomputer program control and laser ray saw alignment, it can achieve high-precision cutting and ensure the quality and accuracy of the products.
● Good Stability: The main body of the machine is made of integrated casting not easy to deform, which can ensure the smoothness and precision of cutting without wasting materials.
● High Reliability: Adopting domestic brand motor and imported electronic components, high configuration, and good performance.
● High Flexibility: The table is capable of 90°/ 360°rotation and 0~85° tilt.
What is Dafon Bridge Saw DFQ—H450?
dafon Bridge Saw Machine adopts an advanced programmable controller, frequency converter, and laser marking instrument to achieve simple operation, accurate positioning, stability, and reliability. It can hang 350-400mm granite blade and marble blade, the maximum cutting depth is 110mm, and the workbench can rotate 90 degrees. , 85-degree flip, and other functions
What you can get if using a dafon bridge saw machine
1. Improve the yield rate of large stone plate cutting and reduce plate waste.
2. Improve strip-cutting efficiency and shorten production time.
3. Lower the skill threshold for workers, making it easier to learn and use.
4. Improve the competitiveness of stone processing plants and improve product quality.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$22000-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC-700X uses the PLC system and Human-machine Interface , combined with Ultra-high precision rotary encoder to locate and infrared device , uses inverter to control left –right feeding , adjusts the speed according to the stone material . It uses hydraulic lifting system , main spare parts adopt imported good –quality materials , the head can rotate 0-50°, applied in a wider range . Thus the whole machine is featured as high cutting efficiency , high cutting precision , high stability , easy-operating to suit granite and marble with high value and big size , and shaped stone products.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$18000-27000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC-1200 uses the PLC system and the Human-machine interface, combined with Ultra-high precision rotary encoder to locate, and infrared device, it uses inverter to control left-right feeding, adjust the speed according to the stone material. It uses hydraulic lifting system, and main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high stability, easy-operating to suit specially shaped stone products, tombstone and curb stone.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$19300-21700
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC-450/600/700 (Sliding Plate Type) uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device,uses inverter to control left-right feeding, adjusts the speed according to the stone material.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.Thus the whole machine is featured as high cutting effciency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.
JULUN
China
FUJIAN NANAN JULUN MACHINERY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$11000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
HLQC-600/800 infrared automatic stone bridge cutting machine has two type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equiped through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble -
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$20000-24900
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC-600-4D(Guide Post Type) uses PLC system and human-machine interface, combined with Ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding,adjusts the speed according to the stone material.It uses hydraulic lifting system, combination of Chrome-plated guide pin and wear guide bush,with small gap, wearable, beautiful structure, and Guide Sleeve with multi-layer seals, with waterproof, dustproof, anti-spill, improving the service life. Main spare parts adopt imported good-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy–operating to suit granite and marble with high value and big size.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$11000-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate
Machinery Function Features:
This machine adopts the PLC control system, the operation interface is a combination of touch screen and mechanical button to control the interface ,input operating parameters through interface (including cutting size specification, moving speed) Etc), the cutting process is automated and programmed.The touch screen adopts Chinese、English and Russian operation interface, Suitable for most countries and regions.Adopting the processing method of slice cutting, the spindle can hang multiple saw blades, uses high-precision screw nut driving, combined with ultra-high precision rotary encoder, high slicing precision and high cutting efficiency.This machine adopt four guide column with double hydraulic lifting structure, with high stability to ensure the machine safe operation.The left- right moving of the saw blade and the back- forth moving of the beam are driven by three-phase asynchronous motor, adjusts the speed by inverter control and encoder feedback. The beam and side beam adopt rack and pinion and v-shaped slide rail structure, with high precision, low failure rate and durable.
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$13500-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Introduction of Infrared 45 Degree Bridge Saw Cutter
The Infrared 45 Degree Marble Granite Bridge Saw Cutter is an upgraded version of our latest machine. Compared with the Infrared stone cutting machine, which can only cut at 90 degrees, it has been upgraded and can cut at a 45-degree bevel. Using infrared technology, it can cut various stones quickly and accurately. Infrared 45-degree Bridge Saw Cutter adopts an intelligent PLC control system, which is easy to operate and can easily complete stone cutting work without professional skills.
Feature of Infrared 45 Degree Bridge Saw Machine
Cast beam structure: The double beam adopts a cast beam structure, which is more sturdy and durable, can withstand outdoor use, and can be used in external environments.
45 DEGREE PRECISE CUTS: The 45 45-degree bridge Saw Machine is a specialized tool that handles angled cuts with ease, perfect for creating unique and intricate designs.
Versatile Cutting Options: The Bridge Saw Machine offers a range of cutting options, including straight cuts, bevel cuts, and miter cuts, providing flexibility and versatility to complete your projects.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$21500-24500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:

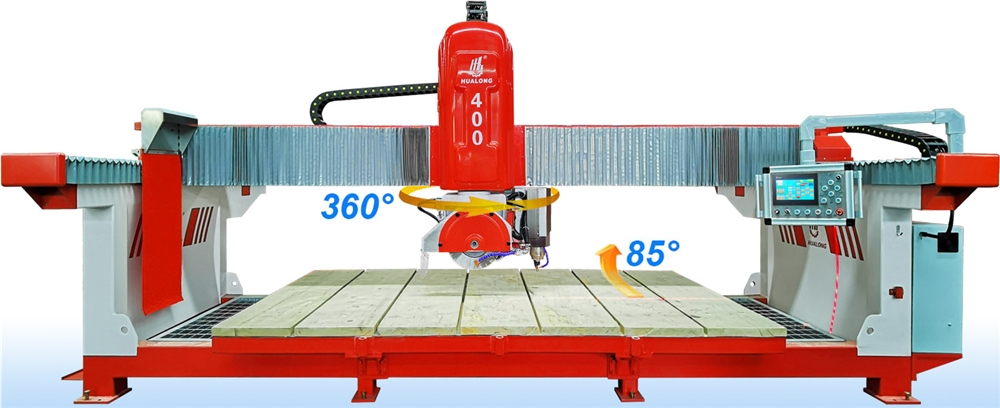

HLSQ-400 Delta PLC 4-Axis Stone Bridge Saw - Precision Template Cutting at Affordable Value
The HLSQ-400 4-axis bridge cutting machine integrates Delta PLC control with pre-loaded geometric templates, delivering cost-effective precision for standard stone fabrication. Designed for marble, granite, and engineered stone, it effortlessly executes circle, oval, diamond, polygon, trapezoid, fan-shaped, and ogee edge profiles through synchronized 4-axis motion. Ideal for entry-level workshops and mid-volume production.
Note: This model focuses on solid template-based cutting, NOT for hollow-out patterns, 3D engraving, or free-form complex shapes.
Core Advantages
✅ Ready-to-Use Template Library
18 built-in geometric templates + USB import for custom DXF files (2D only)
✅ Delta PLC Precision
±0.15mm repeatability with automatic tool compensation
✅ Rapid Setup
Template-based programming reduces job preparation by 70% vs manual CNC coding
✅ Budget-Friendly Performance
40% lower ownership cost than full CNC systems with equal cutting accuracyTechnical Specifications
| Control System : Delta PLC + 7" HMI Touchscreen
| Cutting Dimensions : 3300×2000×70mm
| Spindle Power : 15kW (220V/380V optional)
| Template Capacity : 18 preset + 50 user-defined
| Compatible Materials: Natural/Engineered Stone (Mohs ≤6)Target Users
◼ Small stone workshops expanding from manual to semi-auto production
◼ Construction contractors requiring batch processing of standard profiles
◼ Kitchen countertop fabricators for basic edge shaping
◼ Tile suppliers producing geometric decorative piecesWhy Choose HLSQ-400?
⌛ No CNC Expertise Needed – Operate like a pro with 1-day training
💸 Zero Over-engineering – Pay only for the functions you actually use
🔧 Proven Reliability – Over 300 units deployed in Southeast Asian marketsService & Offer
📥 Free Trial – Send your stone sample, get a cutting demo video in 72hrs
📦 Doorstep Support – Local technician assistance in 15+ countriesCall to Action
【Limited-Offer Package】
First 10 orders receive:
① Free diamond blade (￥2,500 value)
② On-site training vouchers
③ 24/7 priority technical hotline📞 +86-182-0602 1758 | 📧 [email protected]
Hualong
3YR
China
Fujian Province Hualong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$27500-29500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
HLSQ-400 Plus 4-Axis Bridge Saw - All-in-One Solution for Countertop Fabrication
Saw-Milling Hybrid System | Sink Cutout in 15 Mins
Product Overview
The HLSQ-400 Plus enhances the standard model with a retractable electric spindle (0-24,000rpm), enabling combined sawing and milling operations. Equipped with quick-change tool holders, it efficiently processes sink cutouts, faucet slots, and edge profiling while performing straight cuts - replacing traditional two-machine setups. Optimized for quartz/engineered stone countertops.
Note: Specializes in 2.5D milling, not for 3D relief carving (See HKNC-500 5-Axis for advanced needs)
Key Upgrades
✅ Dual-Mode Hybrid Processing
Switch between blade/milling tools in 0.8s with auto-tool compensation
✅ Countertop Template Kit
Pre-loaded 15 sink cutout templates + G-code import for custom shapes
✅ Premium Surface Finish
HIWIN guides + ≤0.01mm spindle runout ensure Ra≤3.2μm milled surfaces
✅ ROI Accelerator
Process 40 countertops/day with ROI payback within 6 monthsTechnical Highlights
Item Specification Spindle Speed 0-24,000rpm (VFD-controlled) Max Milling Depth 70mm (Engineered Stone) Sawing Speed 12m/min (Diamond Blade) Work Area 3500×2100mm (Customizable) Power Consumption 28.2kW (35% Energy Saving) Ideal For
◼ Kitchen countertop sink cutout & edge polishing in one pass
◼ Bathroom vanity faucet slot milling
◼ Commercial bar tops recessed fixture machining
◼ High-volume quartz window sill chamfering & trimmingLaunch Promotion
📅 Order before 2025/7/31 to get:
① 15% off first consumables order
② Dedicated tech support 7×12hr
③ 3-year spindle warranty extensionCall to Action
📞 +86-182-0602-1758
Hualong
3YR
China
Fujian Province Hualong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$20000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
ZDQJ-450-600-700-800, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary
encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide
post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality
materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easyoperation, specially high value granite and big size marble.
Xianda
1YR
China
XIAMEN XIANDA TRADING CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$17500-19000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable.
2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
3.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
4.Imported and domestic premium brand electric components.Germany Siemens inverter,feeding more stable;electrical components are used imported or domestic first-line brands.
5.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
6.Single-Beam lifting machine(Optional).
7.Steel rigid stand(Optional).
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$15000-20000
Warranty: 12 Months
Usage: Granite, Marble, Sandstone
Machinery Function Features:
This equipment adopts a bridge structure, the main beam and side beams are oil-immersed sealed guide rails, durable. Meanwhile, it adopts brand motor, equipped with a 90°rotating table, flexible rotation, accurate positioning, good rigidity, simple operation, smooth cutting, high productivity, etc. It is suitable for granite,
tombstone, and roadside stone processing.
● High Cutting Accuracy： Adopting microcomputer program control and laser ray knife alignment technology, it can achieve high-precision cutting and ensure the quality and accuracy of the products.
● Good Stability： The machine adopts a high power and speed cutting motor, which can ensure the smoothness and reliability of cutting and reduce the possibility of problems.
● High Reliability： Adopting high-precision linear guide and laser probe to ensure the reliability and stability of cutting.
● High Flexibility： The table is capable of 90 rotations.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$9900-15000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx
Machinery Function Features:
Stone slab bottom machine, also known as stone bottom bottom shaving machine, is a mechanical equipment used to trim the bottom surface of stone slabs. It is mainly used to smooth out the unevenness, burrs and other defects on the bottom surface of stone slabs to make the surface smooth and flat, which meets the requirements of use.
This machine adopts the bridge structure and the movement mode of the head movement to make the machine agile and stable in terms of precision.
Since the advent of this machine, the waste material of the stone processing enterprise has been turned into wealth, which has greatly reduced the production cost of stone processing enterprises and improved their efficiency.
Dafon
3YR
China
Quanzhou Dafon Time Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$18500-19500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable. 2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly，works more stable.
3.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
4.Imported and domestic premium brand electric components.Germany Siemens inverter,feeding more stable;electrical components are used imported or domestic first-line brands.
5.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
6.Using permanent magnet synchronous motors (servo motors) for left and right walking and front and rear slicing. Compared with the current ordinary three-phase asynchronous motor,the speed increased 2 times for the retraction of front & rear splitting and the left & right walking,it makes the cutting much more efficiency.
7.Single-Beam lifting machine(Optional).
8.Steel rigid stand(Optional).
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$22500-25000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable. 2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly，works more stable.
3.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
4.The cutting head can rotate 0°~50°, have a wider cutting range , can cutting and chamfering the stone with a special shape.
5.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
6.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor.
7.High quanlity standard exported laser device, with longer service life and more lasting brightness.
8.Single-Beam lifting machine (Optional)
9.Steel stand (Optional)
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$12000-13000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Horizontal cutting,vertical cutting,and 45 degree chamfering on all sides of the boad.Cutting diamond,circular trapezoidal,fan-shaped,elliptical,polygonal,horse belly edge,drain basin,L-shaped corner.Cutting various irregular shaped,opening basin in the table,basin under the table,and irregular basin holes,supporting CAD mapping, achieving dust-free processing.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$18000-21000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts servo system control, touch operation interface and wireless remote control, which makes the man-machine dialogue flexible.
The main control components are all international brand-name components. The vertical segmentation mechanism adopts international famous brand linear guides and high-precision magnetic count to ensure the cutting precision of the machine.
The machine working fast and is especially suitable for cutting high-value, high-precision, medium and large-sized slabs, angles, octagons,arcs, and circles.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$10000-18000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
motor: Eagle brand or Mindong brand(top brand in China)
Hydraulic station: seven ocean hydraulic systems from Taiwan
cement foundation or metallic foundation optional
Worktable size: 3000*2000*700mm
Rotation: 0-90°and 0-360°(every 45°one rotation) two options & 0-85°tilt
Material: adopt #14 Universal Beam instead of #12 box iron, stronger frame to carry stone
Inside details: 8 rotation wheels inside the worktable, not 6
The infrared line shows the cutting path which ensures precise cutting and high cutting quality
Main features
The machine adopt cast iron on the main part of the machine body to ensure stability while cutting
The cutting speed is controlled by an inverter to achieve stepless adjustment, the head movements, table title up, rotation, and position use hydraulic transmission to move. it can be cut manually and fully automatically easily.
It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning(Omron brand encoder)
The worktable is controlled by hydraulic rotation and also can be locked in any position Manually
It is applicable to cutting valuable and large-sized stone slabs for many specifications
Appellation DF-450 DF-600 DF-800 Unit
Blade diameter Ø300~450 Ø350~600 Ø400~800 mm
Max.vertical stroke 230 350 350 mm
Worktable tiling degree 0~85 0~85 0~85 N°
Worktable rotating degrees 0~90/0~360 0~90/0~360 0~90/0~360 N°
Max.cutting depth 110 180 280 mm
Water consumption 1.8 1.8 1.8 m³/h
Main motor 15 18.5 22 kW
Total motor 24.5 26 26 kW
Overall dimension (L*W*H) 6000*4800*2900 6000*4800*3000 6000*4800*3000 mm
Gross weight 4500 5600 5600 kg
Worktable dimension 3200*2000 3200*2000 3200*2000 mm
◆ Configuration for controlling box:
item brand origin
PLC Mitsubishi Japan
AC drive/inverter Sunye China
Air switch Delixi China
Button/switch ABB Switzerland
contactor Shihlin Taiwan
Relay Shihlin Taiwan
◆ Commercial Terms & Conditions:
Delivery term： FOB Xiamen, China
Delivery time：15 days after receiving a 30% deposit
Payment term：30% T/T deposit when order placed, 70% T/T before shipment
Quotation validity：30 days
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$52000-54000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Sandstone
Machinery Function Features:
Introduction of Kerbstone Cutting Machine
Curb cutters are powerful and efficient tools used in the construction industry to cut and shape curbs, also known as Curb, for paving roads, sidewalks and other outdoor areas. These machines come in different models and sizes, from handheld models to large industrial machines for heavy-duty cutting.
The use of curb cutters has revolutionized the curb cutting process as it allows for precise and accurate cuts with a better finish compared to traditional methods. Designed to cut hard materials such as granite, concrete and asphalt, they are ideal for use in construction projects of all sizes.
The use of curb cutters is becoming increasingly popular among contractors and construction companies as the demand for quality, durable paving materials continues to grow. They are durable, easy to operate and cost-effective, making them a must-have tool for anyone in the construction industry.
In short, curb cutters are an essential tool for cutting and shaping curbs used in the construction industry. They are versatile, efficient and allow for precise cutting to provide a high quality finish for paving projects.
The advantage of Kerbstone Cutting Line
1. Save cutter head: the machine uses multiple knives to cut at the same time, each time down about 3-5mm (depending on the stone and cutter head), saving the consumption of cutter head.
2. Labor saving: only one worker is needed to watch the whole production line, the machine adopts roller to transfer the stone and induction to stop and run automatically.
3. Save plant space: compared with other cutting methods, the machine only needs 12*5m space to produce the same capacity.
The Feature of Curb Stone Cutting Machine
1. The size of the trolley is enlarged, and two sheets can be placed at one time, which greatly improves the work efficiency;
2. The diameter of the main shaft is 120mm, after heat treatment and other processing technology, it can hang 12 pieces of 1.2m steel saw blades at a time;
3. The whole machine has an integrated structure, no need to lay a foundation, and it is easy to install.
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$18600-19800
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts microcomputer control, touch-type operation interface and wireless remote control, which makes the man-machine dialogue flexible.
The main control components are all international famous brand components, The beam adopts oil-immersed double V-beam cross-track, the transverse cutter adopts stepless frequency conversion speed regulation, the longitudinal segmentation mechanism adopts linear guide rail and high-precision encoder counting, which ensure the smooth operation of the machine. Stable precision.
The machine body is integrated with the workbench base, which not only facilitates user installation and transportation, but also ensure the stability of the machine.
The worktable can be turned 0-85 degree, the machine head automatically rotates 90 degrees, and can cut rectangular, line and other specifications.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$15000-16500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts the PLC control system, using Chinese, English, Russian, Arabic, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed) Etc., the cutting process is automated and programmed.
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$20000-22000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
1.Super-heavy type working platform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable;
2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly， works more stable;
3.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more;
4.The cutting head can rotate 0°~50°, have a wider cutting range , can cutting and chamfering the stone with a special shape;
5.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use;
6.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor;
7.High quanlity standard exported laser device, with longer service life and more lasting brightness;
8.Single-Beam lifting machine (Optional);
9.Steel stand (Optional);
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$16200-18000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.
The main control components are all international famous brand components, The beam adopts oil-immersed double V-shaped track, the transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic mountain counting to ensure the machine working precision.
The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 360 degrees per 45 degrees. It can be jumped and positioned with any angular position and brake. It can cut rectangular, octagonal, circular, round, and small and medium angles shape.
Can choose profiling function.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$28800-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.
The main control components are all international famous brand components, The beam adopts oil-immersed double V-shaped track, the transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic mountain counting to ensure the machine working precision.
The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 360 degrees per 45 degrees. It can be jumped and positioned with any angular position and brake. It can cut rectangular, octagonal, circular, round, and small and medium angles shape.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$19800-24600
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machine adopts microcomputer control and wireless remote control, which makes the man-machine dialogue flexible.
The main control components are all international famous brand components. The cross beam and the head are made of enlarged and heavy-duty structure. The oil-immersed double V-beam rail is equipped with high-power cutting main motor. The horizontal cutting cutter adopts stepless frequency conversion and flexible speed regulation. The knife uses double-mount rails and high-precision encoder counting to ensure smooth and stable accuracy of the machine.
The table is automatically rotated by 0-90 degrees, and it can be used for border stone, gravestone and other process-like rectangular thick materials and polygon thick materials (table rotation 0-45-90 degrees is optional), especially suitable for high value, high precision and high efficiency demand users!
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$24800-26000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
This machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. The head can rotate 0°～50°, applied in a wider range. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting granite and marble with high value and big size, and special-shaped stone.
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$16000-17000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC450/600/700-4D bridge cutting machine. This Series machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material.
It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting granite and marble with high value and big size.
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$21000-23000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC700X Tiltable Bridge Cutting Machine.This series machine adopts microcomputer control system and human machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, high lifting efficiency, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. The head can rotate 0°～50°, applied in a wider range. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting granite and marble with high value and big size, and special-shaped stone.
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$15000-18000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
Machinery Function Features:
Infrared automatic bridge stone cutting machine is an ideal equipment for cutting and processing products of this type. Before cutting, infrared knife setting is used. After setting operating parameters, the cutting process is automated and programmed. One-piece bridge type stone cutting machine is one of many types of infrared automatic bridge type stone cutting machine.
Features
1. The PLC control system is adopted, and the operating parameters (including cutting size specifications, moving speed, etc.) are input through the man-machine dialogue interface, and the cutting process is automated and programmed.
2. Use infrared tool setting to confirm the position of the workpiece and arrange the processed products
3. The whole machine is a one-piece frame, which is suitable for foundations of various natures, and it is more convenient to install and install.
4. The hydraulic control table The table panel can be turned vertically 85°.
5. The diamond disc saw blade with a maximum size not exceeding ￠400 can be hung
6. The lifting and lowering of the machine head is driven by hydraulic pressure, and the machine head can be turned 45° around the Z axis, so that the cutting tool can be rotated 45°.
7. For horizontal and vertical slicing, the magnetic grid is used to detect the length of the slicing.
DAFON
6YR
China
Quanzhou DAFON Machinery Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$6000-6600
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
This machinery is a technology product specialized by us, welcomed by users. Widely used in cutting the standard version material. Its precision can reach any stone export standards. Cutter automatically lifting, can also be positioned to move the lift standards, with the longitudinal stepless overcome burst plate side of the phenomenon, processed 5-150 mm thickness slate, simple, easy to use, stable yield and quality, It is an ideal stone cutting machinery.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$12750-15450
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features
Small area: only 15 square meters (length 5 meters × width 3 meters).
Simple operation: Touch-type man-machine interface, intuitive operation.
High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
High precision: All motion pairs adopt high-precision linear guides, with high-precision helical gear transmission, and high precision.
Intelligent: All sports pairs are automatically greased and lubricated to escort the sports pairs.
Energy saving and consumption reduction: Permanent magnet synchronous main motor can be selected, which can save 30% electricity compared with three-phase asynchronous motor.
Ingenuity manufacturing: every detail of the design and manufacturing allows you to feel the excellent quality of meticulous craftsmanship and excellence!
Product Usage
This series of models is suitable for cutting building materials such as rock slabs, ceramic tiles, marble, artificial stone, granite, cement products, etc. It is an ideal equipment for small and medium-sized factories and processing shops.
Corresponding model main function
HTQ350A: automatic cutting specification board + plane slotting (drawing)······
HTQ350B: automatic cutting specification board + semi-automatic double-sided chamfering + plane slotting (drawing)······
HTQ350C: automatic cutting specification board + automatic double-sided chamfering + plane slotting (drawing) + stove + (square) basin hole + line profiling (optional)······
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$17100-19200
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features
Small area: only 15 square meters (length 5 meters × width 3 meters).
Simple operation: touch-type man-machine interface, module parameterized input, no programming required, intuitive operation and handy.
High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
High precision: All motion pairs adopt high-precision linear guides, with high-precision helical gear transmission, and high precision.
Intelligent: All sports pairs are automatically greased and lubricated to escort the sports pairs.
Energy saving and consumption reduction: Permanent magnet synchronous main motor can be selected, which can save 30% electricity compared with three-phase asynchronous motor.
Ingenuity manufacturing: every detail of the design and manufacturing allows you to feel the excellent quality of meticulous craftsmanship and excellence!
Product Usage
This series of models is mainly used for cutting special-shaped edges or multi-functional cutting of building materials such as rock slabs, ceramic tiles, marble, artificial stone, granite, cement products, etc. It is the most suitable deep processing equipment for special-shaped factories such as home improvement or municipal engineering.
Corresponding model main function
HTQ350E: automatic cutting specification board + four-sided chamfering + plane slotting (drawing) + drawing grid + stove top + (polygon) basin hole + polygon + trapezoid + rhombus + line profiling (optional)······
HTQ350F: Automatic cutting specification board + four-sided chamfering + pull grid + stove + (polygon) basin hole + polygon + trapezoid + rhombus + sector + outer circle edge + oval edge + horse belly edge + line profiling (optional) ······
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$21200-21875
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Features
Small area: only 15 square meters (length 5 meters × width 3 meters).
Simple operation: touch-type man-machine interface, module parameterized input, no programming required, intuitive operation and handy.
High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
High precision: All motion pairs adopt high-precision linear guides, with high-precision helical gear transmission, and high precision.
Intelligent: All sports pairs are automatically greased and lubricated to escort the sports pairs.
Energy saving and consumption reduction: Permanent magnet synchronous main motor can be selected, which can save 30% electricity compared with three-phase asynchronous motor.
Ingenuity manufacturing: every detail of the design and manufacturing allows you to feel the excellent quality of meticulous craftsmanship and excellence!
Product Usage
This series of models is mainly used for the special-shaped edge or multi-functional cutting of building materials such as rock slabs, ceramic tiles, marble, artificial stone, granite, cement products, etc. It is the most suitable deep processing equipment for special-shaped cutting factories.
Main functions of each model
HTQ350G: automatic cutting specification board + four-sided chamfering + any side chamfering (optional) + plane slotting (drawing) + drawing grid + stove + (polygon) basin hole + polygon + trapezoid + rhombus + sector + outer circle Edge+ellipse edge+horse belly edge+straight line profiling+round hole(optional)+ellipse hole(optional)+arc line profiling(optional)+drilling(optional)+grinding(optional) +Engraving (optional)······
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$19000-21500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
CNC programming, used for stone profilinig processing, working fast, good effect, greatly save manpower.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$21000-23000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
SQC700X Tiltable Bridge Cutting Machine.This series machine adopts microcomputer control system and human machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, high lifting efficiency, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. The head can rotate 0°～50°, applied in a wider range. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting granite and marble with high value and big size, and special-shaped stone.
JOBORN MACHINERY
4YR
China
FUJIAN JOBORN MACHINERY CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$27500-29500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
HLSQ-400 Plus 4-Axis Bridge Saw - All-in-One Solution for Countertop Fabrication
Saw-Milling Hybrid System | Sink Cutout in 15 Mins
Product Overview
The HLSQ-400 Plus enhances the standard model with a retractable electric spindle (0-24,000rpm), enabling combined sawing and milling operations. Equipped with quick-change tool holders, it efficiently processes sink cutouts, faucet slots, and edge profiling while performing straight cuts - replacing traditional two-machine setups. Optimized for quartz/engineered stone countertops.
Note: Specializes in 2.5D milling, not for 3D relief carving (See HKNC-500 5-Axis for advanced needs)
Key Upgrades
✅ Dual-Mode Hybrid Processing
Switch between blade/milling tools in 0.8s with auto-tool compensation
✅ Countertop Template Kit
Pre-loaded 15 sink cutout templates + G-code import for custom shapes
✅ Premium Surface Finish
HIWIN guides + ≤0.01mm spindle runout ensure Ra≤3.2μm milled surfaces
✅ ROI Accelerator
Process 40 countertops/day with ROI payback within 6 monthsTechnical Highlights
Item Specification Spindle Speed 0-24,000rpm (VFD-controlled) Max Milling Depth 70mm (Engineered Stone) Sawing Speed 12m/min (Diamond Blade) Work Area 3500×2100mm (Customizable) Power Consumption 28.2kW (35% Energy Saving) Ideal For
◼ Kitchen countertop sink cutout & edge polishing in one pass
◼ Bathroom vanity faucet slot milling
◼ Commercial bar tops recessed fixture machining
◼ High-volume quartz window sill chamfering & trimmingLaunch Promotion
📅 Order before 2025/7/31 to get:
① 15% off first consumables order
② Dedicated tech support 7×12hr
③ 3-year spindle warranty extensionCall to Action
📞 +86-182-0602-1758
Hualong
3YR
China
Fujian Province Hualong Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$12000-13000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Horizontal cutting,vertical cutting,and 45 degree chamfering on all sides of the boad.Cutting diamond,circular trapezoidal,fan-shaped,elliptical,polygonal,horse belly edge,drain basin,L-shaped corner.Cutting various irregular shaped,opening basin in the table,basin under the table,and irregular basin holes,supporting CAD mapping, achieving dust-free processing.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
$20000-30000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
ZDQJ-450-600-700-800, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary
encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide
post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality
materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easyoperation, specially high value granite and big size marble.
Xianda
1YR
China
XIAMEN XIANDA TRADING CO., LTD.
Contact Supplier
Have a Question? Ask our expert
Ask now
