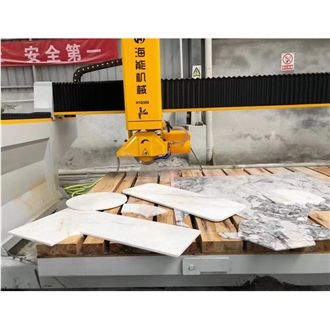

3-Axis (Rock Board) Bridge Cutting Machine
FOB Price:$12750-15450
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
Features
Small area: only 15 square meters (length 5 meters × width 3 meters).
Simple operation: Touch-type man-machine interface, intuitive operation.
High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
High precision: All motion pairs adopt high-precision linear guides, with high-precision helical gear transmission, and high precision.
Intelligent: All sports pairs are automatically greased and lubricated to escort the sports pairs.
Energy saving and consumption reduction: Permanent magnet synchronous main motor can be selected, which can save 30% electricity compared with three-phase asynchronous motor.
Ingenuity manufacturing: every detail of the design and manufacturing allows you to feel the excellent quality of meticulous craftsmanship and excellence!
Product Usage
This series of models is suitable for cutting building materials such as rock slabs, ceramic tiles, marble, artificial stone, granite, cement products, etc. It is an ideal equipment for small and medium-sized factories and processing shops.
Corresponding model main function
HTQ350A: automatic cutting specification board + plane slotting (drawing)······
HTQ350B: automatic cutting specification board + semi-automatic double-sided chamfering + plane slotting (drawing)······
HTQ350C: automatic cutting specification board + automatic double-sided chamfering + plane slotting (drawing) + stove + (square) basin hole + line profiling (optional)······
Small area: only 15 square meters (length 5 meters × width 3 meters).
Simple operation: Touch-type man-machine interface, intuitive operation.
High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
High precision: All motion pairs adopt high-precision linear guides, with high-precision helical gear transmission, and high precision.
Intelligent: All sports pairs are automatically greased and lubricated to escort the sports pairs.
Energy saving and consumption reduction: Permanent magnet synchronous main motor can be selected, which can save 30% electricity compared with three-phase asynchronous motor.
Ingenuity manufacturing: every detail of the design and manufacturing allows you to feel the excellent quality of meticulous craftsmanship and excellence!
Product Usage
This series of models is suitable for cutting building materials such as rock slabs, ceramic tiles, marble, artificial stone, granite, cement products, etc. It is an ideal equipment for small and medium-sized factories and processing shops.
Corresponding model main function
HTQ350A: automatic cutting specification board + plane slotting (drawing)······
HTQ350B: automatic cutting specification board + semi-automatic double-sided chamfering + plane slotting (drawing)······
HTQ350C: automatic cutting specification board + automatic double-sided chamfering + plane slotting (drawing) + stove + (square) basin hole + line profiling (optional)······
Technical Data
Parameters |
Unit |
HTQ350A Basic type |
HTQ350B Chamfer type |
HTQ350C Basin type |
Max. chamfer size |
mm |
3000×1800×50 |
3000×1800×50 |
3000×1800×50 |
Total power |
kw |
20.2 |
20.2 |
20.2 |
Saw blade horizontal rotation angle |
° |
0-90° |
0-90° |
0-90° |
Gross weight |
kg |
3500 |
3500 |
3500 |
Max. working dimensions(L×W×H) |
mm |
3200×2000×50 |
3200×2000×50 |
3200×2000×50 |
Chamfer orientation |
° |
None |
0-90° |
0-90° |
Working table tilting angle |
° |
0-85° |
0-85° |
0-85° |
Host frequency conversion |
Optional |
Optional |
Optional |
|
Water Consumption |
m³/h |
3.5 |
3.5 |
3.5 |
Blade diameter |
mm |
350 |
350 |
350 |
Working table dimensions(L×W) |
mm |
3200×2000 |
3200×2000 |
3200×2000 |
Main motor power |
kw |
15 |
15 |
15 |
Saw blade inclination angle |
° |
None |
0-45° |
0-45° |
Machine width |
mm |
3000 |
3000 |
3000 |
Machine length |
mm |
5000 |
5000 |
5000 |
Working table rotating angle |
° |
Default: None(Optional) |
Default: None(Optional) |
Default: None(Optional) |
Machine height |
mm |
2400 |
2400 |
2400 |
