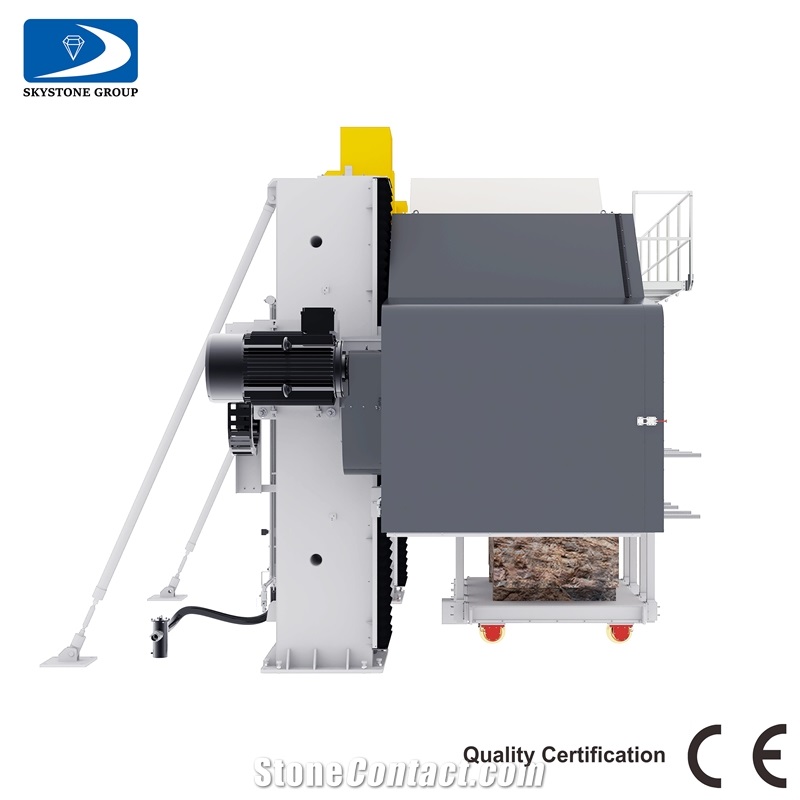

Skystone Multi-Wire Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone
After-Sale
Lead Time:
3 months
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
6YR
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
Contact supplier
Machinery Function Features
The latest triangle structure technology, higher cutting efficiency, and the stability of running.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Designed by the man-machine intelligent system, convenience for operate, and has the full function of perfect production safety.
Matching use Skystone multi-wire saw, with the high cutting quality, long life of wire, improve production efficiency and reduce comprehensive cost input.
The machine has the advantages of low energy consumption, high versatility of accessories and low comprehensive cost of use and maintenance.
The world's top after-sales service, rapid response to customer needs, to provide a complete set of customized cutting process production technical solutions.
Technical Data
Parameters |
Unit |
SMW12 |
SMW14/16 |
SMW32/34 |
SMW50/52 |
SMW54 |
SMW74/76 |
SMW80/86 |
Slab thickness |
mm |
20/30/40/50 |
20/30/40/50 |
20/30/50/70/80/90 |
20/30/40/50/60/70/80 |
20/30/50/70/80/90 |
20/30/40/50/60/70/80 |
20/30/50/70/80/90 |
Machine weight |
t |
16 |
16.5 |
28 |
42 |
42 |
52 |
53 |
Total power |
kW |
82.95 |
82.95 |
169.45 |
236.25/261.25 |
236.25/261.25 |
293.25/328.25 |
293.25 |
Wire diameter |
mm |
7.3 |
6.3 |
7.3 |
7.3 |
5.5 |
6.3 |
5.5 |
Maxcut length |
mm |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
3500 |
Cooling water |
L/min |
200 |
200 |
500 |
750 |
750 |
1100 |
1100 |

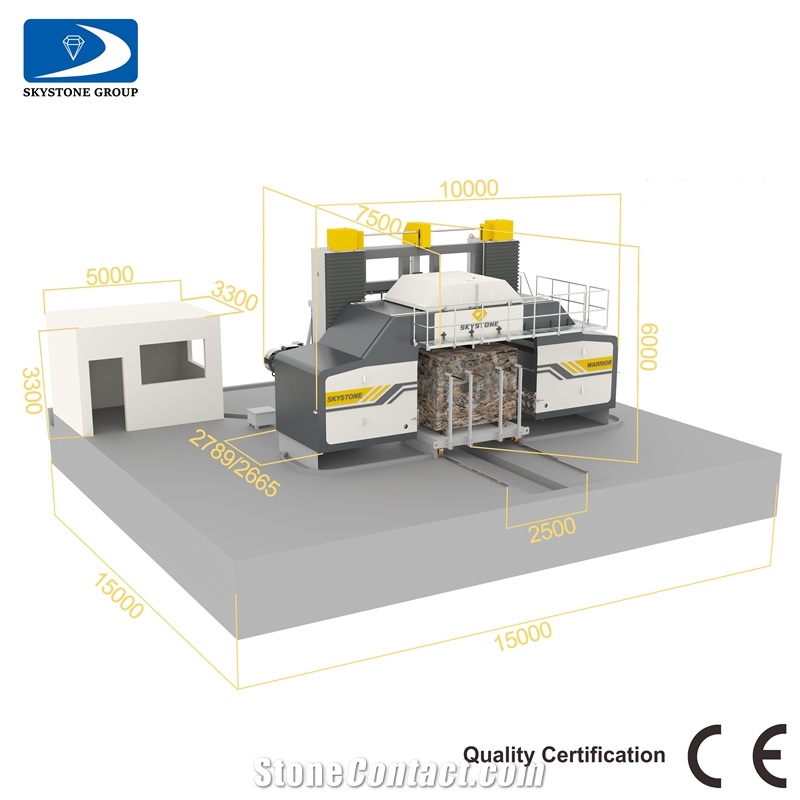

Machine size |
m |
8.9*2.6*5.7 |
8.9*2.7*5.7 |
9.2/4/5.8 |
9.8*4.5*5.8 |
9.8*4.5*5.8 |
10*7.4*6 |
10*7.5*6 |
Tension |
kg |
200-250 |
190-210 |
220-250 |
220-250 |
170 |
220-250 |
160-170 |
Wire quantities |
pcs |
12/9/8/6 |
14/11/9/7 |
32/24/16/12/11/10 |
50/38/25/19/17/15 |
54/41/27/21/18/17 |
74/55/37/28/25/22 |
80/60/40/30/27/24 |
Wire length |
m |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
Line-speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
0-40 |
Maxcut height |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
Main motor power |
kW |
75 |
75 |
160 |
225/250 |
225/250 |
280/315 |
280 |

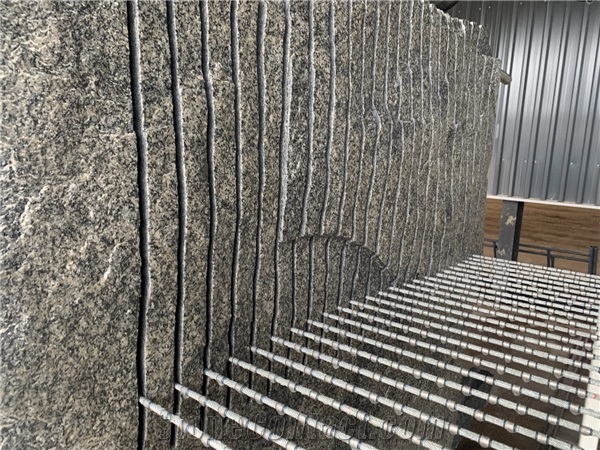

Processed Stone Photos
-

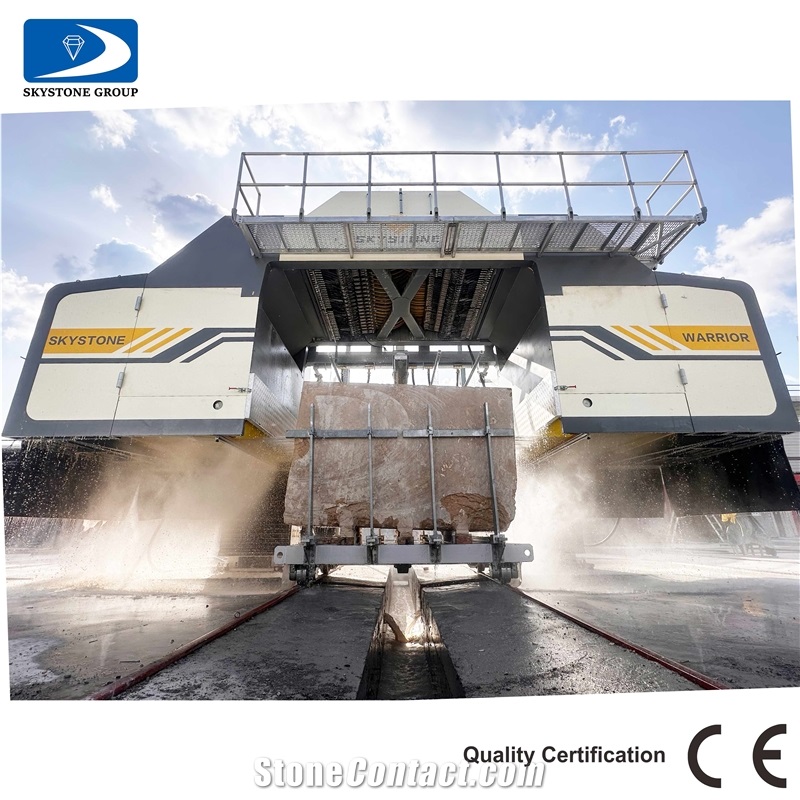

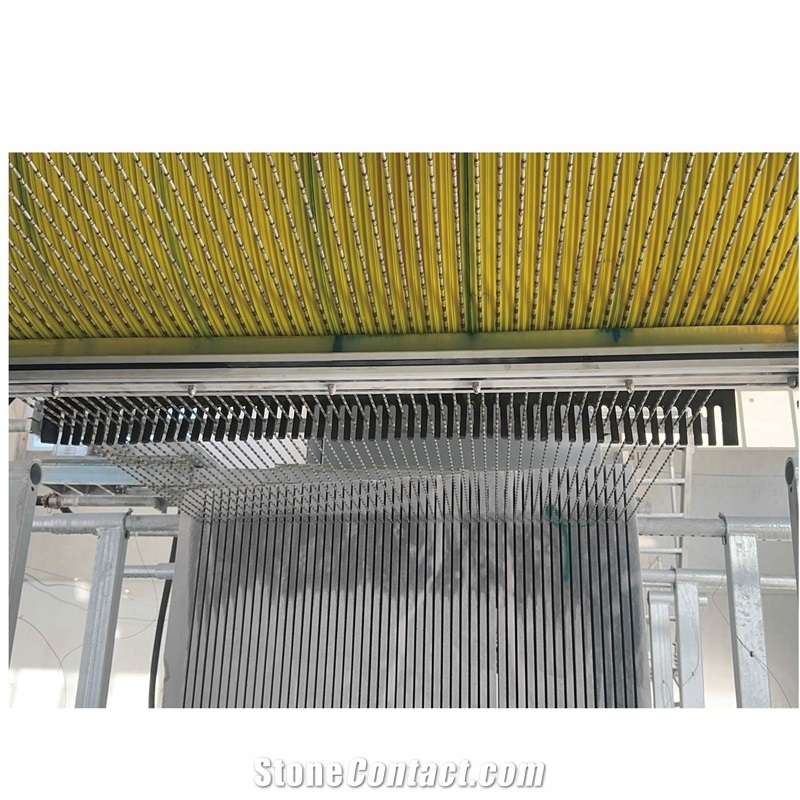

Cutting
Components
-
Driving wheel

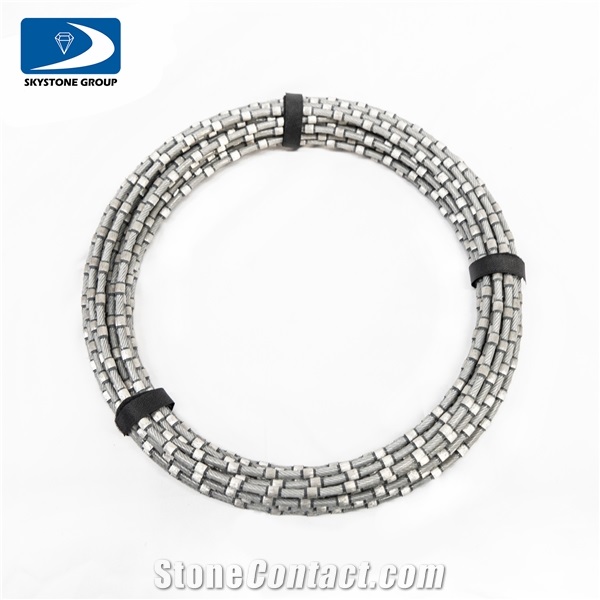

Consumables
-
Diamong wire

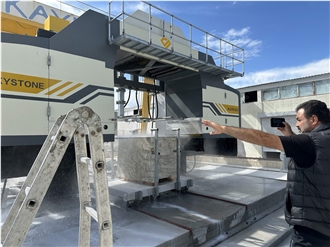

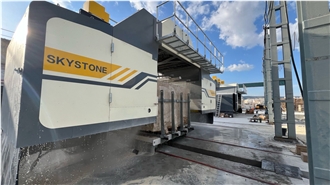

Customer Case
