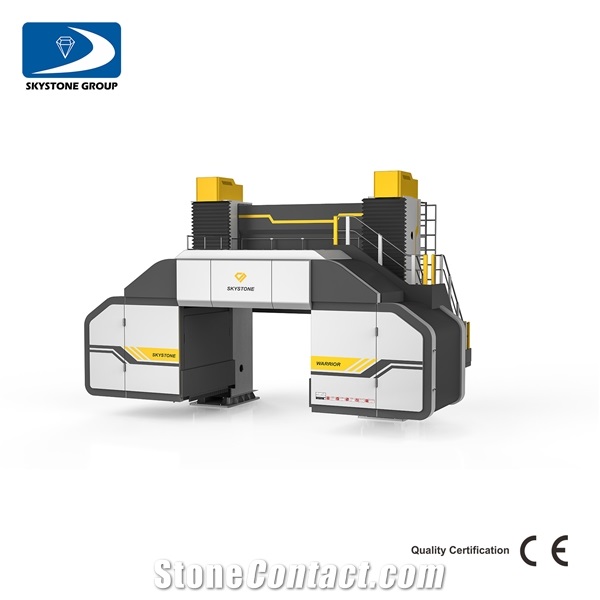

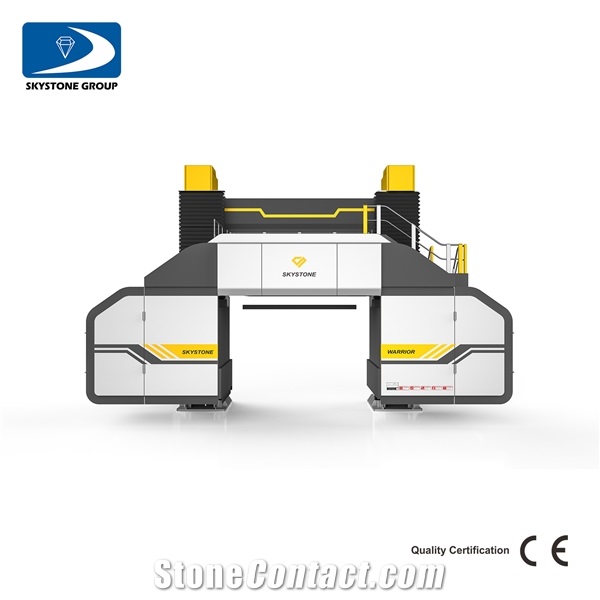

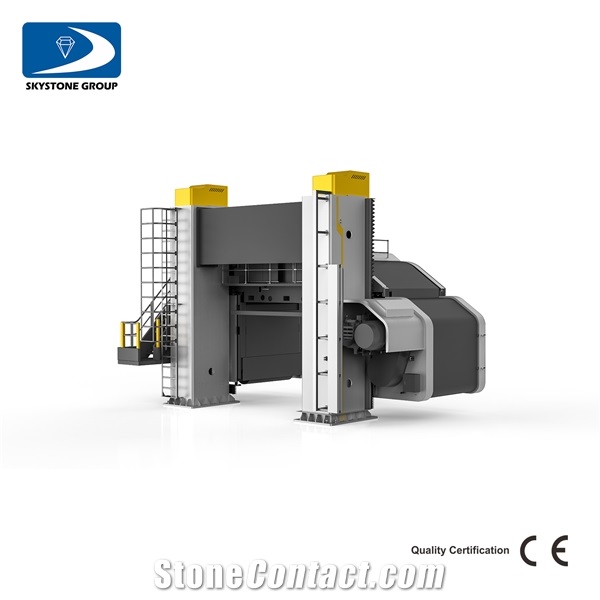

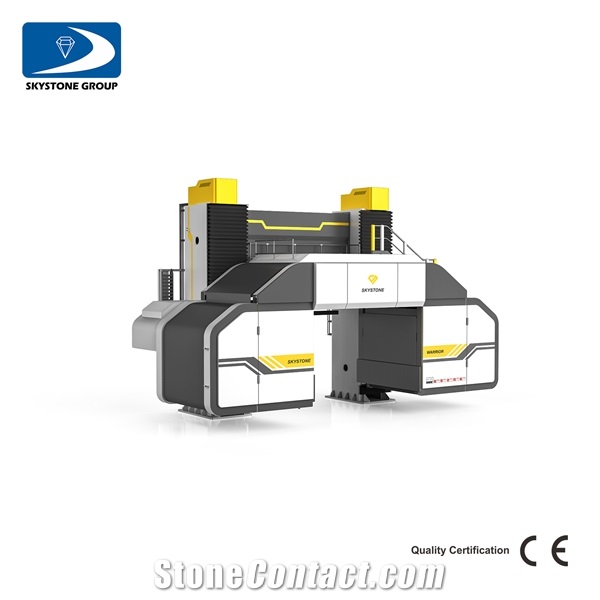

Sturdy Structure Skystone Multi Wire Machine
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3-4 month
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
6YR
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
Contact supplier
Machinery Function Features
1.This multi-rope sawing machine can be used for large slab cutting and stone processing and cutting.
2.The most important feature is that it has a small footprint, low noise pollution, good cutting board quality, and simple operation. Our group sawing machine is high-efficiency and low-efficiency. 3.We can cut a wide range of stones; the cooling water used in the cutting process can also be recycled and reused without causing waste.
2.The most important feature is that it has a small footprint, low noise pollution, good cutting board quality, and simple operation. Our group sawing machine is high-efficiency and low-efficiency. 3.We can cut a wide range of stones; the cooling water used in the cutting process can also be recycled and reused without causing waste.
Technical Data
Parameters |
Unit |
SWM12 |
SWM32 |
SWM50 |
SWM74 |
Maxcut length |
mm |
3400 |
3400 |
3400 |
3400 |
Total power |
KM |
65 |
145 |
273 |
304 |
Tension |
kgf |
150~280 |
150~280 |
150~280 |
150~280 |
Wire quantities |
pcs |
12/9/6/5 |
32/24/16/12/11 |
50/38/25 |
74/56/37 |
Wire diameter |
mm |
7.3 |
7.3 |
7.3 |
7.3 |
Machine weight |
t |
20 |
38 |
52 |
70 |
Slab thickness |
mm |
20/30/50/70 |
20/30/50/70 |
20/30/50 |
20/30/50 |
Maxcut height |
mm |
2200 |
2200 |
2200 |
2200 |
Wire length |
m |
20 |
20 |
20 |
20 |
Main motor power |
KM |
55 |
132 |
250 |
280 |
Line-speed |
m/s |
0-40 |
0-40 |
0-40 |
0-40 |
Machine size |
m |
10*2.5*6.5 |
10*4*6.5 |
10*5*6.5 |
10*5.5*6.5 |
Cooling water |
L/min |
180 |
500 |
700 |
1100 |
Work Example
please click www.fztsy.net for more information.

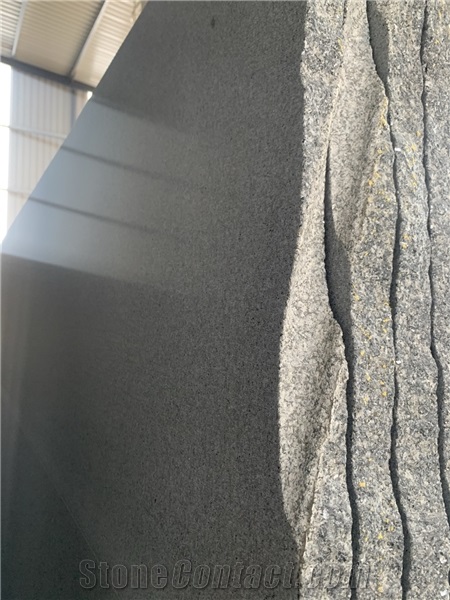

Processed Stone Photos
-
slab
Components
-
multi wire
¥Payment Required

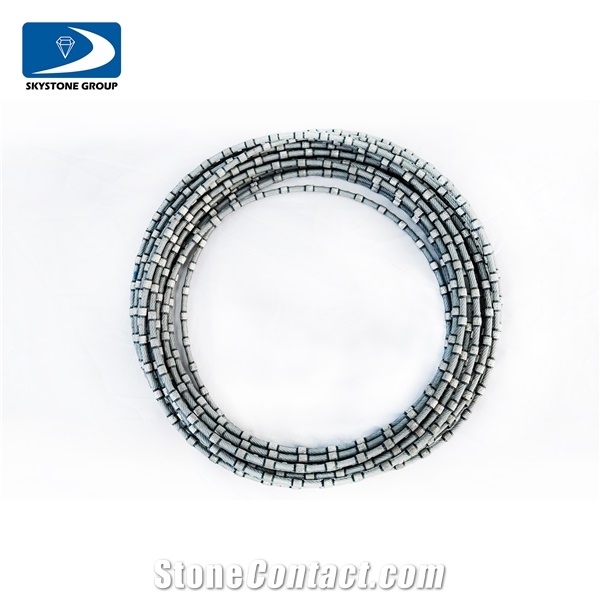

Consumables
-
multi wire
